24" Wide Built-In All-Freezer, ADA Compliant

SKU: ALFZ53P
Lavender purple door finish brings modern elegance under the counter
Estimated Time to Ship:

3 to 5 days

32.0" H x 23.63" W x 22.63" D
(81cm H x 60cm W x 57cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Width 23.63" (60 cm)
Depth 22.63" (57 cm)
Depth with Handle 24.13" (61 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 3.7 cu.ft. (105 L)
Defrost Type Frost-Free
Door Purple
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 345.0kWh/year
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 92.0 lbs. (42 kg)
Shipping Weight 106.0 lbs. (48 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101087672
Freezer
Door Swing RHD
Reversible Yes
Interior Height 23.5" (60 cm)
Interior Width 18.75" (48 cm)
Interior Depth 15.5" (39 cm)
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.31 oz.
High Side PSI 270.0
Low Side PSI 105.0
Level Legs 4
Compressor Step Height 3.75" (10 cm)
Compressor Step Width 18.75" (48 cm)
Compressor Step Depth 4.5" (11 cm)
Temperature Range -11°F to 11°F
Sabbath Mode Yes
Sound Level 33.7 dB

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Built-in capable

Make the best use of space by installing your freezer under the counter and flush with other cabinets

Frost-free operation

No-frost convenience eliminates the need to manually defrost the unit

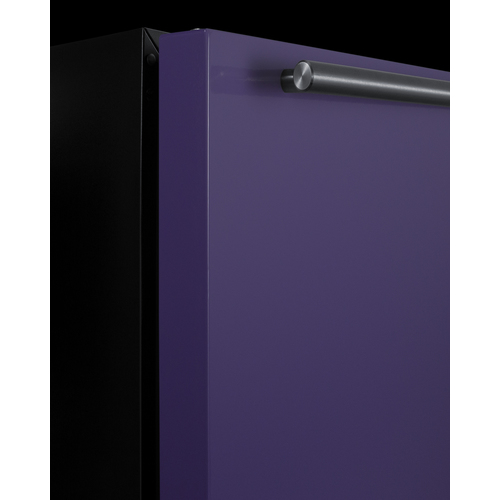

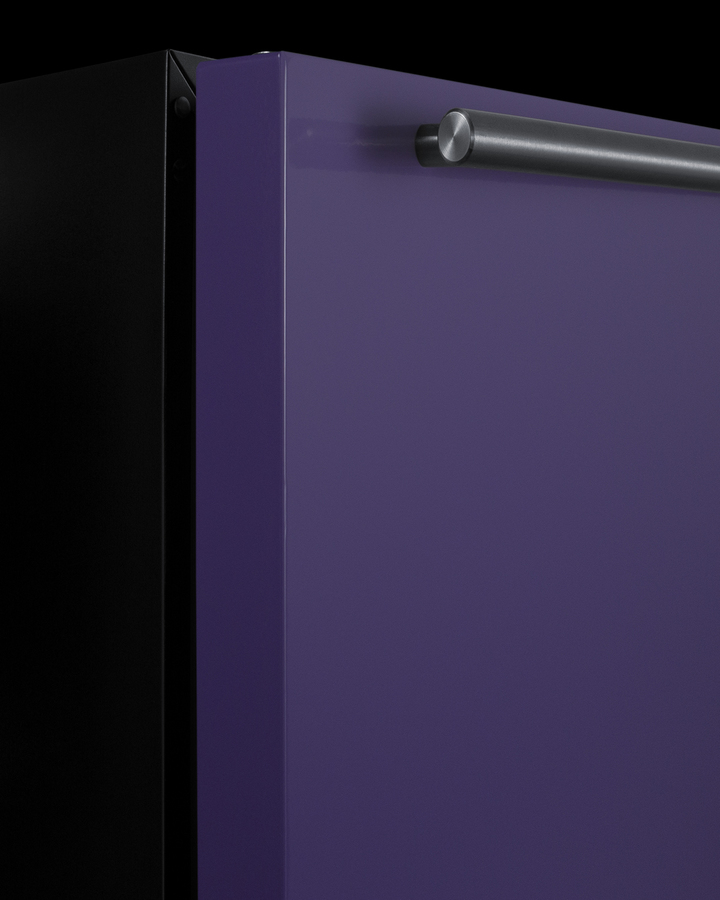

Lavender purple door

Elegant purple finish with a slight gloss to elevate your undercounter space

Professional handle

Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look

Digital thermostat

Electronic controls offer easy and intuitive temperature management

Recessed LED light

Elegant lighting with an on/off switch located on the control panel

Reversible door

User-reversible door swing for added flexibility

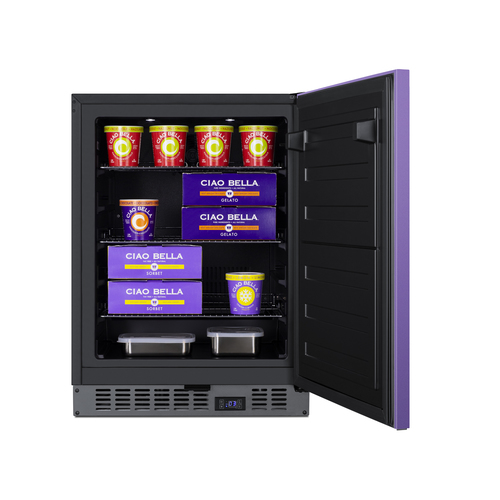

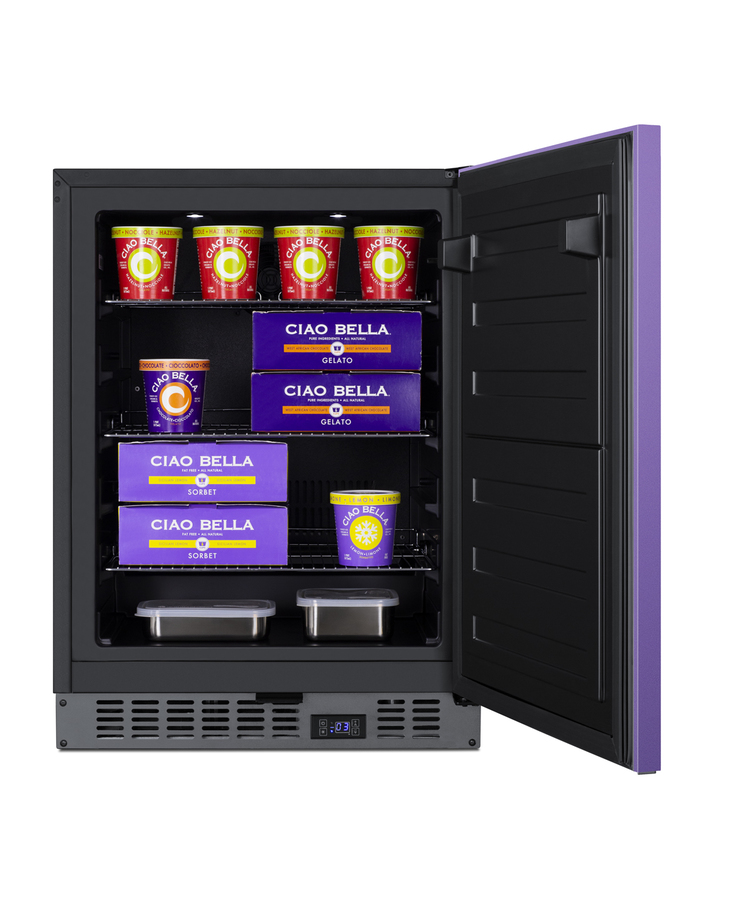

Adjustable shelves

Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Factory installed lock

Keyed lock for a secure interior (2 keys included)

Open door alarm

Audible alarm will sound if the door is left open longer than one minute

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

High temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Stainless steel kickplate

Added touch of style to complement the handle and complete the look

Sealed back

Space-saving design with no exposed coils for easier cleanability

Matching refrigerator available

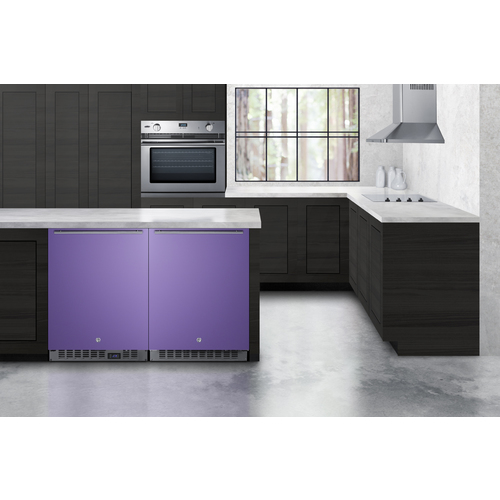

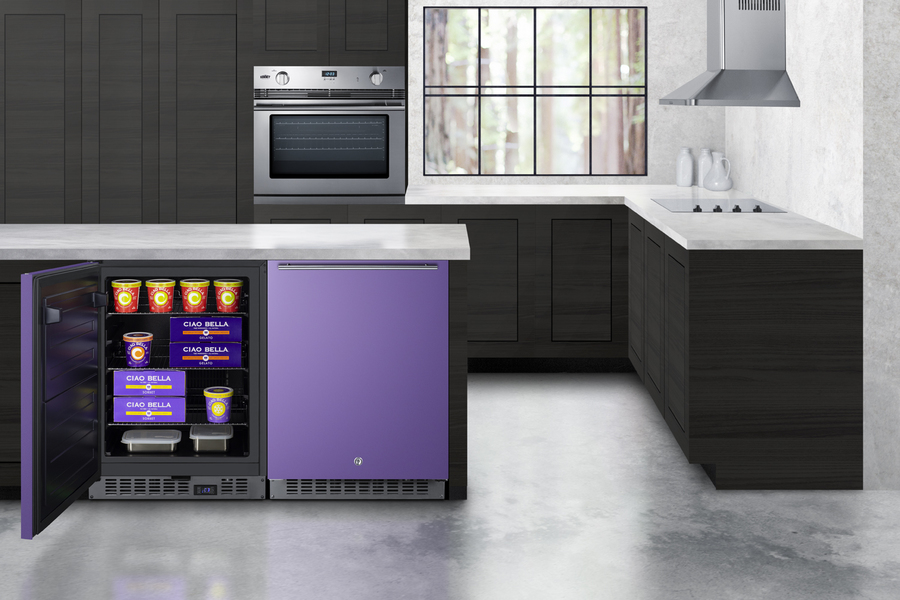

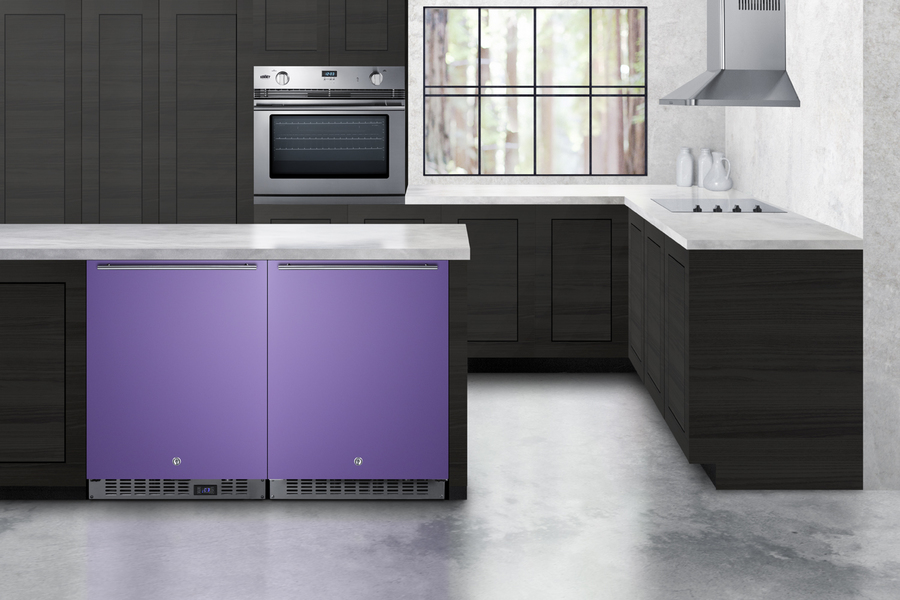

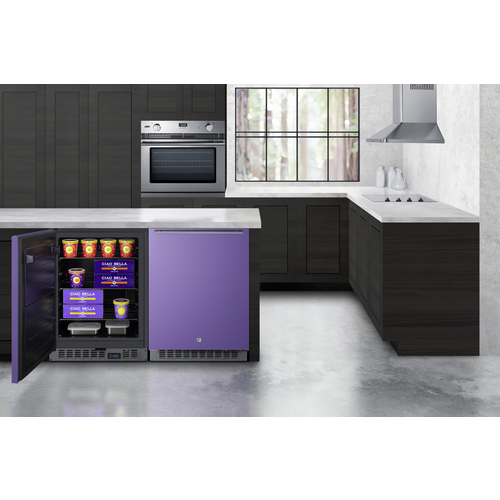

Pair with the AL54P for a matching side-by-side set under lower ADA compliant counters

Fully finished cabinet

Allows the freezer to be used as a freestanding model

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Make a statement under the counter with Summit's exclusive collection of boldly colored refrigerators and matching freezers.

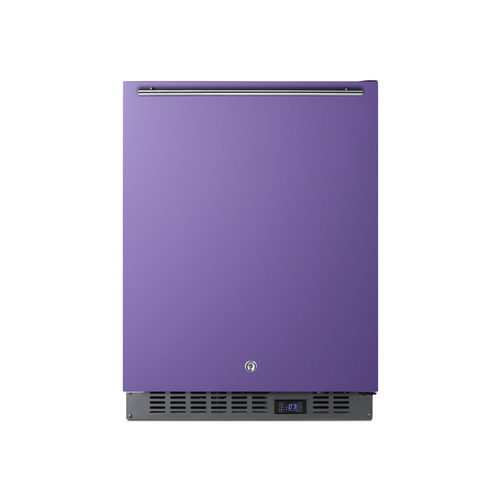

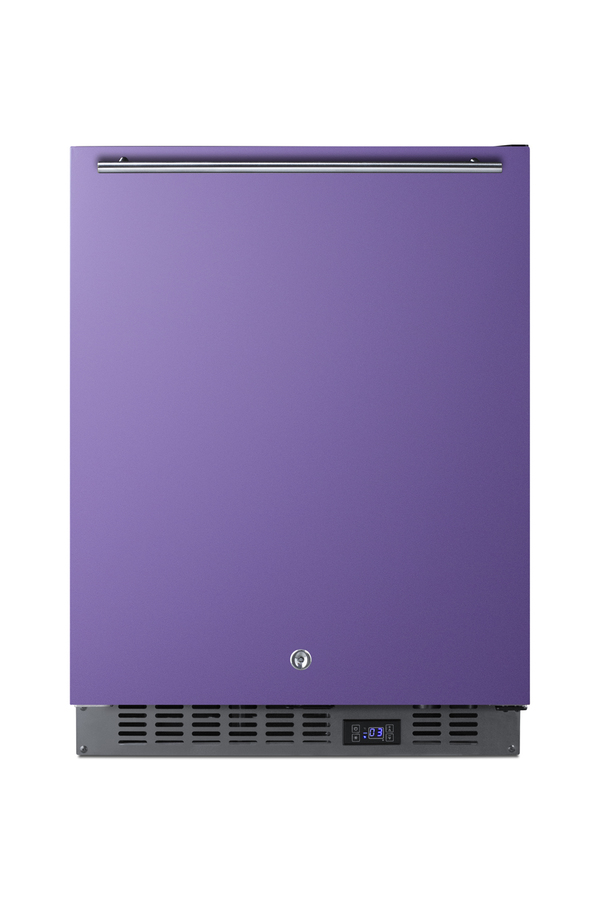

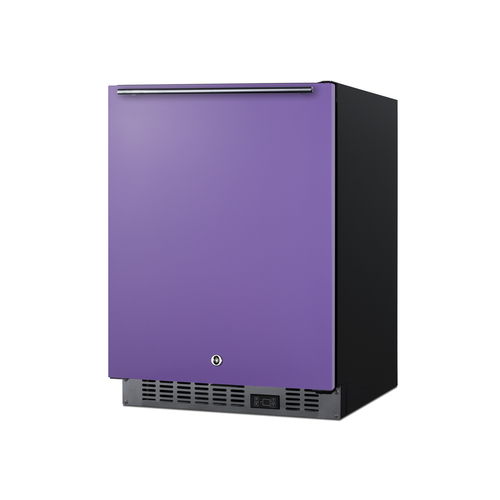

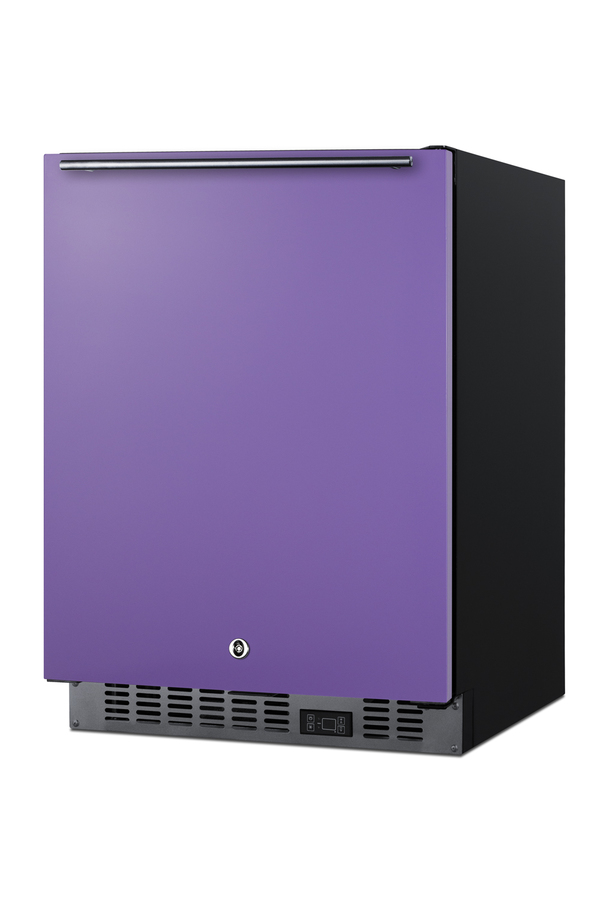

Model ALFZ53P is a 24" wide freezer sized at just 32" high for easy installation under lower ADA compliant counters. The front-breathing cooling system allows built-in use, while the fully finished black cabinet also enables freestanding applications. The door finish comes in an attractive lavender purple hue, with a sleek horizontally mounted stainless steel handle and matching stainless steel kickplate to complete the unique look.

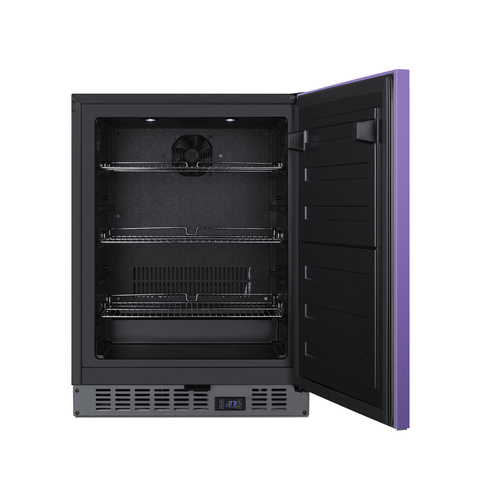

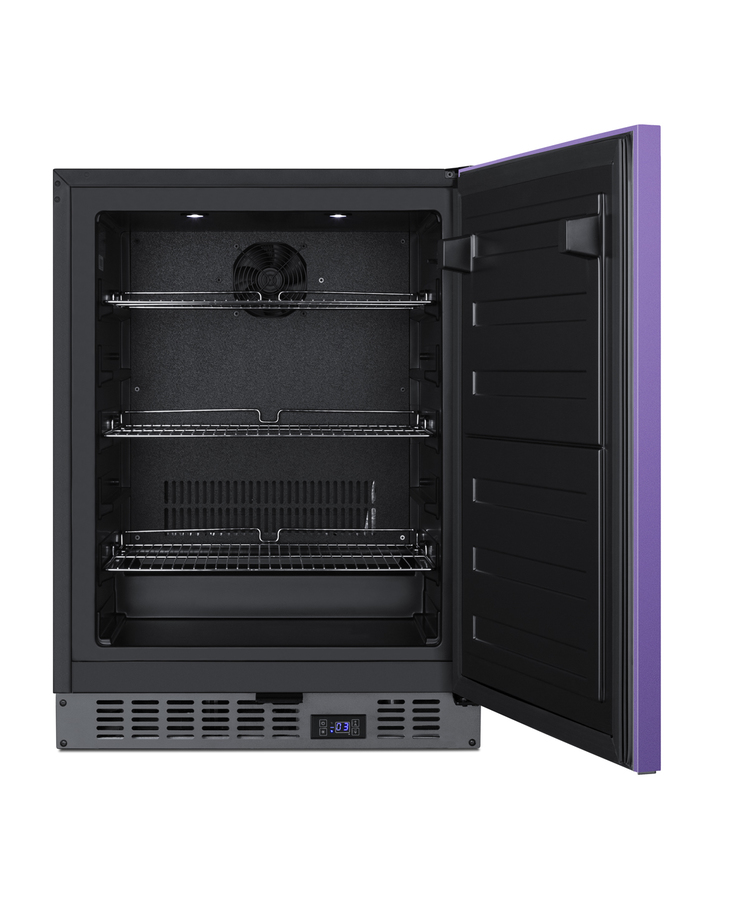

Inside, the ALFZ53P utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat (located in the kickplate) makes it easy to manage the interior temperature. Three adjustable chrome shelves can be set at five different positions to best accommodate your storage needs. An open door alarm and high temperature alarm audibly warn if stored items are being exposed. An optional Sabbath mode setting lets you disable some of the electrical elements during periods of observance.

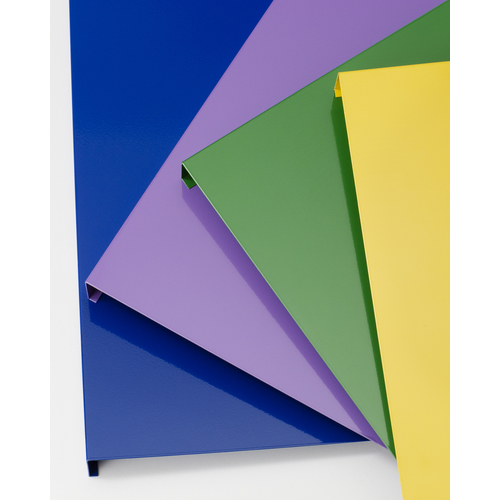

Additional features include a factory-installed lock for optional security, user-reversible door swing to best fit your space, right angle plug to save on depth, and sealed rear to ensure easier cleaning. The ALFZ53P can be paired with the AL54P all-refrigerator to create a matching undercounter ADA compliant set. Additional colors are available, including saffron gold, emerald green, and cobalt blue. Browse the full Summit selection to find the perfect addition to your kitchen.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
