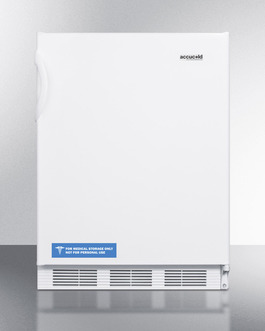

AL750

Sized for use in ADA compliant settings

32.25" H x 23.63" W x 23.5" D

(82cm H x 60cm W x 60cm D)

OVERVIEW

  • 32" height for use in ADA compliant settings
  • Automatic defrost ensures minimum user maintenance
  • Full 5.5 cu.ft. capacity inside a convenient 24" footprint
  • Seamless interior for easier cleanup
  • Made in Europe

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.0" (61 cm)
Depth with door at 90° 45.13" (115 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 102.0 lbs. (46 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.8oz.
High Side PSI 285.0
Low Side PSI 88.0
Level Legs Qty 4
Interior Light Yes
Dimensions
Interior Height 26.25" (67 cm)
Interior Width 21.0" (53 cm)
Interior Depth 17.75" (45 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 5.5" (14 cm)

AVAILABLE UPGRADES

Exterior
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DT Digital Thermostat
Install a digital thermostat with external readout for precise temperature management
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SS Hinges
Stainless steel top and bottom hinges
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD
Door reversal to left hand swing
Latch
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Lock
L-Installed Lock
Add a single key lock to the door with the L option
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Interior
FCGP - Fan w/Gel Packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

WHERE TO BUY

Invalid Format

DESCRIPTION

Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The AL750 Series features 24" wide all-refrigerators sized for freestanding use in ADA compliant settings.

The AL750 is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. Designed for freestanding use, this model has a white exterior and user-reversible door swing.

Inside, the AL750 utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable wire shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.

For a built-in version of this unit, see the AL750BI. For more finish options, browse the entire AL750 Series.

NOTE: This unit is designed for general purpose, medical, or commercial applications and does not meet DOE energy standards for residential use.

FEATURES

ADA Compliant
32" height for use in settings complying with ADA guidelines for lower counter height
Slim counter height dimensions
Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit
Automatic defrost
Reduced user maintenance with automatic defrost operation
Hidden evaporator
Cold wall design with hidden evaporator and seamless interior
One-piece interior liner
Seamless interior ensures easy cleanup
Adjustable thermostat
Control your food's temperature with ease and accuracy
Reversible door
User-reversible door swing for added flexibility
Adjustable shelves
Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Interior light on rocker switch
Turn the light on when you need it and off when you're done with a convenient rocker switch located just behind the thermostat
Deep shelf space
Interior accommodates large trays up to 19 1/2" x 15 1/2"
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.0" (61 cm)
Depth with door at 90° 45.13" (115 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 102.0 lbs. (46 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.8oz.
High Side PSI 285.0
Low Side PSI 88.0
Level Legs Qty 4
Interior Light Yes
Dimensions
Interior Height 26.25" (67 cm)
Interior Width 21.0" (53 cm)
Interior Depth 17.75" (45 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 5.5" (14 cm)

AVAILABLE UPGRADES

Exterior
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DT Digital Thermostat
Install a digital thermostat with external readout for precise temperature management
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SS Hinges
Stainless steel top and bottom hinges
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD
Door reversal to left hand swing
Latch
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Lock
L-Installed Lock
Add a single key lock to the door with the L option
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Interior
FCGP - Fan w/Gel Packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
AL750.pdf
Download
TECHNICAL DRAWING (.dwg)
AL750FEFRIGERATOR.dwg


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
