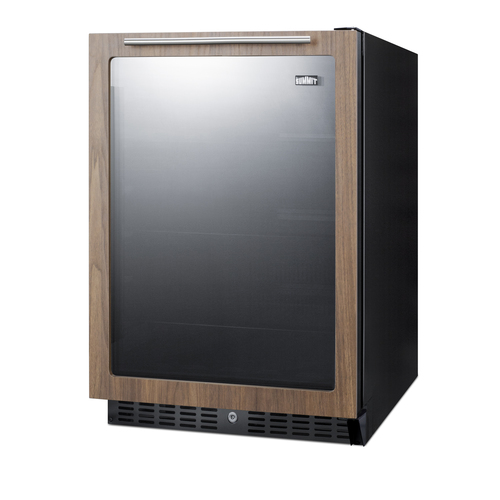

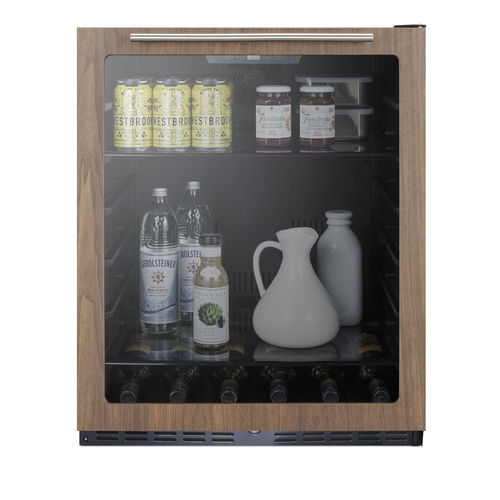

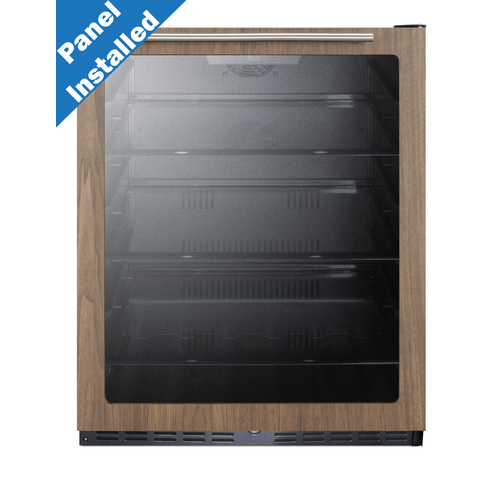

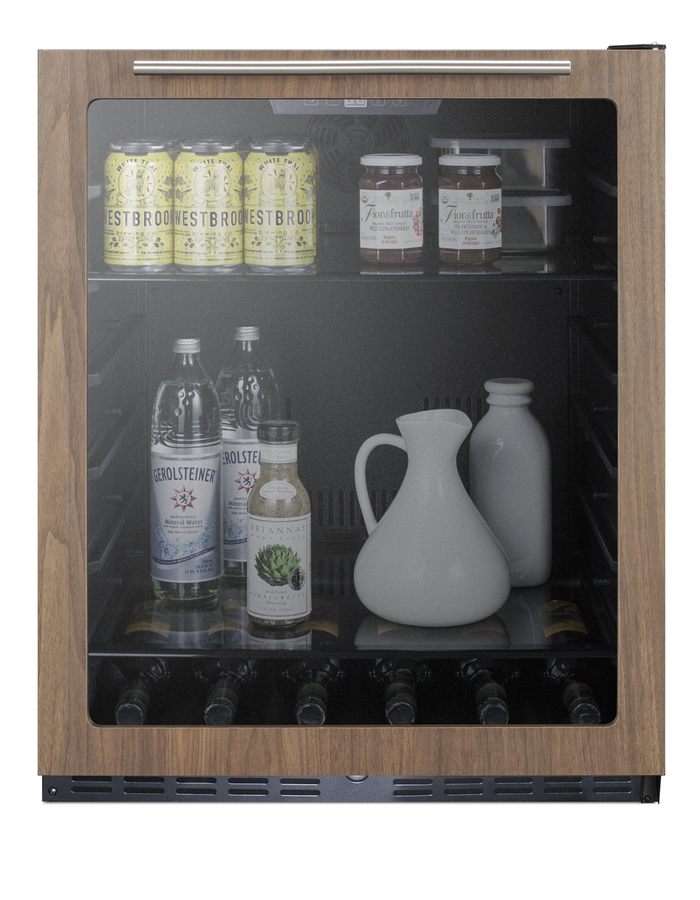

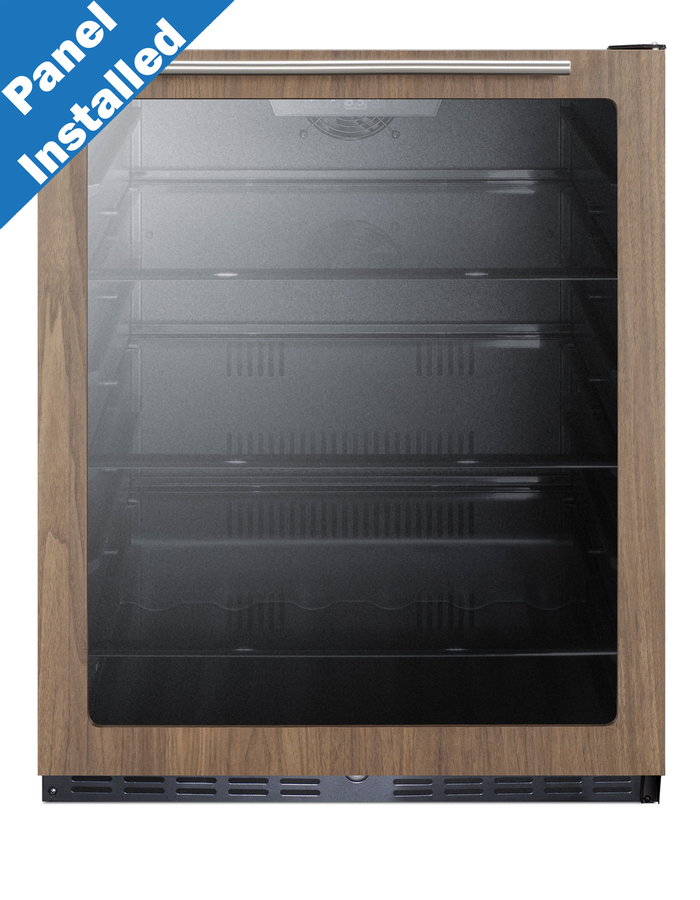

24" Wide Built-In Beverage Center With Wood Door Trim, ADA Compliant
(81cm H x 60cm W x 59cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 32.0" (81 cm) |
| Width | 23.63" (60 cm) |
| Depth | 23.38" (59 cm) |
| Depth with Handle | 24.88" (63 cm) |
| Depth with door at 90° | 45.0" (114 cm) |
| Capacity | 5.0 cu.ft. (142 L) |
| Defrost Type | Frost-Free |
| Door | Glass with Walnut Panel Trim |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Energy Usage/Year | 290.0kWh/year |
| Amps | 1.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 125.0 lbs. (57 kg) |
| Shipping Weight | 142.0 lbs. (64 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101077772 |
|
Refrigerator Features
|
|
| Sabbath Mode | Yes |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Glass |
| Shelf Qty | 3 |
| Adjustable Shelves | Yes |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 0.99oz. |
| High Side PSI | 270.0 |
| Low Side PSI | 105.0 |
| Level Legs Qty | 4 |
| Interior Light | Yes |
| Temperature Range | 36 to 43ºF |
| Sound Level | 33.6 dB |
|
Dimensions
|
|
| Interior Height | 25.0" (64 cm) |
| Interior Width | 20.0" (51 cm) |
| Interior Depth | 17.5" (44 cm) |
| Compressor Step Height | 3.25" (8 cm) |
| Compressor Step Width | 20.0" (51 cm) |
| Compressor Step Depth | 5.25" (13 cm) |
AVAILABLE UPGRADES
| Door | |||||
|---|---|---|---|---|---|
|
|||||
| Exterior | |||||
|
FEATURES
32" height allows easy installation under lower ADA compliant counters
Front-breathing design lets you make the best use of space by installing your appliance under the counter
ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments
Door features engineered wood with a laminate finish in a walnut hue
Glass door offers a heat-safe view of the interior
Keyed lock for a secure interior
Thin 14mm diameter on stainless steel handle set horizontally across the door
No-frost operation for minimum user maintenance
Electronic controls located inside the unit for precise temperature management
Efficient and attractive presentation with LED lighting
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Floor is specially slotted to store wine and other bottles safely in place
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Comes with a right-hand door swing (NOTE: For a left-hand door swing, please select 'LHD' when purchasing. The door is not user-reversible)
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm sounds if the unit's interior goes out of the recommended range
Optional setting lets you disable the lighting and alarm for up to 96 hours
Unit will retain its last settings when power is restored in the event of power loss
Space-saving design that offers easier cleanability
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit's line of wood accented refrigeration solutions brings quality and style to any residential or commercial space. Sized with a convenient 24" footprint, the AL57GWP1 is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. This unit comes with a double pane tempered glass door with a pre-installed engineered wood trim in a walnut finish for added elegance and durability. A stainless steel handle mounted horizontally affords easy opening, while a factory installed lock in the kickplate offers additional security. The flush back design helps to make cleaning easier, while the right angle cord offers added space savings. This unit comes with a right-hand door swing. (NOTE: For a left-hand door swing, please select option 'LHD' when ordering. The door is not user-reversible.) Inside, the AL57GWP1 utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. The AL57GWP1 refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
YOU MIGHT NEED
PF1Kit

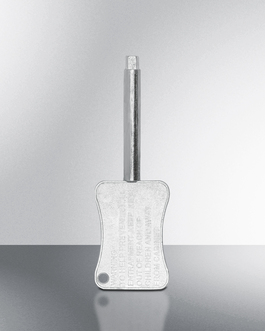

Key
