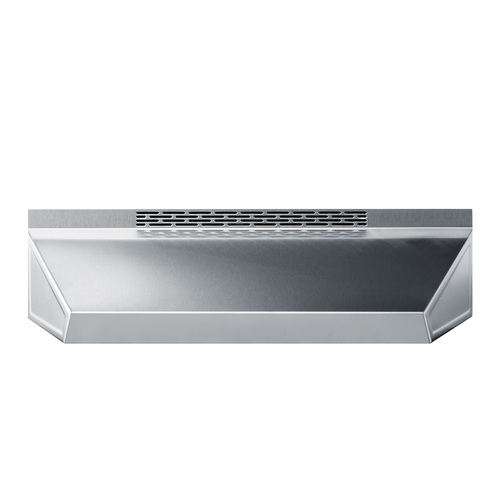

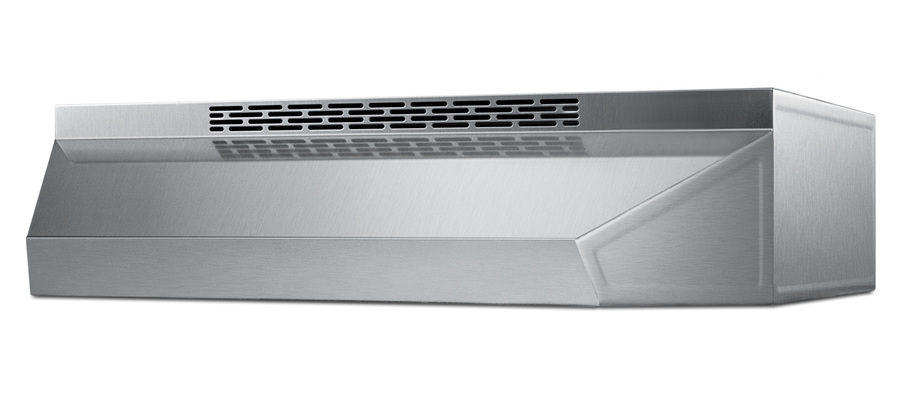

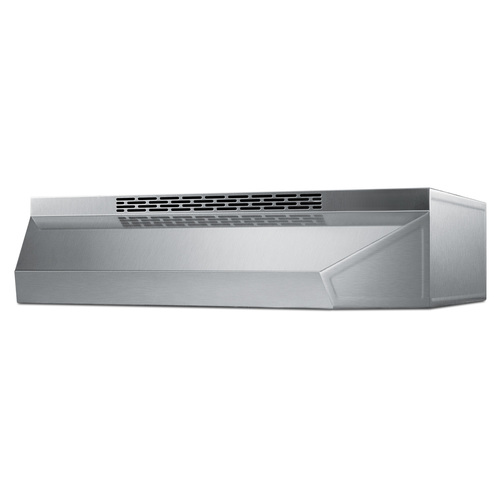

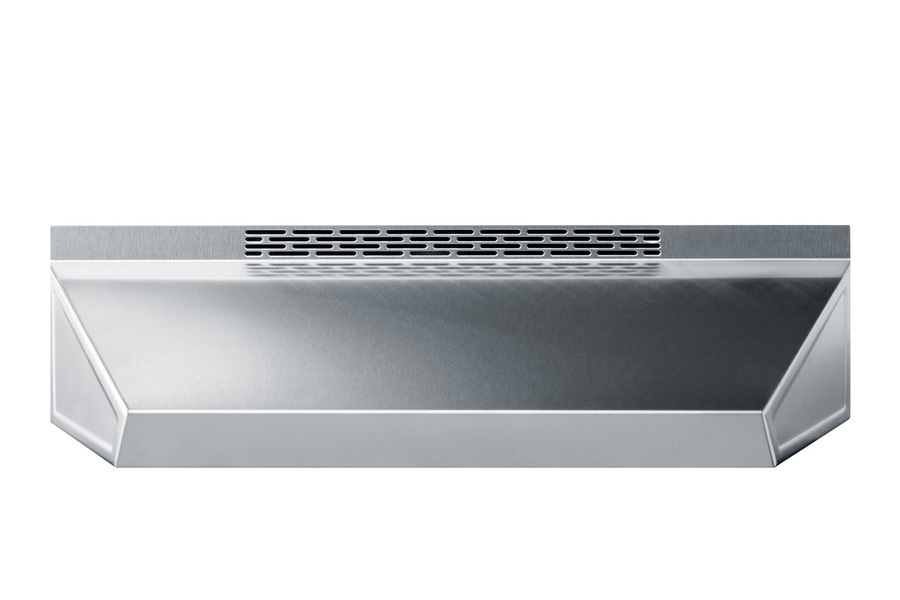

30" Under Cabinet Ductless Range Hood, ADA Compliant

SKU: ADAH1730SS
Specially designed for accessible use in ADA compliant kitchens
Estimated Time to Ship:

Next day shipping; multi-piece orders may extend lead time. Call 718-893-3900 ext. 507 to discuss

5.0" H x 30.0" W x 18.0" D
(13cm H x 76cm W x 46cm D)

Overview
Height of Cabinet 5.0" (13 cm)
Width 30.0" (76 cm)
Depth 18.0" (46 cm)
Cabinet Stainless Steel
US Electrical Safety UL
Weight 14.0 lbs. (6 kg)
Shipping Weight 20.0 lbs. (9 kg)
Parts & Labor Warranty 1 Year
UPC 761101064062
Range Hood
Installation Under Cabinet
Venting Recirculating
Number of Fan Speeds 2
Maximum Air Movement 160.0 CFM

ADA compliant design

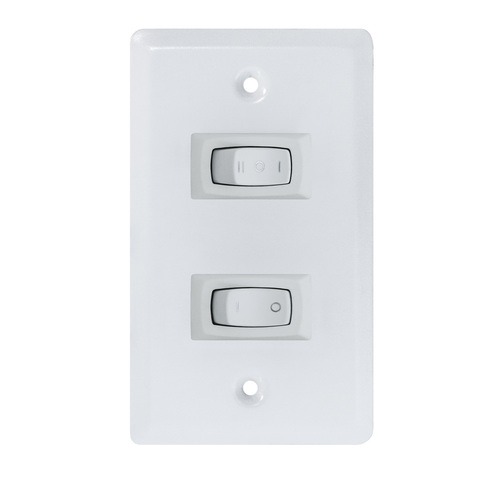

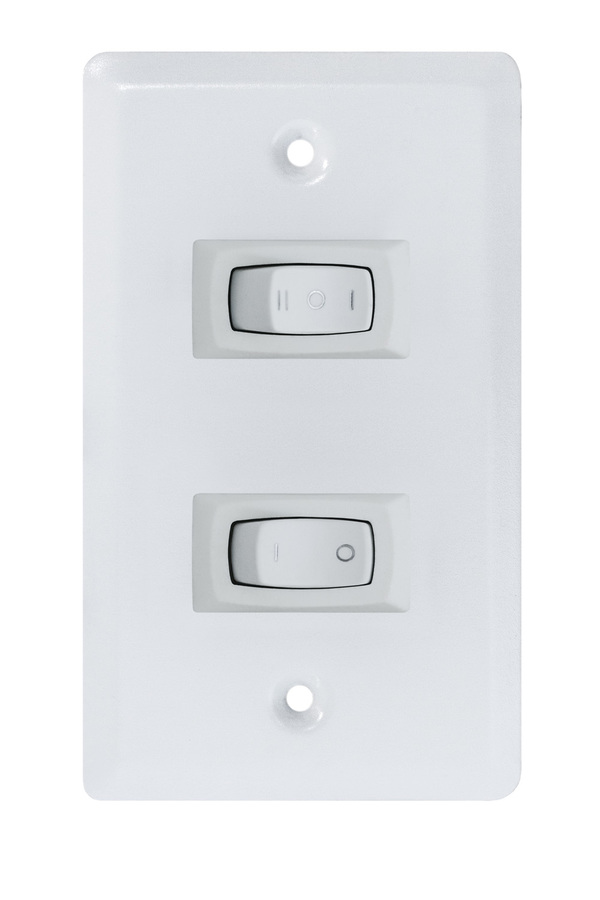

Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included

30" width

Designed to fit over commonly sized ranges and cooktops

Ductless range hood

Use for recirculating operation where no ducting to the outside is available

Stainless steel finish

White and black range hoods also available in this size and series

Two-speed fan

High and low setting gives you the right amount of power for most general cooking applications

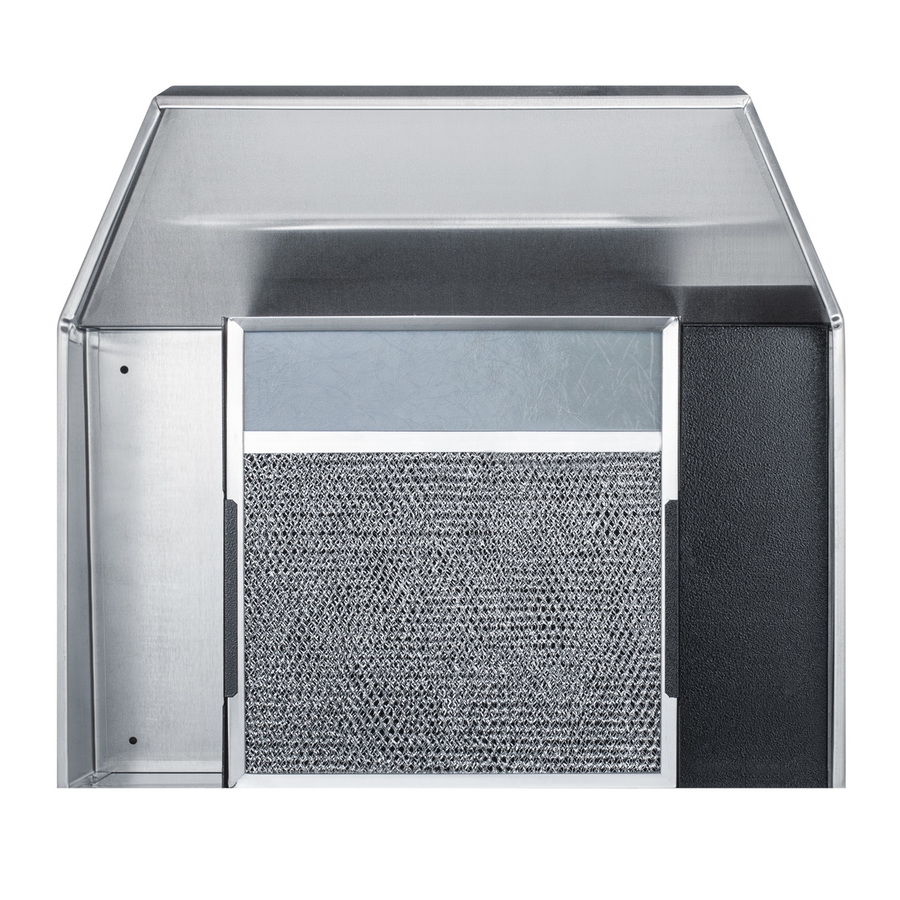

Dishwasher-safe aluminum filter

Removable mesh filter with solid construction and easy cleanability

Charcoal liner

Filter includes a charcoal liner for better absorption of grease and odors

Switchable light option

Unit can accept a light bulb (max 40W) with the switch included on the remote terminal block. Bulb is not included.

Made in the USA

Solidly constructed for years of use

More sizes available

Also available in 18", 20", 24", and 36" wide sizes

Ducted choices available by special order

For a ducted version of this hood, see the ADAH16 series

Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines.

The ADAH1730SS is designed and manufactured in the USA. Sized at 30 inches wide, this ductless (recirculating) hood features solid construction in brushed stainless steel. We include a remote terminal block and white wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines.

This range hood includes a 2-speed fan to meet light and heavy ventilation needs. The aluminum grease filter is dishwasher-safe for easy cleaning, with a charcoal liner included for improved absorption. The ADAH1730SS can accept a light (40W max; bulb not included).

In addition to this model, Summit also offers ducted low profile range hoods and European style choices, with sizes ranging from 18 inch to 36 inch wide. Browse our website to explore our complete selection.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
