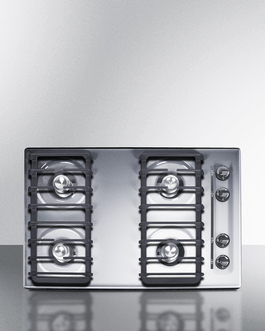

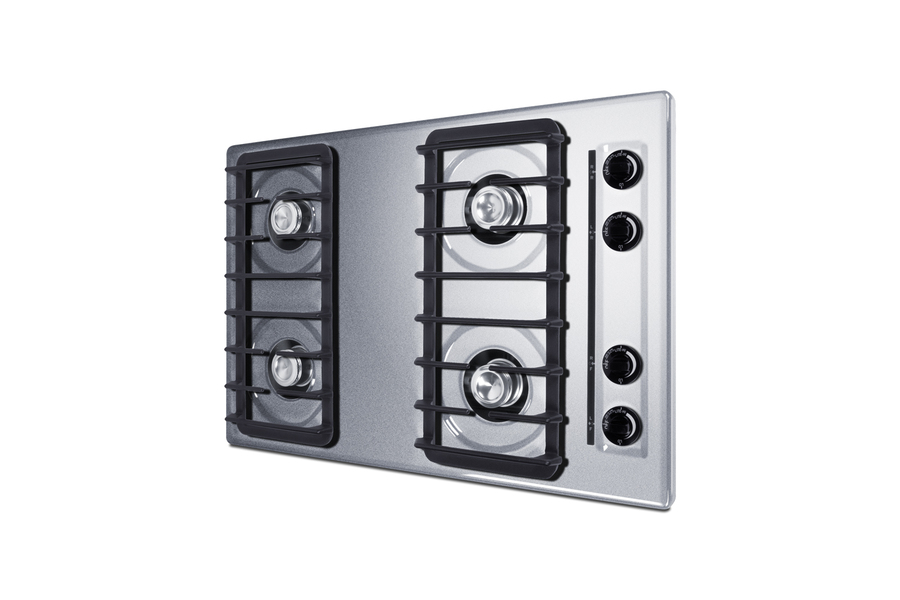

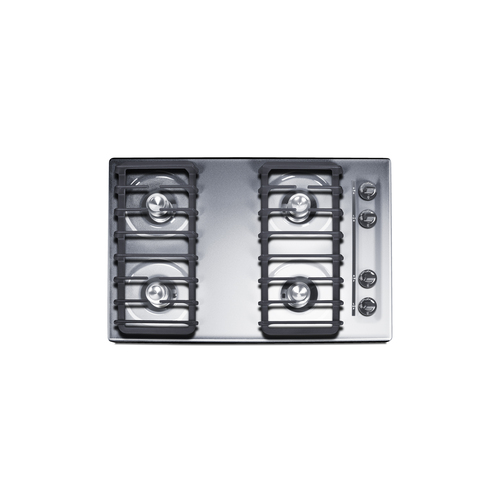

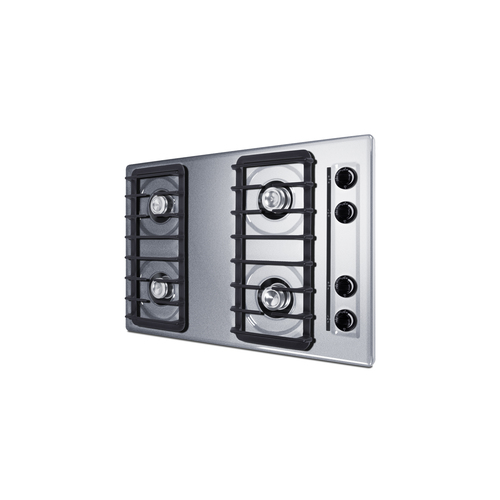

30" Wide 4-Burner Gas Cooktop

SKU: ZNL053I

Made in the USA, with continuous cast iron grates included

Estimated Time to Ship:

Next day shipping; multi-piece orders may extend lead time. Call 718-893-3900 ext. 507 to discuss

Find a dealer

Width:
24 Inch 30 Inch

Burners:
Open Sealed

Ignition:
Electronic Battery Start

Color: Stainless Steel Look

*Additional features may vary

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

3.75" H x 29.75" W x 20.0" D
(10cm H x 76cm W x 51cm D)

Overview
Nominal Height	4.0" (10 cm)
Height of Cabinet	3.75" (10 cm)
Nominal Width	30.0" (76 cm)
Width	29.75" (76 cm)
Nominal Depth	20.0" (51 cm)
Depth	20.0" (51 cm)
Cabinet	Chrome
US Electrical Safety	CSA
Weight	27.0 lbs. (12 kg)
Parts & Labor Warranty	1 Year
UPC	761101158242
Gas Cooktop
Ignition	Spark
LP Convertible	With Kit LP Accessory
Number of Burners	4
Controls	Dial
Surface	Painted
Grate Material	Cast Iron
Cutout Width	28.38" (72 cm)
Cutout Depth	18.63" (47 cm)
Burner #1 BTU	9000.0
Burner #2 BTU	9000.0
Burner #3 BTU	9000.0
Burner #4 BTU	9000.0
Power Cord Included	Yes

30" Wide Gas Cooktop

Built-in natural gas cooktop with four open burners

Made in the USA

Designed and constructed domestically

Classic 30" fit

Fits common 28 3/8" W x 18 5/8" D counter cutouts

Cast iron grates

Two sets of continuous grates in heavy duty cast iron hold up to large cookware

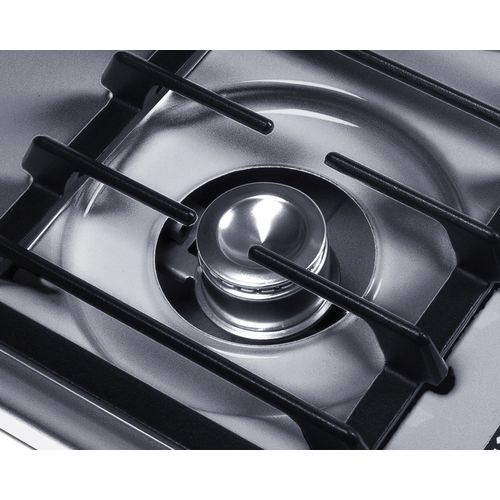

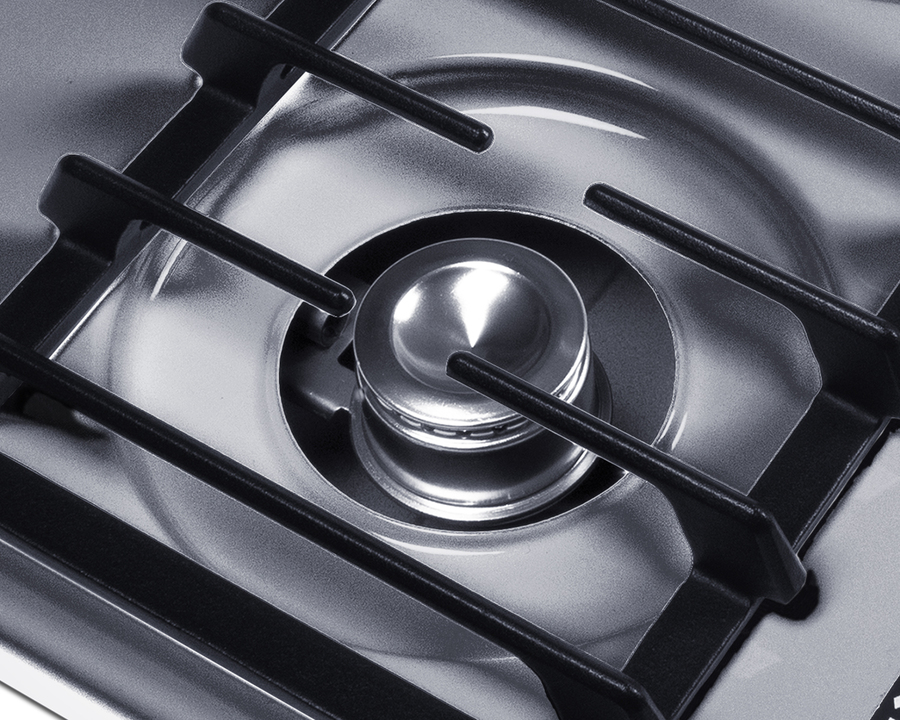

Four open burners

9000 BTU burners meet most cooking needs

Brushed chrome surface

Striking look with easy cleanability

Recessed top

Curved design helps to contain spills on the surface

Electronic/gas spark ignition

Spark ignition system with a pre-installed 115V 3-prong cord

Designed for natural gas

Set for use with natural gas connection. To convert for propane use, add Kit LP

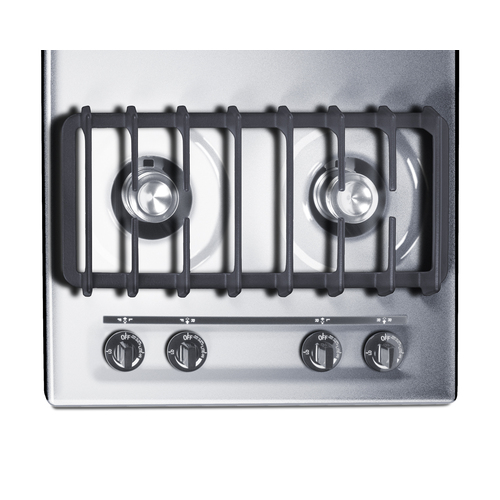

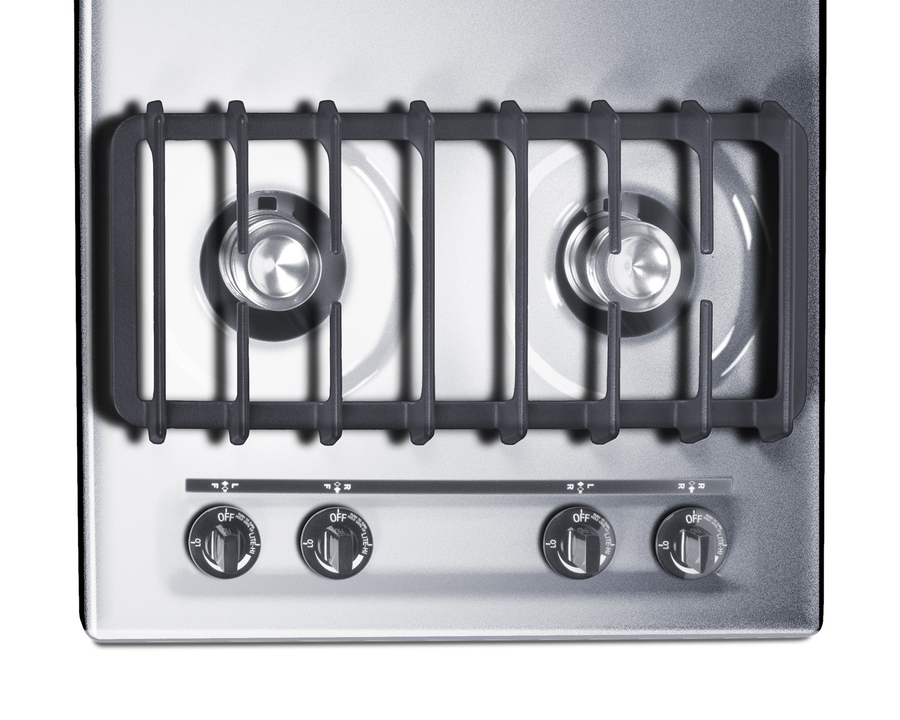

Side controls

Cooktop knobs are located on the right side of the cooktop, clearing up space in the front for easier cooking

Push-to-turn knobs

Knobs require a small amount of force to ensure burners are not accidentally turned on

Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability in space-challenged kitchens.

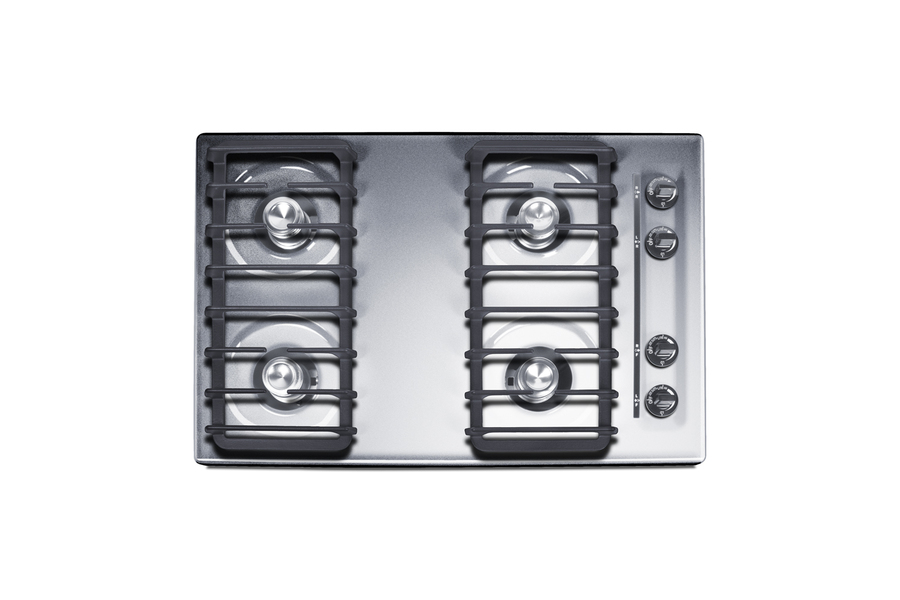

The ZNL053I is a 30" wide gas cooktop designed to fit common 28 3/8" wide x 18 5/8" deep cutouts. It features a brushed chrome finish, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use.

Four open 9000 BTU burners meet most cooking needs. We include two sets of continuous cast iron grates to protect your cooktop. This unit comes set for natural gas but can be converted to propane with the purchase of the Kit LP accessory. It utilizes electronic spark ignition and includes a pre-installed 115V cord with a standard 3-prong NEMA 5-15P plug.

The ZNL033I is designed and constructed in the USA. Additional finishes are available, as well as 24" sizes for smaller kitchen spaces and matching wall ovens. Browse our website to explore our complete selection.

BROCHURE
ZNL053I.pdf

TECHNICAL DRAWING (.dwg)
WNL053I.dwg

ASSEMBLY DRAWING
WNL053I-Assembly.pdf

USE & CARE
ZNL053I-User-Manual.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
