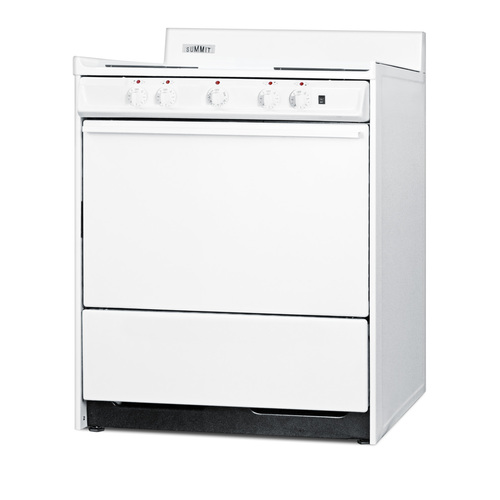

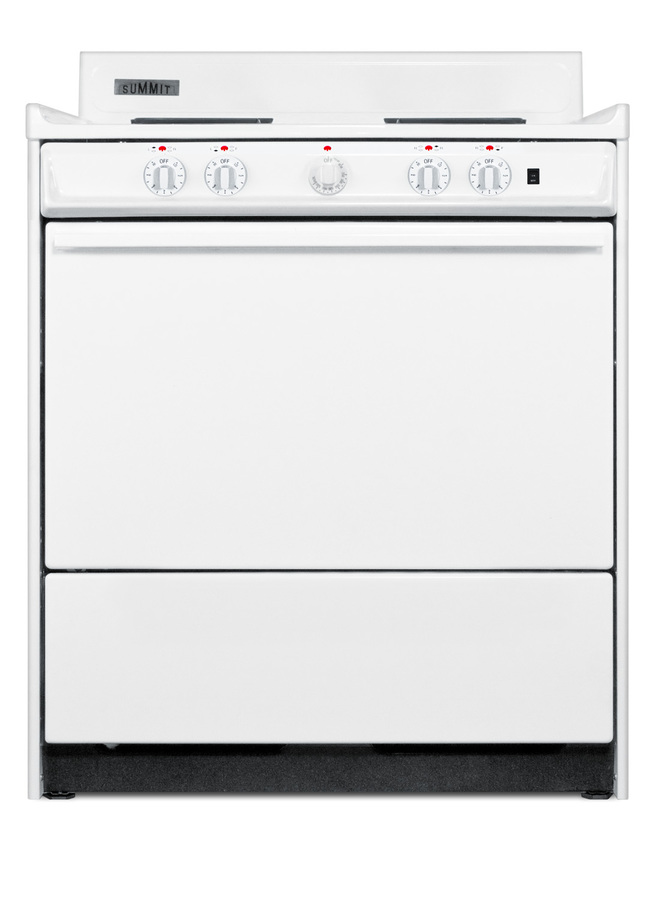

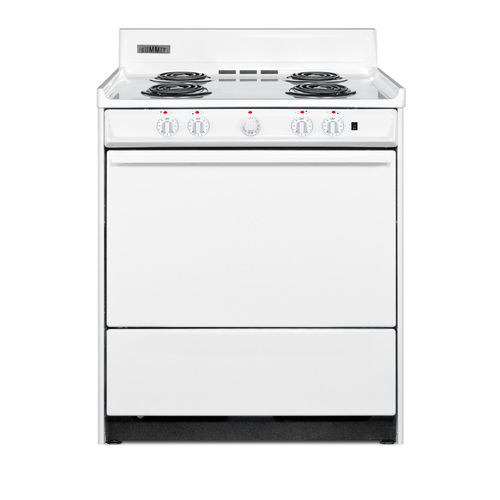

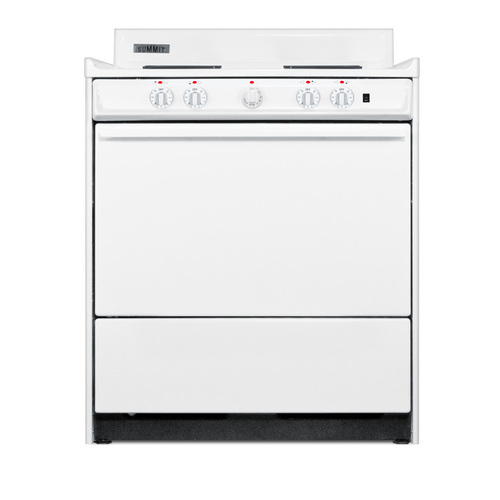

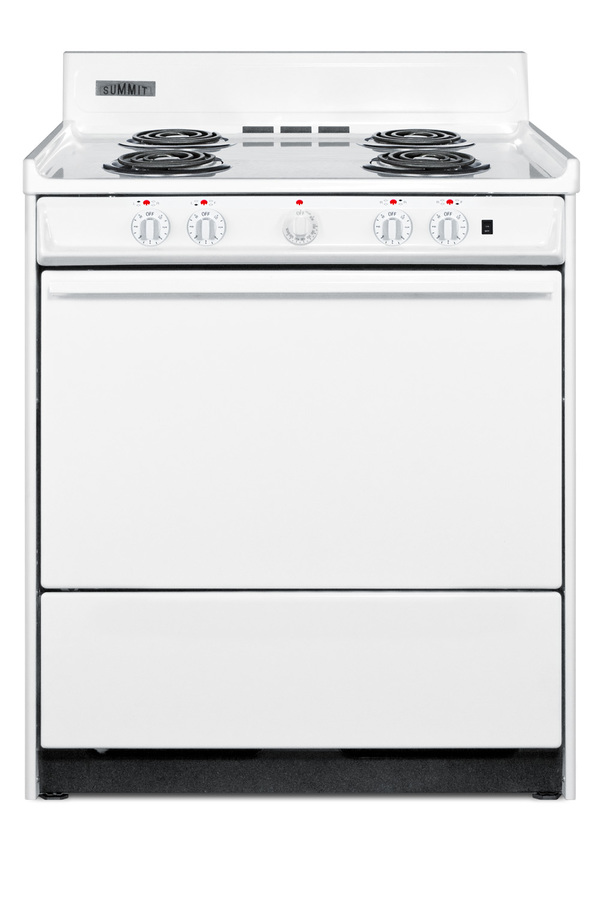

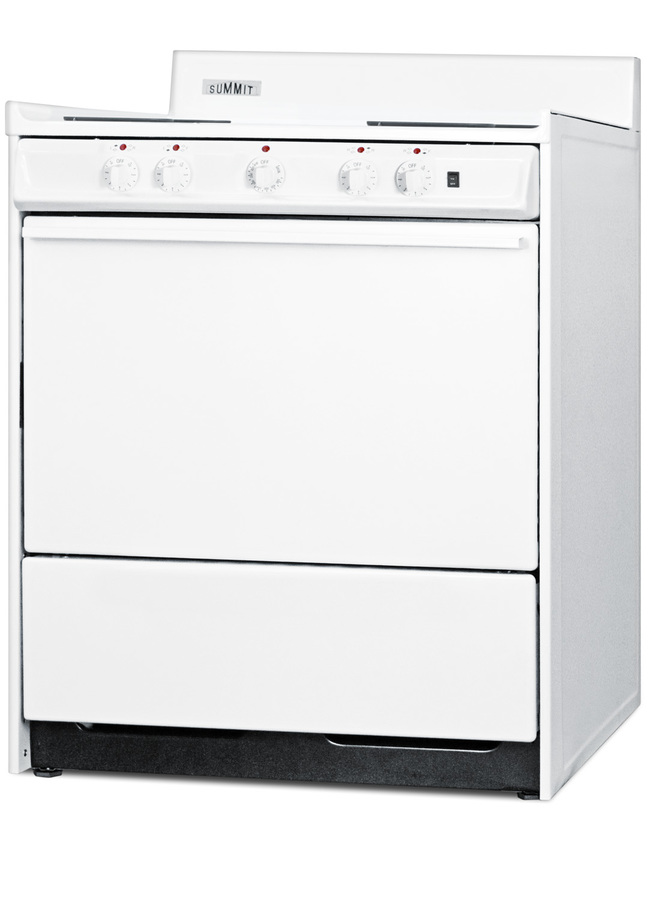

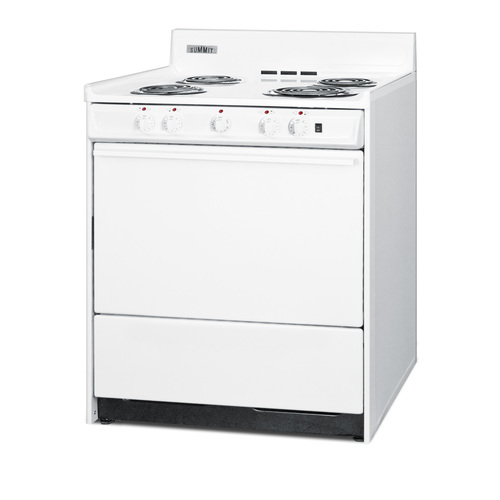

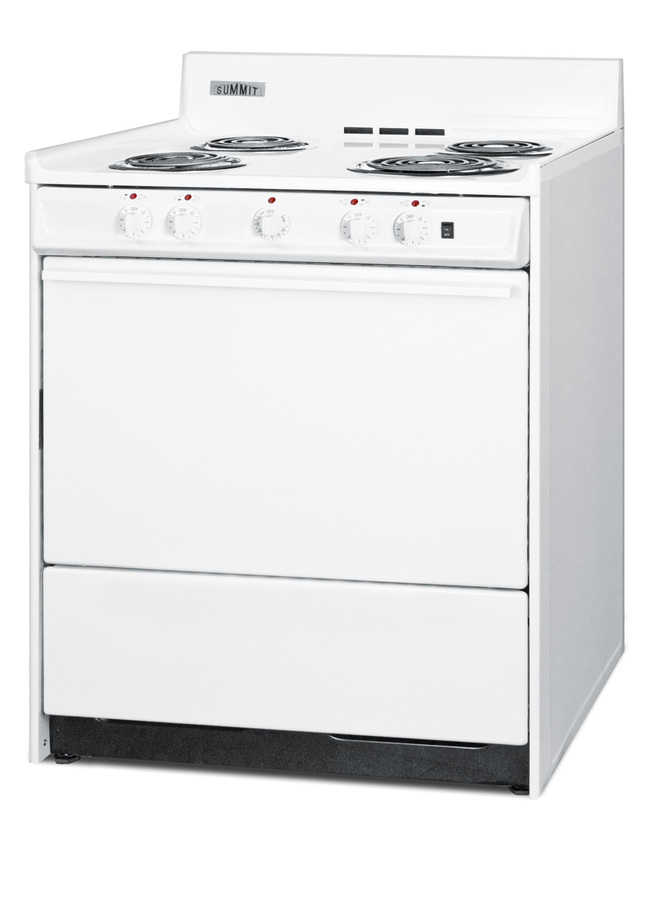

WEM2171Q

Made in the USA

44.0" H x 30.0" W x 24.0" D

(112cm H x 76cm W x 61cm D)

OVERVIEW

  • 30" wide 220V electric range for HUD applications
  • Includes indicator lights for all burners and oven
  • Three prong line cord attached
  • Porcelain construction on range top and oven for true durability
  • Oven light for added convenience
  • Recessed oven door protects adjacent cabinetry

SPECIFICATIONS

Overview
Height of Cabinet 44.0" (112 cm)
Width 30.0" (76 cm)
Depth 24.0" (61 cm)
Door White
Cabinet White
US Electrical Safety CSA
Voltage/Frequency 220 V AC/60 Hz
Shipping Weight 170.0 lbs. (77 kg)
Parts & Labor Warranty 1 Year
Electric Range
Oven Capacity 3.7 cu.ft. (105 L)
Cooktop Surface Porcelain
Element Type Coils
Number of Elements 4
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 1200.0
Element #2 Size 6.0" (15 cm)
Element #2 Wattage 1200.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 1200.0
Element #4 Size 8.0" (20 cm)
Element #4 Wattage 2100.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Backguard Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 24.0" (61 cm)
Oven Interior Depth 19.0" (48 cm)
Individual Indicator Lights Yes
Storage Compartment Yes
Broiler Location Inside Oven
Oven Door White
HUD Qualified Yes

AVAILABLE UPGRADES

Interior
T-Heat Sense
Temperature sensor cycles coil element to prevent cookware from exceeding flashpoint temperatures


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT offers a wide selection of household ranges with high quality construction at superior value.

Our apartment sized line of electric ranges includes the popular WEM217Q. At 30" wide, this model offers full cooking capacity for standard kitchens. The complete porcelain and steel construction offers long lasting quality and with a three-prong line cord and indicator lights for each coil and oven, the WEM217Q can be used in HUD applications or nursing homes.

FEATURES

220V electric range
Includes four coil elements
5 Indicator lights
Independent indicator lights for oven and each coil burner
Recessed oven door
Smart design limits the depth and protects adjacent cabinets
Lower storage compartment
Keep pots and pans inside the lower compartment for easy storage
Removable oven door and range top
White porcelain oven door and top can be removed for easier cleaning
Porcelain construction
Solid porcelain range top and oven

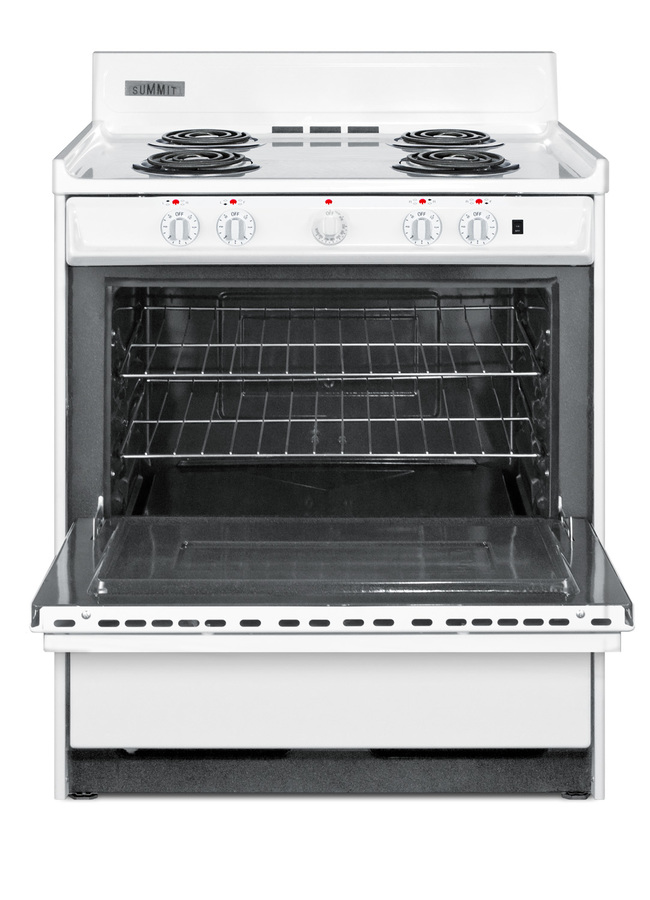

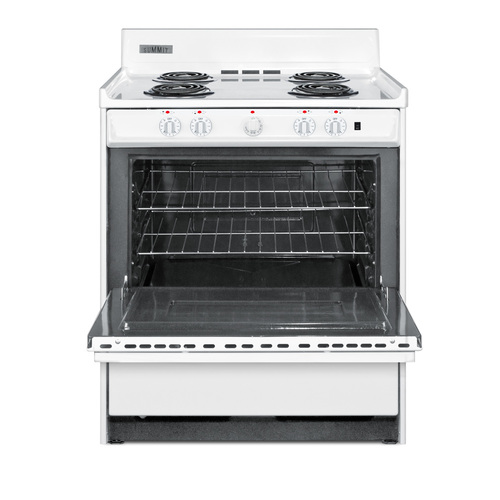

Interior light
Oven interior can be fully lit
Broiler tray included
Porcelain broiler tray with grease well
Anti-tip bracket
Install to prevent accidents from tipping oven over
ADA compliant design
Upfront controls and easy-to-operate knobs offer easier accessibility

SPECIFICATIONS

Overview
Height of Cabinet 44.0" (112 cm)
Width 30.0" (76 cm)
Depth 24.0" (61 cm)
Door White
Cabinet White
US Electrical Safety CSA
Voltage/Frequency 220 V AC/60 Hz
Shipping Weight 170.0 lbs. (77 kg)
Parts & Labor Warranty 1 Year
Electric Range
Oven Capacity 3.7 cu.ft. (105 L)
Cooktop Surface Porcelain
Element Type Coils
Number of Elements 4
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 1200.0
Element #2 Size 6.0" (15 cm)
Element #2 Wattage 1200.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 1200.0
Element #4 Size 8.0" (20 cm)
Element #4 Wattage 2100.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Backguard Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 24.0" (61 cm)
Oven Interior Depth 19.0" (48 cm)
Individual Indicator Lights Yes
Storage Compartment Yes
Broiler Location Inside Oven
Oven Door White
HUD Qualified Yes

AVAILABLE UPGRADES

Interior
T-Heat Sense
Temperature sensor cycles coil element to prevent cookware from exceeding flashpoint temperatures


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
