24" Wide Built-In All-Freezer, ADA Compliant

SKU: VT65MLBIMEDDTADA
-25°C storage with extra thick insulation and slide-out drawers that help protect stored contents
DISCONTINUED- REPLACED BY VT65MLBIMED2ADA
32.25" H x 23.63" W x 23.5" D
(82cm H x 60cm W x 60cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 45.13" (115 cm)
Capacity 3.2 cu.ft. (91 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 104.0 lbs. (47 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101043463
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Shelf Type Glass
Thermostat Type Digital
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 17.5" (44 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range -12ºC to -25ºC

Exterior
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security
Door
STO-Step-To-Open Door Pedal
Step-to-open door pedal allows hands-free access to open the door 90 degrees

ADA compliant

32" high to fit under lower ADA compliant counters

Built-in capable

Make the best use of space by installing your appliance under the counter

-25ºC capable

Low temperature capability ideal for certain sensitive items

Manual defrost

Efficient performance with reliable temperature stability

Factory installed lock

Keyed lock for secure interior

Digital thermostat

Electronic controls for more precise temperature management, with temperature readout and controls externally located for added convenience

High temperature alarm

Warns of temperature fluctuations and includes an external temperature readout on the door

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Pull-out drawers

Clear baskets for convenient and separated storage

Access port

Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

Fully finished white cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design without ozone-damaging chemicals

Accucold by Summit Appliance introduces MEDDT Series all-freezers for improved temperature stability and management and medical, laboratory, and general purpose applications.

The VT65MLBIMEDDTADA has a 24" footprint, with a 32" height that allows it to fit under lower ADA compliant counters. Designed for built-in installation, it can also function freestanding. It comes in a white finish and includes a front-mounted lock for added security.

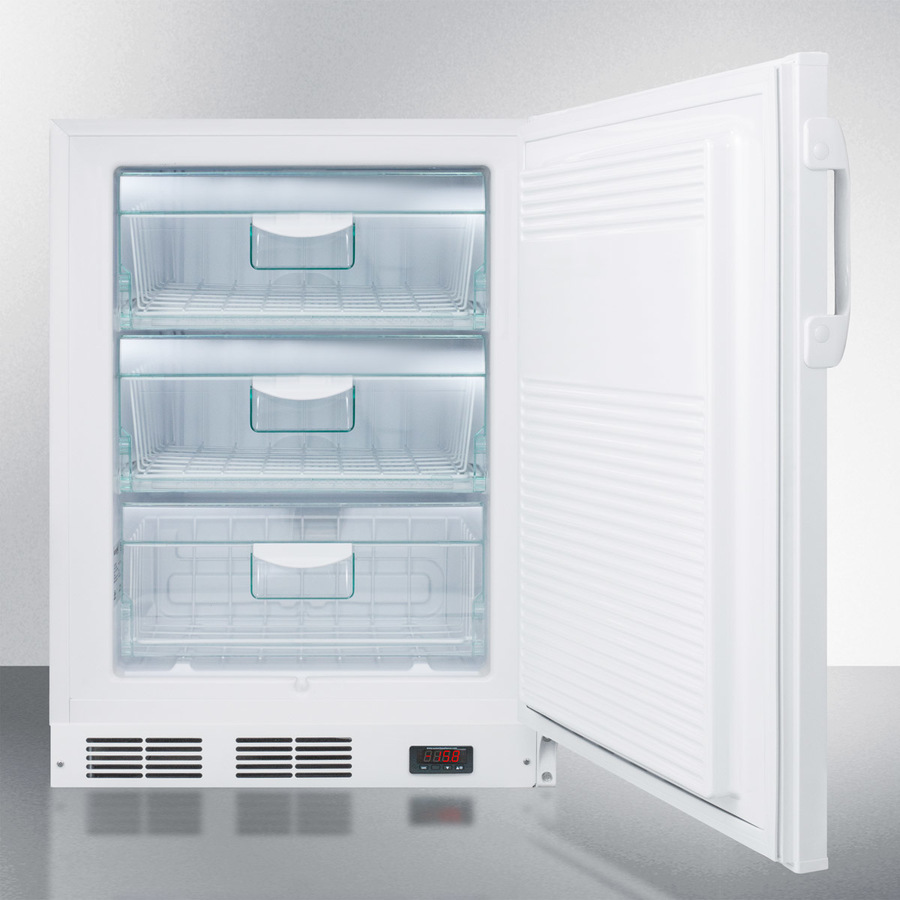

The manual defrost VT65MLBIMEDDTADA operates several degrees colder than most freezers for safe long-term storage of food, vaccines, or pharmaceuticals. Temperatures can reach and maintain -25º C. A digital thermostat makes it easy to manage the interior temperature. Three removable pull-out basket drawers provide convenient storage solutions, while extra thick insulation limits energy waste and keeps the cold inside.

We include an audible NIST calibrated temperature alarm complete with an external display of the current and high/low temperature mounted on the door. A green dot hospital grade plug is installed for added safety in high traffic areas. An access port allows users to connect their own monitoring equipment.

With its slim size and reliable construction, the VT65MLBIMEDDTADA works well in any setting in need of trusted storage. Additionally, we offer a variety of options to customize this unit, including USB data loggers, open door alarms, self-closing doors, and more.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
