SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.25" (82 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 24.25" (62 cm)
Depth with door at 90° 45.0" (114 cm)
Capacity 3.5 cu.ft. (99 L)
Defrost Type Manual
Door Stainless Steel
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Shipping Weight 113.0 lbs. (51 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Yes
Crisper Finish Opaque
Crisper Cover Glass
Interior Height 24.25" (62 cm)
Interior Width 17.75" (45 cm)
Interior Depth 16.5" (42 cm)
Shelf Type Glass
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 2.7 oz.
High Side PSI 235.0
Low Side PSI 70.0
Interior Drawers Yes
Drawers Qty 3
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 17.5" (44 cm)
Compressor Step Depth 5.5" (14 cm)
Temperature Range -20ºC to -30ºC

AVAILABLE UPGRADES

Lock
L Lock
Add a single key lock to the door with the L option
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Exterior
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DT Digital Thermostat
Install a digital thermostat with external readout for precise temperature management
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SS Hinges
Stainless steel top and bottom hinges
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Agion Door
Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

VT65M7SSHHADA

Commercial meets nsf 57f181a562ef64be646d83b66028b1c5c2f384b45328a17b7b74a5f0cdc84c8e
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

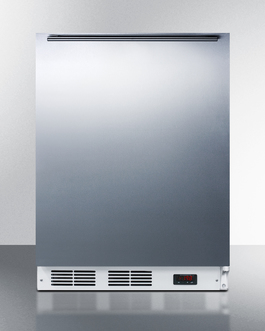

-25°C energy efficient medical grade freezer

32.25" H x 23.63" W x 23.5" D

OVERVIEW

WHERE TO BUY

Invalid Format
Accucold VT65M7ADA commercially approved medical all-freezers offer low temperature storage in a perfectly sized footprint designed freestanding use in ADA compliant settings.

The 32” high VT65M7SSHHADA has a 24” footprint and is designed for freestanding use, with low temperature manual defrost operation that can reach -25ºC. The interior includes three slide-out basket drawers for convenient storage that keeps items cold when the door is opened. Additional features include an adjustable thermostat and one-piece interior liner for easier cleanup.

This medical unit has a white cabinet and 304 grade stainless steel wrapped door with a horizontally mounted handle. It is ETL-S listed to NSF-7 commercial standards.

NOTE: ALL VT65M FREEZERS ARE DESIGNED FOR MEDICAL OR COMMERCIAL USE ONLY. THESE ARE NOT HOUSEHOLD FREEZERS.

FEATURES

Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
ADA Compliant
32 inch height is designed to meet ADA guidelines for lower counter height
Fully finished white cabinet
Allows the unit to be used freestanding
Stainless steel door
Durable design with lasting elegance
Professional horizontal handle
Thin 14mm diameter on stainless steel handle, mounted horizontally across the door
-25º capable
Low temperature operation is ideal for vaccine, pharmaceuticals, and other temperature sensitive materials
Three slide-out drawers
Conveniently organize your items while keeping the temperature stable when the door is opened
Manual defrost
Static cooling system for improved temperature stability
Adjustable thermostat
Manage the temperature with ease and accuracy
One piece interior liner
Simple cleanup with a seamless liner that won't hold a mess in hidden crevices
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
