TTM1107CS

Delivery 9240a3e8870753a2ec143c34af2b405742ae73bfeb126dd29f201daa25ab8f11
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

Made in the USA with sealed burners

40.0" H x 20.0" W x 24.0" D

(102cm H x 51cm W x 61cm D)

OVERVIEW

  • Slim 20 inch width fits easily in small kitchens
  • Porcelain construction on range top and oven for true durability
  • Lower broiler compartment provides even heat distribution
  • Four sealed burners for cleaner cooking
  • Gas spark ignition adds convenience
  • Made in the U.S.A.

SPECIFICATIONS

Overview
Height of Cabinet 40.0" (102 cm)
Width 20.0" (51 cm)
Depth 24.0" (61 cm)
Door Black
Cabinet Black
US Electrical Safety CSA
Weight 120.0 lbs. (54 kg)
Shipping Weight 125.0 lbs. (57 kg)
Parts & Labor Warranty 1 Year
Gas Range
Ignition Spark
LP Convertible With Kit LP S2 Accessory
Oven Capacity 2.46 cu.ft
Cooktop Surface Porcelain
Burner Type Sealed
Number of Burners 4
Burner #1 BTU 9100.0
Burner #2 BTU 9100.0
Burner #3 BTU 9100.0
Burner #4 BTU 9100.0
Burner Controls Dial
Oven Controls Dial
Backguard Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 16.0" (41 cm)
Oven Interior Depth 19.0" (48 cm)
Broiler Location Below Oven
Broiler Door Black
Oven Door Black

AVAILABLE UPGRADES

Interior
Canadian Range Conversion
Range is modified at factory to meet CSA-C standards
Exterior
LP Conversion
Have this range factory converted to LP gas. KIT LP is included
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.

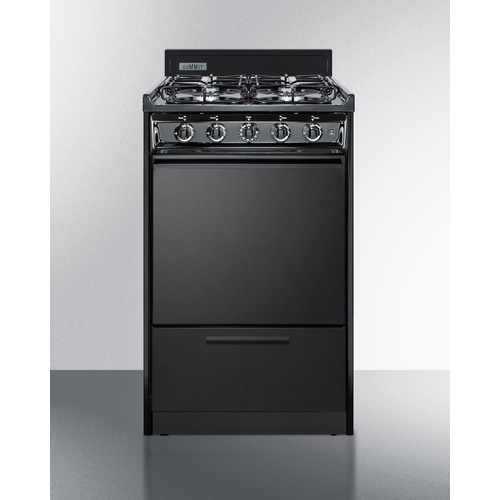

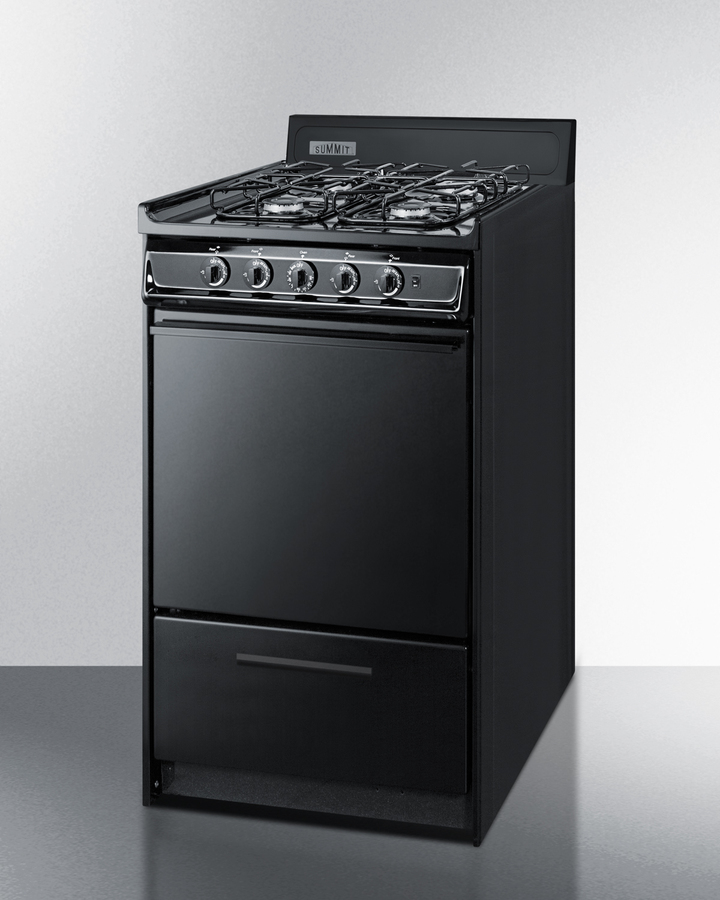

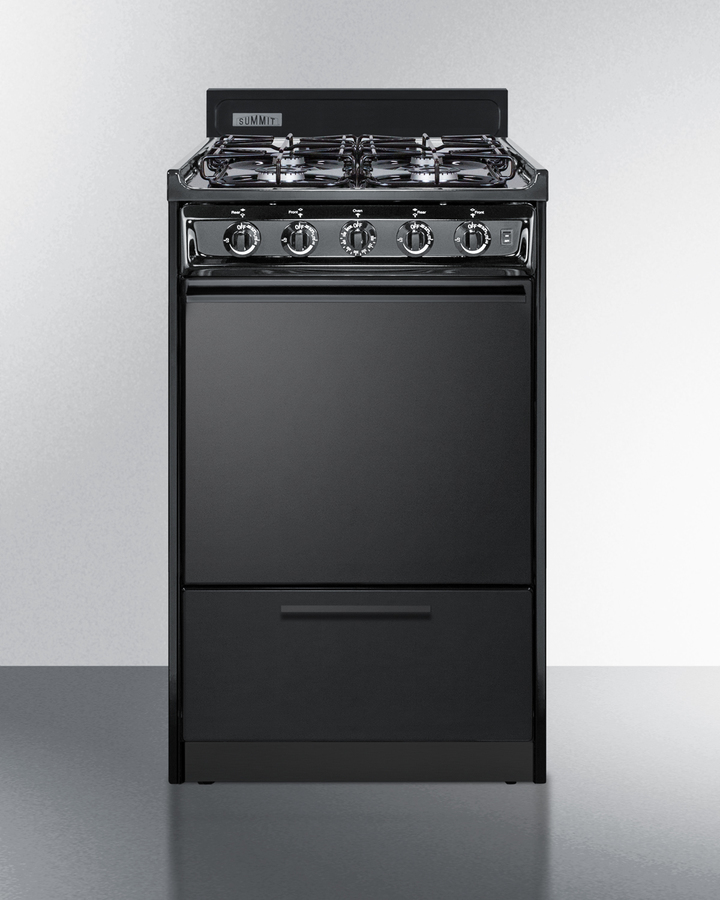

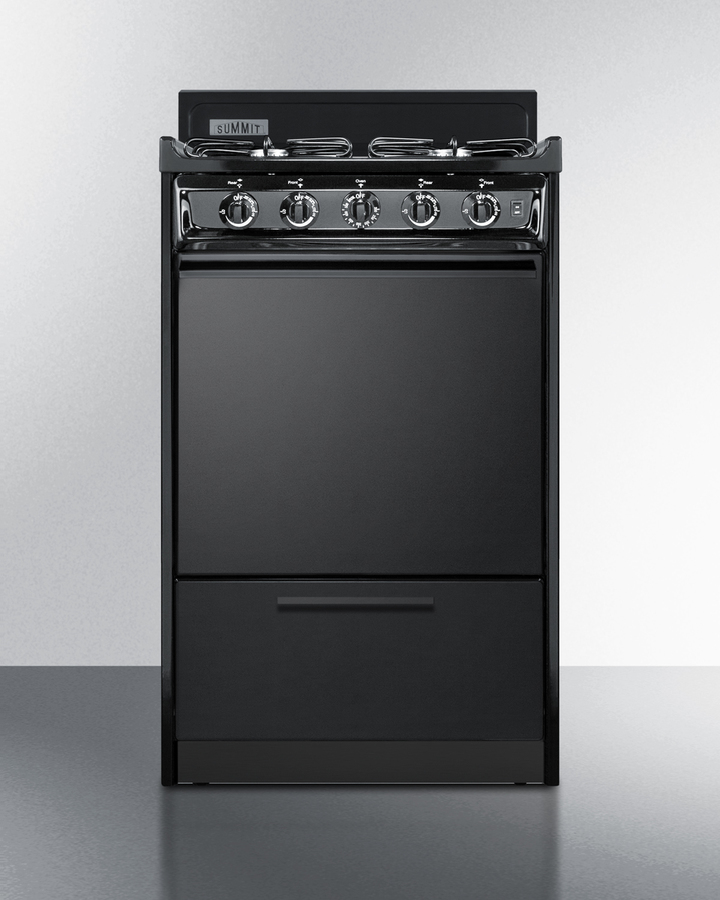

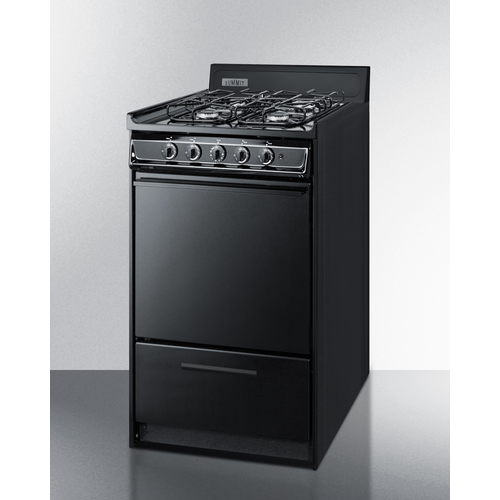

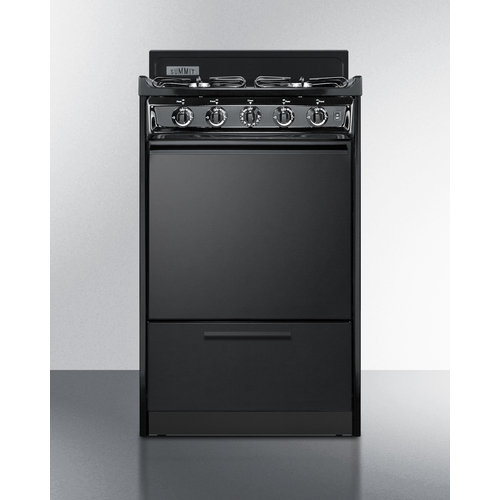

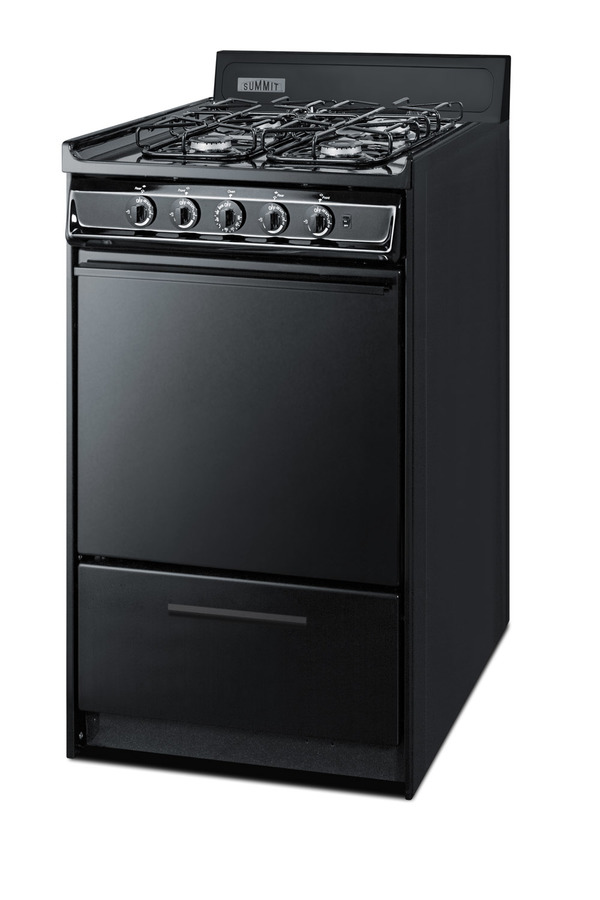

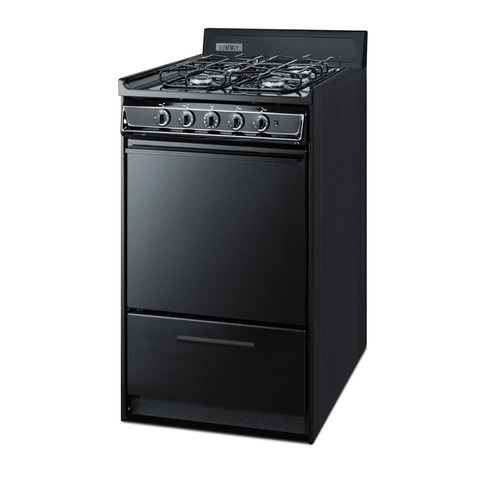

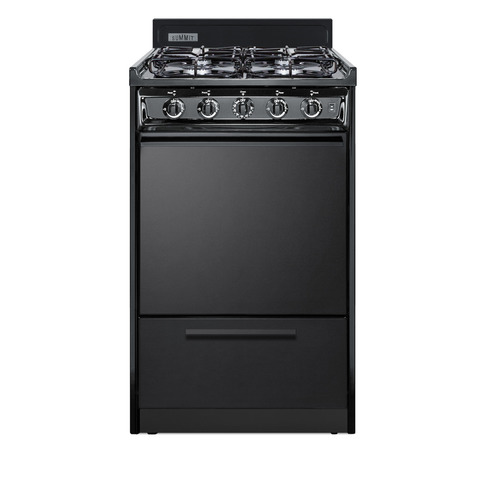

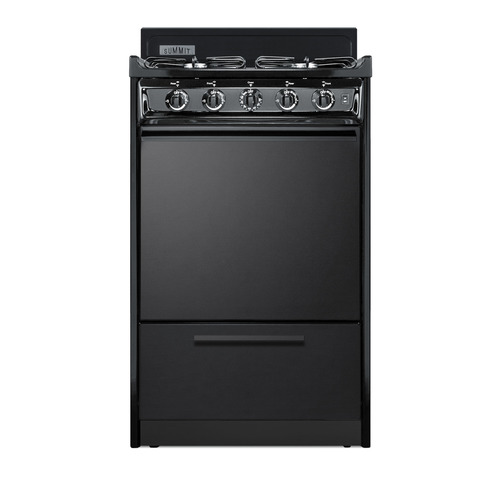

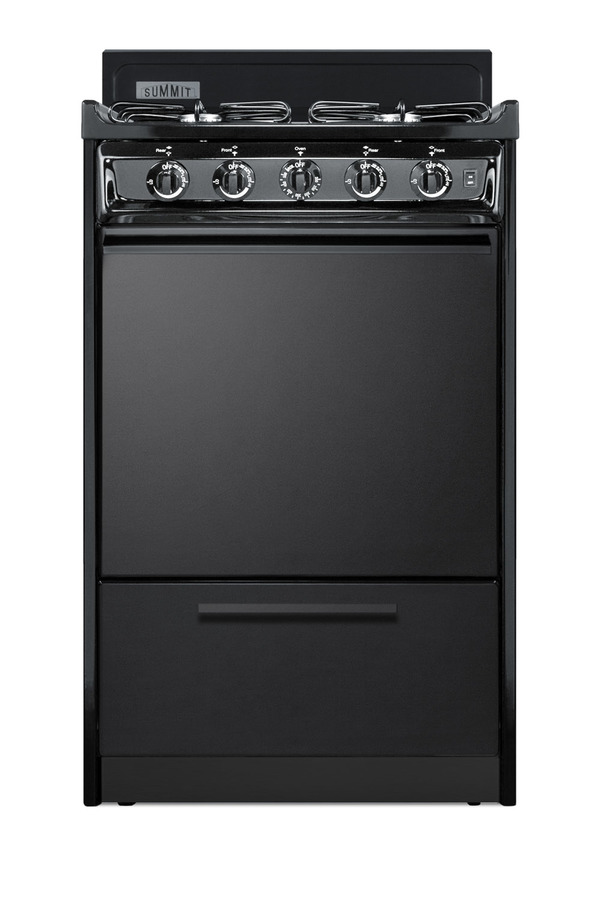

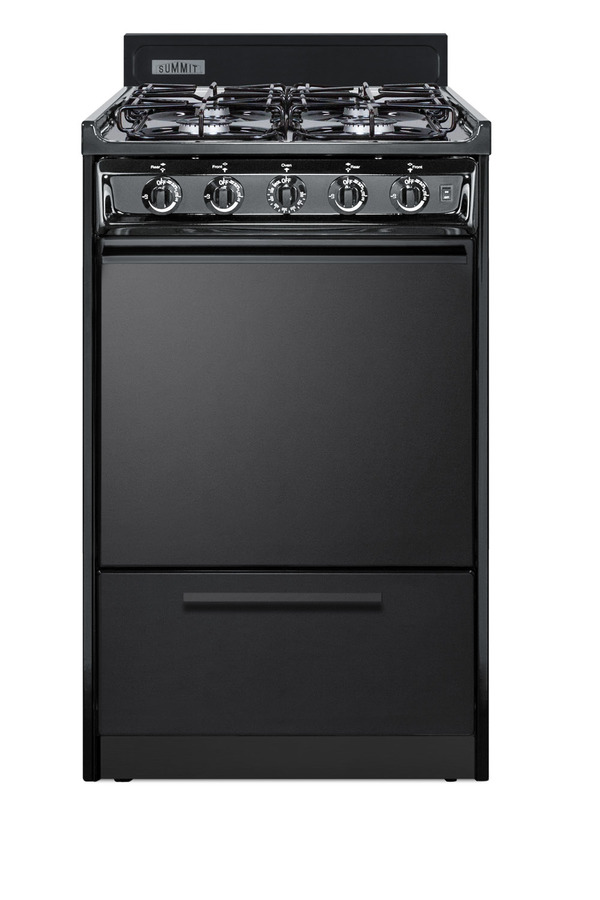

The TTM1107CS is an apartment-sized gas range sized at just 20" wide, with a generous 2.46 cu.ft oven interior that still can accommodate large trays. The broiler is located below the oven in a drop-down compartment. Four sealed 9100 BTU gas burners offer safer cleaning and cleaner cooking. This unit utilizes an electronic ignition system for added safety.

The TTM1107CS comes in a jet black exterior finish. Fully constructed from steel and porcelain, Summit's American-made cooking line offers long-lasting quality for the home. Additional choices are available in 24" and 30" wide fits.

FEATURES

Slim 20 inch width
Apartment sized to fit in small or galley kitchens
Four sealed burners
Four 9100 BTU sealed burners for cleaner cooking
Black finish
Jet black exterior finish for a modern look in any kitchen
Electronic ignition
Gas spark ignition for automatic lighting of burners
Porcelain construction
Solid construction for long-lasting durability
Broiler compartment
Lower compartment for separate broiling with even heat distribution
Broiler pan included
Two-piece porcelain broiler tray with grease well
Push-to-turn burner knobs
To prevent accidents, knobs require a small amount of force when turning
Removable burner caps
Burners include a removable cap for easy cleaning
Recessed oven door
Smart design limits the depth and protects adjacent cabinets
Oven racks

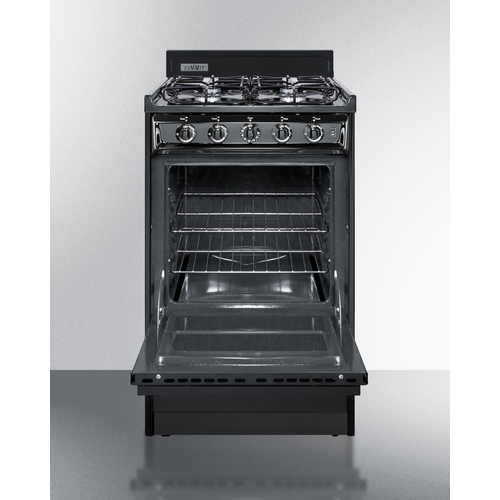

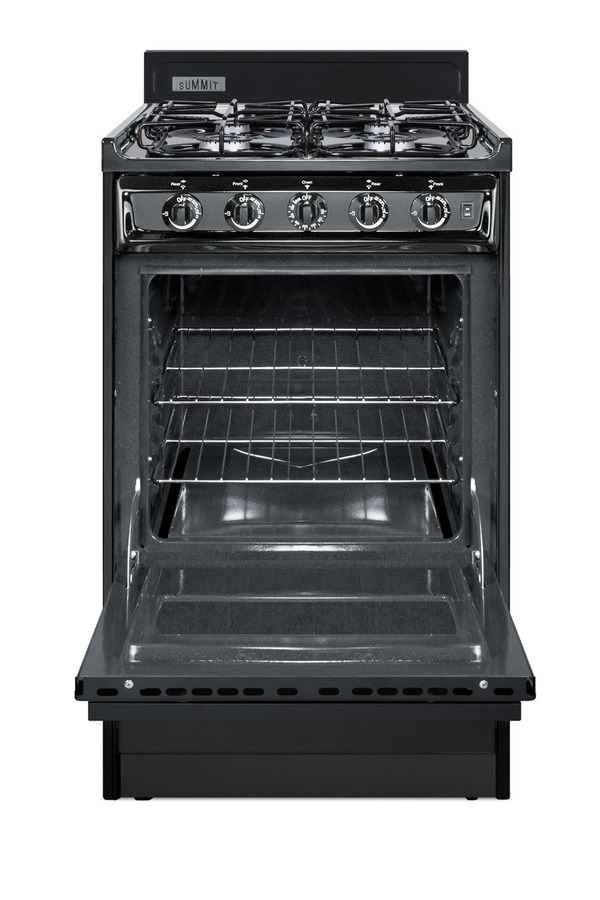

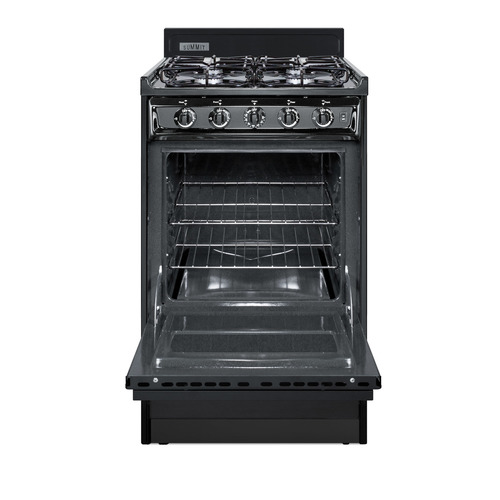

Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Gas range (preset for natural gas)
For LP conversion, contact our office at 718-893-3900 ext. 220
ADA compliant design
Upfront controls and easy-to-operate knobs offer easier accessibility

SPECIFICATIONS

Overview
Height of Cabinet 40.0" (102 cm)
Width 20.0" (51 cm)
Depth 24.0" (61 cm)
Door Black
Cabinet Black
US Electrical Safety CSA
Weight 120.0 lbs. (54 kg)
Shipping Weight 125.0 lbs. (57 kg)
Parts & Labor Warranty 1 Year
Gas Range
Ignition Spark
LP Convertible With Kit LP S2 Accessory
Oven Capacity 2.46 cu.ft
Cooktop Surface Porcelain
Burner Type Sealed
Number of Burners 4
Burner #1 BTU 9100.0
Burner #2 BTU 9100.0
Burner #3 BTU 9100.0
Burner #4 BTU 9100.0
Burner Controls Dial
Oven Controls Dial
Backguard Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 16.0" (41 cm)
Oven Interior Depth 19.0" (48 cm)
Broiler Location Below Oven
Broiler Door Black
Oven Door Black

AVAILABLE UPGRADES

Interior
Canadian Range Conversion
Range is modified at factory to meet CSA-C standards
Exterior
LP Conversion
Have this range factory converted to LP gas. KIT LP is included
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
