30" Wide 4-Burner Gas Cooktop, Battery Start Ignition

SKU: TNL05IP

Made in the USA with battery start ignition ideal for areas without traditional power access

Estimated Time to Ship:

Next day shipping; multi-piece orders may extend lead time. Call 718-893-3900 ext. 507 to discuss

Find a dealer

Width:
24 Inch 30 Inch

Burners:
Open Sealed

Ignition:
Battery Start

Grates:
Enamel Cast Iron

Color: Black

*Additional features may vary

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

3.75" H x 29.75" W x 20.0" D
(10cm H x 76cm W x 51cm D)

Overview
Nominal Height	4.0" (10 cm)
Height of Cabinet	3.75" (10 cm)
Nominal Width	30.0" (76 cm)
Width	29.75" (76 cm)
Nominal Depth	20.0" (51 cm)
Depth	20.0" (51 cm)
Cabinet	Black
US Electrical Safety	CSA
Weight	27.0 lbs. (12 kg)
Parts & Labor Warranty	1 Year
UPC	761101158198
Gas Cooktop
Ignition	Battery Start
LP Convertible	With Kit LP Accessory
Number of Burners	4
Controls	Dial
Surface	Painted
Grate Material	Cast Iron
Cutout Width	28.38" (72 cm)
Cutout Depth	18.63" (47 cm)
Burner #1 BTU	9000.0
Burner #2 BTU	9000.0
Burner #3 BTU	9000.0
Burner #4 BTU	9000.0
Power Cord Included	Yes

30" Wide Gas Cooktop

Built-in natural gas cooktop with four open burners

Made in the USA

Designed and constructed domestically

Cast iron grates

Two sets of continuous grates in heavy duty cast iron hold up to large cookware

Battery start ignition

Ideal alternative to pilot light sources when no power source is accessible

Classic 30" fit

Fits common 28 3/8" W x 18 5/8" D counter cutouts

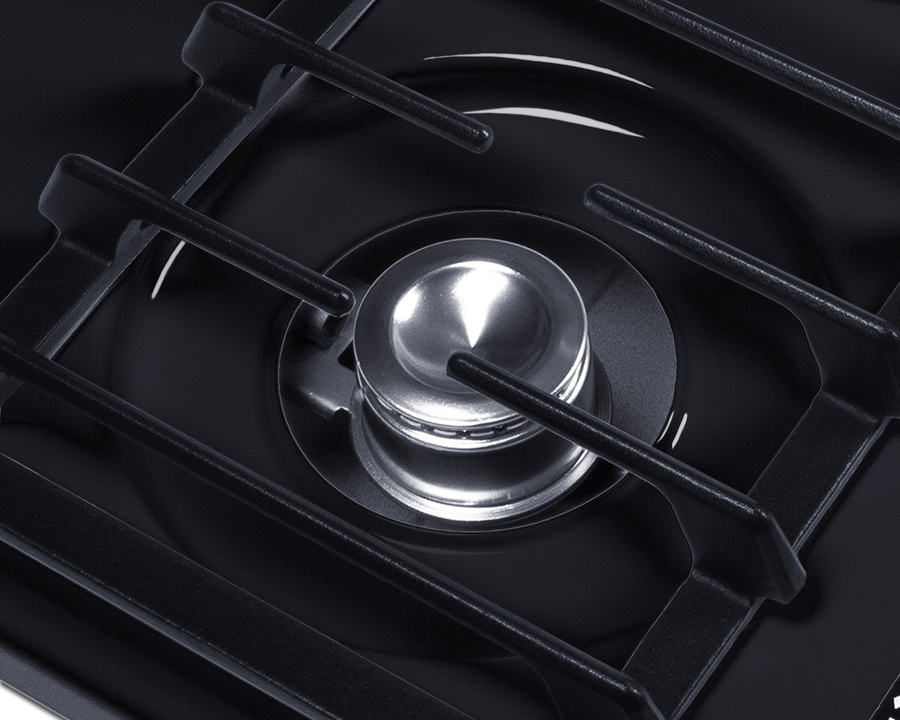

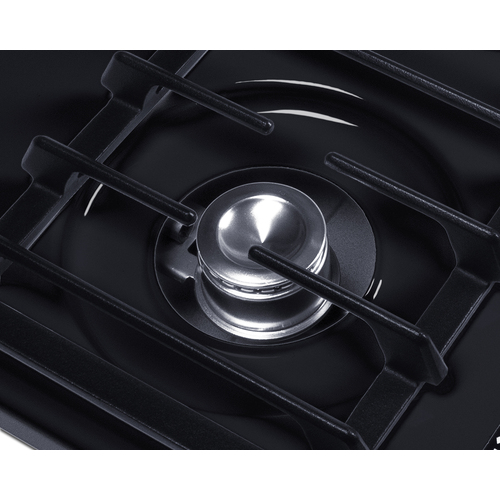

Four open burners

9000 BTU burners meet most cooking needs

Black exterior

Classic design in a jet black finish to match any kitchen

Porcelain finish

Scratch-resistant design for lasting durability

Recessed top

Curved design helps to contain spills on the surface

Designed for natural gas

Set for use with natural gas connection. To convert for propane use, add Kit LP

Side controls

Cooktop knobs are located on the right side of the cooktop, clearing up space in the front for easier cooking

Push-to-turn knobs

Knobs require a small amount of force to ensure burners are not accidentally turned on

Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability, with non-electrical options ideal for off-grid and remote kitchens without traditional power access.

The TNL05IP is a 30" wide gas cooktop designed to fit common 28 3//8" wide x 18 5/8" deep cutouts. It features a scratch-resistant porcelain surface in a clean black finish, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use.

Four open 9000 BTU burners meet most cooking needs. We include two sets of continuous cast iron grates to protect your cooktop. This unit comes set for natural gas but can be converted to propane with the purchase of the Kit LP accessory. It utilizes battery start ignition with a standard 9V battery (included) to allow the cooktop to function in homes not using electricity.

The TNL05IP is designed and constructed in the USA. Additional finishes are available, as well as 24" sizes for smaller kitchen spaces and matching wall ovens. Browse our website to explore our complete selection.

BROCHURE
TNL05IP.pdf

TECHNICAL DRAWING (.dwg)
WNL053IP.dwg

ASSEMBLY DRAWING
WNL053IP-Assembly.pdf

USE & CARE
TNL05IP-User-Manual.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
