30" Built-In Microwave Trim Kit

Combine with Summit SMBI27 to create a built-in low profile microwave for 30" openings
Your Cost $225
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
18.88" H x 29.75" W x 19.63" D
(48cm H x 76cm W x 50cm D)

Height of Cabinet 18.88" (48 cm)
Width 29.75" (76 cm)
Depth 19.63" (50 cm)
Parts & Labor Warranty 90 Days
UPC 761101109084

Built-In Trim Kit

Includes everything you need to install Summit SMBI27 microwave in a built-in application

Easy installation

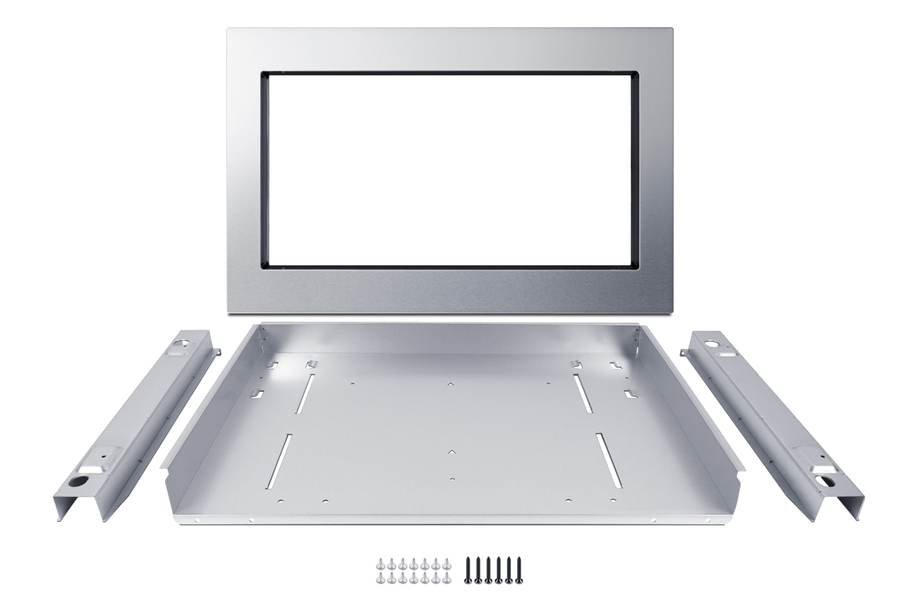

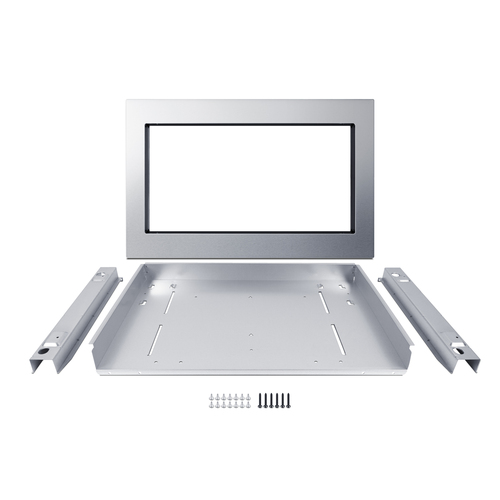

Kit includes bottom duct, rails, trim kit frame, and all the screws needed for installation

30" Wide trim

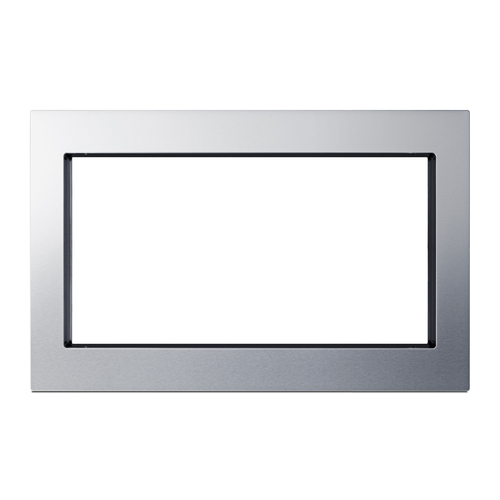

Stainless steel frame with a horizontal grain sized to cover spaces sized at 18.88" H x 29.75" W

Additional sizes available

For a 27" version, see TKSM27

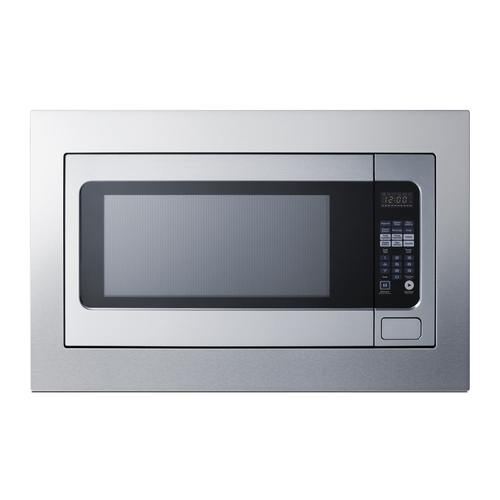

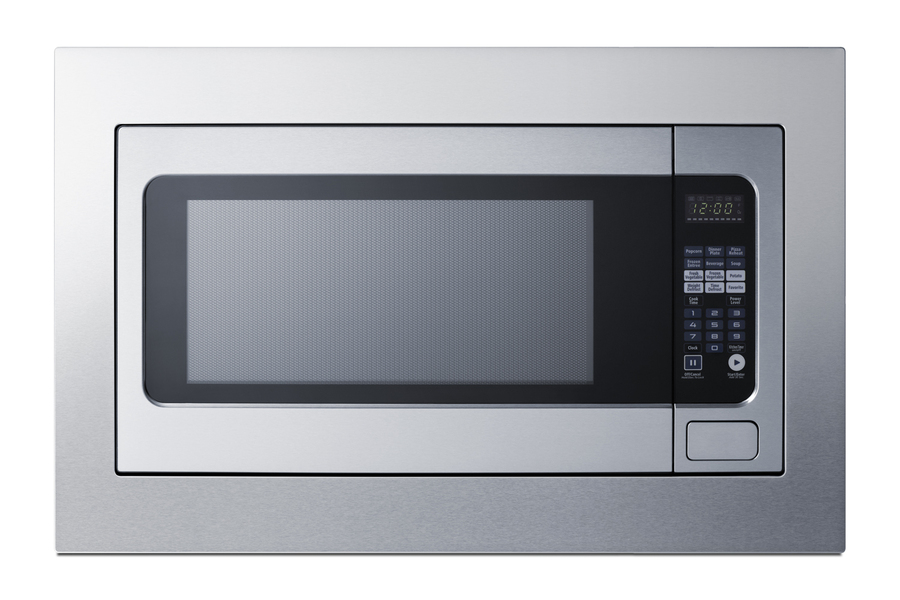

Summit TKSM30 is a trim kit designed for use with microwave SMBI27. It ships with a bottom duct, two rails, a 30" wide trim kit frame, and all the necessary screws for installation.

This trim kit can be combined with microwave SMBI27 or units with identical dimensions. For the same kit designed to fill 27" wide spaces, see model TKSM27.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to
Note: Nickel is a component of stainless steel.
