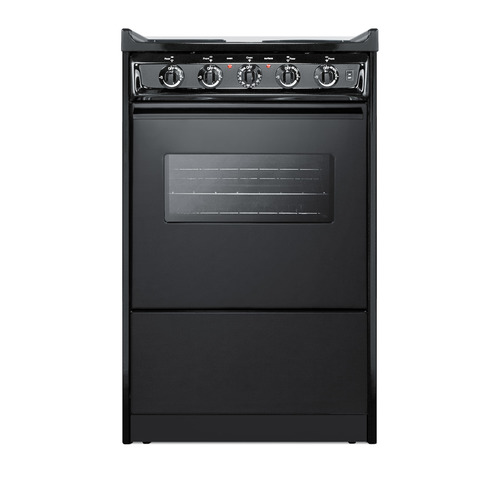

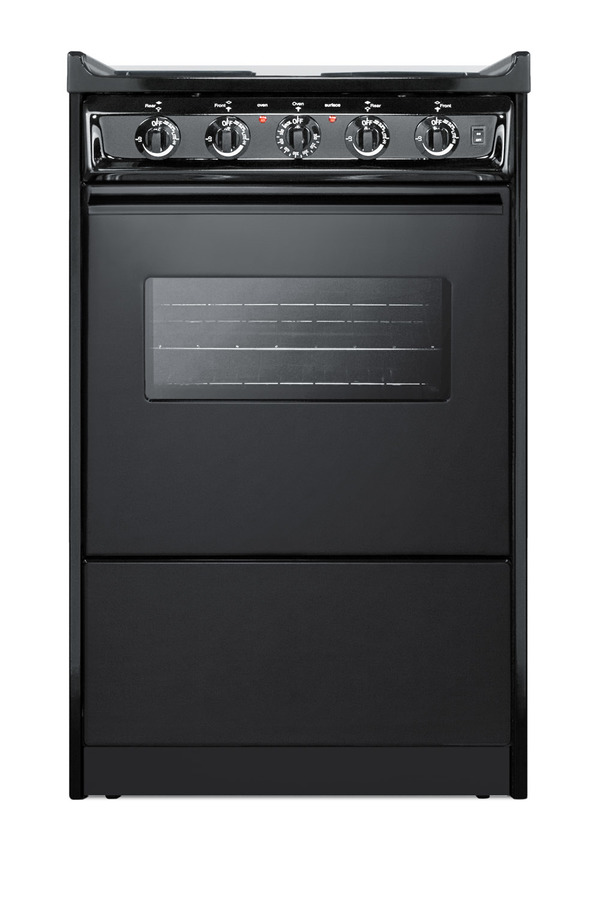

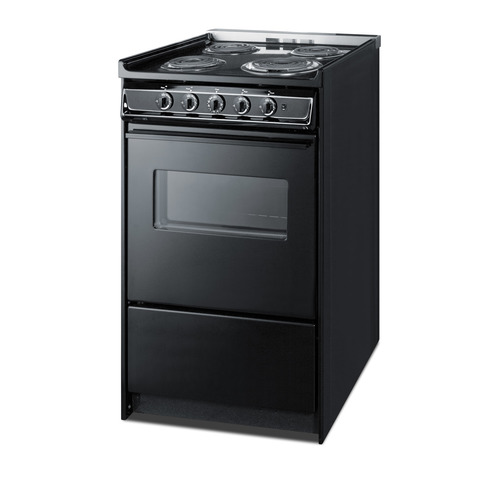

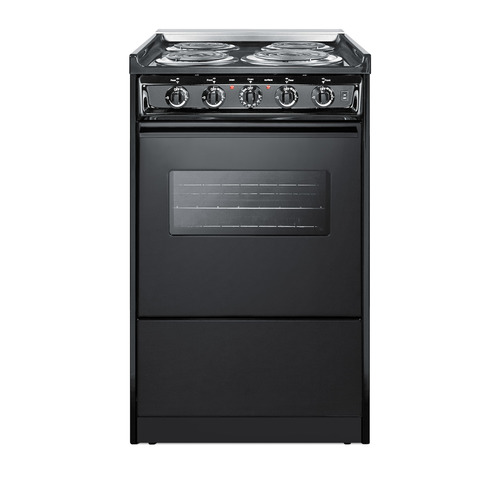

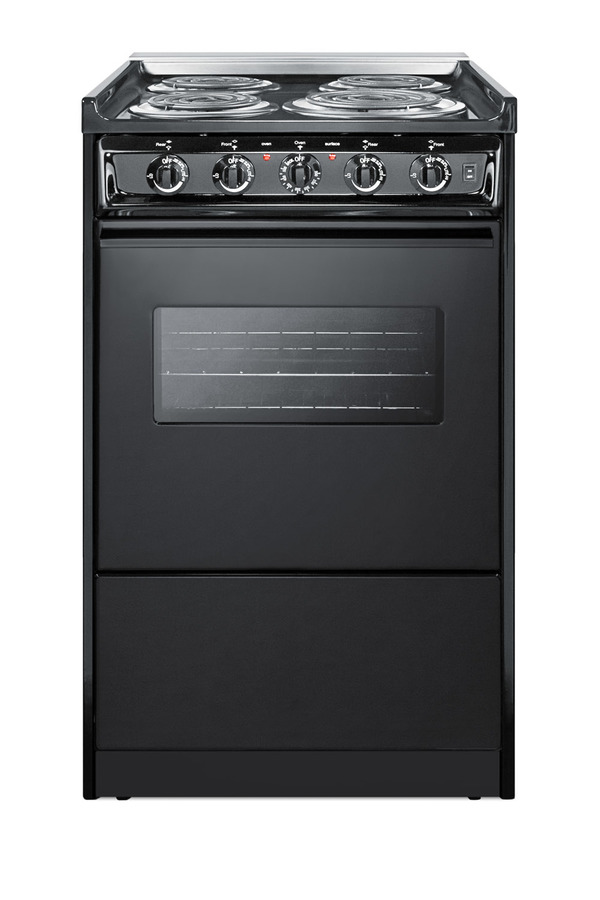

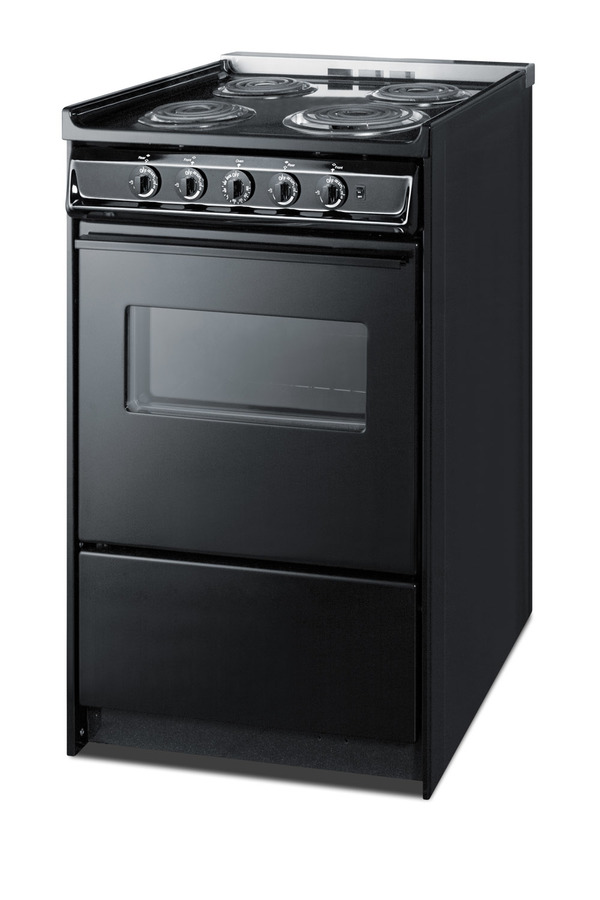

20" Wide Electric Coil Range

SKU: TEM110CRW

Made in the USA

36.0" H x 20.0" W x 24.0" D

(91cm H x 51cm W x 61cm D)

OVERVIEW

  • Electric range with slim 20 inch width that fits easily in small kitchens
  • Slide-in look with low stainless steel backguard
  • Lower storage compartment for pots and pans

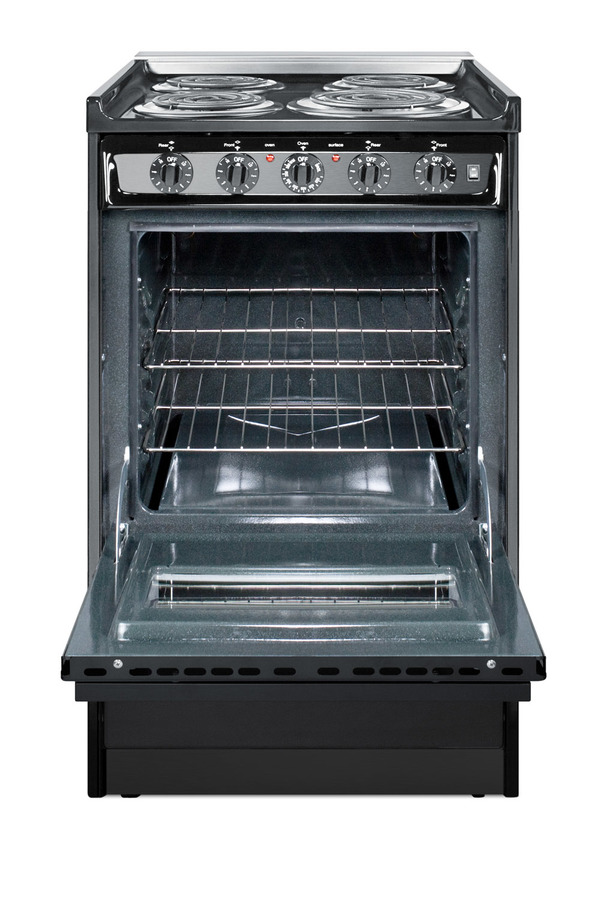

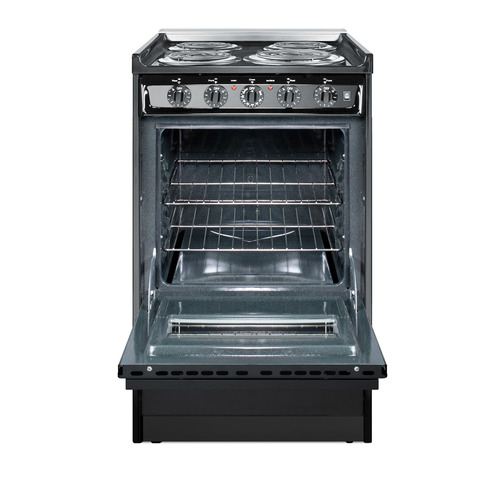

  • Includes an oven window and light for easier cooking
  • Porcelain construction on range top and oven for true durability
  • Made in the U.S.A.

SPECIFICATIONS

Overview
Height of Cabinet 36.0" (91 cm)
Width 20.0" (51 cm)
Depth 24.0" (61 cm)
Door Black
Cabinet Black
US Electrical Safety CSA
Voltage/Frequency 220 V AC/60 Hz
Weight 140.0 lbs. (64 kg)
Shipping Weight 145.0 lbs. (66 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Electric Range
Oven Capacity 2.46 cu.ft. (70 L)
Cooktop Surface Porcelain
Element Type Coils
Number of Elements 4
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 675.0
Element #2 Size 6.0" (15 cm)
Element #2 Wattage 675.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 675.0
Element #4 Size 8.0" (20 cm)
Element #4 Wattage 950.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Window Yes
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 16.0" (41 cm)
Oven Interior Depth 19.0" (48 cm)
Broiler Location Inside Oven

AVAILABLE UPGRADES

Interior
Canadian Range Conversion
Range is modified at factory to meet CSA-C standards
Heat Sense
Temperature sensor cycles coil element to prevent cookware from exceeding flashpoint temperatures
Exterior
RangeCord4P - Installed 4-pronged cord
4-pronged NEMA 14-50P cord installed on stove
RangeCord3P - Installed 3-pronged cord
3-pronged NEMA 10-50P cord installed on stove
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.

The TEM110CRW is an electric range conveniently sized at just 20" wide, with a generous 2.46 cu.ft. oven that can still accommodate large trays. The surface features four coil elements, including one extra large 8" element ideal for larger cooking vessels. Removable chrome drip trays ensure easy cleanup. The porcelain oven interior includes two adjustable racks with safety brakes, a broiler function, and an interior light with an on/off switch.

This slide-in style range features a low stainless steel backguard to create a modern look that is easy to integrate into any kitchen design. This unit comes in a jet black porcelain and steel finish, with a lower drop-down storage compartment ideal for pots and pans and an oven window to let you monitor your cooking without opening the door and releasing heat.

Fully equipped for safe, easy, and quality cooking, Summit ranges are constructed in the USA and designed for lasting durability.

FEATURES

Slim 20 inch width
Perfectly sized for apartments and other homes with smaller kitchen spaces
Slide-in look
Low backguard can blend into other cabinetry and lets you choose your own wall design behind the range
Four sealed burners
Surface features one 2100W 8" element and three 1200W 6" elements
Chrome drip pans
Each element includes a removable chrome pan for easier cleaning
Stainless steel rear trim
Low rear trim is finished in stainless steel for an attractive look
Storage compartment
Bottom drop-down storage compartment is ideal for storing cookware, helping to free up space in your small kitchen
Oven window with light
Easier monitoring of your cooking with an oven window and on/off light
Waist-high broiler
Broiler is located inside the oven, making it easier to use
Porcelain construction
Black porcelain removable oven top and door
Large oven capacity
Generous 2.46 cu.ft. oven interior is one of the largest sizes offered for 20" wide ranges
Recessed oven door
Smart design limits the depth and protects adjacent cabinets
Oven racks
Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
Indicator lights
Control panel includes an 'on' light for the oven and burners for added safety when using the range
Push-to-turn burner knobs
Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn
Broiler pan included
Two-piece porcelain broiler tray with grease well
220V Electric range
Cord not included
ADA compliant design
Upfront controls and easy-to-operate knobs offer easier accessibility

SPECIFICATIONS

Overview
Height of Cabinet 36.0" (91 cm)
Width 20.0" (51 cm)
Depth 24.0" (61 cm)
Door Black
Cabinet Black
US Electrical Safety CSA
Voltage/Frequency 220 V AC/60 Hz
Weight 140.0 lbs. (64 kg)
Shipping Weight 145.0 lbs. (66 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Electric Range
Oven Capacity 2.46 cu.ft. (70 L)
Cooktop Surface Porcelain
Element Type Coils
Number of Elements 4
Element #1 Size 6.0" (15 cm)
Element #1 Wattage 675.0
Element #2 Size 6.0" (15 cm)
Element #2 Wattage 675.0
Element #3 Size 6.0" (15 cm)
Element #3 Wattage 675.0
Element #4 Size 8.0" (20 cm)
Element #4 Wattage 950.0
Burner Controls Dial
Oven Controls Dial
Oven Light Yes
Cleaning Type Manual
Oven Rack Qty 2
Oven Window Yes
Oven Interior Height 14.0" (36 cm)
Oven Interior Width 16.0" (41 cm)
Oven Interior Depth 19.0" (48 cm)
Broiler Location Inside Oven

AVAILABLE UPGRADES

Interior
Canadian Range Conversion
Range is modified at factory to meet CSA-C standards
Heat Sense
Temperature sensor cycles coil element to prevent cookware from exceeding flashpoint temperatures
Exterior
RangeCord4P - Installed 4-pronged cord
4-pronged NEMA 14-50P cord installed on stove
RangeCord3P - Installed 3-pronged cord
3-pronged NEMA 10-50P cord installed on stove
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
