20" Wide Wine Cellar

SKU: SWC525L7HH

Commercially approved to NSF-7 standards

DISCONTINUED- REPLACED BY SWC1840B

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.

33.25" H x 19.38" W x 22.0" D
(84cm H x 49cm W x 56cm D)

Overview
Height of Cabinet	33.25" (84 cm)
Width	19.38" (49 cm)
Depth	22.0" (56 cm)
Capacity	4.5 cu.ft. (127 L)
Bottles	40 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.5
Voltage/Frequency	115 V AC/60 Hz
Weight	60.0 lbs. (27 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101042657
Wine Cellar
Number of Zones	1
Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Shelf Type	Scalloped
Shelf Qty	6
Thermostat Type	Digital
Interior Light	Yes
Refrigerant Type	R134a
Refrigerant Amount	1.59 oz.
High Side PSI	218.0
Low Side PSI	105.0
Level Legs	2
Wheels	2

Door

T1 Door Tint Tinted door in low-E mirror finish for maximum energy savings	T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint Tinted door in reflective deep blue finish with high energy savings	T3 Door Tint Reflective door tint in light blue finish for medium energy savings
T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings

Commercially listed

ETL-S listed to NSF standards for commercial use

Slim 20" width

Full 4.5 cu.ft. capacity inside conveniently slim footprint

Fully finished black cabinet

Allows the unit to be used freestanding

Glass door

Provides a full display of stored contents

Factory installed lock

Keyed lock for secure interior

Professional horizontal handle

Thin 14mm diameter on stainless steel handle, mounted horizontally on the door

Automatic defrost

Reduced maintenance with auto defrost system

Digital thermostat

Electronic controls for precise temperature management, with indicator lights for red wine, white wine, and champagne temperatures

Scalloped shelves

Six adjustable chrome shelves are specially designed to hold wine bottles

Interior light

Turn the light on and off with a convenient rocker switch

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

SUMMIT’s SWC525L7 commercial series features wine cellars with unique 20" footprints designed for freestanding use.

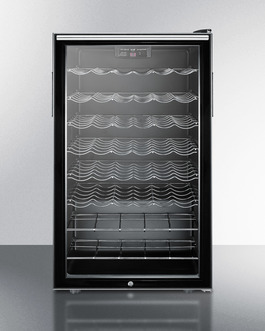

The ETL-S listed SWC525L7HH is a counter height wine cellar with a glass door and professional horizontally mounted handle in stainless steel. A factory installed lock offers dependable security and the fully finished jet black cabinet allows this 20" wide unit to be used freestanding. The auto defrost interior features adjustable scalloped shelves to hold wine bottles and a digital thermostat that allows easy management of your reds, whites, and champagnes.

With a slim-fitting footprint and an elegant design, the SWC525L7HH is ideal for any commercial setting looking for an affordable way to store and display a wine collection. For a built-in version of this model, see the SWC525LBI7 series.

BROCHURE
SWC525L7HH.pdf

USE & CARE
SWC525LBIManual.pdf

MSDS INFORMATION
R134a_MSDS_T.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
