SWC24GKS

Delivery 9240a3e8870753a2ec143c34af2b405742ae73bfeb126dd29f201daa25ab8f11
This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.

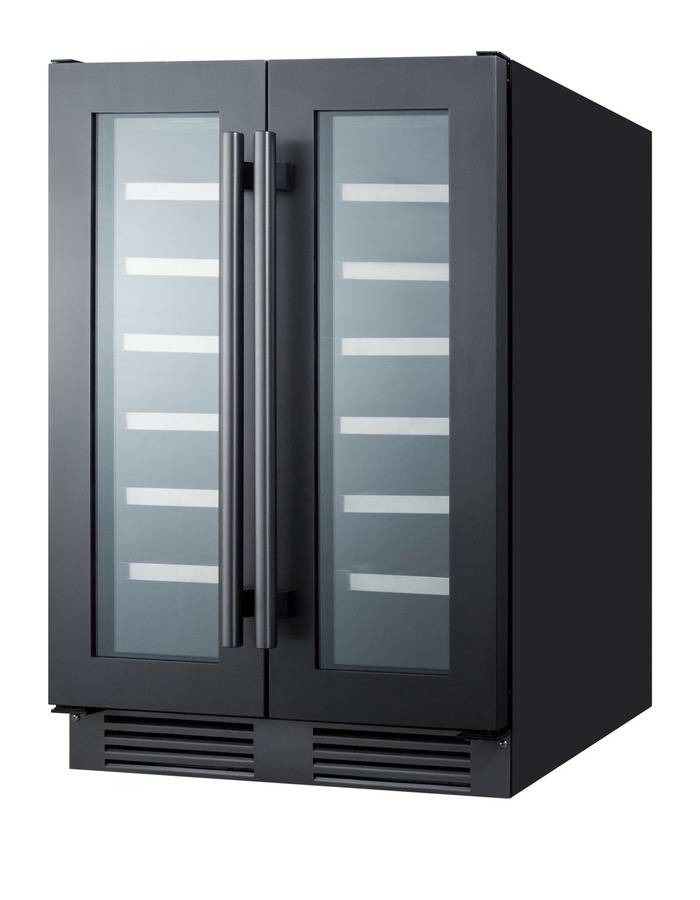

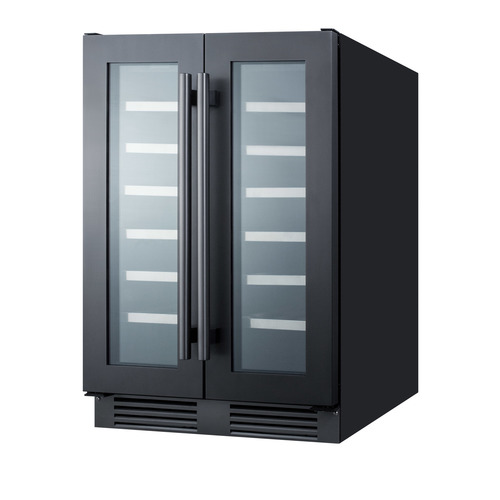

Unique fingerprint-proof black matte door trim in 304 grade stainless steel brings a modern look under the counter

34.25" H x 23.38" W x 23.75" D

(87cm H x 59cm W x 60cm D)

OVERVIEW

  • Unique fingerprint-resistant 304 grade stainless steel trim in a black matte finish around the doors
  • Flexible design allows built-in or freestanding use in 24" spaces
  • Full-extension shelving ensures easier loading on smooth ball-bearing glides
  • Chill white and sparkling wine while preserving red in two distinct temperature zones
  • Both zones are illuminated by elegant LED lighting in a unique white hue
  • French door swing offers a dramatic presentation
  • Fully equipped with door ajar and temperature alarms

SPECIFICATIONS

Overview
Height of Cabinet 34.25" (87 cm)
Width 23.38" (59 cm)
Depth 23.75" (60 cm)
Depth with Handle 25.75" (65 cm)
Depth with door at 90° 34.13" (87 cm)
Capacity 5.2 cu.ft. (147 L)
Bottles 42 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 130.0 lbs. (59 kg)
Shipping Weight 150.0 lbs. (68 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 2
Door Swing French
Reversible No
Shelf Type Wood
Shelf Qty 12
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.77 oz.
High Side PSI 320.0
Low Side PSI 120.0
Interior Height 1 26.0" (66 cm)
Interior Width 1 9.38" (24 cm)
Interior Depth 1 18.5" (47 cm)
Compressor Step Height 4.63" (12 cm)
Compressor Step Width 19.63" (50 cm)
Compressor Step Depth 5.0" (13 cm)
Level Legs 2
Temperature Range 41°F to 65°F
Interior Height 2 26.0" (66 cm)
Interior Width 2 9.38" (24 cm)
Interior Depth 2 18.5" (47 cm)

AVAILABLE UPGRADES

Door
T2F Door Tint
Tinted door in reflective deep blue finish with high energy savings
T4F Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T1SF Door Tint
Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models
T3F Door Tint
Reflective door tint in light blue finish for medium energy savings
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

Summit's extensive collection of built-in undercounter wine cellars includes unique choices for virtually every space.

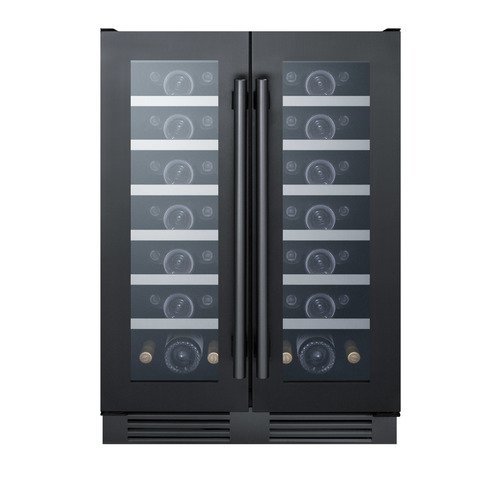

Sized for 24" wide spaces, the SWC24GKS is a dual zone wine cellar with a front-breathing design for built-in installation and a fully finished black cabinet that also allows freestanding use. The French door swing brings a dramatic look under the counter, with a fingerprint-proof black matte finish on the 304 grade stainless steel door trim. The handles and kickplate feature a brushed stainless steel finish in a smoky hue for a unique, modern accent.

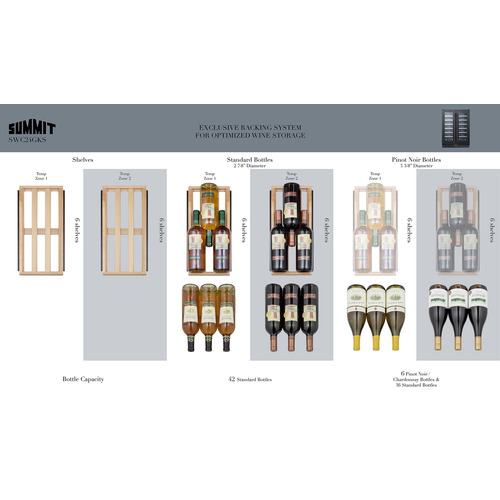

Inside, the SWC24GKS features full-extension stainless steel-trimmed wooden shelves on rollers for easy loading. Digital controls make it easy to manage both temperature zones, with a readout viewable in Celsius or Fahrenheit. Both can be set for red or white wine storage. This unit can store up to 42 standard Bordeaux styles bottles. To accommodate wider Burgundy style wine bottles, you can remove every other shelf for a better fit. Each compartment includes an active charcoal filter to help preserve your collection. The walls feature white LED lighting that can be set to turn on with the open doors, or to stay on in presentation mode for a gentle, efficient glow. This unit is equipped with both an open door and high/low temperature alarm for added protection of your wine.

With its unique design and user-friendly features, the SWC24GKS lets you finish any undercounter space in modern style. Additional wine and beverage centers, including ADA compliant choices, are also available. Browse Summit's selection for more.



FEATURES

Built-in capable
Make the best use of space by installing your appliance under the counter

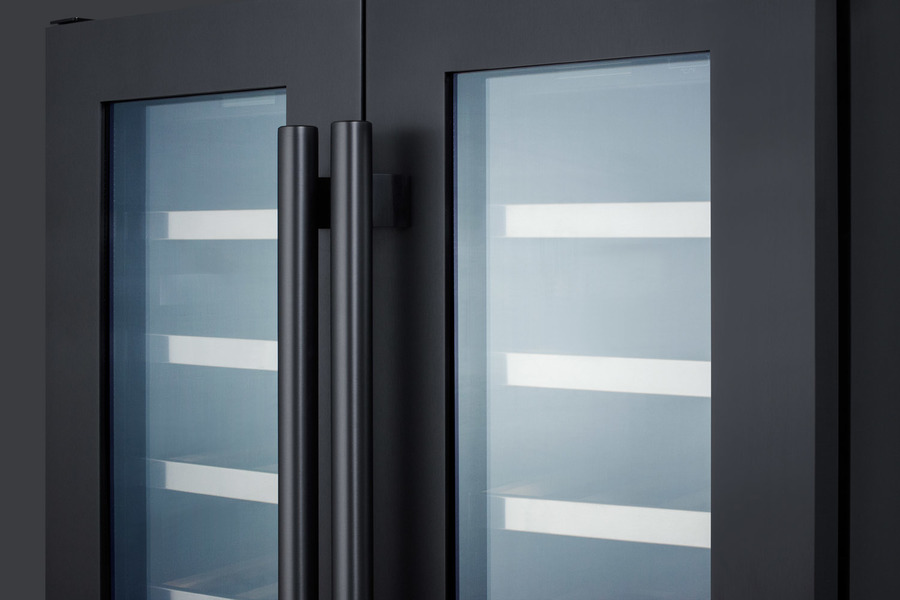

Two glass doors
Gently tinted glass provides a full view of stored wine while protecting your collection

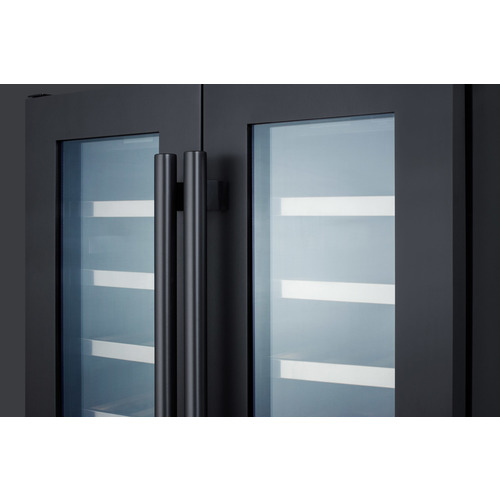

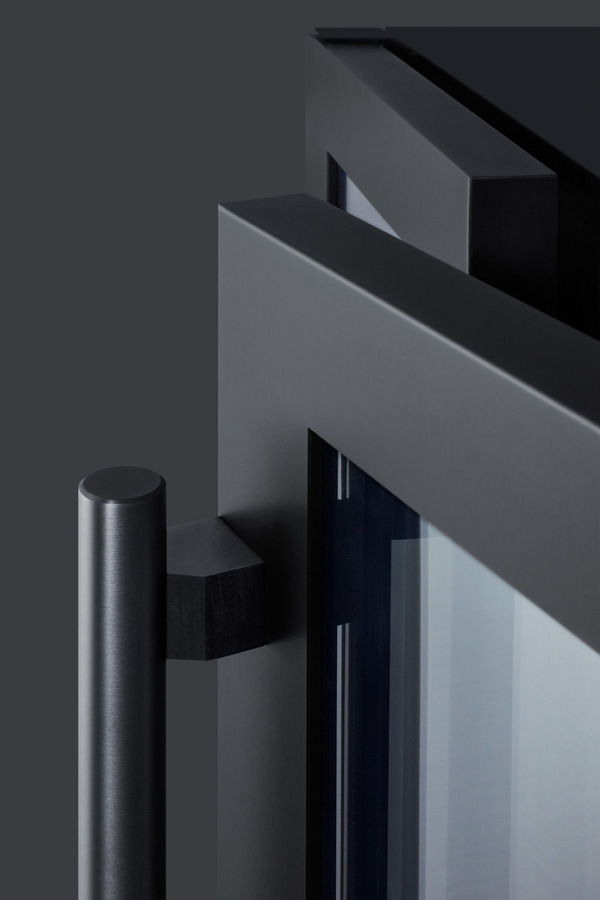

Black stainless steel trimmed doors
Seamless design in fingerprint-proof black matte stainless steel for a modern look under the counter

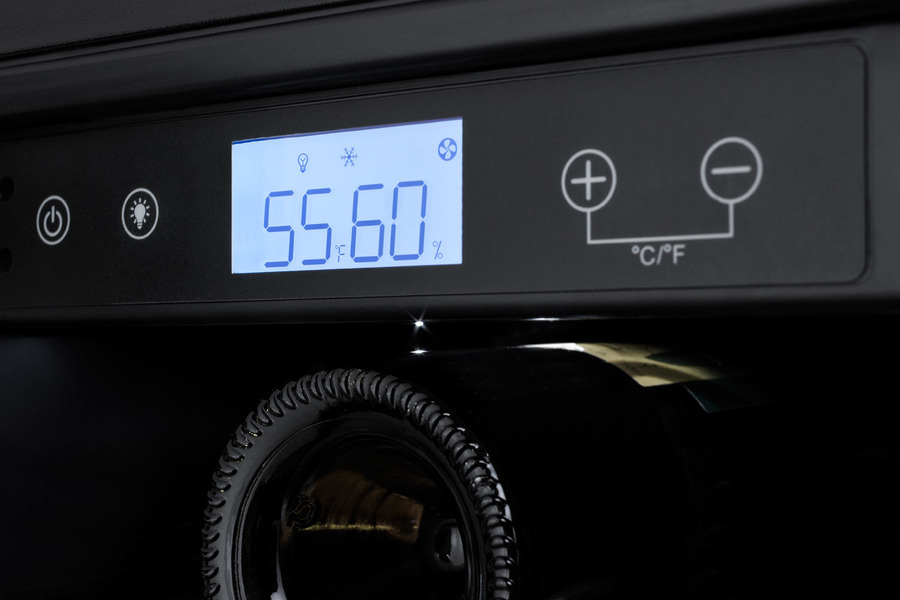

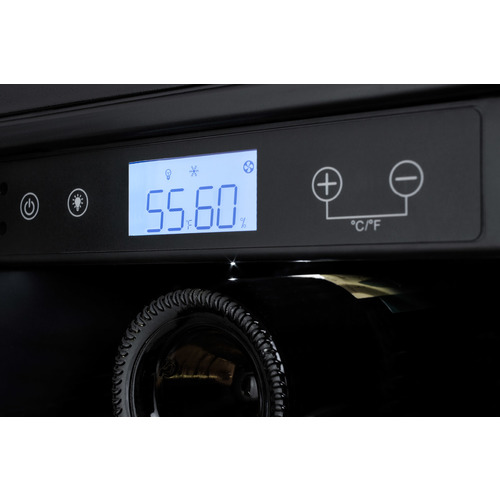

Digital thermostats
Set and adjust two temperature zones separately with easy-to-use digital controls that display the temperature in Celsius or Fahrenheit
Two temperature zones
Independent zones let you store your reds and whites under the perfect conditions

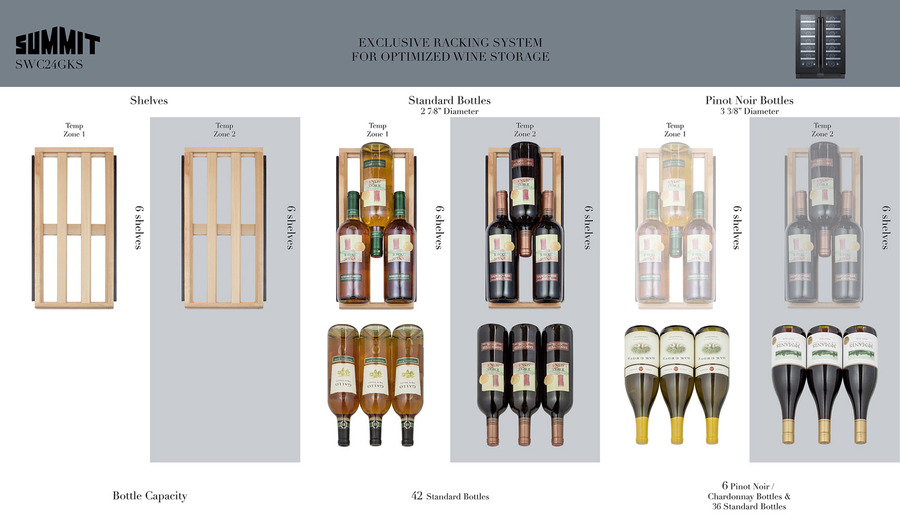

42 bottle capacity
Each zone holds up to 21 standard Bordeaux style bottles. For wider Burgundy style bottles, we recommend removing every other shelf to best accommodate your storage needs

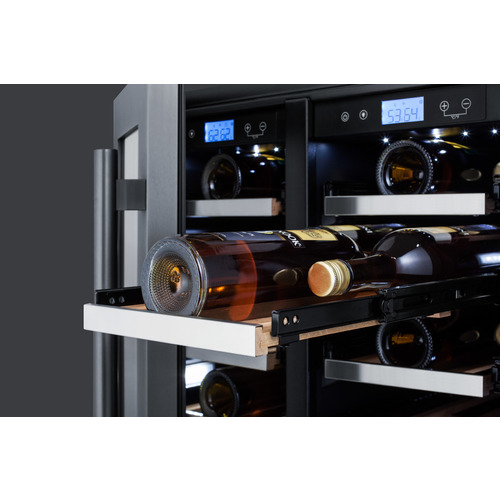

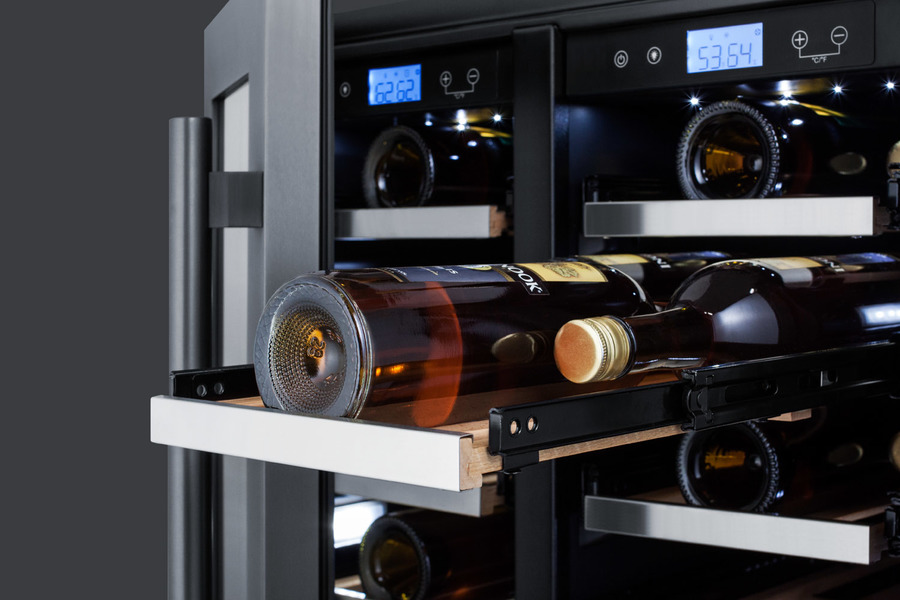

Full extension shelving
Wine shelves glide out smoothly for easier loading
Stainless steel trimmed wooden shelves
Wooden finish with stainless steel trim for an attractive accent
White LED lighting
Unique white light offers elegant illumination for the jet black interior
Automatic defrost
Reduced maintenance with auto defrost system
Fan-forced cooling
Internal fans ensure both interiors are evenly cooled from top to bottom
French door swing
Two side-by-side doors with French door opening
Temperature alarm
Audibly alerts if the interior temperature rises or falls out of the recommended wine storage range
Open door alarm
Audible alarm will sound if the door is left ajar
Active charcoal filters included
Each zone includes a charcoal filter to help preserve wine
Stainless steel kickplate
Added protection with a brushed stainless steel toe kick in a deep smoky finish

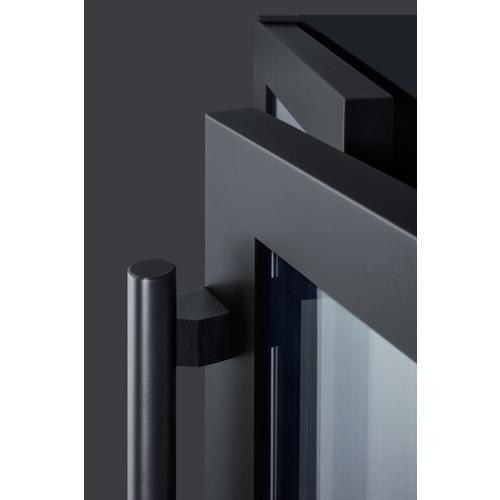

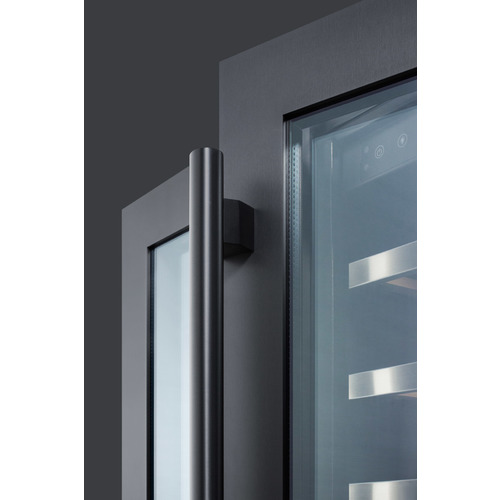

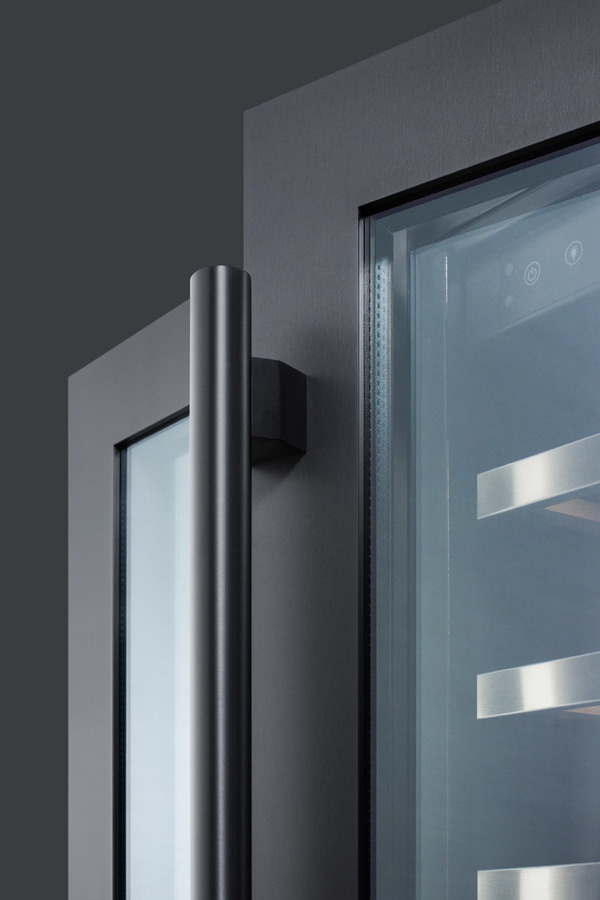

Stainless steel handles
Each door includes a professional handle in a deep brushed stainless steel finish to match the kickplate
Sealed back
Space saving design with easier cleanability
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 34.25" (87 cm)
Width 23.38" (59 cm)
Depth 23.75" (60 cm)
Depth with Handle 25.75" (65 cm)
Depth with door at 90° 34.13" (87 cm)
Capacity 5.2 cu.ft. (147 L)
Bottles 42 bottles
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.5
Voltage/Frequency 115 V AC/60 Hz
Weight 130.0 lbs. (59 kg)
Shipping Weight 150.0 lbs. (68 kg)
Estimated Time to Ship Next day shipping
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 2
Door Swing French
Reversible No
Shelf Type Wood
Shelf Qty 12
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.77 oz.
High Side PSI 320.0
Low Side PSI 120.0
Interior Height 1 26.0" (66 cm)
Interior Width 1 9.38" (24 cm)
Interior Depth 1 18.5" (47 cm)
Compressor Step Height 4.63" (12 cm)
Compressor Step Width 19.63" (50 cm)
Compressor Step Depth 5.0" (13 cm)
Level Legs 2
Temperature Range 41°F to 65°F
Interior Height 2 26.0" (66 cm)
Interior Width 2 9.38" (24 cm)
Interior Depth 2 18.5" (47 cm)

AVAILABLE UPGRADES

Door
T2F Door Tint
Tinted door in reflective deep blue finish with high energy savings
T4F Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T1SF Door Tint
Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models
T3F Door Tint
Reflective door tint in light blue finish for medium energy savings

DOWNLOADS

Download
BROCHURE
SWC24GKS.pdf
Download
TECHNICAL DRAWING (.dwg)
SWC24GKS-F.pdf
Download
TECHNICAL DRAWING (.dwg)
SWC24GKS_WINE_CELLER__A-C_2010_.dwg
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
