24" Wide Built-In 3-Drawer All-Freezer, ADA Compliant

SKU: SPF5DSSTBADA
DISCONTINUED
32.0" H x 23.75" W x 23.5" D
(81cm H x 60cm W x 60cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Width 23.75" (60 cm)
Depth 23.5" (60 cm)
Capacity 3.2 cu.ft. (91 L)
Defrost Type Manual
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety UL
Energy Usage/Year 332.0kWh/year
Voltage/Frequency 115 V AC/60 Hz
Weight 130.0 lbs. (59 kg)
Shipping Weight 148.0 lbs. (67 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101026343
Freezer
Thermostat Type Digital
Fan Type Exterior

Exterior
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
SSK - Stainless steel kickplate
Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Alarm/Thermometer - Factory-installed alarm with external temperature readout
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Slim undercounter dimensions

Less than 24 inches wide to fit tight spaces

ADA compliant

32 inch height fits under standard ADA counters

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinets

Fully finished cabinet

Allows the unit to be used freestanding

Stainless steel construction

Full stainless steel construction inside and out

Three professional towel bar handles

Curved towel bar style handles are easy to grip and elegant to view

Digital thermostat

Precise temperature control at the touch of a button, externally located to allow adjustments without opening any drawers

Manual defrost

No temperature fluctuations with an energy efficient manual defrost system

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

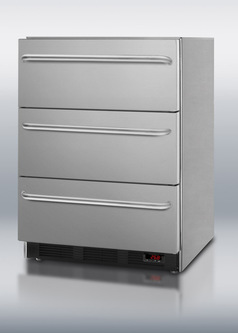

SUMMIT SPF5DSSTBADA is an undercounter all-freezer that combines true durability with stunning elegance.

This three-drawer unit is stainless steel inside and out, from the drawer interiors to the cabinet finish. At 32 inches high, the SPF5DSSTBADA is designed to fit under ADA compliant counters. The versatile construction allows for built-in installation and freestanding use, with a slim 24 inch width that fits easily in tight settings.

Inside, the SPF5DSSTBADA uses a powerful static cooling system with energy efficient manual defrost operation. Contents stay cold in three smooth pull-out drawers completed by sturdy towel bar handles. This unit includes a digital thermostat that allows for precise temperature control without opening the drawers.

NOTE: This unit is designed for medical grade or general purpose use. It is not intended for residential installation.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
