SP6DS7MEDADA
SHARE THIS PRODUCT
E-mail a Friend Print

SPECIFICATIONS

Overview
Height 32.0"
Width 23.75"
Depth 23.5"
Depth with Handle 23.63"
Depth with door at 90° 39.25"
Capacity 3.1 cu.ft.
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety UL
Sanitation ETL-S
Amps 1.3
Shipping Weight 140.0 lbs.
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Thermostat Type Dial
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 1.8oz.
High Side PSI 285.0
Low Side PSI 70.0
Level Legs Qty 4
Interior Drawers Yes
Interior Drawers Qty 3
Dimensions
Interior Height 27.75"
Interior Width 20.0"
Interior Depth 17.5"
Interior Height 1 6.25"
Interior Width 1 18.63"
Compressor Step Height 7.0"
Compressor Step Width 18.63"
Compressor Step Depth 6.0"
Drawer Dimensions
Interior Depth 1 11.5"
Interior Height 2 6.25"
Interior Width 2 18.63"
Interior Depth 2 16.0"
Interior Height 3 6.25"
Interior Width 3 17.25"
Interior Depth 3 16.0"

AVAILABLE UPGRADES

Exterior
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
HUM Humidity Sensor
Humidity sensor with min/max readout
SSK
Stainless steel kickplate factory installed
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
DT Digital Thermostat
Install a digital thermostat with external readout for precise temperature management
DL2 Temperature Logger
DL2


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

SP6DS7MEDADA

Commercial approved
This unit meets NSF standards and is designed for commercial use. It complies with the U.S. Department of Energy (DOE) standards for commercial energy usage, but may not meet DOE household standards. For information on its commercial sanitation listing, see Specifications.

DISCONTINUED- REPLACED BY SP6DS7MEDDTADA

32" H x 23.75" W x 23.5" D

OVERVIEW

AccuCold by Summit Appliance offers MED series all-refrigerators for stabilized temperature performance to be used in medical, scientific, pharmaceutical, and laboratory institutions.

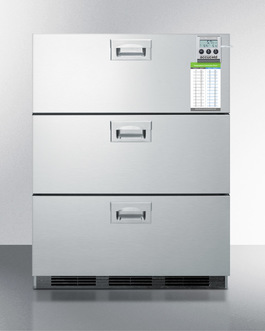

The SP6DS7MEDADA is a commercially approved undercounter refrigerator is constructed entirely from stainless steel. At just 24" wide and featuring recessed handles, the SP6DS7MEDADA takes up little space but has plenty of storage capacity. It can be used built-in under counters or as a freestanding unit. The 32" height is designed for installation under lower ADA compliant counters.

Automatic defrost reduces user maintenance, with internal fan circulation providing even temperature distribution. Special medical features include a high temperature alarm with external display and a green dot plug to protect the cord in high traffic areas.

FEATURES

ADA compliant
32" high to fit under lower ADA compliant counters
Commercially listed
ETL-S listed to NSF standards for commercial use
Built-in capable
Make the best use of space by installing your appliance under the counter
Automatic defrost
Reduced maintenance with auto defrost system
Complete stainless steel exterior
Cabinet and drawer fronts are constructed from 304 grade stainless steel
High temperature alarm
Warns of temperature fluctuations and includes an external temperature readout on the door
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
Automatic defrost
Reduced maintenance with auto defrost system
Internal fan with gel packs
Fan-forced cooling ensures the unit is evenly cooled from top to bottom
Fully finished cabinet
Allows the unit to be used freestanding
Adjustable thermostat
Manage the temperature with ease and accuracy
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DOWNLOADS

Download BROCHURE
SP6DS7MEDADA.pdf
Download MSDS INFORMATION
PROPYLENE_GLYCOL_MSDS1.pdf
