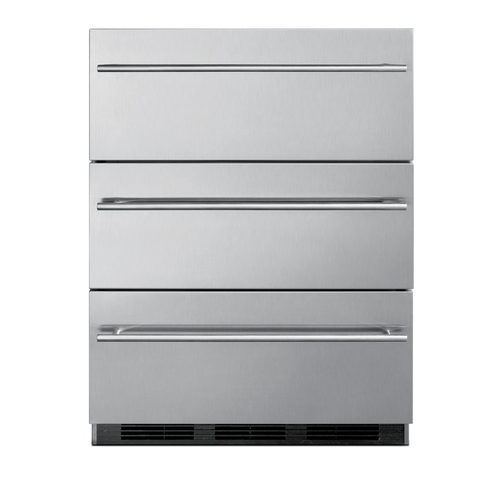

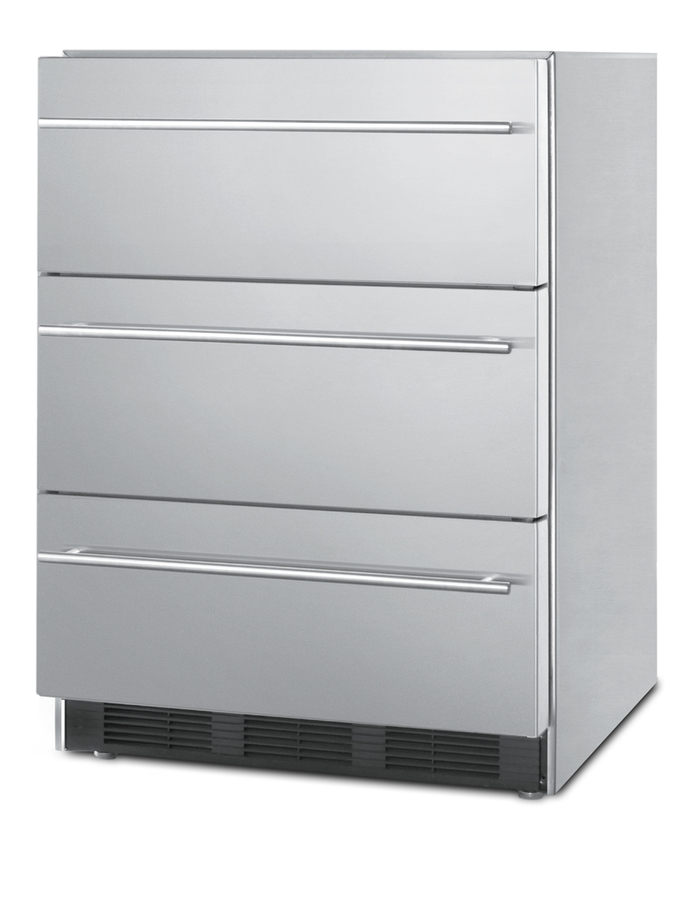

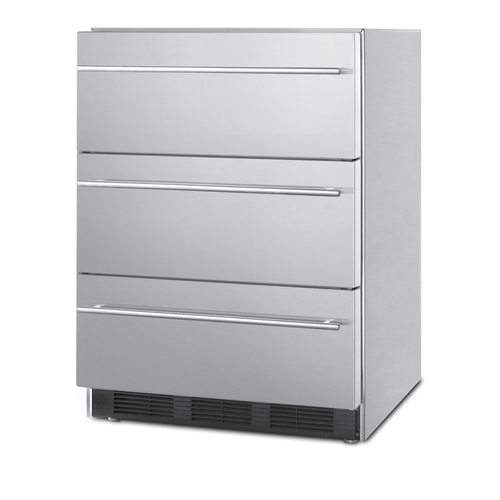

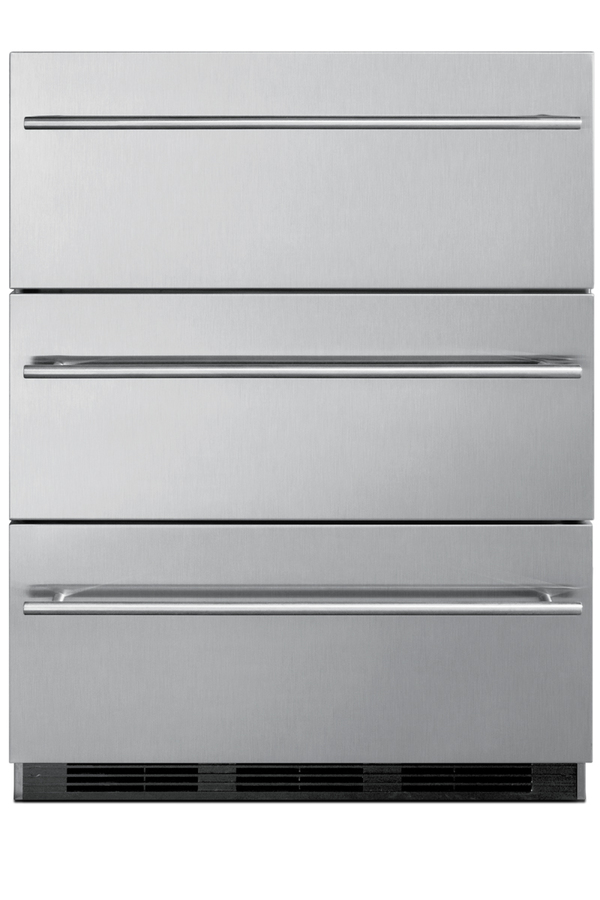

24" Wide 3-Drawer All-Refrigerator

SKU: SP6DBSSTB7Thin

Commercial meets nsf
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

Assembled in the USA with full stainless steel construction inside and out

33.25" H x 23.75" W x 23.58" D

(84cm H x 60cm W x 60cm D)

OVERVIEW

  • Commercially approved for use in food service establishments
  • Flexible design allows built-in or freestanding use
  • Three drawer all-refrigerator in complete stainless steel, with sleek towel bar handles for an elegant look
  • Automatic defrost operation minimizes user maintenance
  • Perfectly sized to fit under counters and in 24 inch spaces
  • Assembled in the USA

SPECIFICATIONS

Overview
Height of Cabinet 33.25" (84 cm)
Width 23.75" (60 cm)
Depth 23.58" (60 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 40.5" (103 cm)
Capacity 3.1 cu.ft. (88 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.2
Weight 120.0 lbs. (54 kg)
Shipping Weight 125.0 lbs. (57 kg)
Estimated Time to Ship 3 to 5 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Height Adjustable 1
Thermostat Type Dial
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 4
Interior Drawers Yes
Interior Drawers Qty 3
Drawer Dimensions
Interior Height 1 6.25" (16 cm)
Interior Width 1 18.63" (47 cm)
Interior Depth 1 11.5" (29 cm)
Interior Height 2 6.25" (16 cm)
Interior Width 2 18.63" (47 cm)
Interior Depth 2 16.0" (41 cm)
Interior Height 3 6.25" (16 cm)
Interior Width 3 17.25" (44 cm)
Interior Depth 3 16.0" (41 cm)
Dimensions
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 18.63" (47 cm)
Compressor Step Depth 6.0" (15 cm)

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Legs to raise unit height
6" high leveling legs
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT COMMERCIAL offers a quality line of commercially approved drawer refrigerators assembled in the U.S.A. and fully constructed from stainless steel.

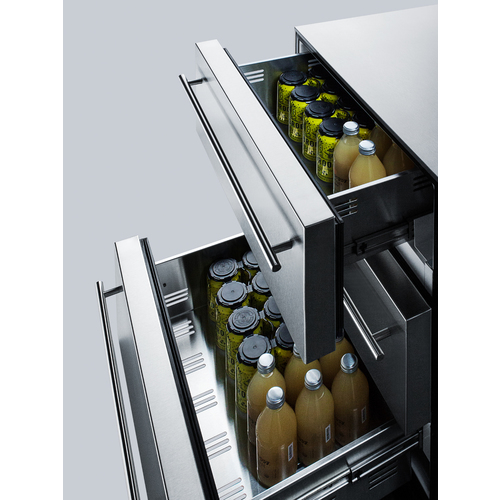

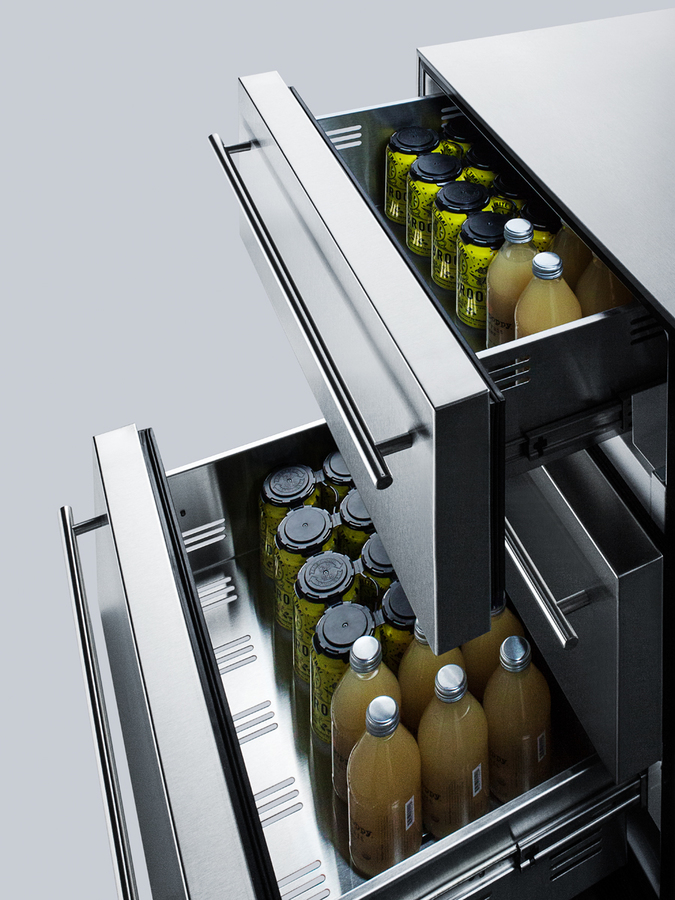

The SP6DBSSTB7Thin is a 24" wide three-drawer all-refrigerator that can be used built-in or freestanding. Three sliding drawers feature sleek stainless steel handles and magnetic gaskets to ensure a tight seal when closed. The cabinet and drawers are constructed from durable stainless steel to ensure long-lasting luxury with a professional look.

Automatic defrost ensures minimum user maintenance, with a dial thermostat for easy temperature management. This model is ETL-S listed to NSF-7 standards for commercial use. For this unit in lower ADA compliant height, see the SP6DBSSTB7ThinADA.

FEATURES

Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Slim undercounter dimensions
Less than 24 inches wide to fit tight spaces
Built-in capable
Make the best use of space by installing your appliance under the counter and flush with other cabinetry
Complete stainless steel construction
Built with solid durability, inside and out
Professional handles
Thin (14mm diameter) stainless steel handles for a sleek look that matches many popular styles of cabinetry
Automatic defrost
Reduced maintenance with auto defrost system
Adjustable thermostat
Dial thermostat for easy temperature management
Magnetic gaskets
Ensures the drawers are tightly sealed to protect stored items
Fully finished cabinet
Allows the unit to be used freestanding
100% CFC free
Environmentally friendly design does not contain ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 33.25" (84 cm)
Width 23.75" (60 cm)
Depth 23.58" (60 cm)
Depth with Handle 24.63" (63 cm)
Depth with door at 90° 40.5" (103 cm)
Capacity 3.1 cu.ft. (88 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.2
Weight 120.0 lbs. (54 kg)
Shipping Weight 125.0 lbs. (57 kg)
Estimated Time to Ship 3 to 5 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Height Adjustable 1
Thermostat Type Dial
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 4
Interior Drawers Yes
Interior Drawers Qty 3
Drawer Dimensions
Interior Height 1 6.25" (16 cm)
Interior Width 1 18.63" (47 cm)
Interior Depth 1 11.5" (29 cm)
Interior Height 2 6.25" (16 cm)
Interior Width 2 18.63" (47 cm)
Interior Depth 2 16.0" (41 cm)
Interior Height 3 6.25" (16 cm)
Interior Width 3 17.25" (44 cm)
Interior Depth 3 16.0" (41 cm)
Dimensions
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 18.63" (47 cm)
Compressor Step Depth 6.0" (15 cm)

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Legs to raise unit height
6" high leveling legs
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior

DOWNLOADS

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
