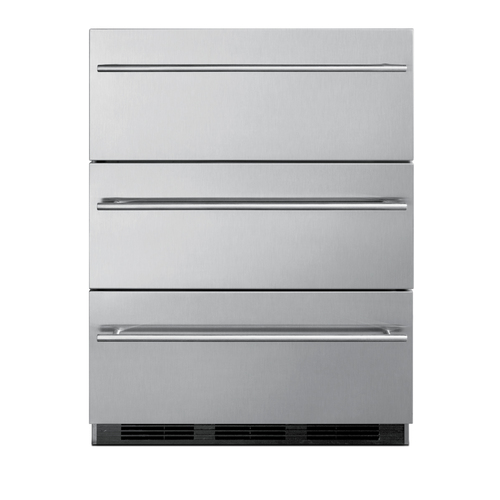

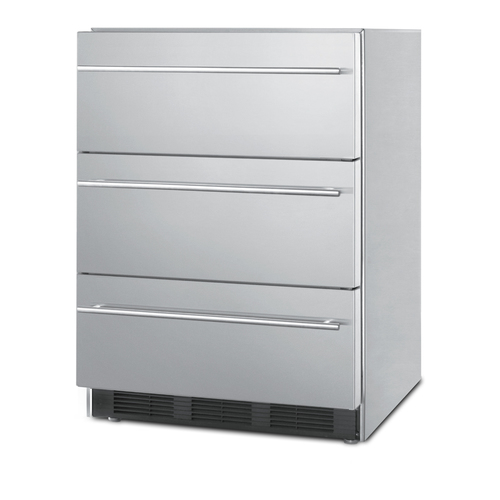

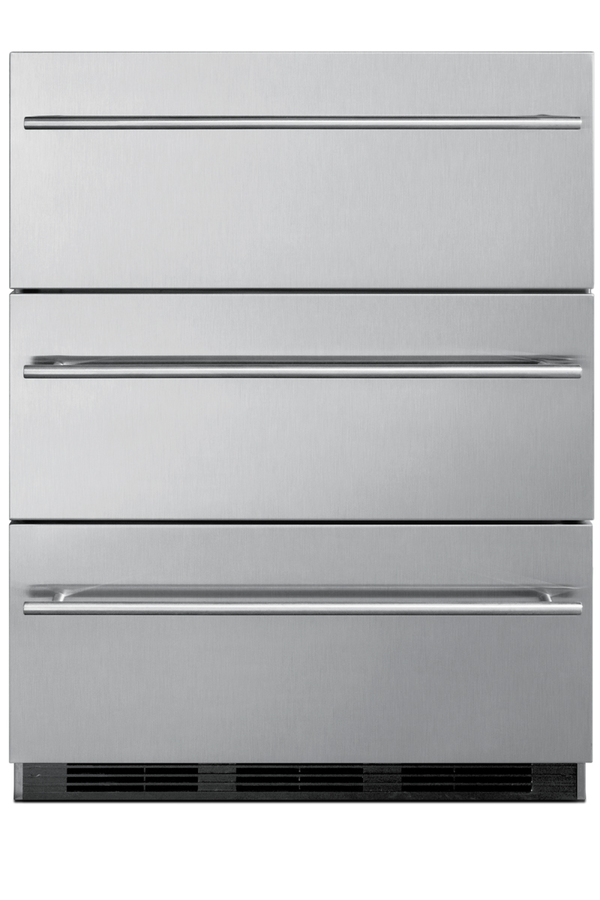

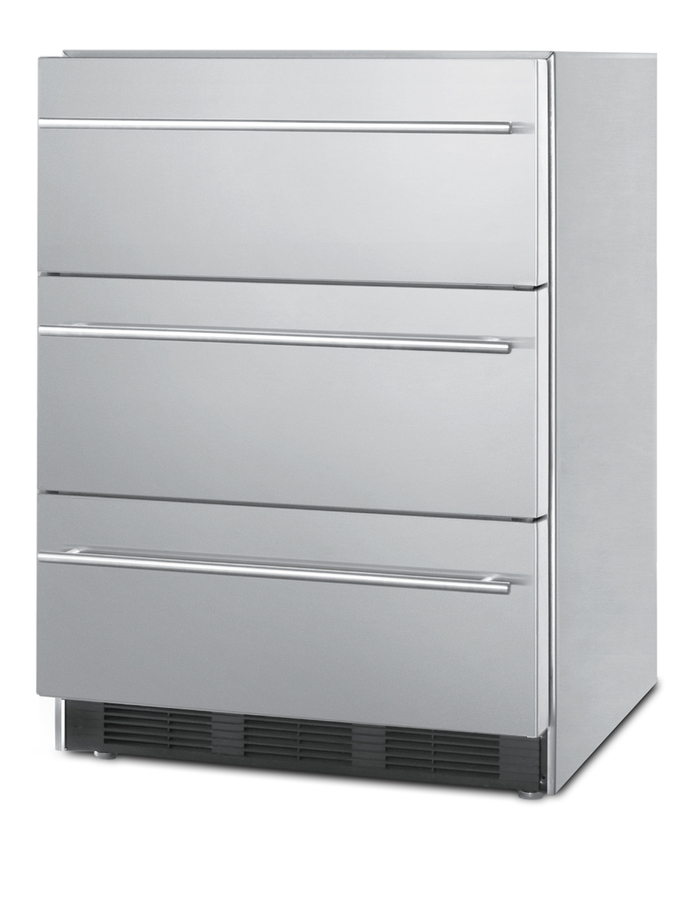

24" Wide 3-Drawer All-Refrigerator, ADA Compliant

SKU: SP6DBSSTB7THINADA

Assembled in the USA with full stainless steel construction inside and out

DISCONTINUED- REPLACED BY ADRD24

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

32.0" H x 23.75" W x 23.58" D
(81cm H x 60cm W x 60cm D)

Overview
Height of Cabinet	32.0" (81 cm)
Width	23.75" (60 cm)
Depth	23.58" (60 cm)
Depth with Handle	24.63" (63 cm)
Depth with door at 90°	40.5" (103 cm)
Capacity	3.1 cu.ft. (88 L)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.2
Weight	120.0 lbs. (54 kg)
Shipping Weight	115.5 lbs. (52 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101069579
Refrigerator Features
Thermostat Type	Dial
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.64oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs Qty	4
Interior Drawers	Yes
Interior Drawers Qty	3
Drawer Dimensions
Interior Height 1	6.25" (16 cm)
Interior Width 1	18.63" (47 cm)
Interior Depth 1	11.5" (29 cm)
Interior Height 2	6.25" (16 cm)
Interior Width 2	18.63" (47 cm)
Interior Depth 2	16.0" (41 cm)
Interior Height 3	6.25" (16 cm)
Interior Width 3	17.25" (44 cm)
Interior Depth 3	16.0" (41 cm)
Dimensions
Compressor Step Height	7.0" (18 cm)
Compressor Step Width	18.63" (47 cm)
Compressor Step Depth	6.0" (15 cm)

Exterior

HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix	SSK - Stainless steel kickplate Stainless steel kickplate factory installed
Latch - Factory-installed door latch requires manual release to open unit Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.	Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Interior

FC - Internal Fan

Commercially approved

ETL-S listed to NSF-7 Standards for use in commercial establishments

ADA Compliant

32 inch height is designed to fit under ADA compliant counters

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinetry

Automatic defrost

Reduced maintenance with auto defrost system

Complete stainless steel construction

Built with solid durability, inside and out

Professional handles

Thin (14mm diameter) stainless steel handles for a sleek look that matches many popular styles of cabinetry

Adjustable thermostat

Dial thermostat for easy temperature management

Magnetic gaskets

Ensures the drawers are tightly sealed to protect stored items

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT COMMERCIAL offers a quality line of commercially approved drawer refrigerators assembled in the U.S.A. and fully constructed from stainless steel.

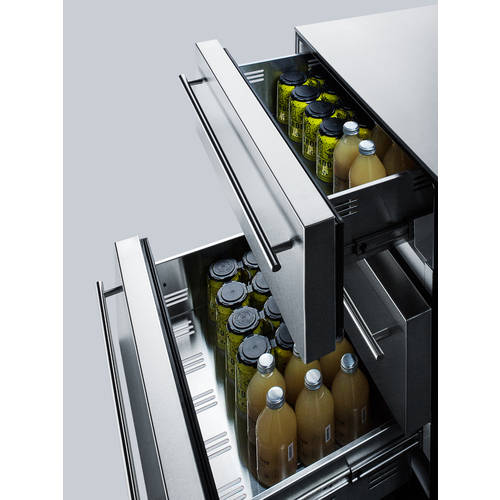

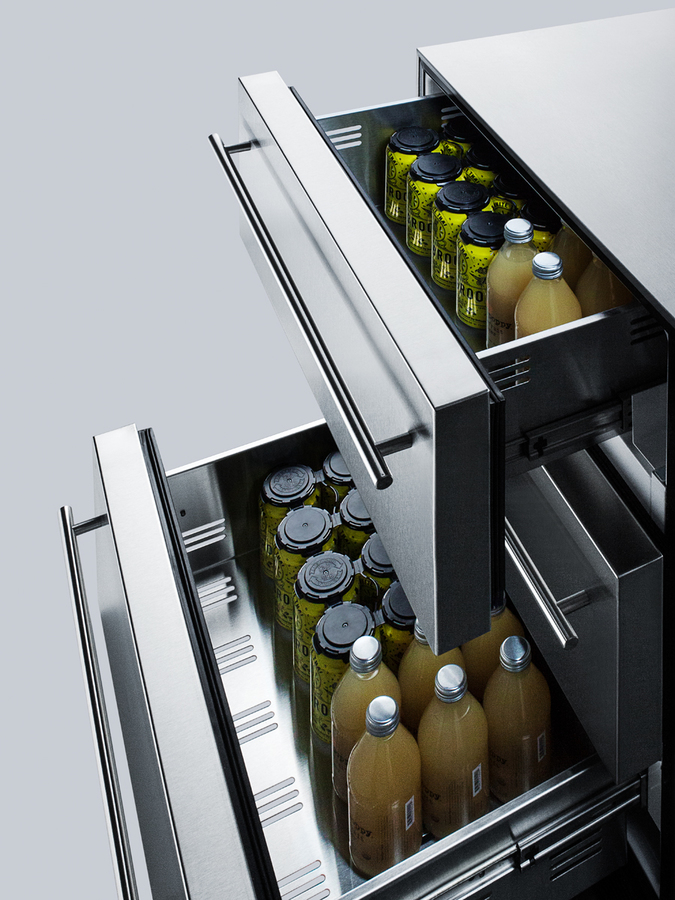

The SP6DBSSTB7THINADA is a 24" wide three-drawer all-refrigerator that can be used built-in or freestanding. At 32" high, this unit is designed for use under lower ADA compliant counters. Three sliding drawers feature sleek stainless steel handles and magnetic gaskets to ensure a tight seal when closed. The cabinet and drawers are constructed from durable stainless steel to ensure long-lasting luxury with a professional look.

Automatic defrost ensures minimum user maintenance, with a dial thermostat for easy temperature management. This model is ETL-S listed to NSF-7 standards for commercial use. For this unit in standard counter height, see the SP6DBSSTB7THIN.

BROCHURE w/ DRAWINGS
SP6DBSSTB7THINADA.pdf

TECHNICAL DRAWING (.dwg)
SP6DSSTBADAThinDRAWERREFA-C2000.dwg

USE & CARE
SP6DB_Series_Drawer_Refrigerators.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
