COVID-19 VACCINE COLD STORAGE SOLUTIONS

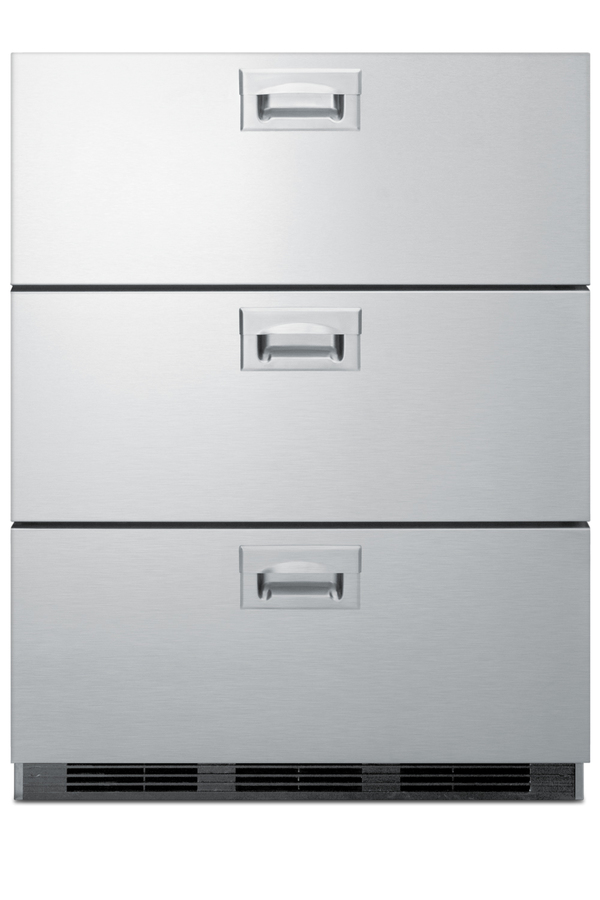

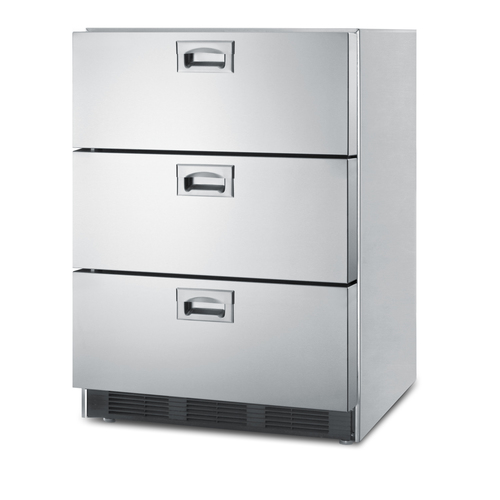

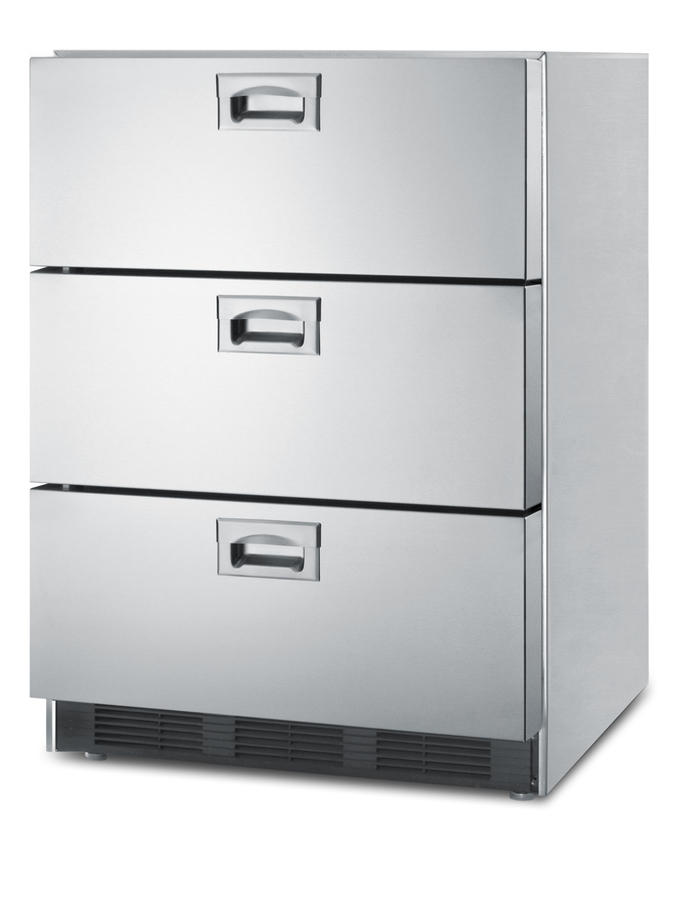

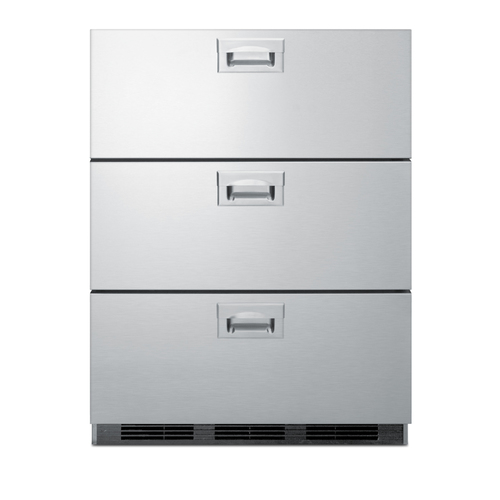

24" Wide 3-Drawer All-Refrigerator, ADA Compliant

SKU: SP6DBS7ADA
Assembled in the USA with full stainless steel construction inside and out
Estimated Time to Ship:

5 to 7 days

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
32.0" H x 23.75" W x 23.5" D
(81cm H x 60cm W x 60cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Width 23.75" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 23.63" (60 cm)
Depth with door at 90° 39.25" (100 cm)
Capacity 3.1 cu.ft. (88 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.2
Weight 120.0 lbs. (54 kg)
Shipping Weight 125.0 lbs. (57 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101069531
Refrigerator Features
Thermostat Type Dial
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 4
Drawer Dimensions
Interior Height 1 6.25" (16 cm)
Interior Width 1 18.63" (47 cm)
Interior Depth 1 11.5" (29 cm)
Interior Height 2 6.25" (16 cm)
Interior Width 2 18.63" (47 cm)
Interior Depth 2 16.0" (41 cm)
Interior Height 3 6.25" (16 cm)
Interior Width 3 17.25" (44 cm)
Interior Depth 3 16.0" (41 cm)
Dimensions
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 18.63" (47 cm)
Compressor Step Depth 6.0" (15 cm)

Exterior
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
SSK
Stainless steel kickplate factory installed
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Alarm/Thermometer
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior

ADA Compliant

32 inch height is designed to fit under ADA compliant counters

Commercially approved

ETL-S listed to NSF-7 Standards for use in commercial establishments

Slim undercounter dimensions

Less than 24 inches wide to fit tight spaces

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinetry

Fully finished cabinet

Allows the unit to be used freestanding

Complete stainless steel construction

Built with solid durability, inside and out

Automatic defrost

Reduced maintenance with auto defrost system

Adjustable thermostat

Dial thermostat for easy temperature management

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT COMMERCIAL offers a quality line of commercially approved drawer refrigerators assembled in the U.S.A. and fully constructed from stainless steel.

The SP6DBS7ADA is a 24" wide three-drawer all-refrigerator that can be used built-in or freestanding. At 32" high, this unit is designed for use under lower ADA compliant counters. Three sliding drawers feature recessed handles and magnetic gaskets to ensure a tight seal when closed. The cabinet and drawers are constructed from durable stainless steel to ensure long-lasting luxury with a professional look.

Automatic defrost ensures minimum user maintenance, with a dial thermostat for easy temperature management. This model is ETL-S listed to NSF-7 standards for commercial use. For this unit in standard counter height, see the SP6DBS7.

Download
BROCHURE w/ DRAWINGS
SP6DBS7ADA.pdf
Download
TECHNICAL DRAWING (.dwg)
SP6DSADADRAWERREFA-C2000.dwg

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
