COVID-19 VACCINE COLD STORAGE SOLUTIONS

24" Wide 2-Drawer All-Refrigerator

SKU: SP6DBS2D7

Assembled in the USA with full stainless steel construction inside and out

Estimated Time to Ship: 3 to 5 days
Commercial meets nsf
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

33.25" H x 23.75" W x 23.88" D

(84cm H x 60cm W x 61cm D)

SPECIFICATIONS

Overview
Height of Cabinet 33.25" (84 cm)
Width 23.75" (60 cm)
Depth 23.88" (61 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 41.25" (105 cm)
Capacity 3.0 cu.ft. (85 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.2
Weight 120.0 lbs. (54 kg)
Shipping Weight 125.0 lbs. (57 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Height Adjustable 1
Thermostat Type Dial
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 4
Drawer Dimensions
Interior Height 1 9.5" (24 cm)
Interior Width 1 18.75" (48 cm)
Interior Depth 1 12.0" (30 cm)
Interior Height 2 12.63" (32 cm)
Interior Width 2 17.25" (44 cm)
Interior Depth 2 16.0" (41 cm)
Dimensions
Compressor Step Height 5.75" (15 cm)
Compressor Step Width 18.75" (48 cm)
Compressor Step Depth 4.0" (10 cm)

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Legs to raise unit height
6" high leveling legs
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

FEATURES

Commercially approved
ETL-S listed to NSF-7 Standards for use in commercial establishments
Built-in capable
Make the best use of space by installing this unit under the counter and flush with other cabinetry
Complete stainless steel construction
Enhance any room with durable luxury
Automatic defrost
Reduced user maintenance with automatic defrost
Fully finished cabinet
Complete stainless steel exterior allows your refrigerator to be used freestanding
Rapid chill compartment
Special rear section is perfect for chilling wine and beer from room to drinking temperature in under an hour
Large top drawer
Holds two liter bottles, gallon containers, and wine bottles in 12 1/2" height
Stainless steel handles
Thin horizontal handles add a touch of professional style
Adjustable thermostat
Dial thermostat for easy temperature management
Customizable drawer fronts
Order our conversion kit to install your own panels over the drawers
Adjustable drawer divider
Wire divider lets you separate items into four sections for easier organization
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

DESCRIPTION

SUMMIT COMMERCIAL offers a quality line of commercially approved drawer refrigerators assembled in the U.S.A. and fully constructed from stainless steel.

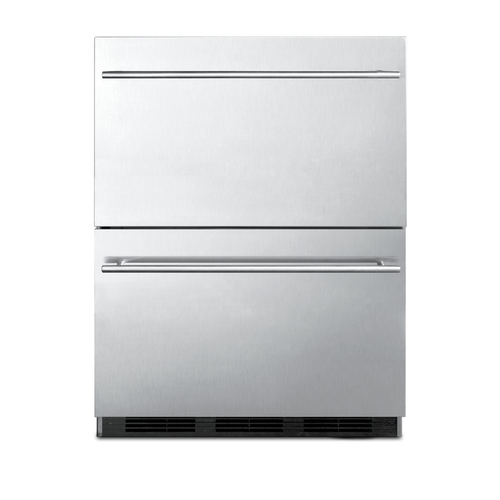

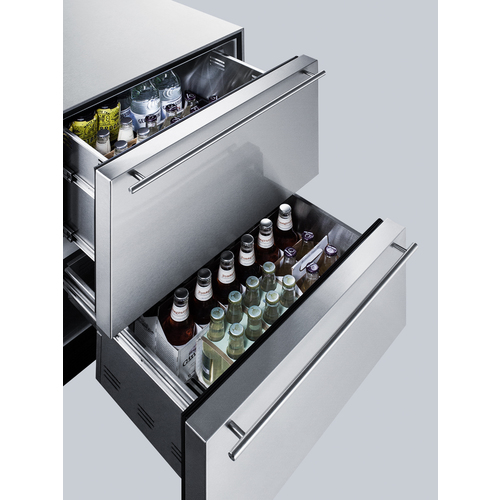

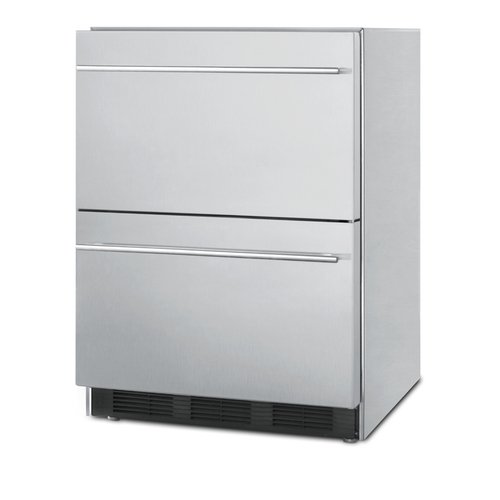

The SP6DBS2D7 is a 24" wide two-drawer all-refrigerator that can be used built-in or freestanding. Two sliding drawers feature sleek stainless steel handles and magnetic gaskets to ensure a tight seal when closed. The cabinet and drawers are constructed from durable stainless steel to ensure long-lasting luxury with a professional look. This unit includes an adjustable divider that lets you better organize your storage. We offer an optional conversion kit that allows the drawers to be customized with overlay panels (see Panel Kit).

Automatic defrost ensures minimum user maintenance, with a dial thermostat for easy temperature management. This model is ETL-S listed to NSF-7 standards for commercial use. For this unit in lower ADA compliant height, see the SP6DBS2D7ADA.

SPECIFICATIONS

Overview
Height of Cabinet 33.25" (84 cm)
Width 23.75" (60 cm)
Depth 23.88" (61 cm)
Depth with Handle 25.38" (64 cm)
Depth with door at 90° 41.25" (105 cm)
Capacity 3.0 cu.ft. (85 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.2
Weight 120.0 lbs. (54 kg)
Shipping Weight 125.0 lbs. (57 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Height Adjustable 1
Thermostat Type Dial
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 0.64oz.
High Side PSI 180.0
Low Side PSI 80.0
Level Legs Qty 4
Drawer Dimensions
Interior Height 1 9.5" (24 cm)
Interior Width 1 18.75" (48 cm)
Interior Depth 1 12.0" (30 cm)
Interior Height 2 12.63" (32 cm)
Interior Width 2 17.25" (44 cm)
Interior Depth 2 16.0" (41 cm)
Dimensions
Compressor Step Height 5.75" (15 cm)
Compressor Step Width 18.75" (48 cm)
Compressor Step Depth 4.0" (10 cm)

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
Legs to raise unit height
6" high leveling legs
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
