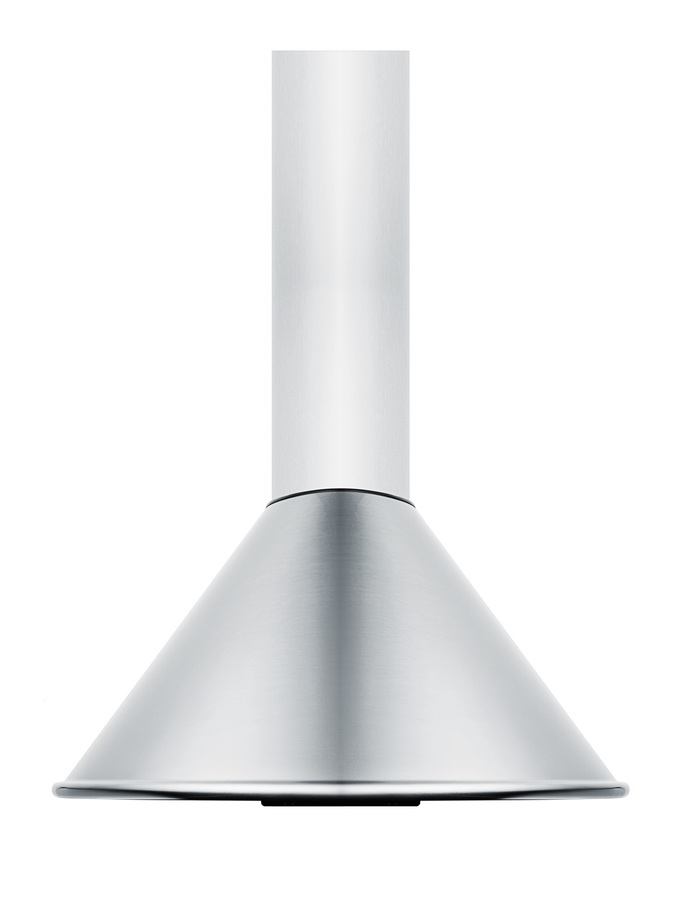

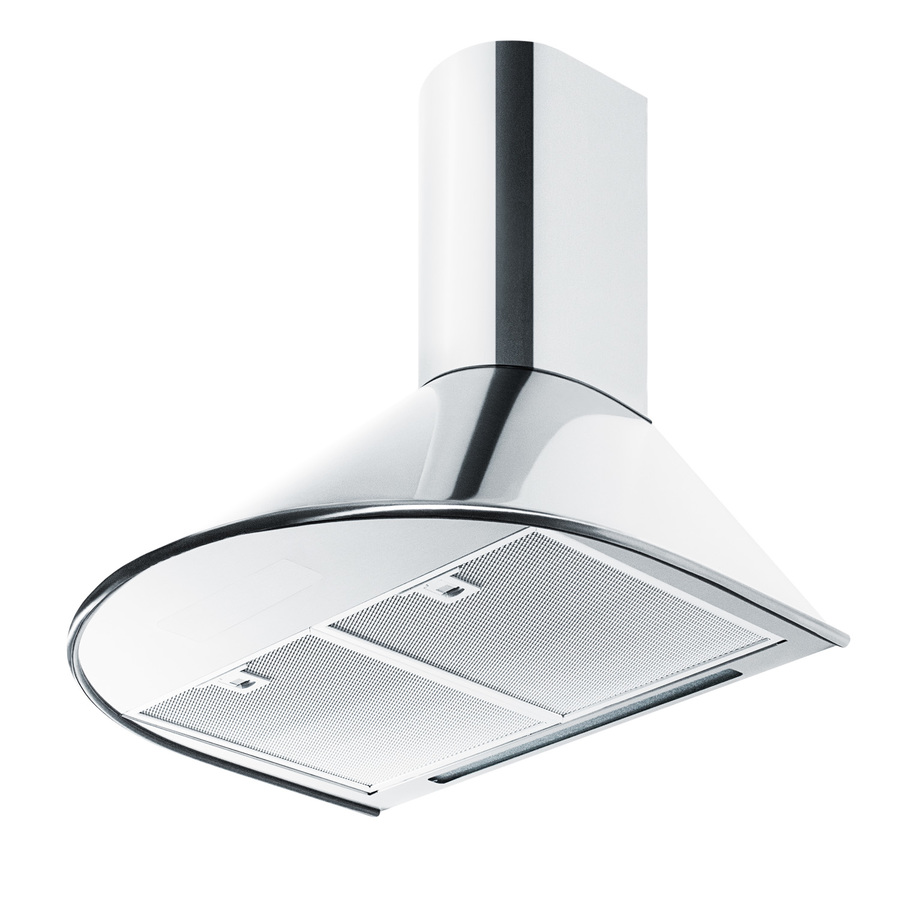

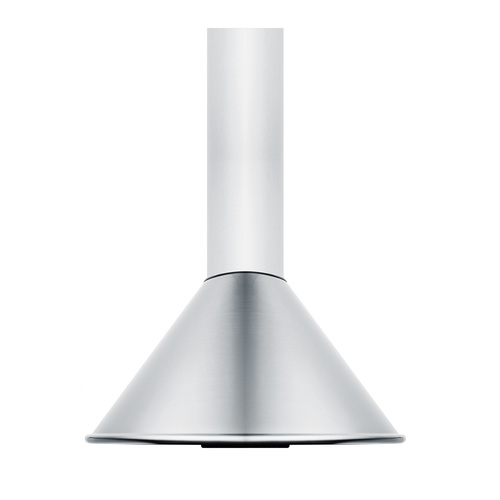

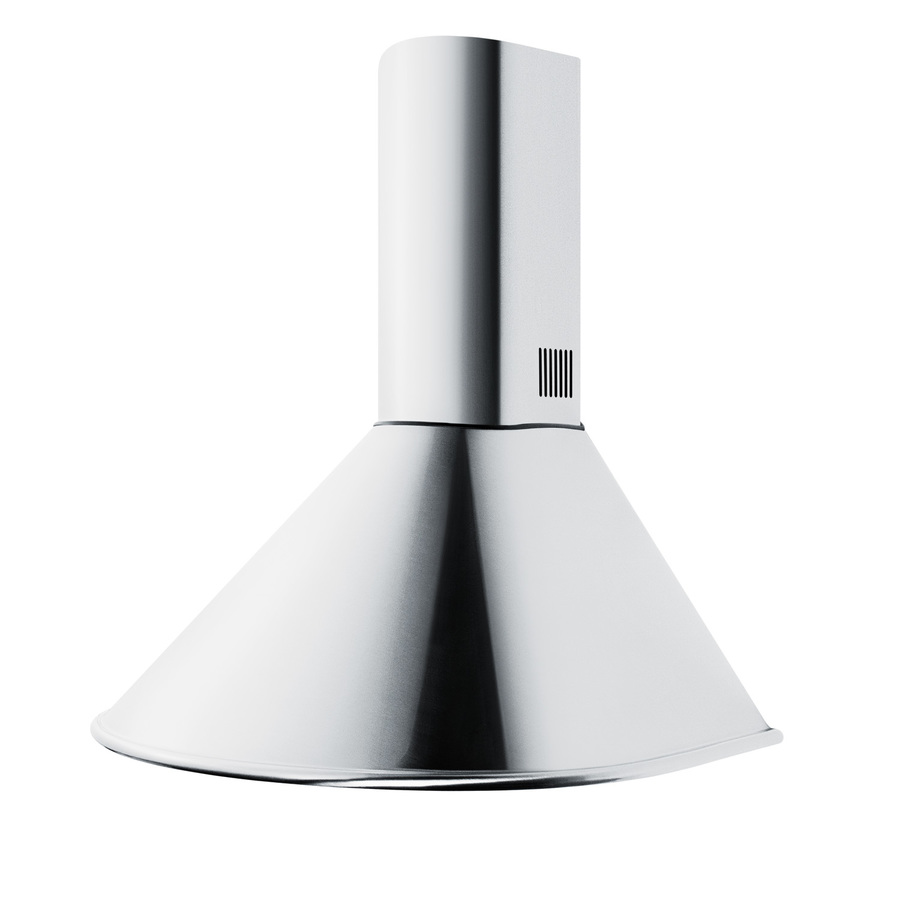

24" Wide Wall-Mounted Range Hood, ADA Compliant
SKU: SEH6624CADA
Specially designed for accessible use in ADA compliant kitchens
Estimated Time to Ship: 3 days to 2 weeks; For options that ship faster, contact our sales team at 718-893-3900 ext. 507
30.0" H x 23.5" W x 21.63" D
(76cm H x 60cm W x 55cm D)
SPECIFICATIONS
Overview | |
---|---|
Height of Cabinet | 30.0" (76 cm) |
Width | 23.5" (60 cm) |
Depth | 21.63" (55 cm) |
Cabinet | Stainless Steel |
US Electrical Safety | UL |
Canadian Electrical Safety | ULC |
Amps | 5.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 29.0 lbs. (13 kg) |
Shipping Weight | 31.0 lbs. (14 kg) |
Parts & Labor Warranty | 1 Year |
UPC | 761101063591 |
Range Hood | |
Installation | Wall-Mounted |
Venting | Convertible w/ Filter Set |
Controls | Slide |
Light | Yes |
Number of Lights | 2 |
Light Type | Incandescent |
Number of Fan Speeds | 3 |
Maximum Air Movement | 600.0 CFM |
Minimum Height | 29.0" (74 cm) |
Maximum Height | 41.0" (104 cm) |
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
California residents:

Note: Nickel is a component of stainless steel.
FEATURES
ADA compliant design

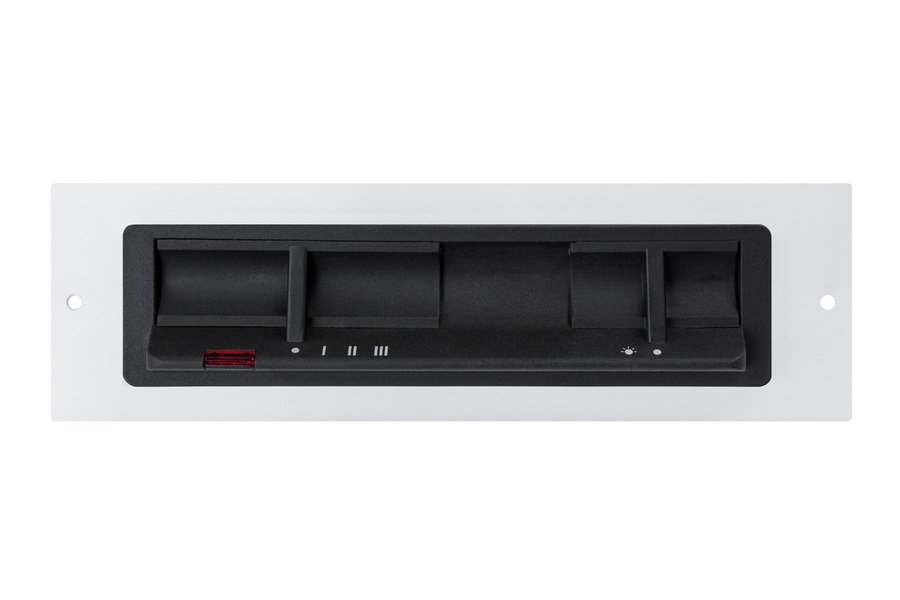

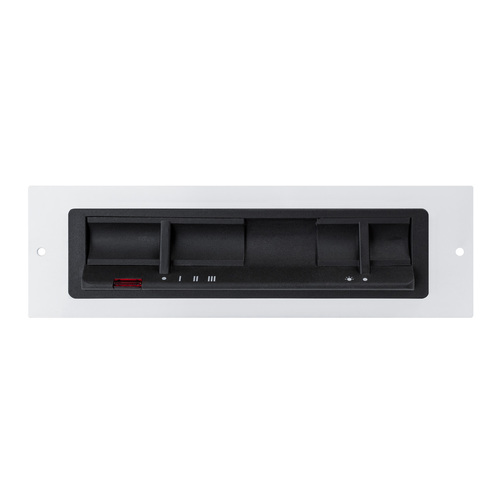

Control panel comes on a remote terminal block to be installed according to ADA compliant guidelines for improved accessibility (some assembly required)
Control panel comes on a remote terminal block to be installed according to ADA compliant guidelines for improved accessibility (some assembly required)
Stainless steel construction
Quality material with an elegant look in brushed stainless steel
Quality material with an elegant look in brushed stainless steel
600 CFM blower
Professional European motor is preinstalled for easy use
Professional European motor is preinstalled for easy use
Convertible with filter
Designed for ducted use, this range hood can be used in recirculating (ductless) mode when you order SEHCFISL charcoal filter set
Designed for ducted use, this range hood can be used in recirculating (ductless) mode when you order SEHCFISL charcoal filter set
Two aluminum cassette filters
Dishwasher safe filters offer wide filtration area for better ventilation
Dishwasher safe filters offer wide filtration area for better ventilation
Timer function
Set the unit to ventilate for a 15 minute interval that automatically turns off when complete
Set the unit to ventilate for a 15 minute interval that automatically turns off when complete
Two 40W lights
Includes two preinstalled incandescent bulbs
Includes two preinstalled incandescent bulbs
Three-speed fan
Offers more options for ventilation
Offers more options for ventilation
European made
Designed and manufactured in Spain with all UL-Listed components
Designed and manufactured in Spain with all UL-Listed components
Height adjustable chimney
Chimney can extend from 29" to 41" for the perfect fit over your range
Chimney can extend from 29" to 41" for the perfect fit over your range
DESCRIPTION

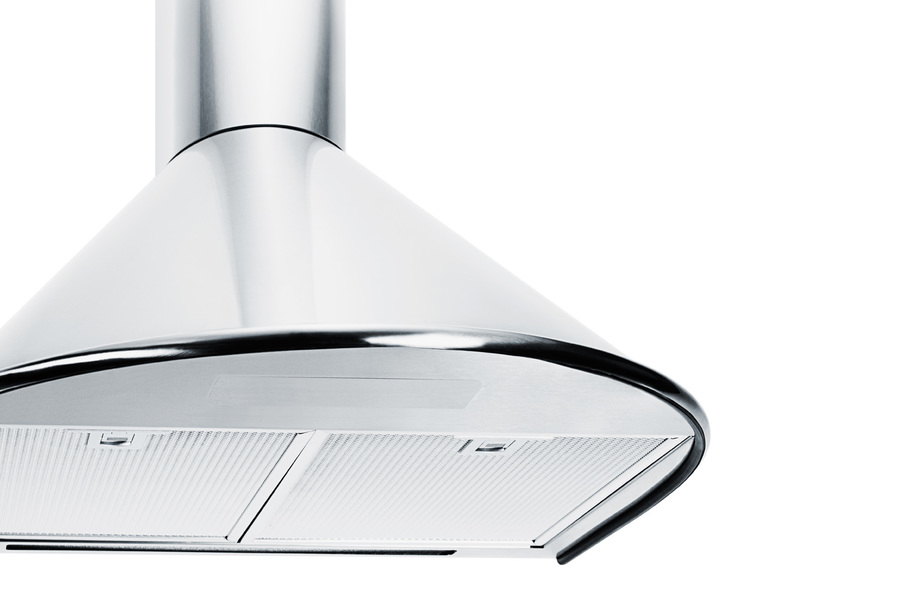

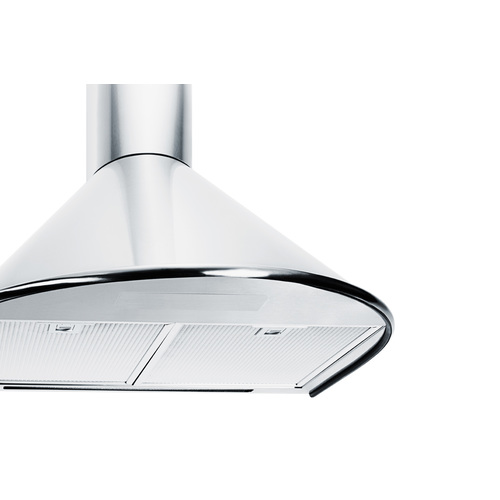

Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines. Made in Spain, the SEH6624CADA is a 24" wide range hood with a 600 CFM blower and unique curved canopy design. Constructed entirely from stainless steel, it features an adjustable chimney and two aluminum cassette filters with a wide filtration area. Two 40 watt halogen light bulbs are pre-installed, offering an elegant illumination of your range. The SEH6624CADA comes with a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The 3-speed fan and 15 minute timer are operated from an easy-to-use slider control panel. Some assembly is required. This wall-mounted range hood is designed for ducted use, but may be converted to a ductless (recirculating) range hood when you order an optional charcoal filter set (SEHCFISL). This model is manufactured in Europe and ships in one box. Additional ADA compliant wall-mounted and under cabinet range hoods are available in a variety of sizes and styles. Browse our website for more choices.
