36" Wide Wall-Mounted Range Hood, ADA Compliant
(91cm H x 90cm W x 50cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 36.0" (91 cm) |
| Width | 35.38" (90 cm) |
| Depth | 19.63" (50 cm) |
| Cabinet | Stainless Steel |
| US Electrical Safety | UL |
| Canadian Electrical Safety | ULC |
| Amps | 4.0 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 33.0 lbs. (15 kg) |
| Shipping Weight | 35.0 lbs. (16 kg) |
| UPC | 761101063584 |
|
Range Hood
|
|
| Installation | Wall-Mounted |
| Venting | Convertible w/ Filter Set |
| Controls | Slide |
| Light | Yes |
| Number of Lights | 2 |
| Light Type | Halogen |
| Number of Fan Speeds | 3 |
| Maximum Air Movement | 500.0 CFM |
| Minimum Height | 27.75" (70 cm) |
| Maximum Height | 44.69" (114 cm) |
| Duct Shape | 6" Round |
FEATURES

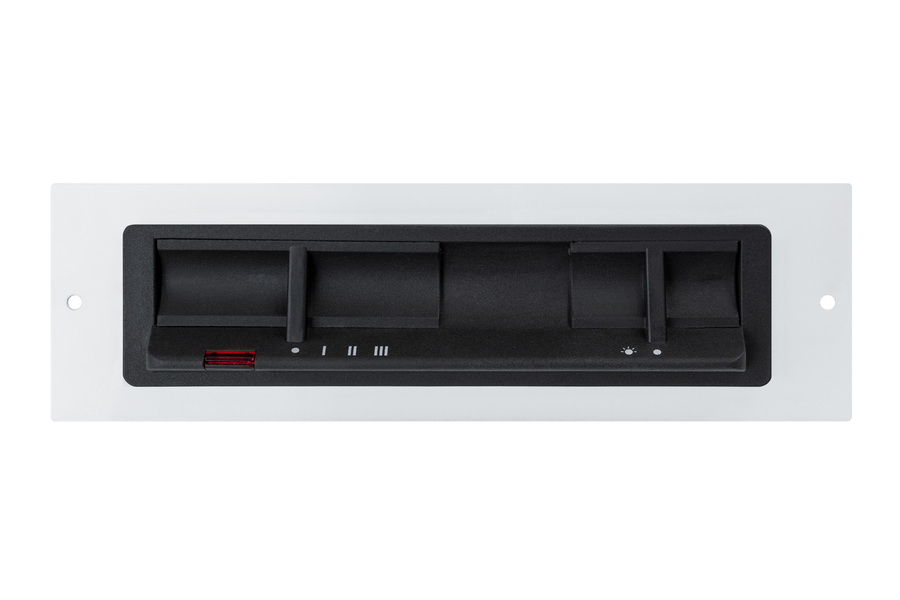

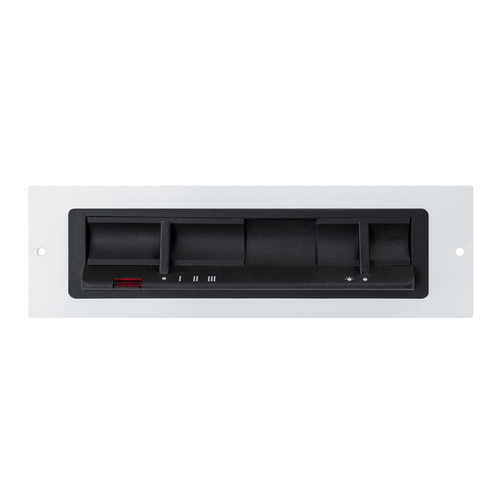

Control panel comes on a remote terminal block to be installed according to ADA compliant guidelines for improved accessibility (some assembly required)
Quality material with an elegant look in brushed stainless steel
Professional European motor is preinstalled for easy use
Designed for ducted use, this range hood can be used in recirculating (ductless) mode when you order SEHCF charcoal filter set
Dishwasher safe filters offer wide filtration area for better ventilation
Chimney can extend from 27 3/4" to 44 11/16" for the perfect fit over your range
Set the unit to ventilate for a 15 minute interval that automatically turns off when complete
Includes two preinstalled bulbs
Offers more options for ventilation
Designed and manufactured in Europe with all UL-Listed components
Ideal for most kitchen settings
Scaled template included for guided installation
Speed 1: 44 dB; Speed 2: 52 dB; Speed 3: 61.5 dB
DESCRIPTION

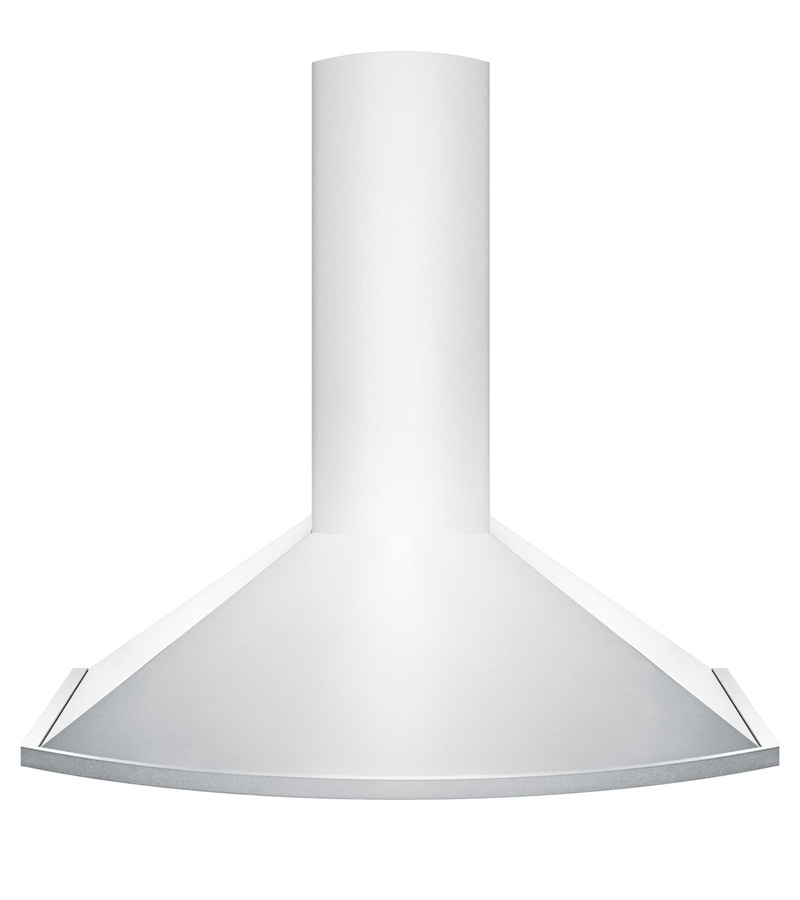

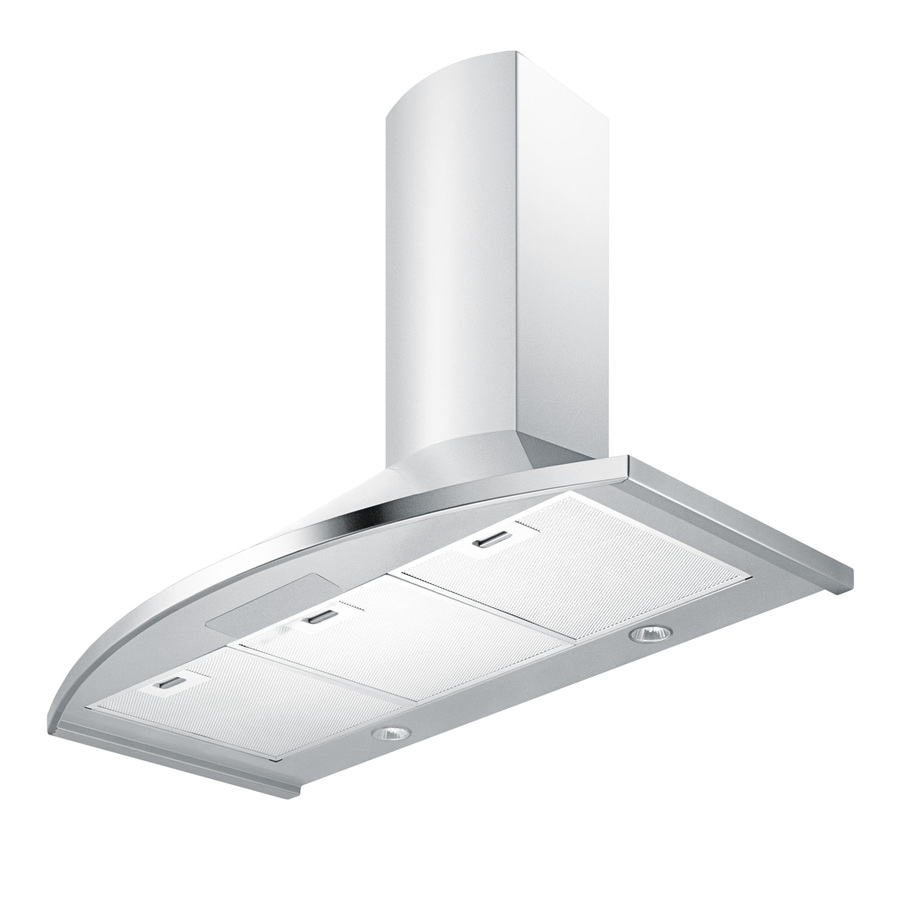

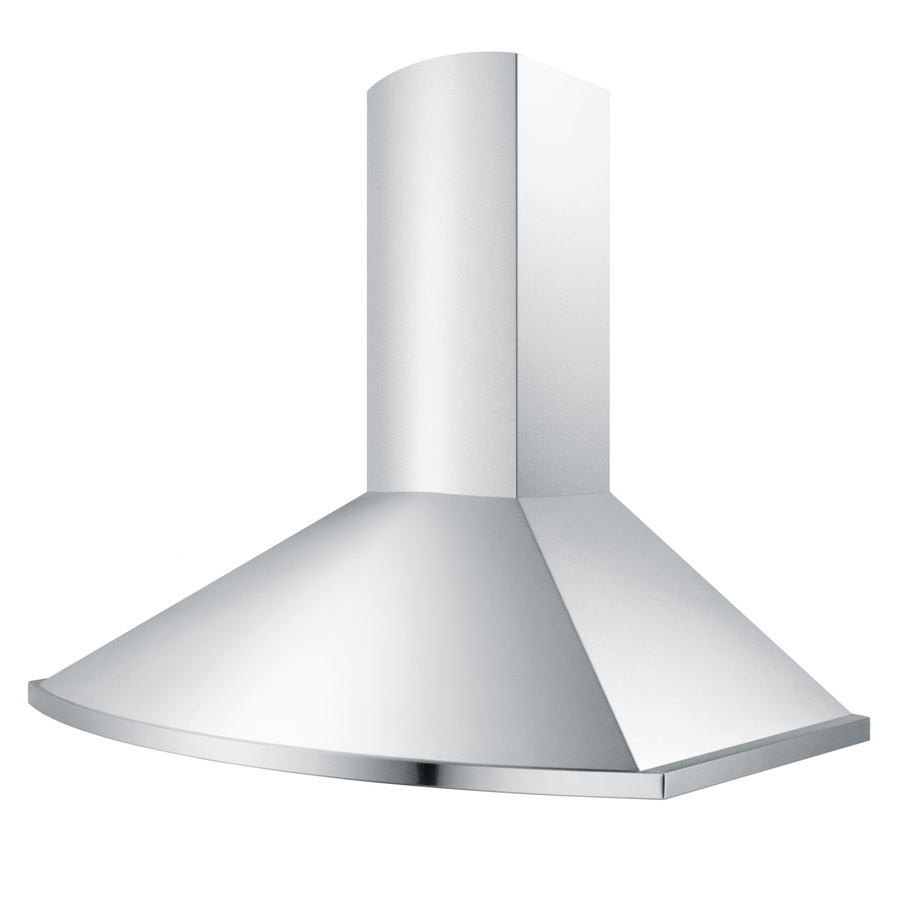

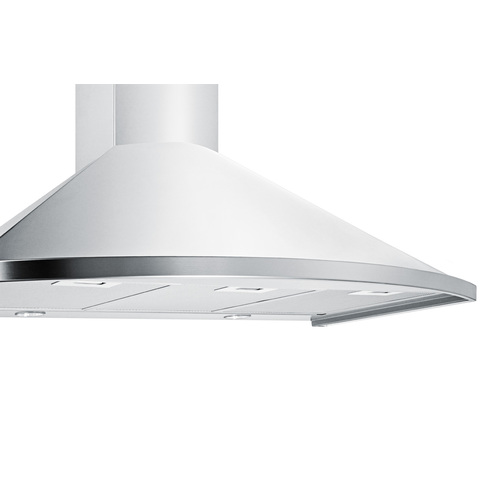

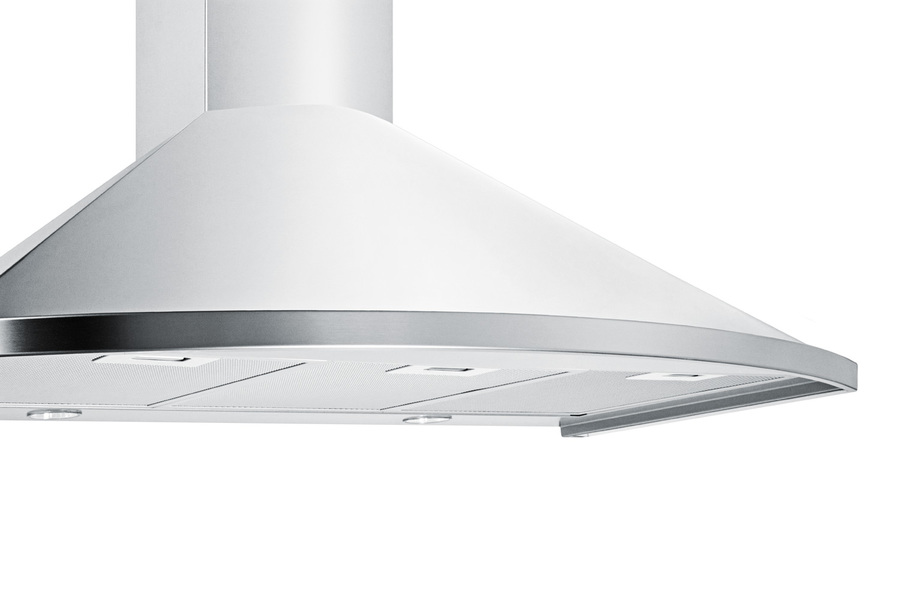

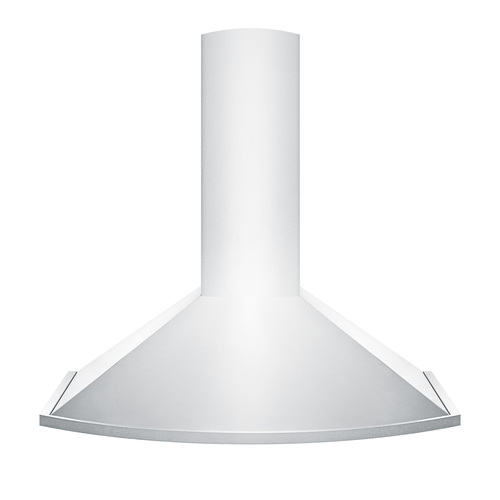

Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines. Made in Europe, the SEH2636ADA is a 36" wide range hood with a 500 CFM blower. Constructed entirely from stainless steel, it features an adjustable chimney and two aluminum cassette filters with a wide filtration area. Two halogen light bulbs are pre-installed, offering an elegant illumination of your range. The SEH2636ADA comes with a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The 3-speed fan and 15 minute timer are operated from an easy-to-use slider control panel. Some assembly is required. This wall-mounted range hood is designed for ducted use, but may be converted to a ductless (recirculating) range hood when you order an optional charcoal filter set (SEHCF). This model is manufactured in Europe and ships in one box. Additional ADA compliant wall-mounted and under cabinet range hoods are available in a variety of sizes and styles. Browse our website for more choices.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
