36" Wide Wall-Mounted Range Hood, ADA Compliant

Specially designed for accessible use in ADA compliant kitchens
36.0" H x 35.38" W x 19.63" D
(91cm H x 90cm W x 50cm D)

Height of Cabinet 36.0" (91 cm)
Width 35.38" (90 cm)
Depth 19.63" (50 cm)
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 4.0
Voltage/Frequency 115 V AC/60 Hz
Weight 33.0 lbs. (15 kg)
Shipping Weight 35.0 lbs. (16 kg)
UPC 761101063560
Range Hood
Installation Wall-Mounted
Venting Convertible w/ Filter Set
Controls Slide
Light Yes
Number of Lights 2
Light Type Halogen
Number of Fan Speeds 3
Maximum Air Movement 500.0 CFM
Minimum Height 29.5" (75 cm)
Maximum Height 48.38" (123 cm)
Duct Shape 6" Round

ADA compliant design

Control panel comes on a remote terminal block to be installed according to ADA compliant guidelines for improved accessibility (some assembly required)

Stainless steel construction

Quality material with an elegant look in brushed stainless steel

500 CFM blower

High quality European motor is preinstalled for easy use

Convertible with filter

Designed for ducted use, this range hood can be used in recirculating (ductless) mode when you order SEHCF charcoal filter set

Two aluminum cassette filters

Dishwasher safe filters offer wide filtration area for better ventilation

Adjustable chimney height

Chimney can extend from 29 1/2" to 48 3/8" for the perfect fit over your range

Two 50W lights

Includes two preinstalled bulbs

Three-speed fan

Offers more options for ventilation

European made

Designed and manufactured in Europe with all UL-Listed components

Timer function

Set the unit to ventilate for a 15 minute interval that automatically turns off when complete

6" round ducting

Ideal for most kitchen settings

Installation template included

Scaled template included for guided installation

Noise level information

Speed 1: 43.3 dB; Speed 2: 51.5 dB; Speed 3: 60.5 dB

Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines.

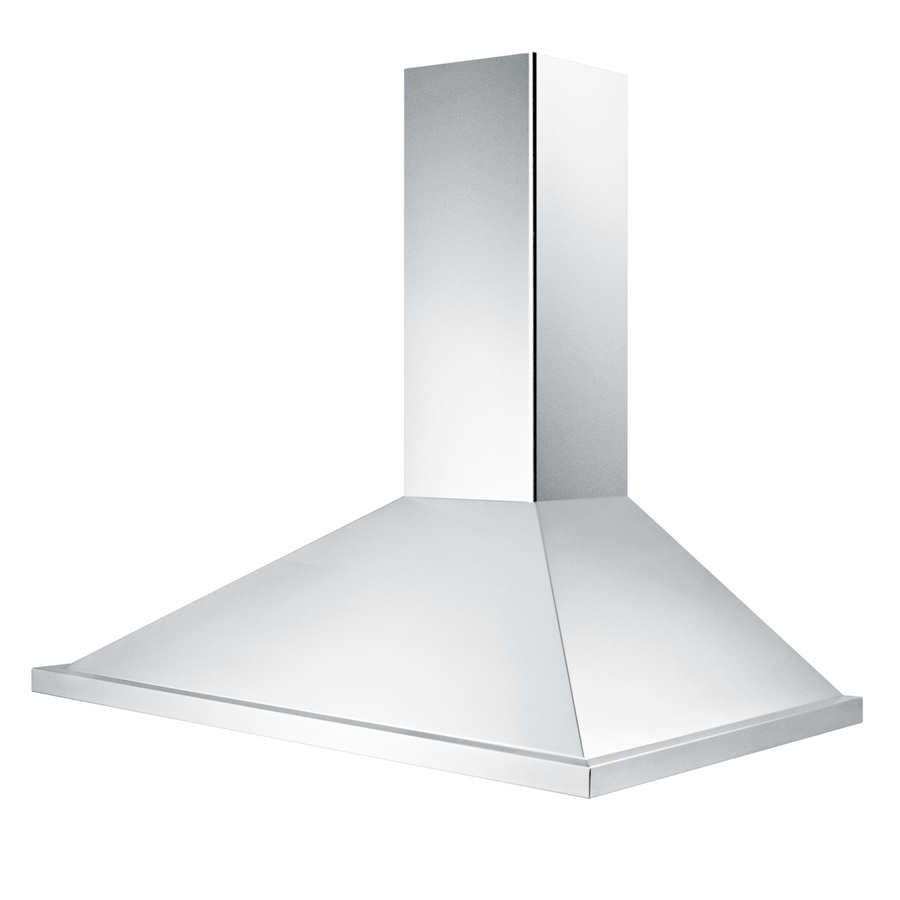

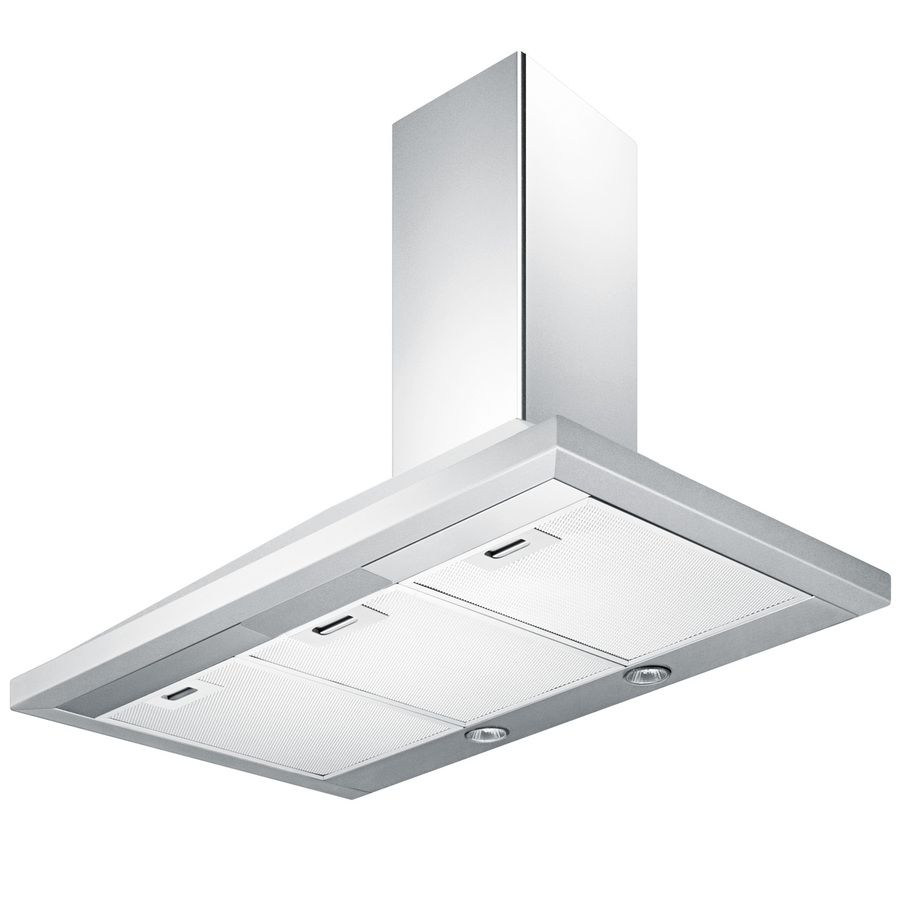

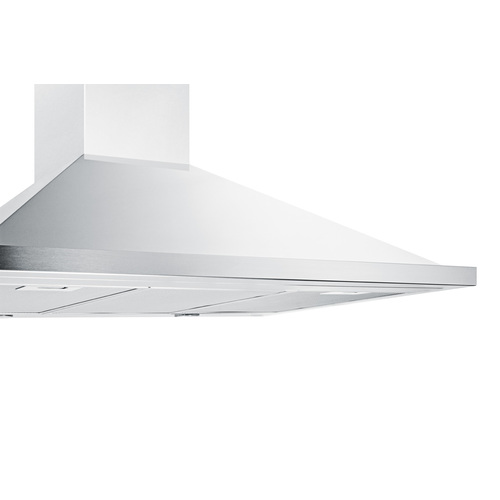

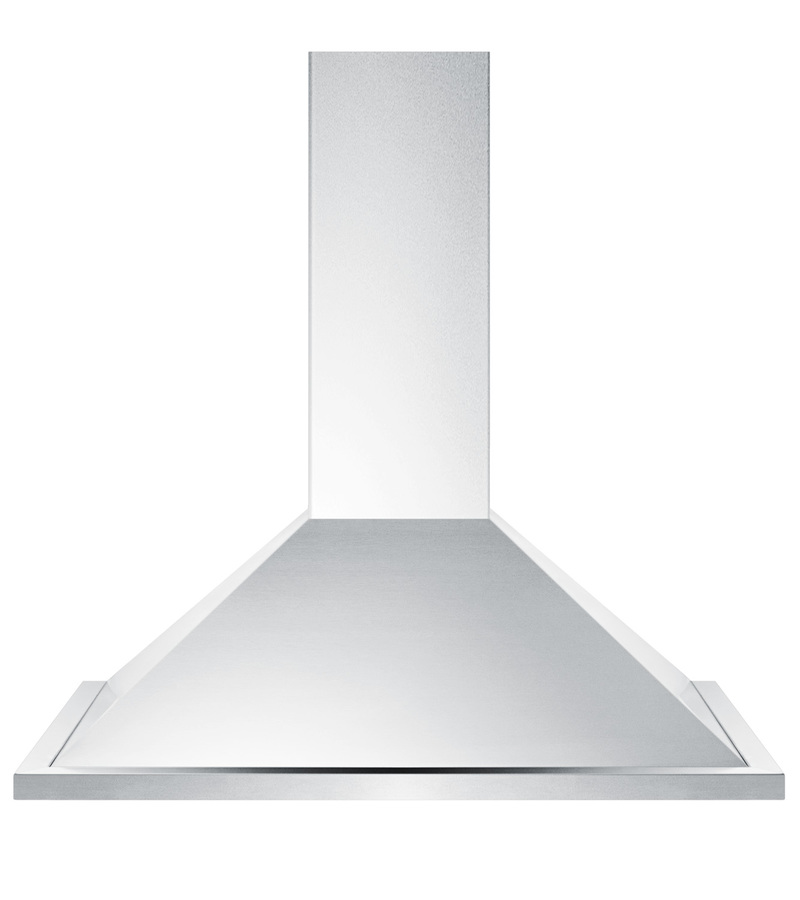

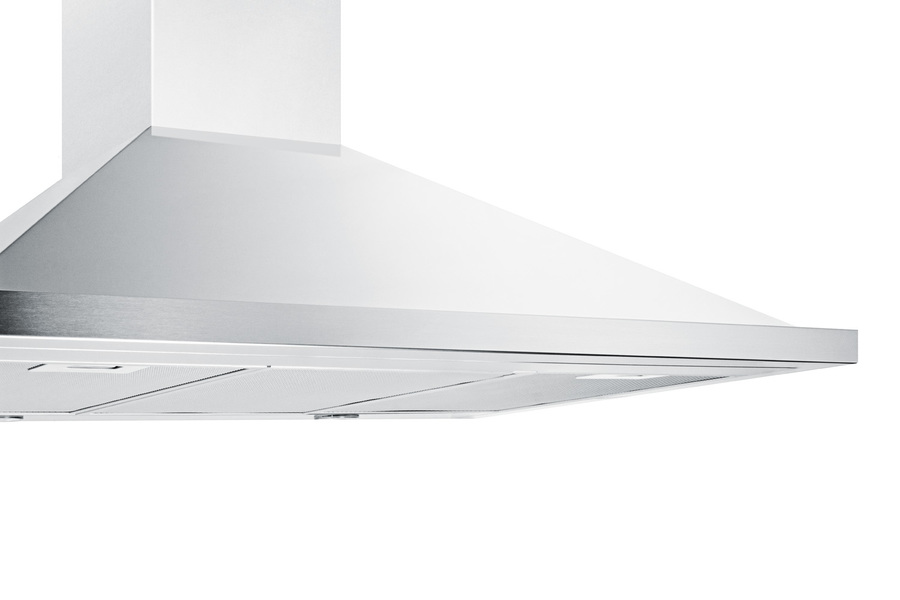

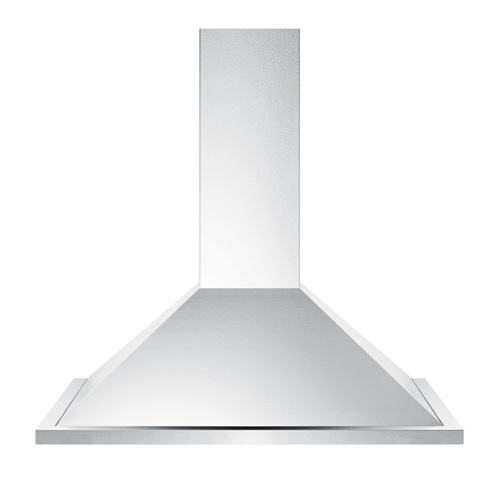

Made in Europe, the SEH1536ADA is a 36" wide range hood with a 500 CFM blower. Constructed entirely from stainless steel, it features an adjustable chimney and two aluminum cassette filters with a wide filtration area. Two halogen light bulbs are pre-installed, offering an elegant illumination of your range.

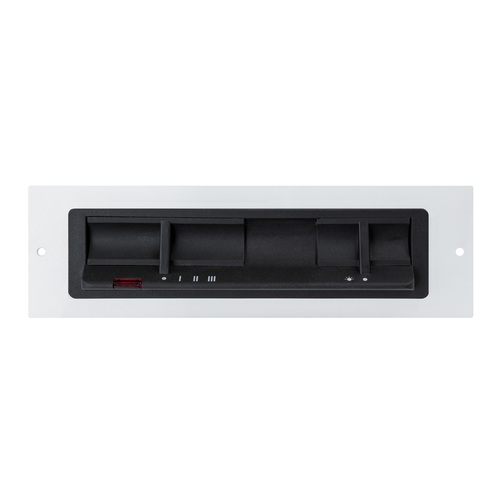

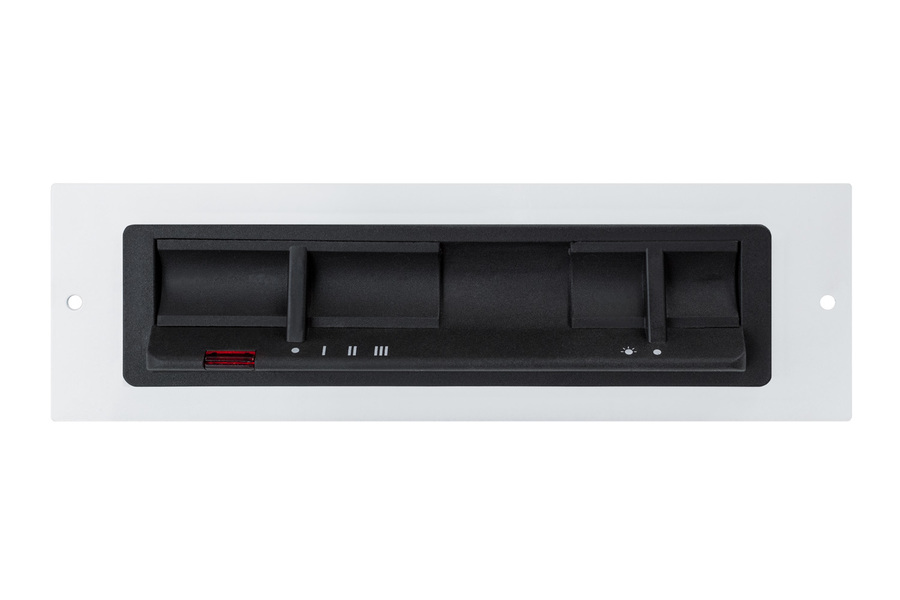

The SEH1536ADA comes with a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The 3-speed fan and 15 minute timer are operated from an easy-to-use slider control panel. Some assembly is required.

This wall-mounted range hood is designed for ducted use, but may be converted to a ductless (recirculating) range hood when you order an optional charcoal filter set (SEHCF). This model is manufactured in Europe and ships in one box. Additional ADA compliant wall-mounted and under cabinet range hoods are available in a variety of sizes and styles. Browse our website for more choices.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to
Note: Nickel is a component of stainless steel.
