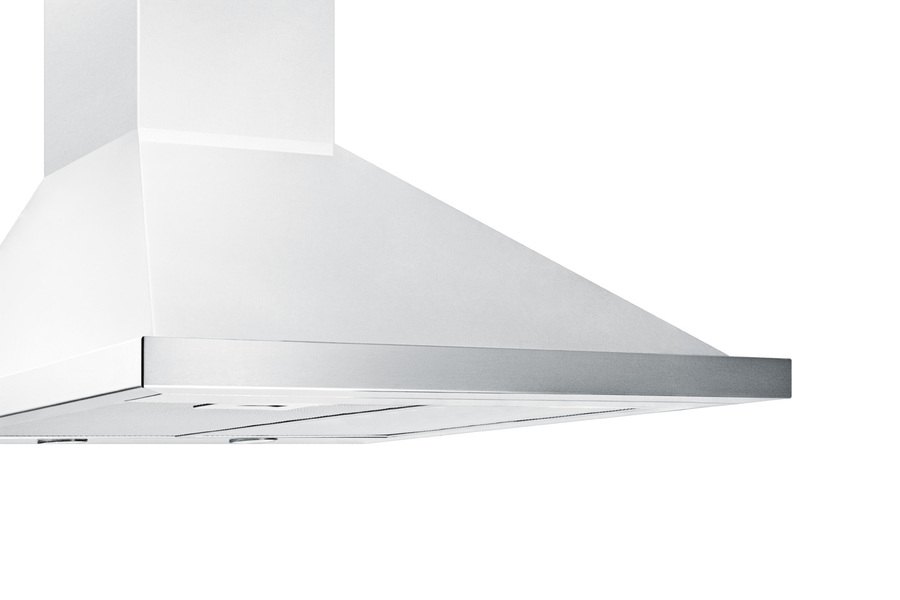

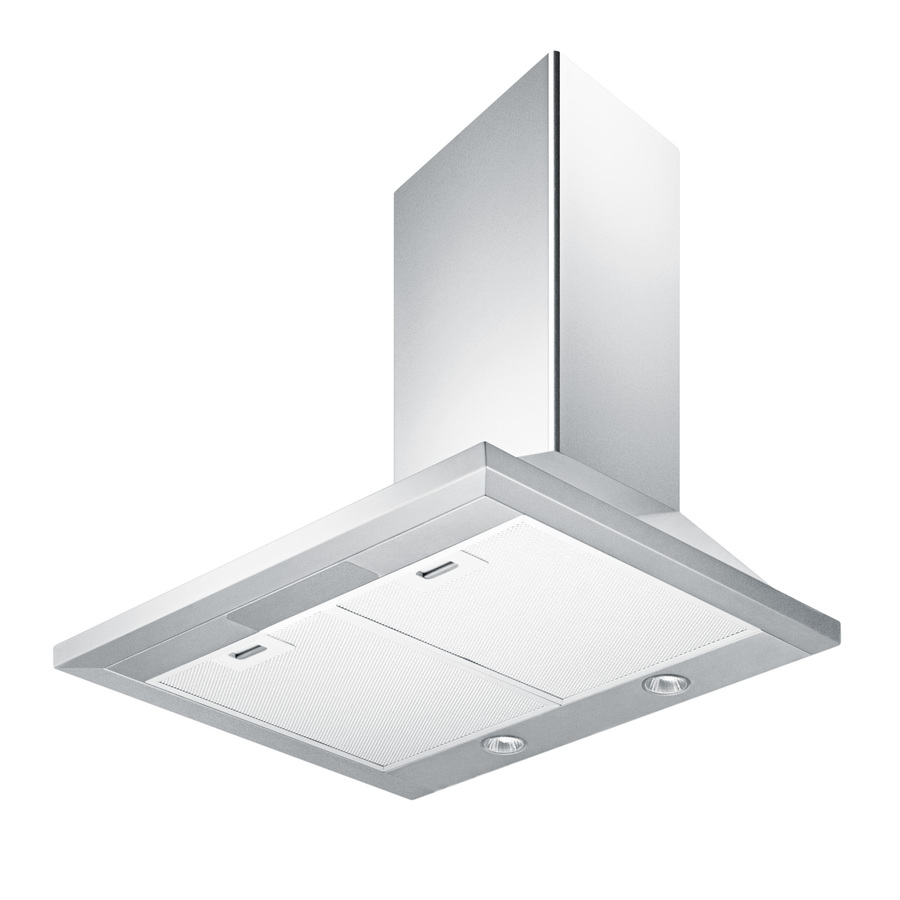

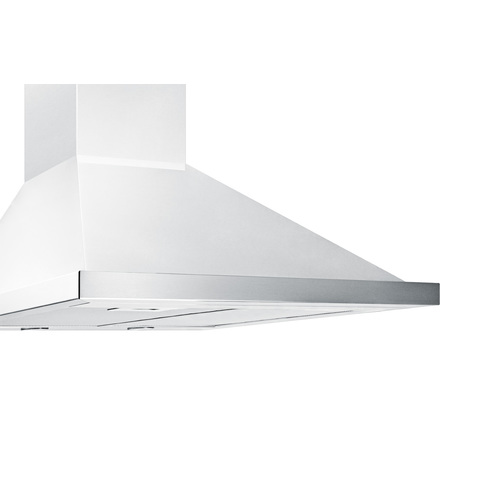

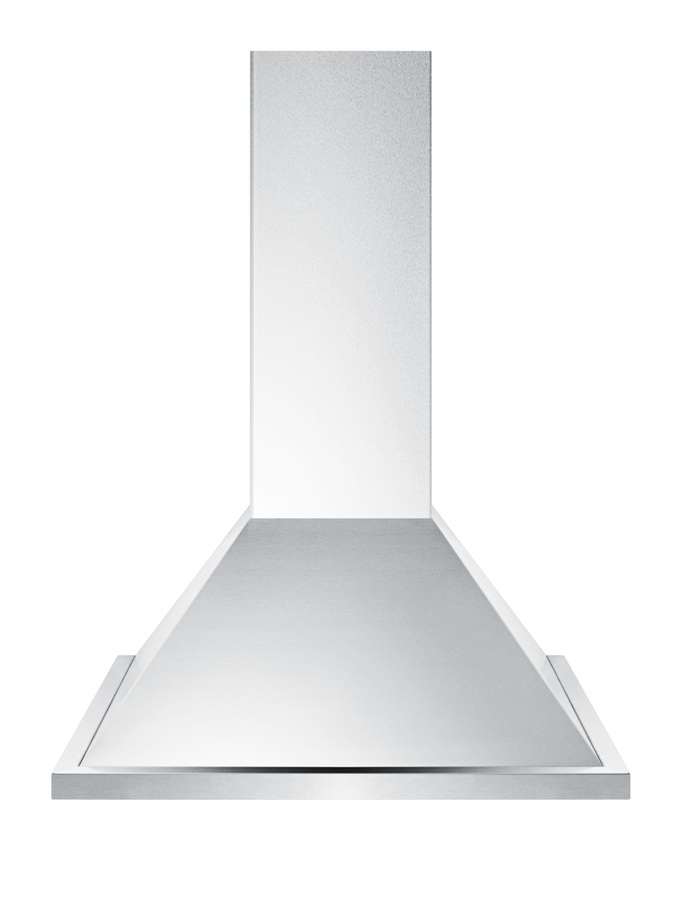

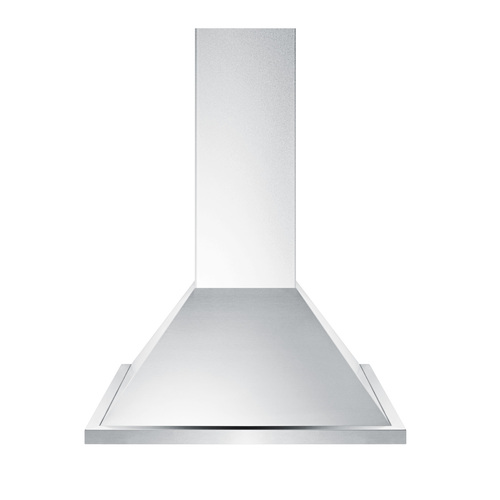

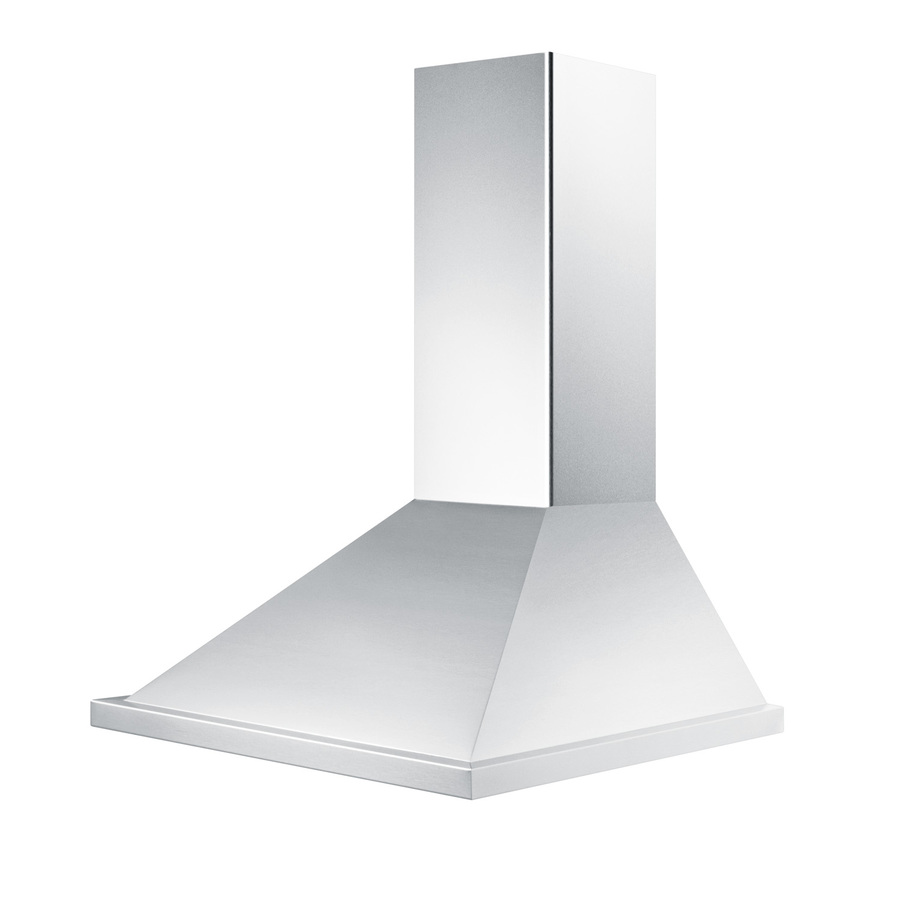

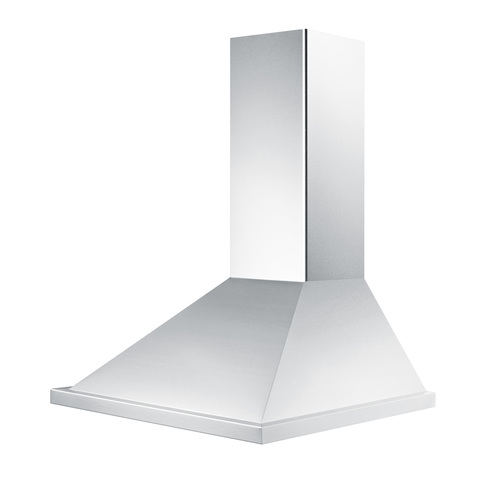

30" Wide Wall-Mounted Range Hood, ADA Compliant

SKU: SEH1530CADA

Specially designed for accessible use in ADA compliant kitchens

32.0" H x 29.75" W x 19.63" D

(81cm H x 76cm W x 50cm D)

OVERVIEW

  • ADA compliant design allows you to control the hood from a wall light switch for easier accessibility
  • Designed and manufactured in Spain
  • Elegant style in brushed stainless steel
  • Adjustable chimney height offers flexible sizing
  • Large filtration area with dishwasher safe aluminum cassette filters
  • Ships in one box

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Width 29.75" (76 cm)
Depth 19.63" (50 cm)
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical Safety ULC
Weight 30.0 lbs. (14 kg)
Shipping Weight 32.0 lbs. (15 kg)
Estimated Time to Ship 3 to 5 Days
Parts & Labor Warranty 1 Year
Range Hood
Installation Wall-Mounted
Venting Convertible w/ Filter Set
Controls Slide
Light Yes
Number of Lights 2
Light Type Incandescent
Number of Fan Speeds 3
Maximum Air Movement 530.0 CFM
Sone Rating 11
Minimum Height 31.0" (79 cm)
Maximum Height 50.0" (127 cm)
Duct Shape 6" Round
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

Summit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines.

Made in Spain, the SEH1530CADA is a 30" wide range hood with a pre-installed 530 CFM blower. Constructed entirely from stainless steel, it features an adjustable chimney and two aluminum cassette filters with a wide filtration area. Two halogen light bulbs are pre-installed, offering an elegant illumination of your range.

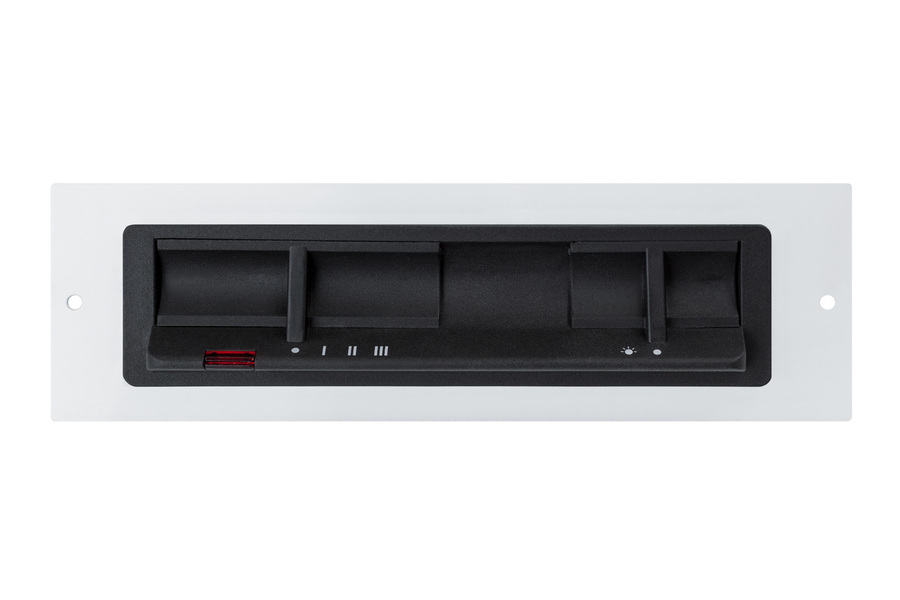

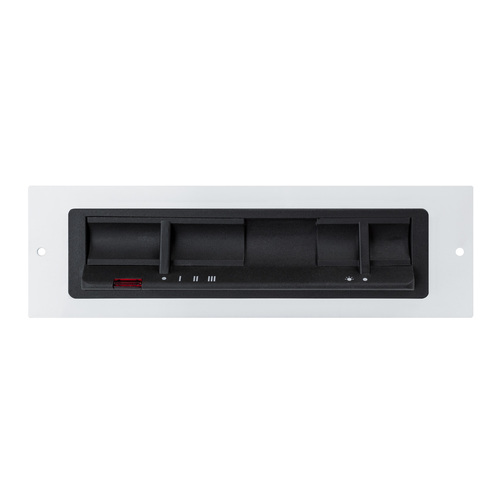

The SEH1530CADA comes with a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The 3-speed fan and 15 minute timer are operated from an easy-to-use slider control panel.

This wall-mounted hood is designed for ducted use, but may be converted to a ductless (recirculating) range hood when you order an optional charcoal filter set (SEHCFISL). This model is manufactured in Spain and ships in one box. Additional wall-mounted and under cabinet hoods are available in an ADA compliant design. Browse our website for more choices.

FEATURES

ADA compliant design
Control panel comes on a remote terminal block to be installed according to ADA compliant guidelines for improved accessibility
Stainless steel construction
Quality material with an elegant look in brushed stainless steel
530 CFM blower
Professional motor is preinstalled for easy use
Convertible with filter
Designed for ducted use, this range hood can be used in recirculating (ductless) mode when you order SEHCFISL charcoal filter set
Two aluminum cassette filters
Dishwasher safe filters offer wide filtration area for better ventilation
Timer function
Set the unit to ventilate for a 15 minute interval that automatically turns off when complete
Two 40W lights
Includes two preinstalled incandescent bulbs
Three-speed fan
Offers more options for ventilation
European made
Designed and manufactured in Spain with all UL-Listed components
6" round ducting
Ideal for most kitchen settings
Height adjustable chimney
Chimney height can be set from 21 3/4" to 41 3/4"

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Width 29.75" (76 cm)
Depth 19.63" (50 cm)
Cabinet Stainless Steel
US Electrical Safety UL
Canadian Electrical Safety ULC
Weight 30.0 lbs. (14 kg)
Shipping Weight 32.0 lbs. (15 kg)
Estimated Time to Ship 3 to 5 Days
Parts & Labor Warranty 1 Year
Range Hood
Installation Wall-Mounted
Venting Convertible w/ Filter Set
Controls Slide
Light Yes
Number of Lights 2
Light Type Incandescent
Number of Fan Speeds 3
Maximum Air Movement 530.0 CFM
Sone Rating 11
Minimum Height 31.0" (79 cm)
Maximum Height 50.0" (127 cm)
Duct Shape 6" Round
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
