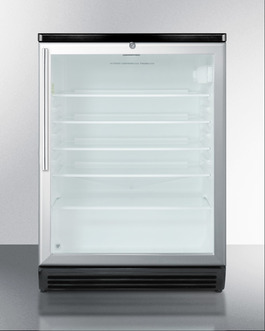

24" Wide Beverage Center

SKU: SCR600BLHV

Made in Europe with a double pane tempered glass door

DISCONTINUED- REPLACED BY SCR600BGLHV

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

33.5" H x 23.63" W x 23.5" D
(85cm H x 60cm W x 60cm D)

Overview
Height of Cabinet	33.5" (85 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Depth with Handle	24.5" (62 cm)
Depth with door at 90°	45.25" (115 cm)
Capacity	5.5 cu.ft. (156 L)
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	ETL-S
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	120.0 lbs. (54 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101030142
Refrigerator Features
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Glass
Shelf Qty	4
Adjustable Shelves	Yes
Thermostat Type	Dial
Refrigerant Type	R134a
Refrigerant Amount	1.8oz.
High Side PSI	285.0
Low Side PSI	70.0
Level Legs Qty	4
Interior Light	Yes
Dimensions
Interior Height	26.0" (66 cm)
Interior Width	20.75" (53 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	6.0" (15 cm)
Compressor Step Width	20.75" (53 cm)
Compressor Step Depth	5.0" (13 cm)

Door

T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings	T3 Door Tint Reflective door tint in light blue finish for medium energy savings
T2 Door Tint Tinted door in reflective deep blue finish with high energy savings	T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings
T1 Door Tint Tinted door in low-E mirror finish for maximum energy savings	STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands-free access to open the door 90 degrees
T1 Door Tint Tinted door in low-E mirror finish for maximum energy savings	T1S Door Tint Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint Tinted door in reflective deep blue finish with high energy savings	T3 Door Tint Reflective door tint in light blue finish for medium energy savings
T4 Door Tint Neutral door tint in light smoke finish for moderate energy savings	STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands-free access to open the door 90 degrees

Exterior

PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	LHD - Left hand door swing Door reversal to left hand swing
Latch - Factory-installed latch requires manual release to open unit (NOTE: adds 1 1/2" of width) Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)	HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	HG - Hospital grade cord Add a hospital grade cord equipped with green dot plug with the HG suffix
SSK - Stainless steel kickplate Stainless steel kickplate factory installed	Latch - Factory-installed latch requires manual release to open unit (NOTE: adds 1 1/2" of width) Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
LHD - Left hand door swing Door reversal to left hand swing	SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option
Alarm/Thermometer - Factory-installed alarm with external temperature readout Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations	CAS3 3" casters 3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
DT - Digital thermostat Install a digital thermostat with external readout for precise temperature management	Legs to raise unit height 6" high leveling legs
PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices	DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout

Interior

FCGP internal fan with gel packs Internal fan with gel packs included for a stabilized interior

Commercially approved

ETL-S listed to NSF-7 Standards for use in commercial establishments

Fully finished black cabinet

Allows the unit to be used freestanding

Double pane tempered glass door

Heat resistant design provides clear view to promote impulse buys

Factory installed lock

Keyed lock for a secure interior

Professional handle

Thin handle with 14mm diameter mounted vertically

Automatic defrost

Reduced user maintenance with automatic defrost

Adjustable glass shelves

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

One piece interior liner

Enjoy easy clean-up with a seamless liner that won't hold a mess in hidden crevices

Interior light on rocker switch

Turn the light on when you need it and off when you're done with a convenient rocker switch

Adjustable thermostat

Manage the interior temperature with ease and accuracy

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

SUMMIT's SCR600L Series features conveniently sized beverage refrigerators designed for freestanding use in commercial establishments.

With a 24" footprint, the SCR600BLHV offers a generous 5.5 cu.ft. of storage capacity with adjustable glass shelves for flexible arranging. The fully finished black cabinet allows the unit to be freestanding, with a glass door in aluminum trim to ensure ideal product display. The door includes a factory installed lock for added security and a sleek handle in stainless steel.

Inside, the SCR600BLHV utilizes low maintenance automatic defrost operation. We include SUMMIT's unique "hidden" evaporator in the rear wall, a design that protects the unit's system while maximizing shelf space. Full interior lighting is accessible on a convenient ON/OFF rocker switch, letting you light the interior only when you choose. This unit is ETL-S listed to NSF-7 commercial standards and is not recommended for household use.

The SCR600BLHV is designed for freestanding use in commercial settings. For a built-in version of this model, see the SCR600BLBIHV.

BROCHURE
SCR600BLHV.pdf

USE & CARE
FF6W_FF7W__SCR600GL_SCR600BGL_User_Manual.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
