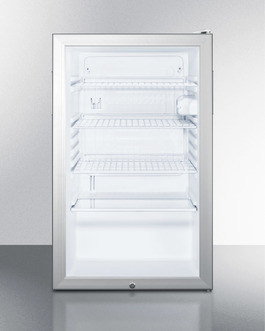

20" Wide All-Refrigerator

SKU: SCR450L7

Tints
Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
Commercial meets nsf
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

20" width offers generous storage in a slim fit

33.13" H x 19.38" W x 21.75" D

(84cm H x 49cm W x 55cm D)

OVERVIEW

  • Slim 20" width is ideal for any setting
  • ETL-S listed for commercial use
  • Glass door for full display of interior
  • Factory installed lock provides security you can count on
  • Simple maintenance with auto defrost interior
  • Includes a hospital grade cord with a 'green dot' plug

SPECIFICATIONS

Overview
Height of Cabinet 32.63" (83 cm)
Height to Hinge Cap 33.13" (84 cm)
Width 19.38" (49 cm)
Depth 21.75" (55 cm)
Depth with door at 90° 40.0" (102 cm)
Capacity 4.1 cu.ft. (116 L)
Defrost Type Automatic
Door Glass
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 57.0 lbs. (26 kg)
Shipping Weight 60.0 lbs. (27 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.75oz.
High Side PSI 205.0
Low Side PSI 103.0
Level Legs Qty 2
Wheel Qty 2
Interior Light Yes
Dimensions
Interior Height 28.5" (72 cm)
Interior Width 15.75" (40 cm)
Interior Depth 17.75" (45 cm)
Compressor Step Height 8.25" (21 cm)
Compressor Step Width 15.75" (40 cm)
Compressor Step Depth 7.0" (18 cm)

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Extra key
Extra keys available for purchase
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
CAS6 6" casters
6" high NSF listed casters
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Interior
FCGP internal fan with gel packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
Handle
HV
Add a stainless steel handle with sleek 14mm diameter placed vertically on the side
TB
Install a 12" handle with curved towel bar design in brushed stainless steel
SH
Add a full door-length handle with curved towel bar design in brushed stainless steel
HH
Add a stainless steel handle with sleek 14mm diameter placed horizontally across the top
Door
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

Accucold by Summit Appliance carries a quality line of glass door refrigerators with the SCR450L7 Series, commercially listed freestanding units in a slim 20" width.

The ETL-S listed SCR450L7 is a counter height all-refrigerator with a 4.1 cu.ft. capacity. It has a white cabinet with a reversible glass door and keyed lock. A hospital grade cord with a 'green dot' plug offers additional safety in high traffic areas.

Inside, the SCR450L7 includes adjustable shelves for attractive and convenient storage. The interior light functions on an on/off rocker switch and an adjustable thermostat offers easy temperature control.

At just under 20" wide, SUMMIT SCR450L7 is an easy-fitting beverage refrigerator fit for any setting.

FEATURES

Commercially listed
ETL-S listed to NSF standards for commercial use
Slim 20" width
Full 4.1 cu.ft. capacity inside conveniently slim footprint
Fully finished white cabinet
Allows the unit to be used freestanding
Glass door
Heat resistant design offers full view of interior
Factory installed lock
Keyed lock for secure interior
Automatic defrost
Reduced maintenance with auto defrost system
Reversible door
User reversible door swing
Hospital grade cord
Secure three-pronged cord for added unit safety
Adjustable shelves
Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
Interior light
Interior light with an on/off switch on the manifold
Adjustable thermostat
Manage the temperature with ease and accuracy
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 32.63" (83 cm)
Height to Hinge Cap 33.13" (84 cm)
Width 19.38" (49 cm)
Depth 21.75" (55 cm)
Depth with door at 90° 40.0" (102 cm)
Capacity 4.1 cu.ft. (116 L)
Defrost Type Automatic
Door Glass
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.4
Voltage/Frequency 115 V AC/60 Hz
Weight 57.0 lbs. (26 kg)
Shipping Weight 60.0 lbs. (27 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Wire
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.75oz.
High Side PSI 205.0
Low Side PSI 103.0
Level Legs Qty 2
Wheel Qty 2
Interior Light Yes
Dimensions
Interior Height 28.5" (72 cm)
Interior Width 15.75" (40 cm)
Interior Depth 17.75" (45 cm)
Compressor Step Height 8.25" (21 cm)
Compressor Step Width 15.75" (40 cm)
Compressor Step Depth 7.0" (18 cm)

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Extra key
Extra keys available for purchase
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
CAS6 6" casters
6" high NSF listed casters
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Interior
FCGP internal fan with gel packs
Internal fan with gel packs included for a stabilized interior
FC - Internal Fan
Internal fan for even temperature distribution throughout the unit interior
Handle
HV
Add a stainless steel handle with sleek 14mm diameter placed vertically on the side
TB
Install a 12" handle with curved towel bar design in brushed stainless steel
SH
Add a full door-length handle with curved towel bar design in brushed stainless steel
HH
Add a stainless steel handle with sleek 14mm diameter placed horizontally across the top
Door
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
SCR450L7.pdf
Download
TECHNICAL DRAWING (.dwg)
SCR450L_SCR500BL__A-C_2000_.dwg
Download
MSDS INFORMATION
R134a_MSDS_T.pdf
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
