Compact Craft Beer Pub Cellar

SKU: SCR312LPUB
Ideal for keeping craft beer at its proper temperature
DISCONTINUED
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
26.13" H x 17.0" W x 19.25" D
(66cm H x 43cm W x 49cm D)

Overview
Height of Cabinet 25.5" (65 cm)
Height to Hinge Cap 26.13" (66 cm)
Width 17.0" (43 cm)
Depth 19.25" (49 cm)
Depth with Handle 21.0" (53 cm)
Depth with door at 90° 35.25" (90 cm)
Capacity 2.5 cu.ft. (71 L)
Defrost Type Automatic
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 80.0 lbs. (36 kg)
Shipping Weight 83.0 lbs. (38 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101029665
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible No
Adjustable Shelves Yes
Shelf Type Wire
Shelf Qty 4
Thermostat Type Digital
Interior Light Yes
Refrigerant Type R600a
Refrigerant Amount 0.92 oz.
High Side PSI 270.0
Low Side PSI 103.0
Interior Height 1 20.5" (52 cm)
Interior Width 1 13.5" (34 cm)
Interior Depth 1 14.75" (37 cm)
Compressor Step Height 7.5" (19 cm)
Compressor Step Width 13.5" (34 cm)
Compressor Step Depth 5.25" (13 cm)
Level Legs 2
Temperature Range 41º and 65ºF
Sound Level 33.5 dB

Door
T1 Door Tint
Tinted door in low-E mirror finish for maximum energy savings
T1S Door Tint
Reflective door tint in dark smoke finish for maximum energy savings
T2 Door Tint
Tinted door in reflective deep blue finish with high energy savings
T3 Door Tint
Reflective door tint in light blue finish for medium energy savings
T4 Door Tint
Neutral door tint in light smoke finish for moderate energy savings

Commercially approved

ETL-S listed to NSF-7 commercial standards

Double pane tempered glass door

Heat resistant design provides clear view of stored products, with an elegant trim in stainless steel

Factory installed lock

Keyed lock for secure interior

Professional handle

17 1/2" long handle in brushed aluminum

Automatic defrost

Reduced user maintenance with auto defrost system

Wide range digital thermostat

Precise temperature management at the touch of a button, with an external display for added convenience (temperature range: 40ºF to 72ºF)

Recessed LED lighting

Externally located button turns this light on and off to illuminate the products for a tempting view

Adjustable chrome shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Countertop dimensions

Perfectly sized for any location

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

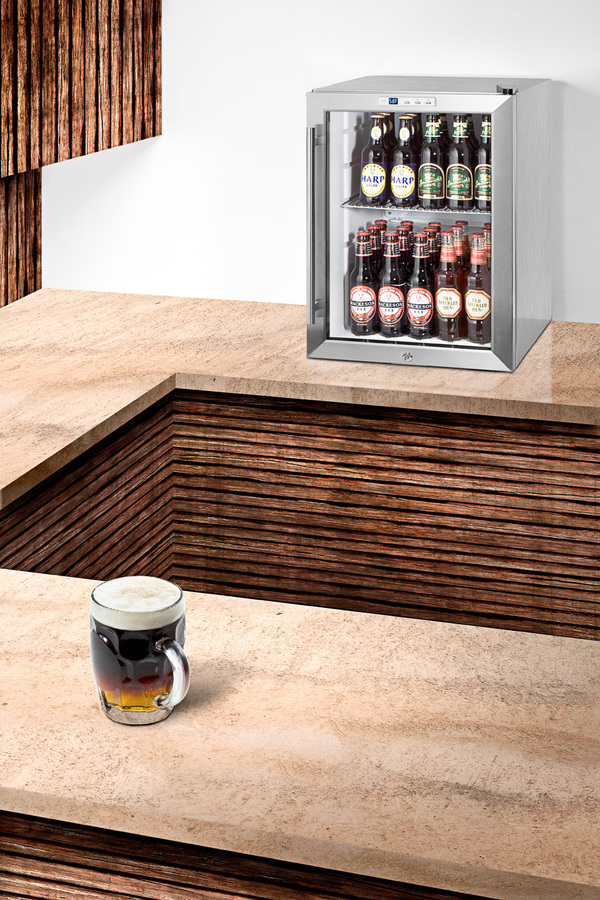

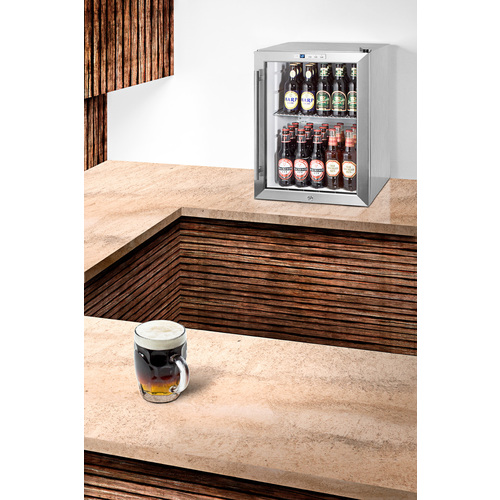

Store and sell ale under the perfect conditions with SUMMIT's SCR312LPUB, a countertop beverage merchandiser fully featured for user ease and maximum impulse purchases.

This commercially approved model features a black cabinet and double pane tempered glass door for optimum display, with a sleek stainless steel trim and brushed aluminum handle. A front lock provides trusted security.

Fully featured for proper storage, the SCR312LPUB includes a wide range digital thermostat that can accommodate the warmer temperatures generally kept for storing imported ales and porters (temperature range: 40ºF to 72ºF). The external temperature readout and easy touch controls make temperature management simple and precise, eliminating the need to open the door for any adjustments. An energy efficient LED light illuminates the interior and adjustable chrome shelves add a professional look.

For this unit in a wrapped stainless steel cabinet, see the SCR312LCSSPUB.

Download
BROCHURE w/ DRAWINGS
SCR312LPUB.pdf
Download
TECHNICAL DRAWING (.dwg)
SCR312L_BEVERAGE_CEN._A-C2000_.dwg

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
