SCR1841SDADA

Commercial meets nsf 57f181a562ef64be646d83b66028b1c5c2f384b45328a17b7b74a5f0cdc84c8e
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

DISCONTINUED- REPLACED BY FF1843BADA

31.38" H x 17.75" W x 23.5" D

(80cm H x 45cm W x 60cm D)

OVERVIEW

  • CURRENTLY UNAVAILABLE UNTIL FURTHER NOTICE
  • Just under 18" wide for an easy fit, with a flush back design to save space
  • 32" height allows installation under lower ADA compliant counters
  • Flexible design allows built-in or freestanding use
  • Digital thermostat offers precise and convenient temperature control
  • Adjustable chrome shelves for assorted storage options
  • Factory installed lock offers added security
  • Meets UL Commercial Standard 471

SPECIFICATIONS

Overview
Height of Cabinet 31.38" (80 cm)
Width 17.75" (45 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.25" (64 cm)
Depth with door at 90° 39.75" (101 cm)
Capacity 3.3 cu.ft. (93 L)
Defrost Type Automatic
Door Black
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 90.0 lbs. (41 kg)
Shipping Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 2.11oz.
High Side PSI 270.0
Low Side PSI 103.0
Level Legs Qty 2
Interior Light Yes
Dimensions
Interior Height 23.0" (58 cm)
Interior Width 14.25" (36 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 14.25" (36 cm)
Compressor Step Depth 5.0" (13 cm)

AVAILABLE UPGRADES

Exterior
Extra key
Extra keys available for purchase
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

DESCRIPTION

SUMMIT's selection of built-in undercounter beverage coolers combines user-friendly convenience with elegant style for an ideal fit in any commercial setting.

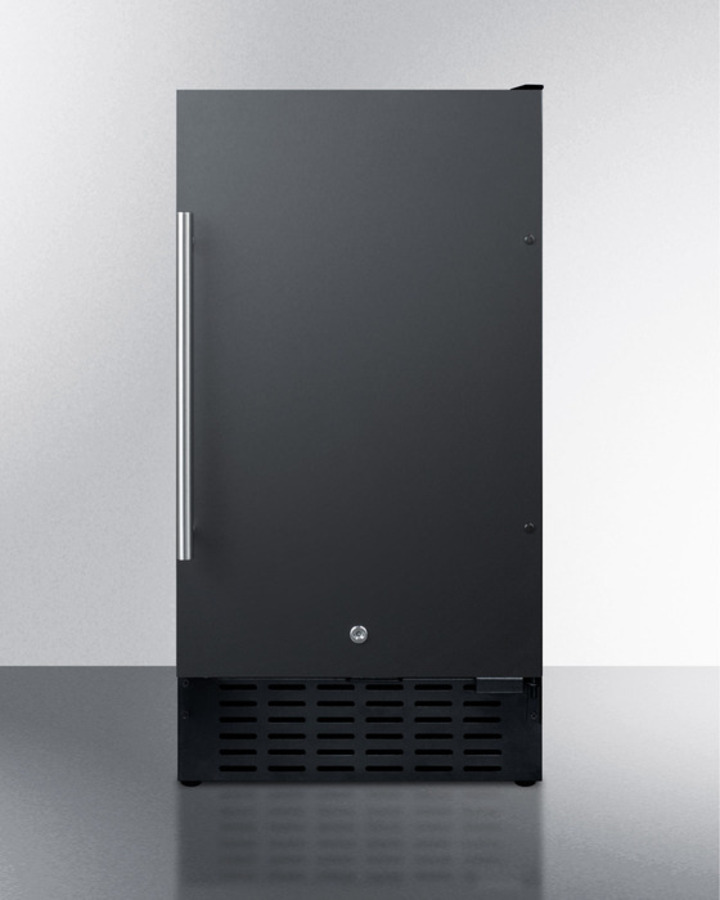

The SCR1841SDADA is an 18" wide beverage cooler built to UL Commercial Standard 471, with a 32" height for use in ADA compliant settings. The front-breathing system allows built-in installation under counters, while the fully finished black cabinet also allows freestanding use. This unit features a reversible door with a professional handle and factory installed lock.

Beverages can be stored on four adjustable chrome shelves in the auto defrost interior, with attractive LED lighting providing an elegant display. The digital thermostat offers intuitive temperature management.

Fully featured and perfectly sized, the SCR1841SDADA is a fitting solution for any ADA compliant commercial setting.

FEATURES

ADA compliant
32" height is designed to fit under lower ADA compliant counters
Commercial design
Complies with UL Standard 471
Built-in capable
Make the best use of space by installing your appliance under the counter
Fully finished black cabinet
Allows the unit to be used freestanding
Reversible door
User reversible door swing for added flexibility
Factory installed lock
Keyed lock for a secure interior
Automatic defrost
Reduced maintenance with auto defrost system
Digital thermostat
Electronic controls for precise temperature management.
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
LED lighting
Gentle illumination with an on/off switch
Adjustable chrome shelves
Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup
Flush back
Space saving design
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 31.38" (80 cm)
Width 17.75" (45 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.25" (64 cm)
Depth with door at 90° 39.75" (101 cm)
Capacity 3.3 cu.ft. (93 L)
Defrost Type Automatic
Door Black
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 90.0 lbs. (41 kg)
Shipping Weight 110.0 lbs. (50 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 4
Adjustable Shelves Yes
Thermostat Type Digital
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 2.11oz.
High Side PSI 270.0
Low Side PSI 103.0
Level Legs Qty 2
Interior Light Yes
Dimensions
Interior Height 23.0" (58 cm)
Interior Width 14.25" (36 cm)
Interior Depth 18.0" (46 cm)
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 14.25" (36 cm)
Compressor Step Depth 5.0" (13 cm)

AVAILABLE UPGRADES

Exterior
Extra key
Extra keys available for purchase
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
SCR1841SDADA.pdf
Download
TECHNICAL DRAWING (.dwg)
SCR1841SDADABEV.CENT.A-C2000.dwg
