Height of Cabinet 34.0" (86 cm)
Width 14.75" (37 cm)
Depth 22.25" (57 cm)
Capacity 2.94 cu.ft. (83 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 368.0kWh/year
Amps 1.2
Voltage/Frequency 115 V AC/60 Hz
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Refrigerant Type R134a
Refrigerant Amount 1.4oz.
High Side PSI 270.0
Low Side PSI 103.0
Level Legs Qty 4
Interior Light Yes
Interior Height 25.5" (65 cm)
Interior Width 12.0" (30 cm)
Interior Depth 17.5" (44 cm)

California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice


Commercial meets nsf 57f181a562ef64be646d83b66028b1c5c2f384b45328a17b7b74a5f0cdc84c8e
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.


34.0" H x 14.75" W x 22.25" D

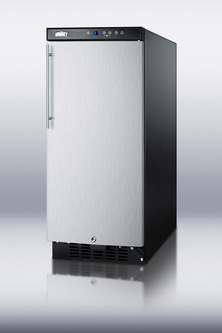

SUMMIT SCR1536SSHV is a slim-fitting beverage cooler designed for elegant storage under any residential counter.

This 14 ¾" wide unit has a black cabinet with a 304 grade stainless steel wrapped door and sleek pro handle. The door includes a factory installed lock. A digital thermostat provides easy temperature control, with an external readout in Celsius or Fahrenheit.

Beverages can be stored on adjustable chrome shelves in the auto defrost interior, fully lit by an energy efficient LED light. The SCR1536SSHV has a flush design and can be used built-in or freestanding. To create a complete bar set, pair this model with our matching SWC1535SSHVwine cellar.


Built-in capable
Make the best use of space by installing your appliance under the counter
Fully finished black cabinet
Allows the unit to be used freestanding
Stainless steel door
304 grade stainless steel for durable elegance
Professional handle
Thin handle with 14mm diameter mounted vertically
Factory installed lock
Keyed lock for a secure interior
Automatic defrost
Reduced maintenance with auto defrost system
Digital thermostat
Electronic controls for precise temperature management.
Digital display
Temperature readout can be shown in Celsius or Fahrenheit
LED lighting
Gentle illumination with an on/off switch
Adjustable chrome shelves
Rearrange interior space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Flush back
Space saving design
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals


Energy Guide
