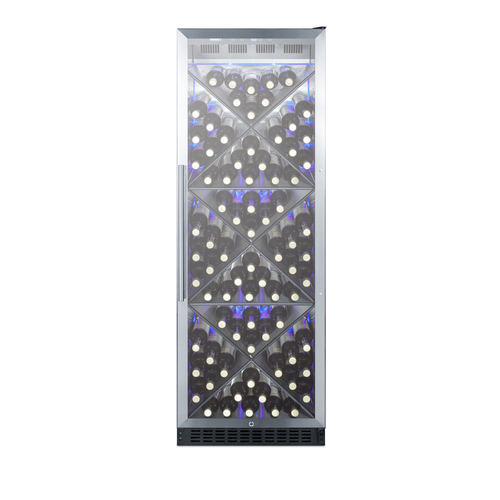

24" Wide Single Zone Commercial Wine Cellar

SKU: SCR1401X

Tints
Available with an energy saving door tint to protect the interior from natural and artificial light. Choose from four tint finishes with varying levels of visibility.

All tints reject up to 99% of UV rays. Click here to view these options and learn more about their efficiency.
Commercial meets nsf
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

Unique design brings the classic look of diamond style shelving to a commercial grade wine cellar with precise temperature control

69.75" H x 23.63" W x 23.75" D

(177cm H x 60cm W x 60cm D)

OVERVIEW

  • Commercially approved to NSF-7 standards
  • Unique diamond style shelving in stainless steel brings an elevated presentation to commercial wine storage
  • Digital thermostat offers precise and convenient temperature control with a wide range to accommodate red or white wine
  • Powerful but efficient LED lighting provides a full view of the interior
  • Stainless steel interior offers added durability and improved sanitation
  • Uniquely sized with a slim 24 inch footprint
  • Self-closing door is ideal for busy commercial settings

SPECIFICATIONS

Overview
Height of Cabinet 69.75" (177 cm)
Width 23.63" (60 cm)
Depth 23.75" (60 cm)
Depth with Handle 25.63" (65 cm)
Depth with door at 90° 46.75" (119 cm)
Capacity 12.6 cu.ft. (357 L)
Bottles 80 bottles
Defrost Type Frost-Free
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Weight 300.0 lbs. (136 kg)
Shipping Weight 320.0 lbs. (145 kg)
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible No
Shelf Type Steel
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.76 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 59.75" (152 cm)
Interior Width 1 19.5" (50 cm)
Interior Depth 1 11.25" (29 cm)
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 19.5" (50 cm)
Compressor Step Depth 4.5" (11 cm)
Temperature Range 36 to 68ºF
Sabbath Mode Yes

AVAILABLE UPGRADES

Door
T3F Door Tint
Reflective door tint in light blue finish for medium energy savings
T1SF Door Tint
Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models
T4F Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T2F Door Tint
Tinted door in reflective deep blue finish with high energy savings
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

Summit Commercial offers a unique selection of wine cellars designed for optimum storage and bottle presentation.

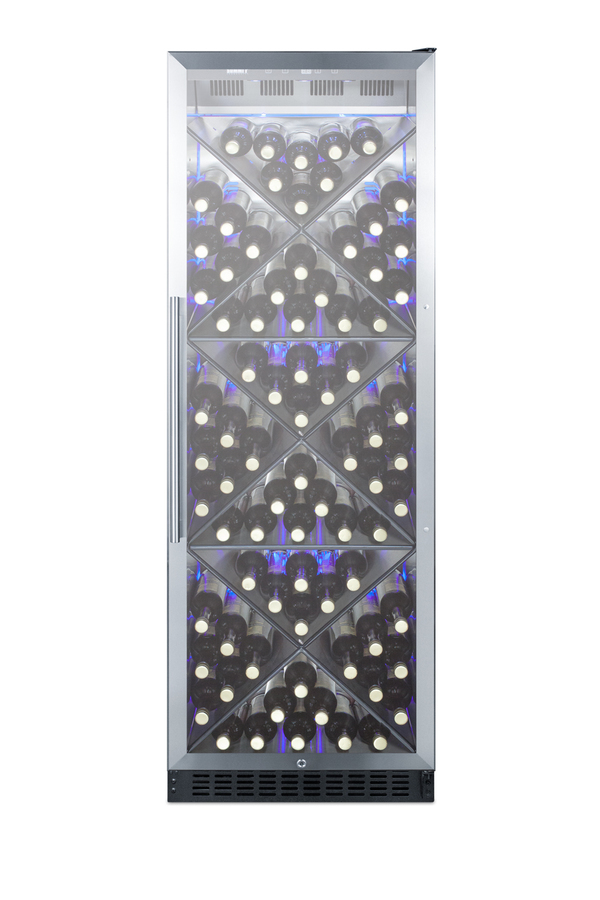

The SCR1401X is an upright wine cellar built to meet NSF-7 commercial standards. The slim 24 inch footprint takes up minimum floor space, while the large 12.6 cu.ft. interior accommodates up to 80 Bordeaux style wine bottles. The self-closing stainless steel trimmed door includes a pro style handle and factory-installed lock for added security. This model comes with a right hand door swing. For a left hand version, see the SCR1401LHX.

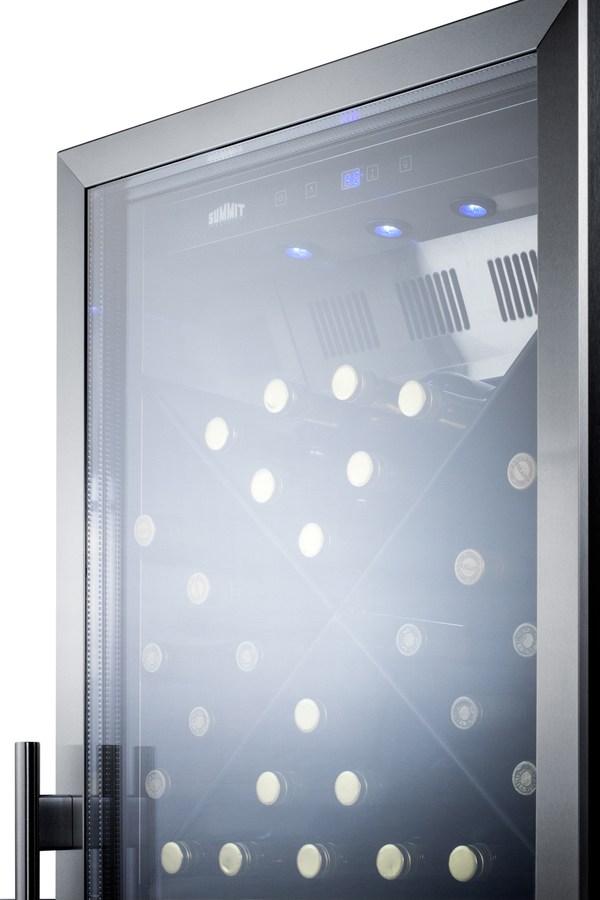

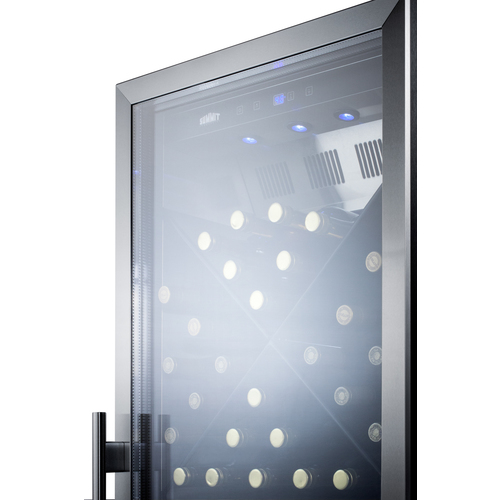

Inside, the SCR1401X features Summit Commercial's unique diamond style racking system, providing a stunning cellar-style presentation that offers easy bottle access for staff. The shelving and interior walls are constructed from stainless steel for lasting durability in busy commercial settings, with a black rubberized trim built to NSF commercial standards. This unit is illuminated through the rear walls with efficient LED lighting in a striking blue hue. The digital control panel is conveniently located towards the top of the unit, with a wide 36 to 68ºF temperature range that allows you to program the optimum settings for red, white, or sparkling wine. Additional features include an audible high temperature alarm, open door alarm, temperature memory function, and sabbath mode setting.

The SCR1401X comes with a fully finished jet black cabinet. Additional choices are available in stainless steel. For a similar unit designed to store champagne bottles, see the SCR1401CH.

FEATURES

Commercially approved
Design meets UL-471 commercial standards and is ETL-S listed to NSF-7 standards for commercial use
Slim fit
Just 24" wide and deep for an easy fit in any setting
Diamond style wine racks
Interior features stainless steel shelving in a unique diamond configuration for an elevated presentation
Rubberized safety trim
Each shelf features an industrial rubberized trim in a black finish, ensuring there are no sharp edges while providing a clean look
Stainless steel interior
Walls are constructed from stainless steel for added strength and easy cleanup
Double pane tempered glass door
Heat-safe glass door with stainless steel trim offers full display all the way down to the floor
Interior LED lighting
Fully lit interior with a striking blue LED hue, providing an attractive and energy efficient view
Self-closing door
Door will automatically close when left ajar, preventing items from accidentally being left exposed to ambient temperatures
Digital thermostat
Electronic controls for precise temperature management, with a readout viewable in Celsius or Fahrenheit
Wide temperature range
Interior can be set between 36 to 68ºF, allowing users to adjust for red wine, white wine, or champagne
Frost-free operation
No-frost convenience requires no manual defrosting
Factory installed lock
Keyed lock for a secure interior (2 keys included)
Fan-forced cooling
Internal fan ensures the interior is evenly cooled from top to bottom
High temperature alarm
Alarm sounds if the interior temperature rises out of suggested range
Professional handle
Attractive design in stainless steel to complete the look
Right hand door swing
For a left hand version, see the SCR1401LHX
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 96 hours
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of power loss
Fully finished black cabinet
Allows the unit to be used freestanding
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 69.75" (177 cm)
Width 23.63" (60 cm)
Depth 23.75" (60 cm)
Depth with Handle 25.63" (65 cm)
Depth with door at 90° 46.75" (119 cm)
Capacity 12.6 cu.ft. (357 L)
Bottles 80 bottles
Defrost Type Frost-Free
Door Glass
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Weight 300.0 lbs. (136 kg)
Shipping Weight 320.0 lbs. (145 kg)
Estimated Time to Ship 5 to 7 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Wine Cellar
Number of Zones 1
Door Swing RHD
Reversible No
Shelf Type Steel
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R600a
Refrigerant Amount 1.76 oz.
High Side PSI 270.0
Low Side PSI 105.0
Interior Height 1 59.75" (152 cm)
Interior Width 1 19.5" (50 cm)
Interior Depth 1 11.25" (29 cm)
Compressor Step Height 4.5" (11 cm)
Compressor Step Width 19.5" (50 cm)
Compressor Step Depth 4.5" (11 cm)
Temperature Range 36 to 68ºF
Sabbath Mode Yes

AVAILABLE UPGRADES

Door
T3F Door Tint
Reflective door tint in light blue finish for medium energy savings
T1SF Door Tint
Reflective door tint in dark smoke finish for maximum energy savings on full-size and two-door models
T4F Door Tint
Neutral door tint in light smoke finish for moderate energy savings
T2F Door Tint
Tinted door in reflective deep blue finish with high energy savings

DOWNLOADS

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
