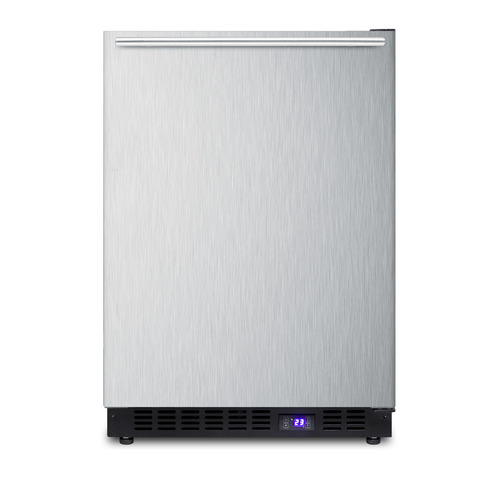

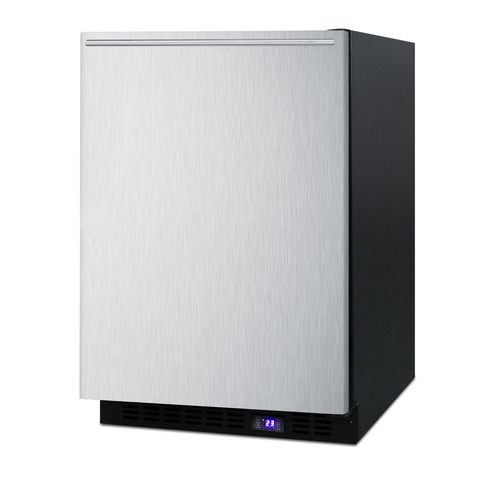

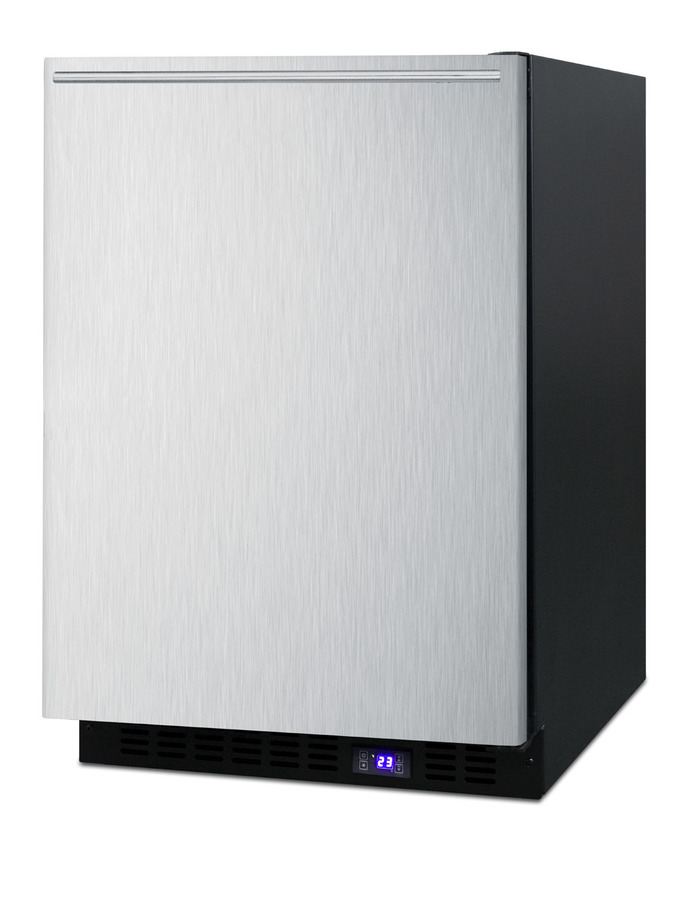

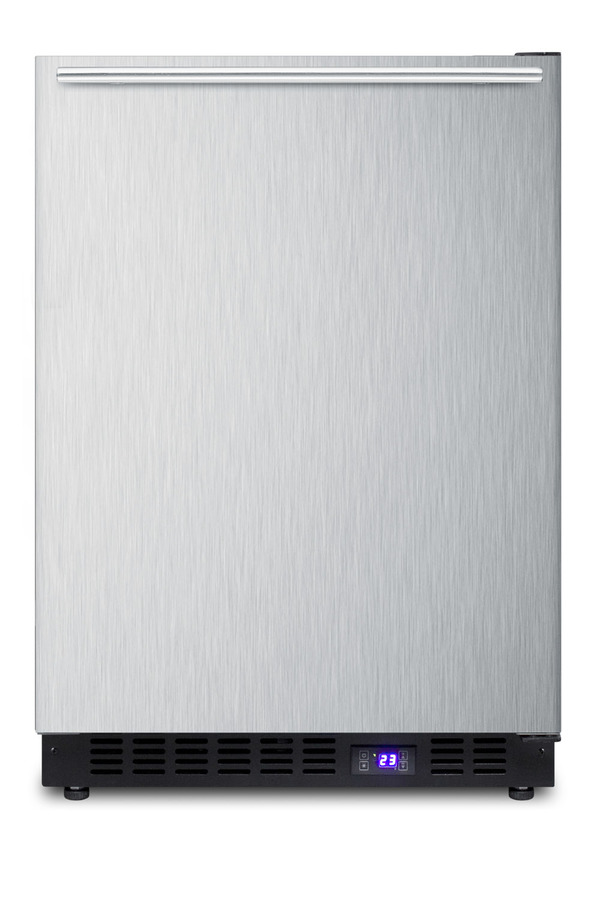

24" Wide Built-In All-Freezer With Icemaker

SKU: SCFF53BXSSHHIM Matching refrigerator

34.0" H x 23.63" W x 23.5" D

(86cm H x 60cm W x 60cm D)

OVERVIEW

  • True frost-free operation saves you maintenance by preventing icy buildup
  • Flexible design allows built-in or freestanding use in 24" wide spaces
  • Digital thermostat allows easy temperature management
  • Stainless steel wrapped door with horizontally mounted handle offers a modern look
  • Factory installed icemaker provides a steady supply of cubes
  • Includes audible alarms for open door and high temperature warnings

SPECIFICATIONS

Overview
Height of Cabinet 34.0" (86 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.35" (64 cm)
Depth with door at 90° 45.63" (116 cm)
Capacity 4.72 cu.ft. (134 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 390.0kWh/year
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 108.0 lbs. (49 kg)
Shipping Weight 113.0 lbs. (51 kg)
Estimated Time to Ship 7 to 10 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 2.8 oz.
High Side PSI 270.0
Low Side PSI 106.0
Sabbath Mode Yes

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
SSK
Stainless steel kickplate factory installed
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT's SCFF53B Series brings quality and convenience under the counter with a fully featured lineup of built-in frost-free all-freezers.

Sized with a convenient 24" footprint, the SCFF53BXSSHHIM freezer can be used built-in or freestanding. It has a black cabinet and sealed back for easy cleaning. The reversible stainless steel wrapped door includes a thin handle mounted horizontally to complete the modern look.

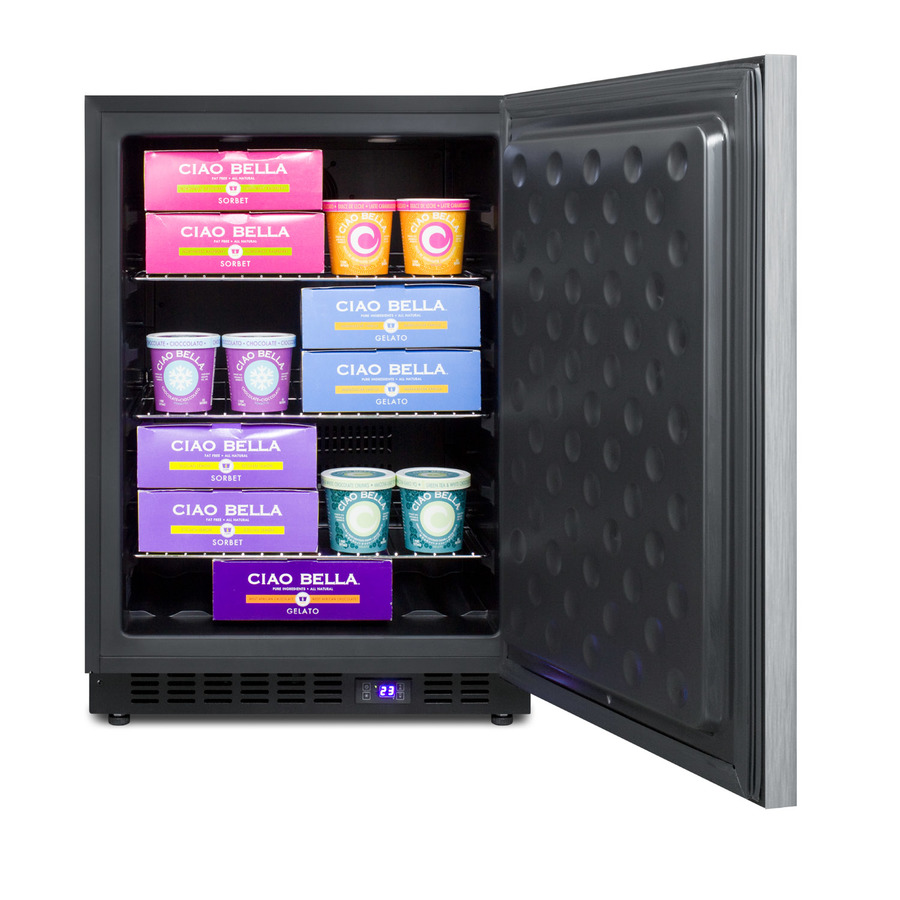

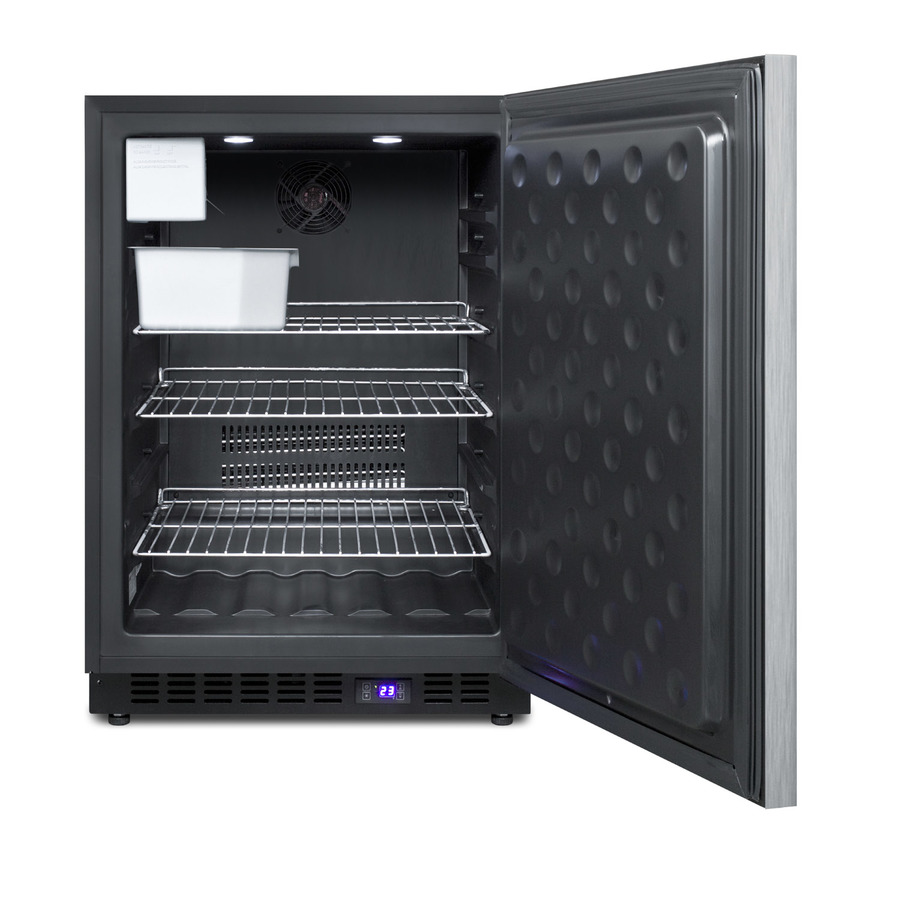

Inside, the SCFF53BXSSHHIM utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable chrome shelves for flexible storage and a factory installed icemaker. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

With its deluxe style and user-friendly features, the SCFF53BXSSHHIM is the perfect choice for home or commercial kitchens. For a matching frost-free all-refrigerator, see the FF64BXSSHH.

FEATURES

Frost-free operation
No-frost convenience eliminates the need to manually defrost the unit
Built-in capable
Make the best use of space by installing your freezer under the counter and flush with other cabinets
Stainless steel wrapped door
304 grade stainless steel door for lasting quality
Digital thermostat
Electronic controls offer easy and intuitive temperature management
Recessed LED light
Elegant lighting with an on/off switch located on the control panel
Adjustable shelves
Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Professional horizontal handle
Brushed stainless steel handle with a thin 14mm diameter is mounted horizontally across the door for a sleek look
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 96 hours
Reversible door
User reversible door swing for added placement flexibility
High temperature alarm
High temperature alarm sounds if the unit's temperature goes out of the recommended range
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of a power loss
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Fully finished cabinet
Allows the freezer to be used as a freestanding model
Matching refrigerator available

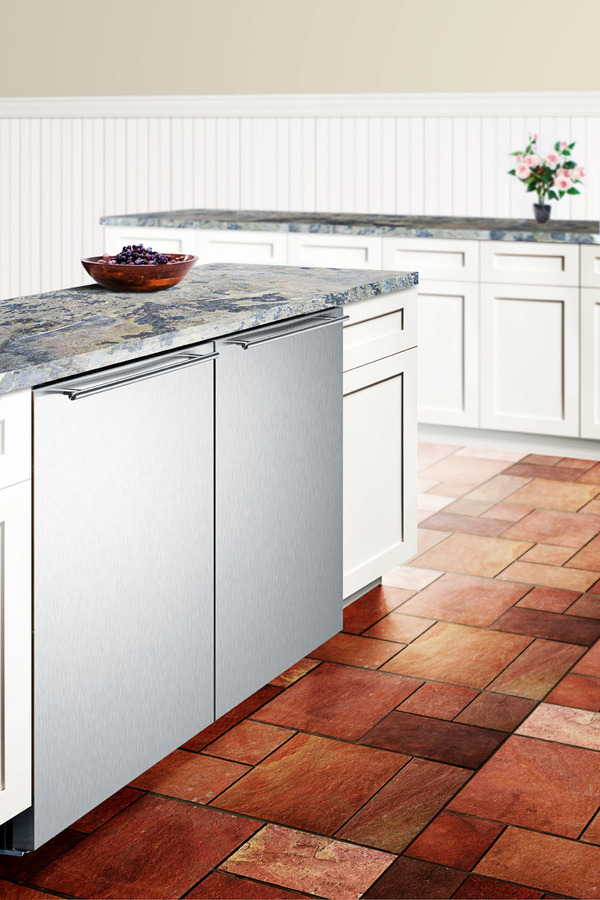

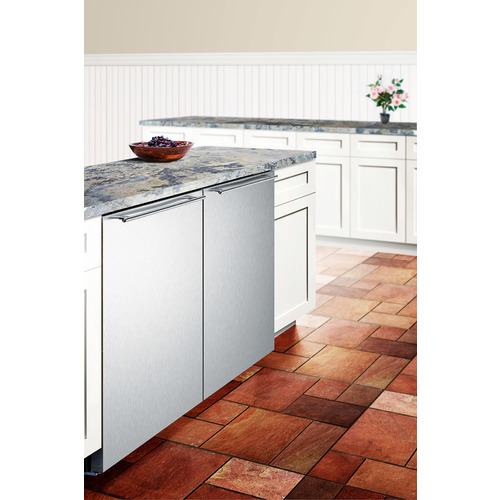

Pair with the FF64BXSSHH for a matching side-by-side or stackable set
100% CFC free
Environmentally friendly design without ozone-damaging chemicals
