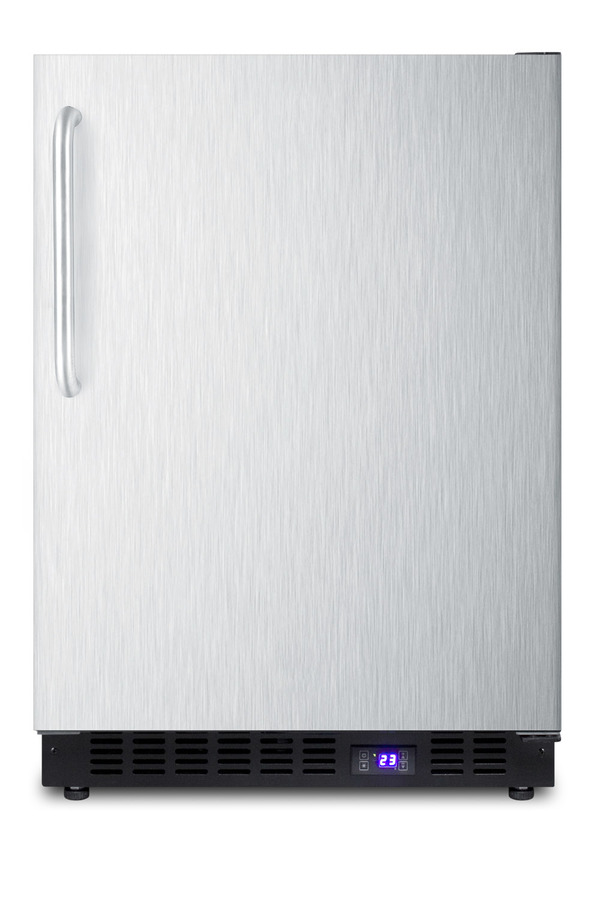

24" Wide Built-In All-Freezer With Icemaker

SKU: SCFF53BXCSSTBIM Matching refrigerator

Copper handle
Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

Frost-free operation ensures minimum user maintenance

34.0" H x 23.63" W x 23.5" D

(86cm H x 60cm W x 60cm D)

OVERVIEW

  • True frost-free operation saves you maintenance by preventing icy buildup
  • Flexible design allows built-in or freestanding use in 24" wide spaces
  • Digital thermostat allows easy temperature management
  • Fully wrapped in 304 grade stainless steel
  • Professional towel bar style handle completes the look
  • Factory installed icemaker provides a steady supply of ice
  • Includes audible alarms for open door and high temperature warnings

SPECIFICATIONS

Overview
Height of Cabinet 34.0" (86 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.35" (64 cm)
Depth with door at 90° 45.63" (116 cm)
Capacity 4.72 cu.ft. (134 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 390.0kWh/year
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 108.0 lbs. (49 kg)
Shipping Weight 113.0 lbs. (51 kg)
Estimated Time to Ship 7 to 10 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 2.8 oz.
High Side PSI 270.0
Low Side PSI 106.0
Sabbath Mode Yes

AVAILABLE UPGRADES

Handle
TBC Copper Towel Bar Handle Upgrade
Change this handle to a 12" vertically mounted towel bar style handle made from pure copper for antimicrobial protection
Exterior
SSK
Stainless steel kickplate factory installed
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

SUMMIT's SCFF53B Series brings quality and convenience under the counter with a fully featured lineup of built-in frost-free all-freezers.

Sized with a convenient 24" footprint, the SCFF53BXCSSTBIM freezer can be used built-in or freestanding. It has a stainless steel wrapped cabinet and sealed back for easy cleaning. The stainless steel wrapped door includes our signature towel bar handle to complete the professional look.

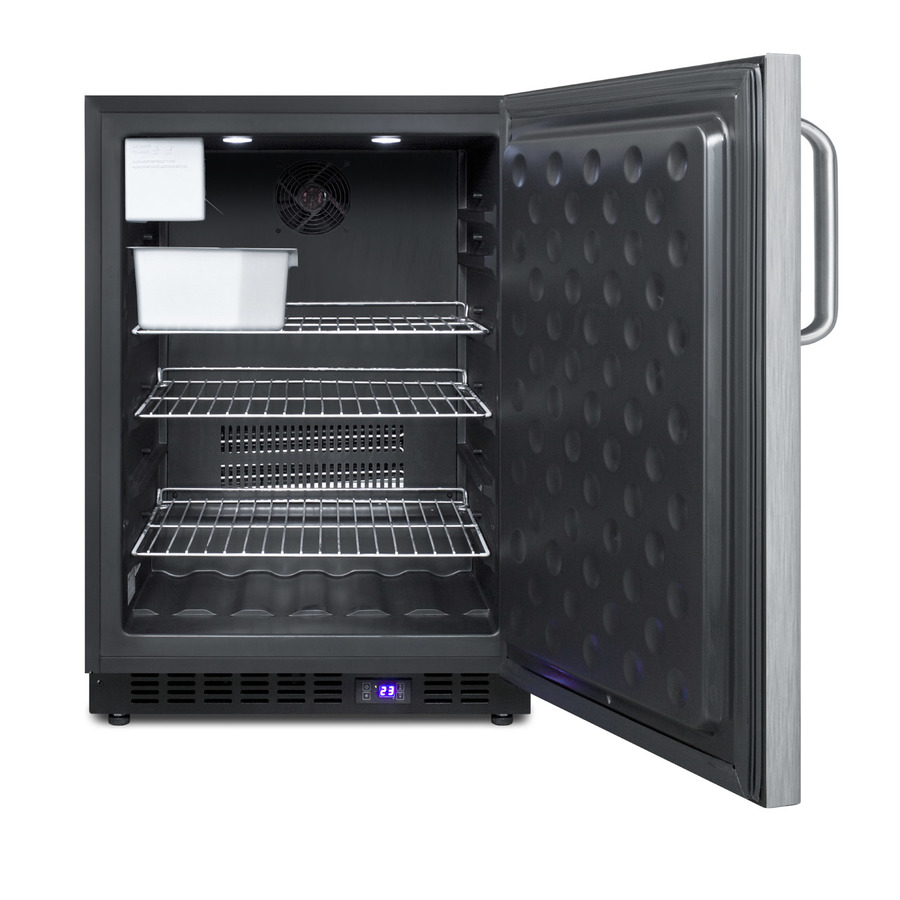

Inside, the SCFF53BXCSSTBIM utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable chrome shelves for flexible storage and a factory installed icemaker. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

With its deluxe style and user-friendly features, the SCFF53BXCSSTBIM is the perfect choice for home or commercial kitchens. For a matching frost-free all-refrigerator, see the FF64BXCSSTB.

FEATURES

Frost-free operation
No-frost convenience eliminates the need to manually defrost the unit
Built-in capable
Make the best use of space by installing your freezer under the counter and flush with other cabinets
Stainless steel construction
Exterior cabinet and door are fully wrapped in stainless steel for lasting durability with professional elegance
Digital thermostat
Electronic controls offer easy and intuitive temperature management
Factory installed icemaker
Produces a steady supply of ice for added entertaining convenience
Recessed LED light
Elegant lighting with an on/off switch located on the control panel
Adjustable shelves
Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Professional towel bar handle
Curved handle in brushed stainless steel
Fully finished cabinet
Allows the freezer to be used as a freestanding model
High temperature alarm
High temperature alarm sounds if the unit's temperature goes out of the recommended range
Open door alarm
Audible alarm will sound if the door is left open longer than one minute
Sabbath mode setting
Optional setting lets you disable the lighting and alarm for up to 96 hours
Temperature Memory Function
Unit will retain its last settings when power is restored in the event of a power loss
Matching refrigerator available
Pair with the FF64BXCSSTB for a matching side-by-side or stackable set
Right angle plug
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 34.0" (86 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.35" (64 cm)
Depth with door at 90° 45.63" (116 cm)
Capacity 4.72 cu.ft. (134 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 390.0kWh/year
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 108.0 lbs. (49 kg)
Shipping Weight 113.0 lbs. (51 kg)
Estimated Time to Ship 7 to 10 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 2.8 oz.
High Side PSI 270.0
Low Side PSI 106.0
Sabbath Mode Yes

AVAILABLE UPGRADES

Handle
TBC Copper Towel Bar Handle Upgrade
Change this handle to a 12" vertically mounted towel bar style handle made from pure copper for antimicrobial protection
Exterior
SSK
Stainless steel kickplate factory installed
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
