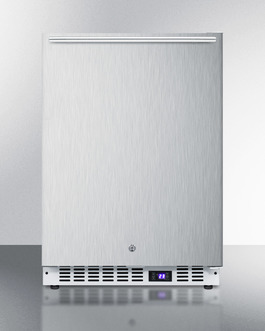

SCFF51OSWHCSSHHIM

DISCONTINUED

True frost-free forced air cooling for optimum performance

34.0" H x 23.63" W x 23.5" D

(86cm H x 60cm W x 60cm D)

OVERVIEW

  • True frost-free operation saves you maintenance by preventing icy buildup
  • Flexible design allows built-in or freestanding use in 24" wide spaces
  • Digital thermostat allows easy temperature management
  • Factory-installed lock offers security you can count on
  • Fully wrapped stainless steel door and cabinet
  • Horizontally mounted stainless steel handle adds a modern look
  • Includes hospital grade cord with a 'green dot' plug
  • Factory installed icemaker provides a steady supply of ice

SPECIFICATIONS

Overview
Height of Cabinet 34.0" (86 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.35" (64 cm)
Depth with door at 90° 45.63" (116 cm)
Capacity 4.72 cu.ft. (134 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 410.0kWh/year
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 108.0 lbs. (49 kg)
Shipping Weight 128.0 lbs. (58 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 2.8 oz.
High Side PSI 270.0
Low Side PSI 106.0

AVAILABLE UPGRADES

Exterior
KEY
Extra keys available for purchase
LHD
Door reversal to left hand swing
Latch
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

DESCRIPTION

SUMMIT’s SCFF51OSWH Series features frost-free all-freezers designed to bring true convenience under the counter.

Designed for built-in or freestanding use, the SCFF51OSWHCSSHHIM is sized with a 24" footprint. The cabinet and door are fully wrapped in stainless steel, with a thin horizontal handle completing the look. The user-reversible door includes a factory installed lock. A hospital grade 'green dot' cord is standard for added safety.

Inside, the SCFF51OSWHCSSHHIM includes user-friendly features for low maintenance operation, including a factory installed icemaker. The frost-free design eliminates the need for manual defrosting and adjustable shelves offer storage flexibility. This unit also includes a digital thermostat and recessed LED lighting.

FEATURES

Frost-free operation
No-frost convenience eliminates the need to manually defrost the unit
Built-in capable
Make the best use of space by installing your freezer under the counter and flush with other cabinets
Fully finished cabinet
Allows the freezer to be used as a freestanding model
Stainless steel construction
Exterior cabinet and door are made from stainless steel for lasting durability
Digital thermostat
Electronic controls offer easy and intuitive temperature management
Recessed LED light
Elegant lighting with an on/off switch located on the control panel
Adjustable shelves
Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
Factory installed icemaker
Keep a steady supply of ice on hand for added convenience
Factory installed lock
Keyed lock for a secure interior
Professional horizontal handle
Stainless steel handle is horizontally mounted for a unique look
Reversible door
User reversible door swing for added placement flexibility
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 34.0" (86 cm)
Width 23.63" (60 cm)
Depth 23.5" (60 cm)
Depth with Handle 25.35" (64 cm)
Depth with door at 90° 45.63" (116 cm)
Capacity 4.72 cu.ft. (134 L)
Defrost Type Frost-Free
Door Stainless Steel
Cabinet Stainless Steel
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 410.0kWh/year
Amps 2.0
Voltage/Frequency 115 V AC/60 Hz
Weight 108.0 lbs. (49 kg)
Shipping Weight 128.0 lbs. (58 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Yes
Shelf Type Chrome
Shelf Qty 3
Adjustable Shelves Yes
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant Type R134a
Refrigerant Amount 2.8 oz.
High Side PSI 270.0
Low Side PSI 106.0

AVAILABLE UPGRADES

Exterior
KEY
Extra keys available for purchase
LHD
Door reversal to left hand swing
Latch
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations

DOWNLOADS



California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
