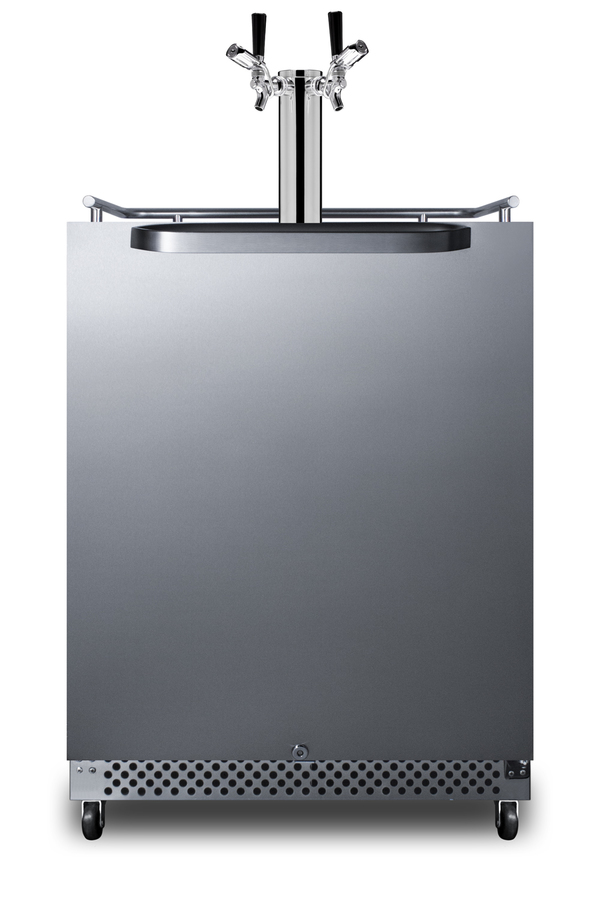

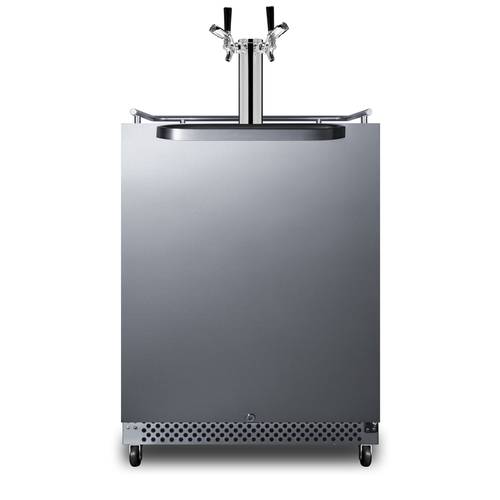

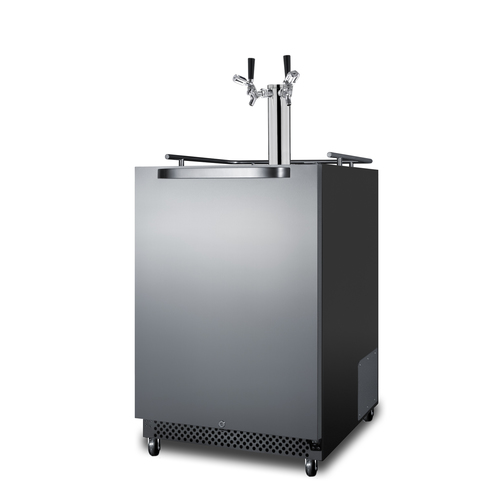

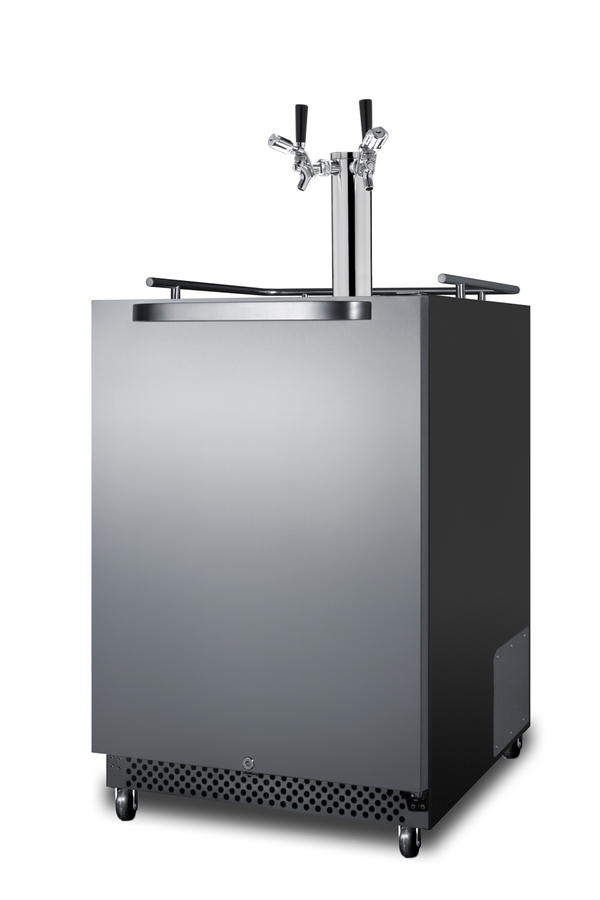

24" Wide Built-In Outdoor Kegerator with TapLocks

SKU: SBC696OSTWINTL
Commercially approved to NSF standards, with a weatherproof design for durable use in the outdoors
DISCONTINUED- REPLACED BY BC74OSCOMTWIN
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
34.25" H x 23.75" W x 25.0" D
(87cm H x 60cm W x 64cm D)

Overview
Height of Cabinet 34.25" (87 cm)
Width 23.75" (60 cm)
Depth 25.0" (64 cm)
Depth with Handle 26.88" (68 cm)
Depth with door at 90° 47.75" (121 cm)
Capacity 6.04 cu.ft. (171 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.3
Voltage/Frequency 115 V AC/60 Hz
Weight 108.0 lbs. (49 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101084763
Kegerator
Door Swing RHD
Reversible Yes
Tap Kit Yes
Height with Tap 50.38" (128 cm)
Number of Taps 2
Thermostat Type Digital
Interior Light Yes
Fan Type Interior and Exterior
Refrigerant R600a
Refrigerant Amount 1.76 oz.
High Side PSI 220.0
Low Side PSI 43.0
Inter Height 27.0" (69 cm)
Interior Width 20.38" (52 cm)
Interior Depth 21.25" (54 cm)
Compressor Step Height 5.5" (14 cm)
Compressor Step Width 9.63" (24 cm)
Compressor Step Depth 2.5" (6 cm)
Wheel Qty 4
Temperature Range 32º to 50ºF

Exterior
LHD - Left hand door swing
Door reversal to left hand swing

Commercially approved

ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings

Weatherproof design

Solid construction allows placement in the outdoors

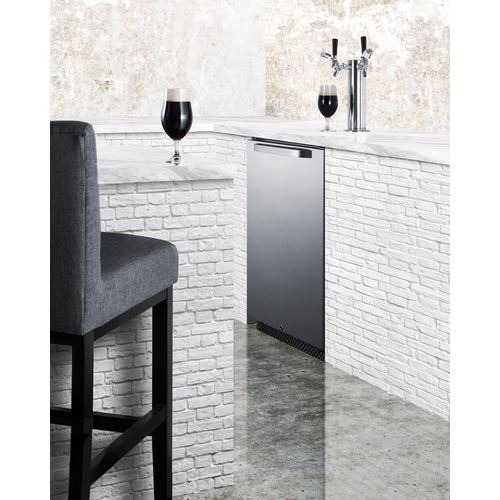

Built-in capable

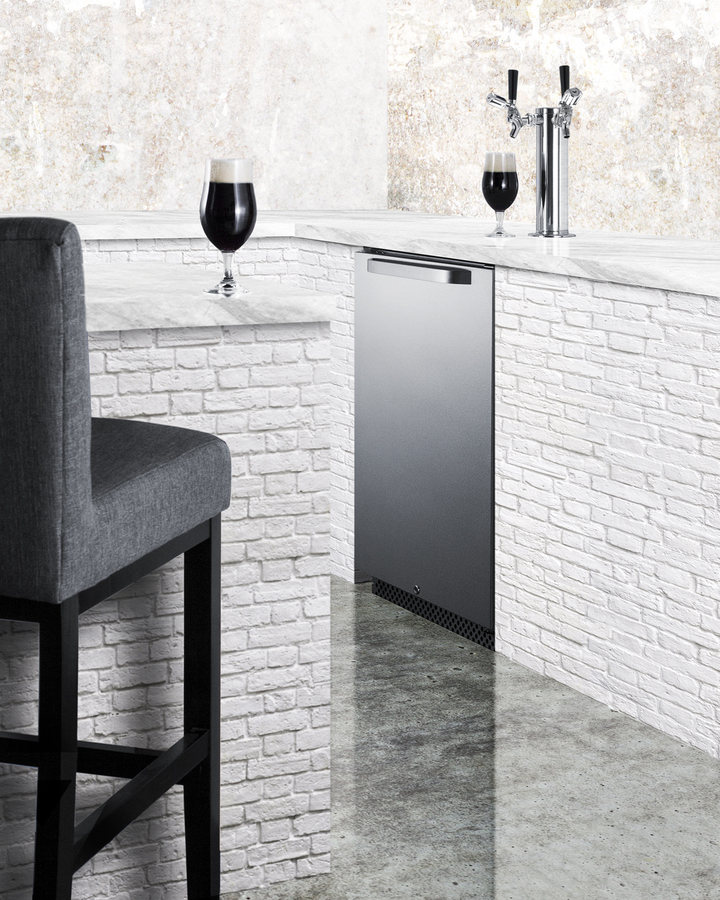

Front-breathing design allows fully recessed installation under counters

Full-sized beer dispenser

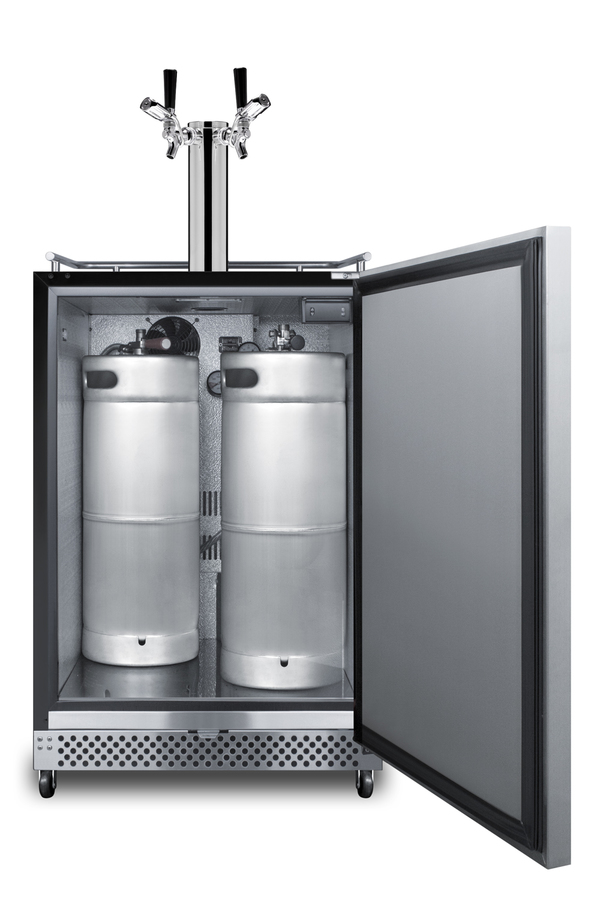

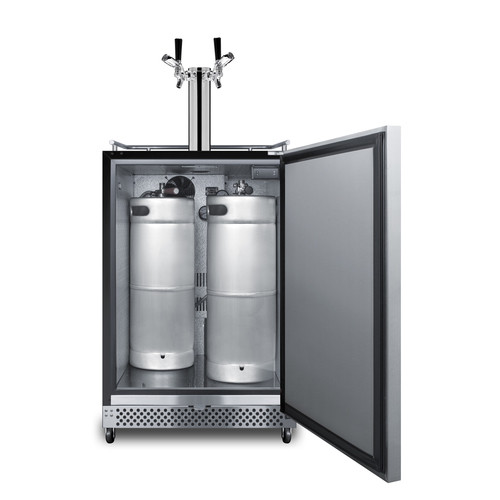

Large interior can accept a full half barrel keg, two slim quarter kegs, or up to three sixth barrel or Cornelius style kegs

Complete tap kit

Includes a 5 lb. CO2 tank and regulator, dual tap draft arm, Sankey American tap, connection hardware, and cleaning kit

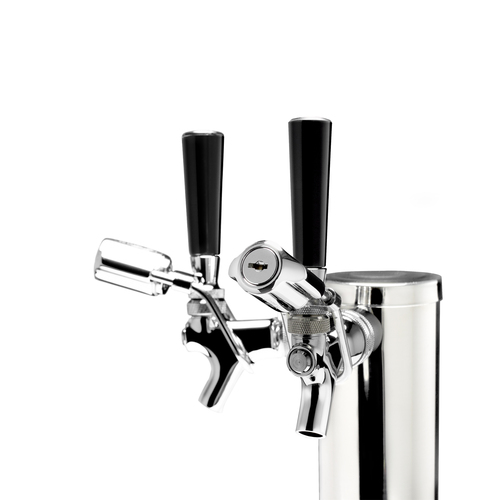

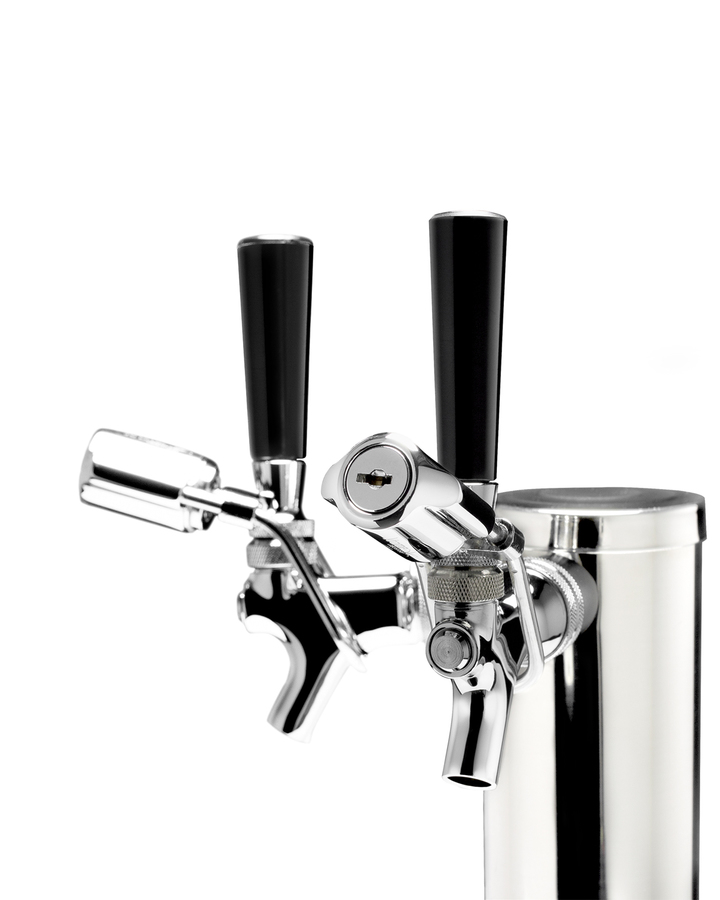

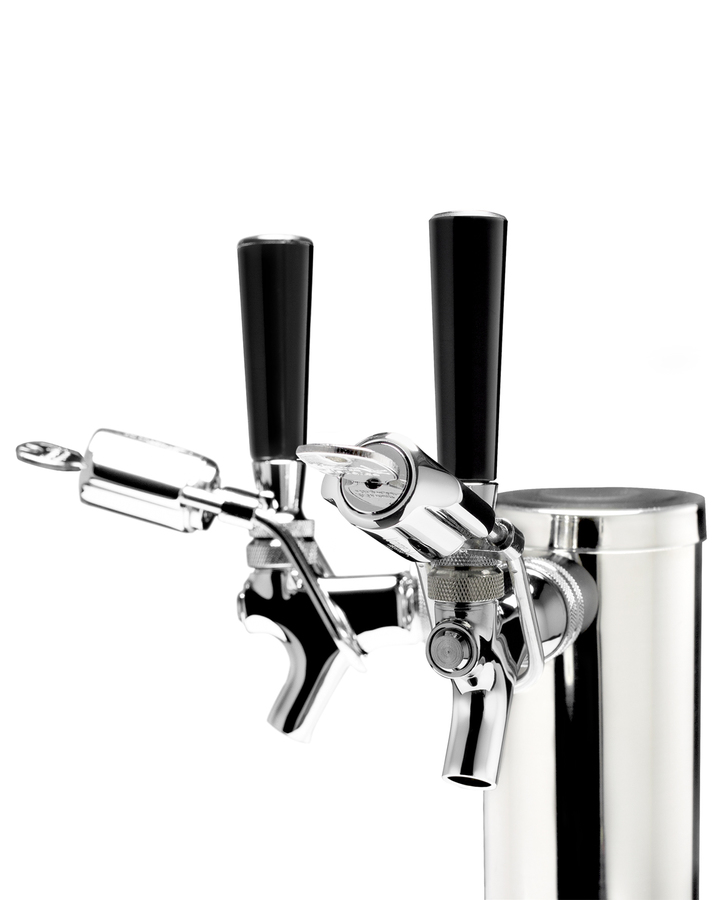

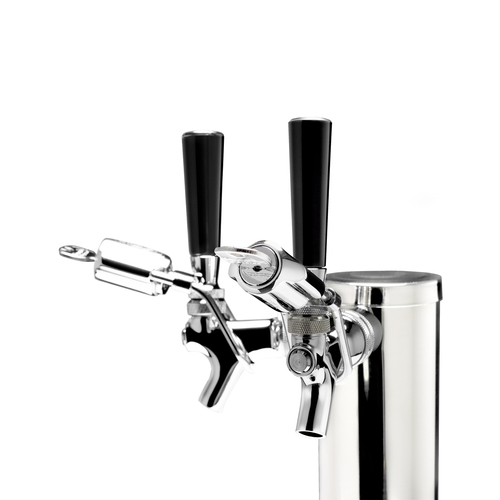

TapLock included

Two easy to use removable locks allow you to secure each tap's faucet with a key to prevent unsupervised access as needed

Dual tap system

Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs

Stainless steel door

Wrapped stainless steel door offers a professional look built to hold up to the elements

Professional handle

Blade style handle in brushed stainless steel matches many popular styles of cabinetry and grill details

Digital thermostat

Electronic controls ensure easy temperature management for optimum beer storage, with a readout viewable in Celsius or Fahrenheit

Automatic defrost

No-frost operation for minimum user maintenance

Factory installed lock

Keyed lock for added security (2 keys included)

Reversible door

User-reversible door swing allows you to easily adjust to better accommodate your setting

Self-closing door

Closing mechanism helps to ensure the door isn't left open to expose kegs to ambient temperature

Casters included (ship unassembled)

Sturdy caster set lets you convert the beer dispenser for mobile use

Stainless steel guard rail

Durable railing makes it easier to neaten service

Hammered aluminum interior

Added durability for long-lasting use

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

Open door alarm

Alarm sounds if the door is left open for more than 60 seconds

High/low temperature alarm

Audible alarm sounds if the unit goes out of range

LED lighting

Interior LED lighting automatically illuminates when the door is opened, making it easier to set up your keg

Sealed back

Space saving design with easier cleanability and added protection from the elements

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit Commercial brings quality construction and long-lasting reliability to outdoor and indoor settings with the SBC696OS beer dispenser series.

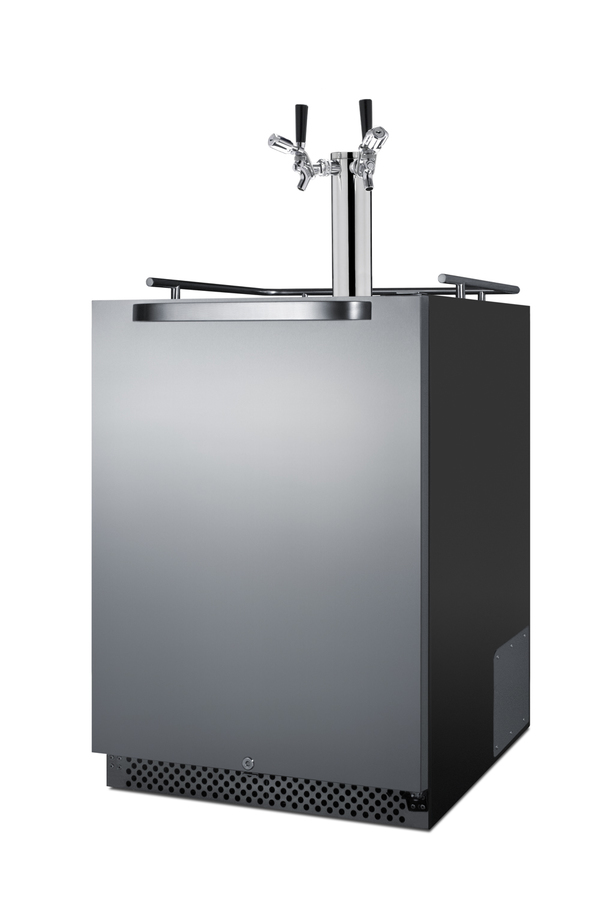

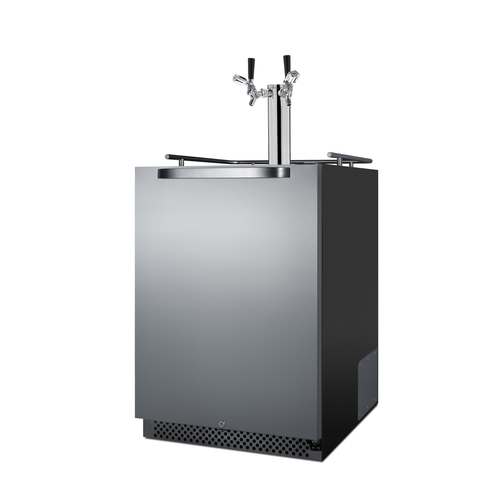

The SBC696OSTWINTL is a full-sized weatherproof kegerator that can be used indoors or outdoors. It is ETL-S listed to NSF-7 standards and meets UL-471 for commercial applications. This unit comes with a jet black cabinet and stainless steel wrapped door, with a sealed back designed to protect all electrical components from the elements. It features a front-breathing system that allows built-in installation under counters, as well as a fully finished exterior for optional freestanding use. A caster set is included for optional mobility, along with a durable top rail guard. The user-reversible stainless steel door is self-closing to ensure your kegs aren't accidentally exposed to warmer temperature, with an audible alarm that warns if the door is left open for over one minute. This unit includes a stainless steel kickplate and horizontally mounted handle in a sleek blade shape, ideal for matching many popular styles of grills and cabinetry. A factory-installed front lock offers added security. For added security, we include two of Summit's TapLocks, removable locks that allow you to secure each tap faucet as needed to prevent unsupervised access to the kegerator contents.

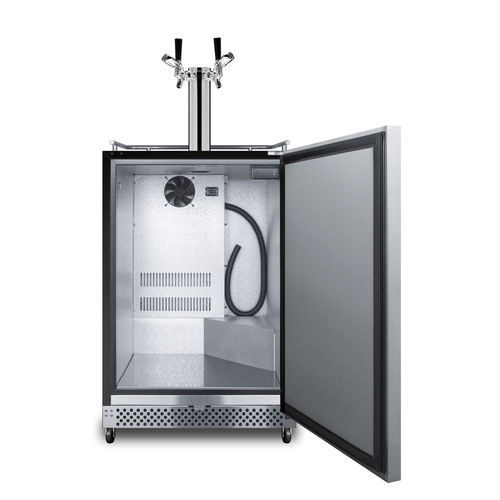

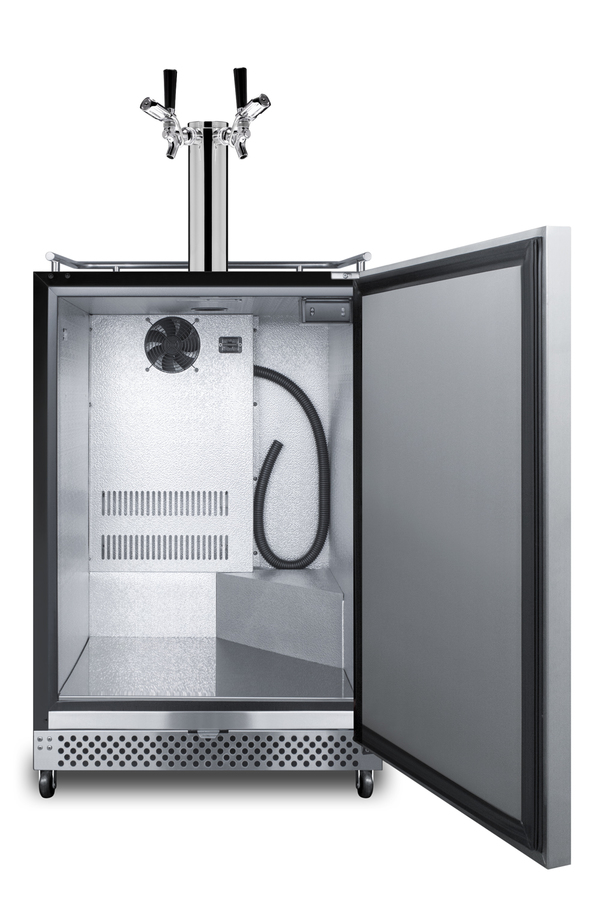

Inside, the SBC696OSTWINTL comes with hammered aluminum walls and a stainless steel floor designed to protect the interior when loading heavy kegs. A digital thermostat lets you set the temperature with reliable precision, with a wide range between 32 and 50ºF to accommodate a variety of brews. A high/low temperature alarm sounds if the unit's interior goes out of safe storage conditions. We include a complete commercially listed Sankey tap system and twin style draft tower, along with a 5 lb. CO2 tank and regulator. This unit utilizes automatic defrost for low maintenance use. An interior LED light is included to help make the keg setup process more convenient.

With its solid construction, user-friendly features, and attractive design, the SBC696OSTWINTL is the perfect beer dispenser for indoor or outdoor commercial applications. Additional tap styles are available.


Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
