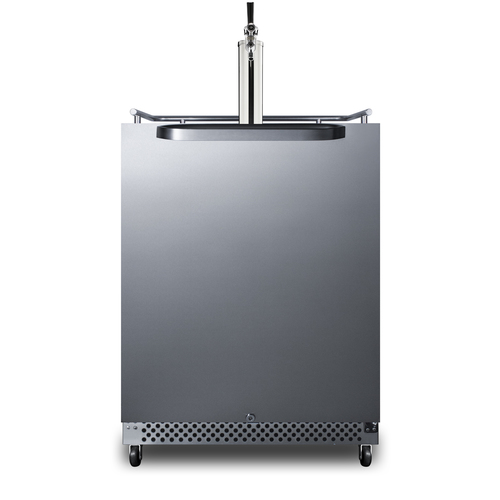

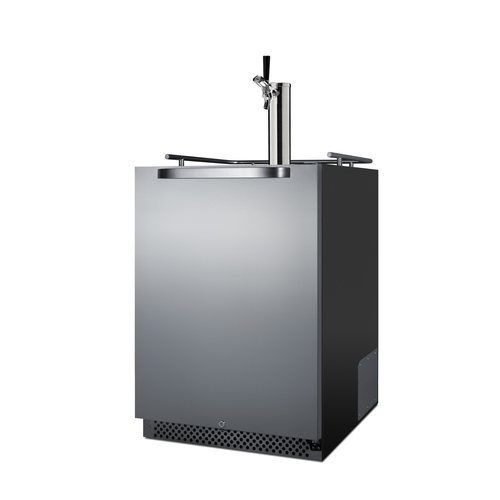

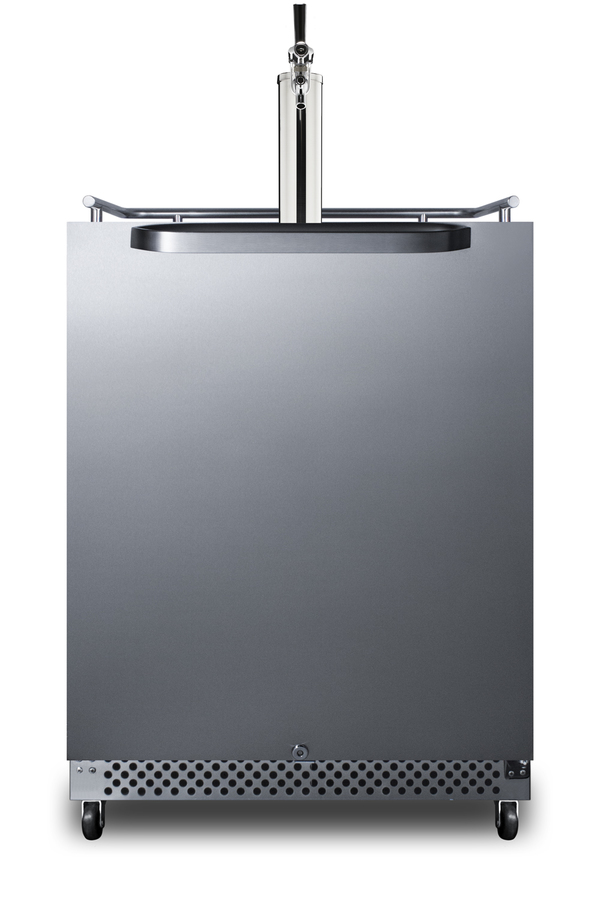

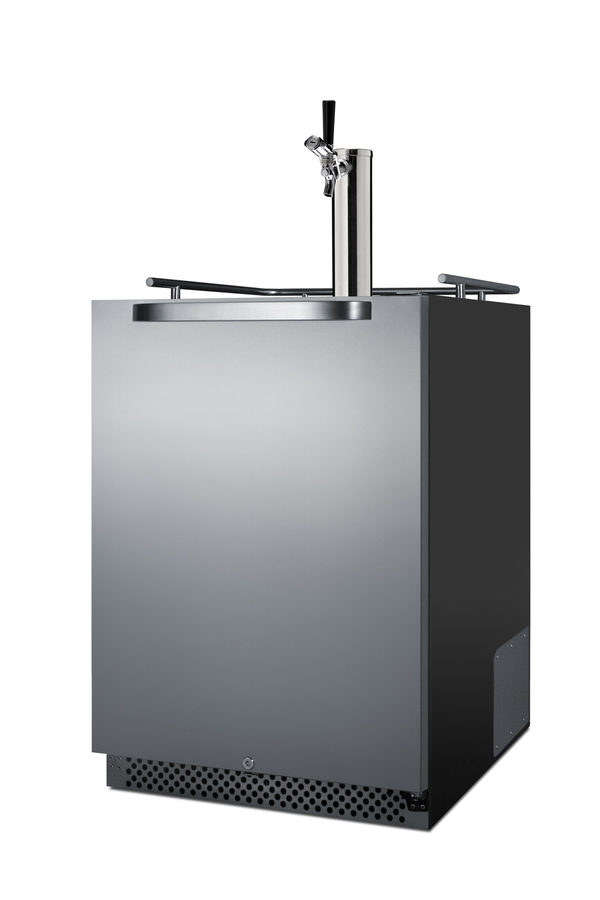

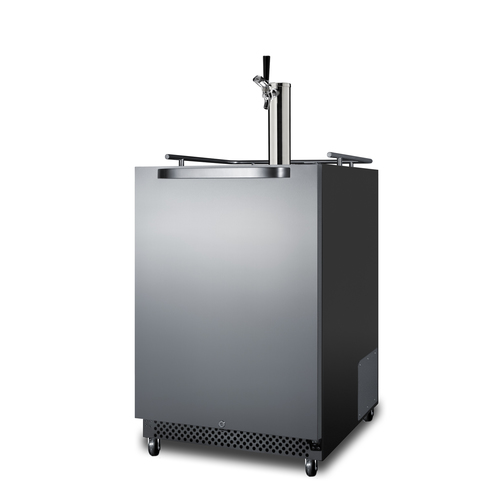

24" Wide Built-In Outdoor Kegerator with TapLock
(87cm H x 60cm W x 64cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.25" (87 cm) |
| Width | 23.75" (60 cm) |
| Depth | 25.0" (64 cm) |
| Depth with Handle | 26.88" (68 cm) |
| Depth with door at 90° | 47.75" (121 cm) |
| Capacity | 6.04 cu.ft. (171 L) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Black |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 108.0 lbs. (49 kg) |
| Shipping Weight | 148.5 lbs. (67 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101084732 |
|
Kegerator
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Tap Kit | Yes |
| Height with Tap | 50.38" (128 cm) |
| Number of Taps | 1 |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant | R600a |
| Refrigerant Amount | 1.76 oz. |
| High Side PSI | 220.0 |
| Low Side PSI | 43.0 |
| Inter Height | 27.0" (69 cm) |
| Interior Width | 20.38" (52 cm) |
| Interior Depth | 21.25" (54 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 9.63" (24 cm) |
| Compressor Step Depth | 2.5" (6 cm) |
| Wheel Qty | 4 |
| Temperature Range | 32º to 50ºF |
AVAILABLE UPGRADES
| Exterior | |
|---|---|
|
FEATURES
ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings
Solid construction allows placement in the outdoors

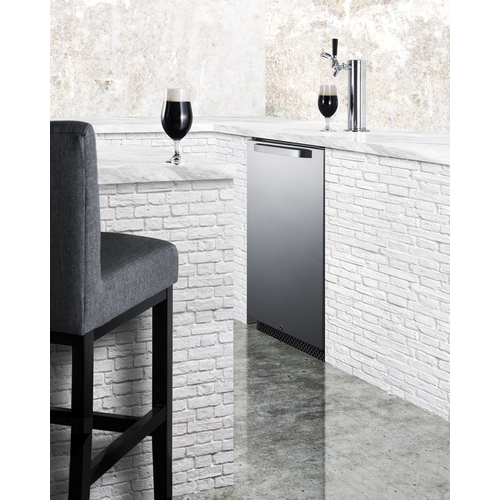

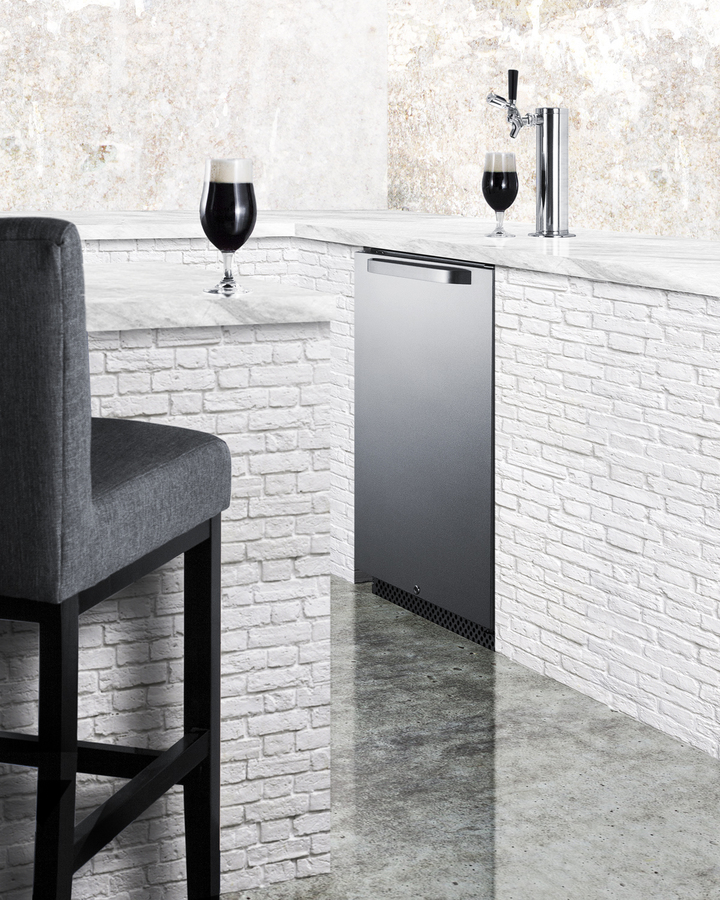

Front-breathing design allows fully recessed installation under counters

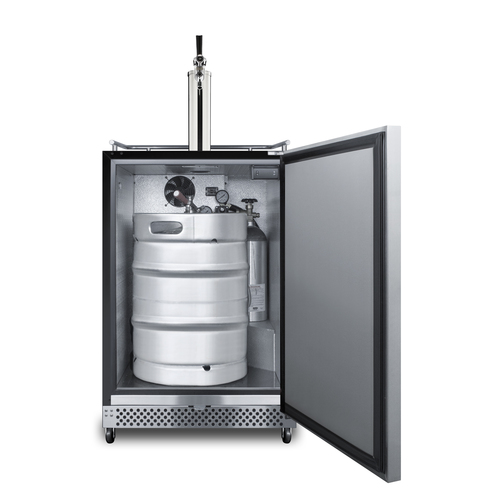

Large interior can accept a full half barrel keg, two slim quarter kegs, or up to three sixth barrel or Cornelius style kegs
Includes a 5 lb. CO2 tank and regulator, draft arm, Sankey American tap, connection hardware, and cleaning kit

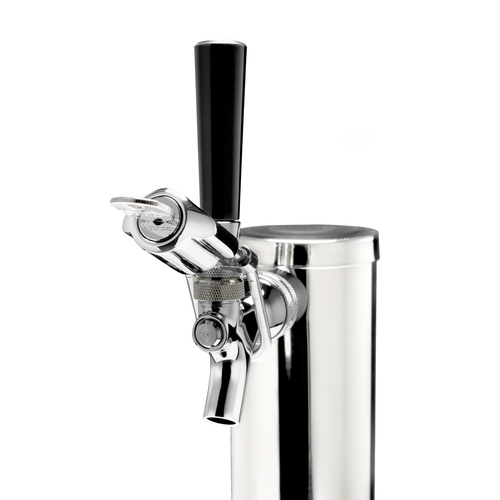

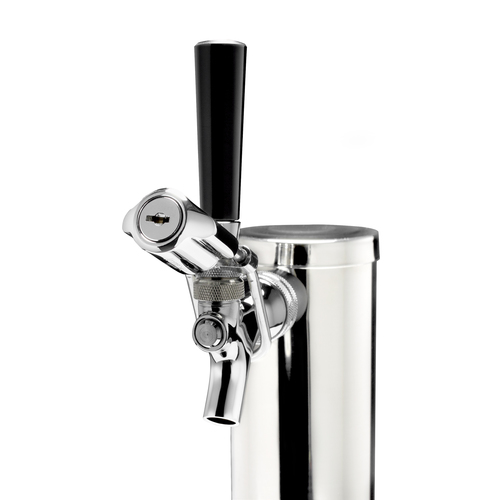

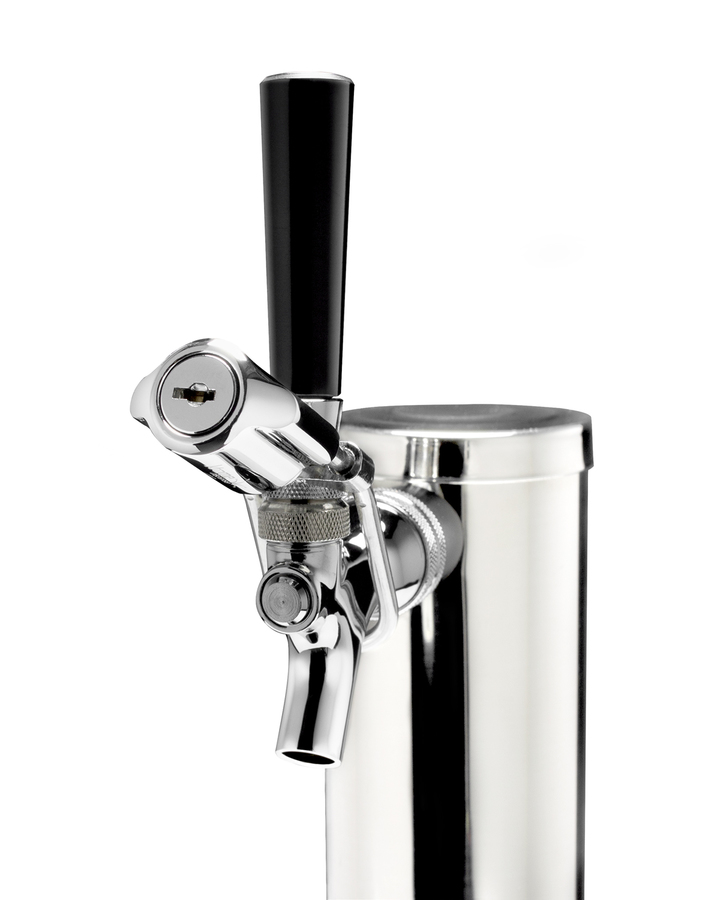

Easy to use removable lock allows you to secure the tap's faucet with a key to prevent unsupervised access as needed
Wrapped stainless steel door offers a professional look built to hold up to the elements
Blade style handle in brushed stainless steel matches many popular styles of cabinetry and grill details
Electronic controls ensure easy temperature management for optimum beer storage, with a readout viewable in Celsius or Fahrenheit
No-frost operation for minimum user maintenance
Keyed lock for added security (2 keys included)
User-reversible door swing allows you to easily adjust to better accommodate your setting
Closing mechanism helps to ensure the door isn't left open to expose kegs to ambient temperature
Sturdy caster set lets you convert the beer dispenser for mobile use
Durable railing makes it easier to neaten service
Added durability for long-lasting use

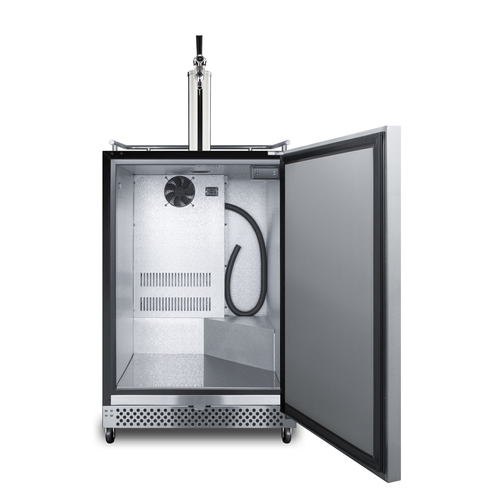

Interior includes steel cover to protect the floor when loading kegs
Alarm sounds if the door is left open for more than 60 seconds
Audible alarm sounds if the unit goes out of range
Interior LED lighting automatically illuminates when the door is opened, making it easier to set up your keg
Space saving design with easier cleanability and added protection from the elements
Allows the unit to be used freestanding
Environmentally friendly design without ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit Commercial brings quality construction and long-lasting reliability to outdoor and indoor settings with the SBC696OS beer dispenser series. The SBC696OSTL is a full-sized weatherproof kegerator that can be used indoors or outdoors. It is ETL-S listed to NSF-7 standards and meets UL-471 for commercial applications. This unit comes with a jet black cabinet and stainless steel wrapped door, with a sealed back designed to protect all electrical components from the elements. It features a front-breathing system that allows built-in installation under counters, as well as a fully finished exterior for optional freestanding use. A caster set is included for optional mobility, along with a durable top rail guard. The user-reversible stainless steel door is self-closing to ensure your kegs aren't accidentally exposed to warmer temperature, with an audible alarm that warns if the door is left open for over one minute. This unit includes a stainless steel kickplate and horizontally mounted handle in a sleek blade shape, ideal for matching many popular styles of grills and cabinetry. A factory-installed front lock offers added security. For added security, we include Summit's TapLock, a removable lock that allows you to secure the tap faucet as needed to prevent unsupervised access to the kegerator contents. Inside, the SBC696OSTL comes with hammered aluminum walls and a stainless steel floor designed to protect the interior when loading heavy kegs. The large interior can accommodate a full half keg, two slim quarter kegs, or up to three Cornelius or sixth barrel kegs. A digital thermostat lets you set the temperature with reliable precision, with a wide range between 32 and 50ºF to accommodate a variety of brews. A high/low temperature alarm sounds if the unit's interior goes out of safe storage conditions. We include a complete commercially listed Sankey tap system and draft tower, along with a 5 lb. CO2 tank and regulator. This unit utilizes automatic defrost for low maintenance use. An interior LED light is included to help make the keg setup process more convenient. With its solid construction, user-friendly features, and attractive design, the SBC696OSTL is the perfect beer dispenser for indoor or outdoor commercial applications. Additional tap styles are available.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
