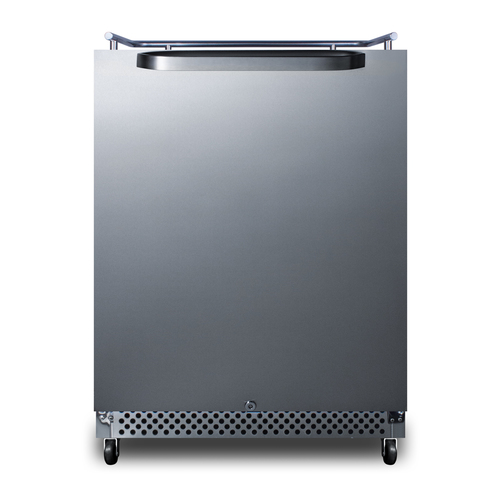

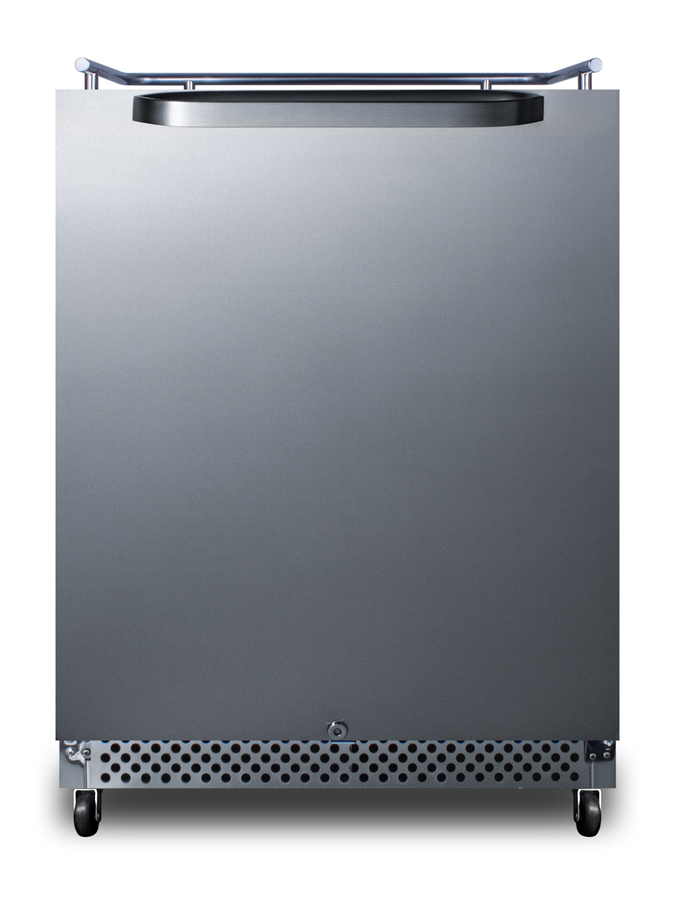

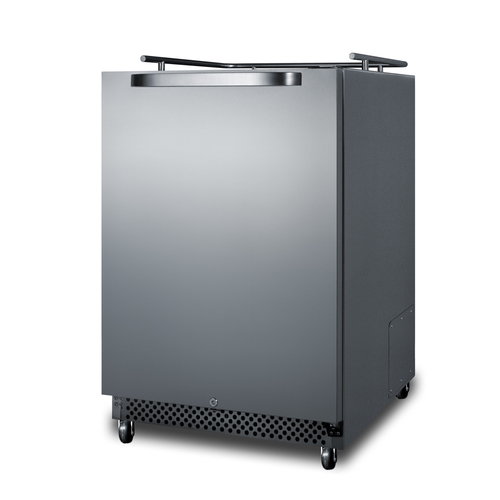

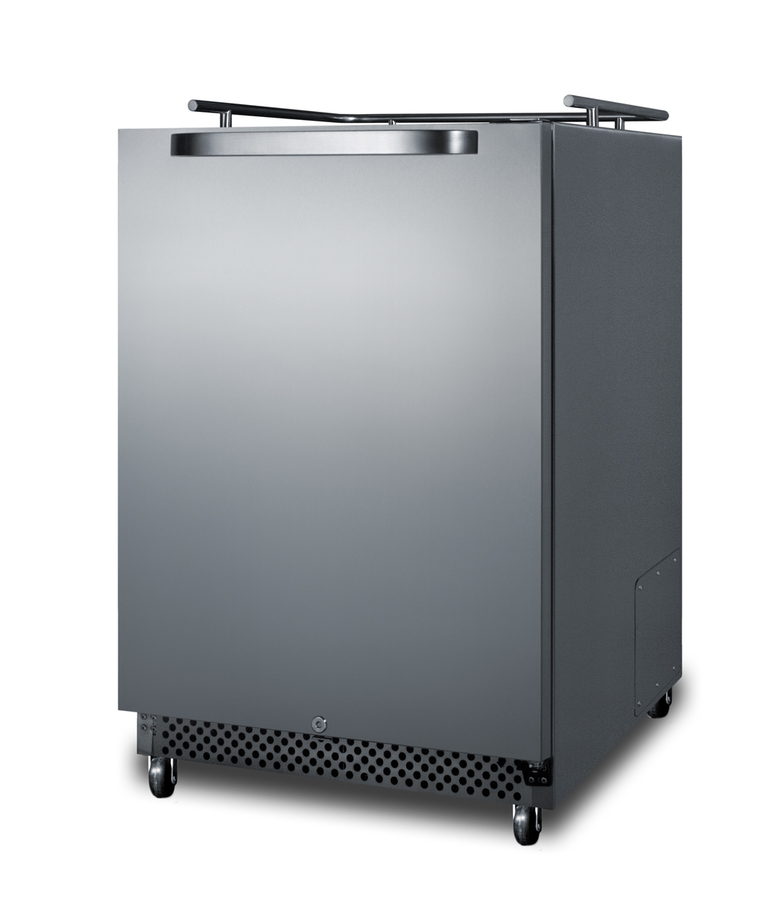

24" Wide Built-In Outdoor Kegerator
Next day shipping
(87cm H x 60cm W x 64cm D)
SPECIFICATIONS
|
Overview
|
|
|---|---|
| Height of Cabinet | 34.25" (87 cm) |
| Width | 23.75" (60 cm) |
| Depth | 25.0" (64 cm) |
| Depth with Handle | 26.88" (68 cm) |
| Depth with door at 90° | 47.75" (121 cm) |
| Capacity | 6.04 cu.ft. (171 L) |
| Defrost Type | Automatic |
| Door | Stainless Steel |
| Cabinet | Stainless Steel |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 108.0 lbs. (49 kg) |
| Shipping Weight | 113.0 lbs. (51 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101059211 |
|
Kegerator
|
|
| Door Swing | RHD |
| Reversible | Yes |
| Height with Tap | 50.38" (128 cm) |
| Thermostat Type | Digital |
| Interior Light | Yes |
| Fan Type | Interior and Exterior |
| Refrigerant | R600a |
| Refrigerant Amount | 1.76 oz. |
| High Side PSI | 220.0 |
| Low Side PSI | 43.0 |
| Inter Height | 27.0" (69 cm) |
| Interior Width | 20.38" (52 cm) |
| Interior Depth | 21.25" (54 cm) |
| Compressor Step Height | 5.5" (14 cm) |
| Compressor Step Width | 9.63" (24 cm) |
| Compressor Step Depth | 2.5" (6 cm) |
| Wheel Qty | 4 |
| Surface | Stainless Steel |
| Temperature Range | 32º to 50ºF |
AVAILABLE UPGRADES
| Exterior | |
|---|---|
|
FEATURES
ETL-S listed to NSF-7 commercial standards and meets UL-471 for use in foodservice settings
Solid construction allows placement in the outdoors
Front-breathing design allows fully recessed installation under counters

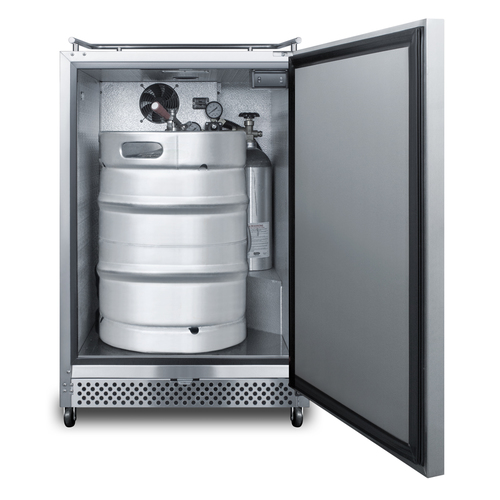

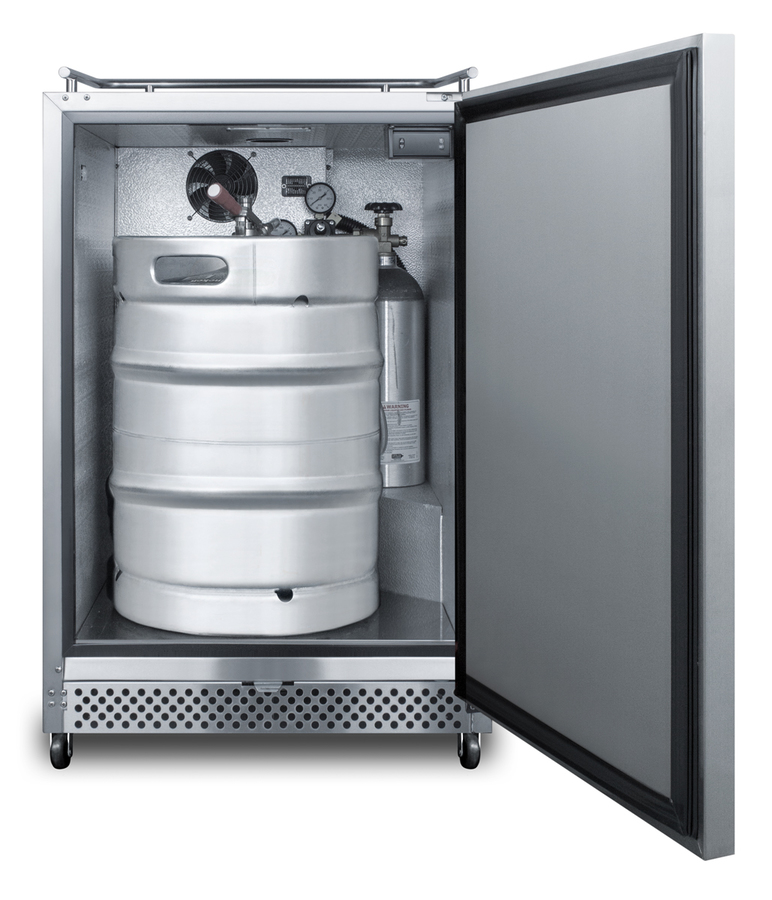

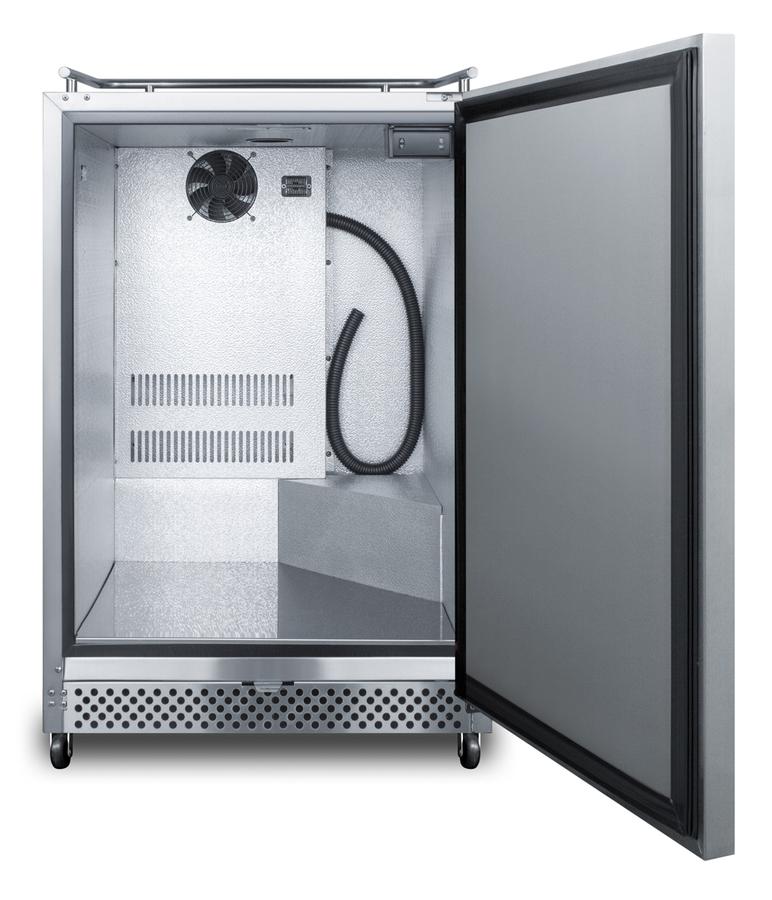

Large interior can accept a full half barrel keg, two slim quarter kegs, or up to three sixth barrel or Cornelius style kegs
Install your own tapping system for a customized beer cooler
Door and cabinet are wrapped in 304 grade stainless steel for lasting durability in the outdoors
Blade style handle in brushed stainless steel matches many popular styles of cabinetry and grill details

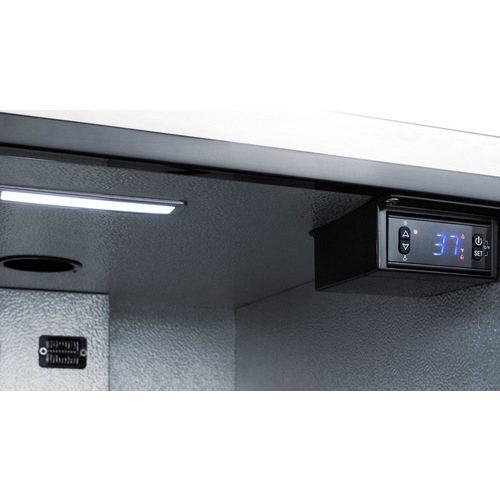

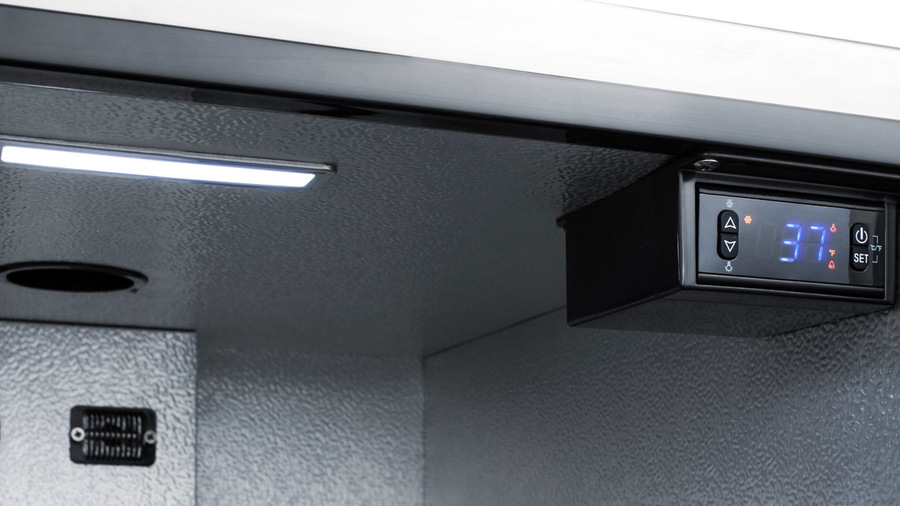

Electronic controls ensure easy temperature management for optimum beer storage, with a readout viewable in Celsius or Fahrenheit
No-frost operation for minimum user maintenance
Keyed lock for added security (2 keys included)
User-reversible door swing allows you to easily adjust to better accommodate your setting
Closing mechanism helps to ensure the door isn't left open to expose kegs to ambient temperature
Sturdy caster set lets you convert the beer dispenser for mobile use

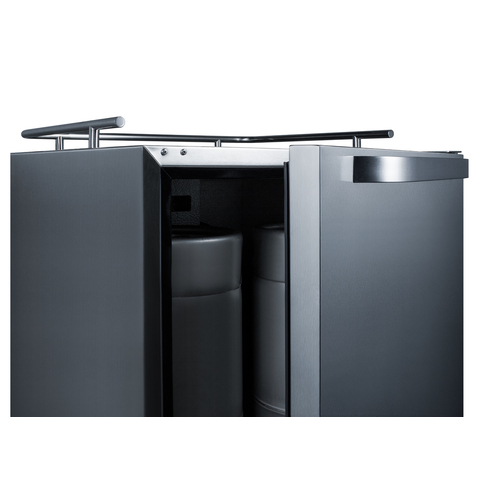

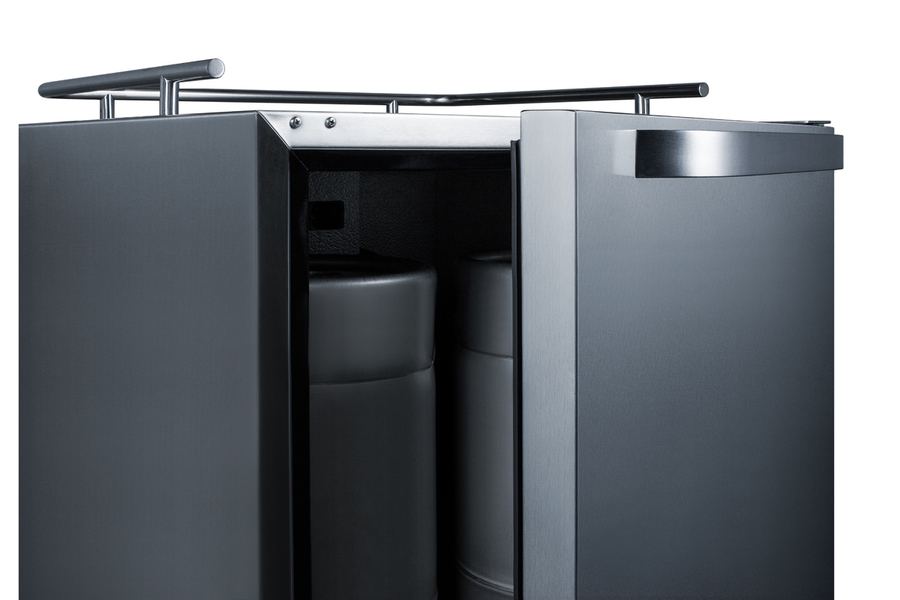

Durable railing makes it easier to neaten service
Added durability for long-lasting use

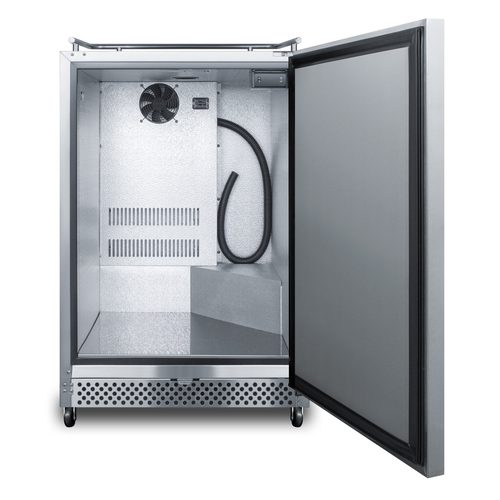

Interior includes steel cover to protect the floor when loading kegs
Alarm sounds if the door is left open for more than 60 seconds
Audible alarm sounds if the unit goes out of range
Interior LED lighting automatically illuminates when the door is opened, making it easier to set up your keg
Space saving design with easier cleanability and added protection from the elements
Allows the unit to be used freestanding
Environmentally friendly design without ozone-damaging chemicals
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
DESCRIPTION
Summit Commercial brings quality construction and long-lasting reliability to outdoor and indoor settings with the SBC695OS beer dispenser series. The SBC695OSNK is a full-sized weatherproof kegerator that can be used indoors or outdoors. It is ETL-S listed to NSF-7 standards and meets UL-471 for commercial applications. The cabinet and door are wrapped in 304 grade stainless steel, with a sealed back designed to protect all electrical components from the elements. This unit features a front-breathing system that allows built-in installation under counters, as well as a fully finished exterior for optional freestanding use. A caster set is included for optional mobility, along with a durable top rail guard. The user-reversible stainless steel door is self-closing to ensure your kegs aren't accidentally exposed to warmer temperature, with an audible alarm that warns if the door is left open for over one minute. This unit includes a stainless steel kickplate and horizontally mounted handle in a sleek blade shape, ideal for matching many popular styles of grills and cabinetry. A factory-installed front lock offers added security. Inside, the SBC695OSNK comes with hammered aluminum walls and a stainless steel floor designed to protect the interior when loading heavy kegs. The large interior can accommodate a full half keg, two slim quarter kegs, or up to three Cornelius or sixth barrel kegs. A digital thermostat lets you set the temperature with reliable precision, with a wide range between 32 and 50ºF to accommodate a variety of brews. A high/low temperature alarm sounds if the unit's interior goes out of safe storage conditions. This unit utilizes automatic defrost for low maintenance use. An interior LED light is included to help make the keg setup process more convenient. The SBC695OSNK ships without tapping equipment, allowing do-it-yourselfers to configure the draft system how they please. We also offer this unit with beer, wine, or cold brew coffee tap kits.
Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
California residents:
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
