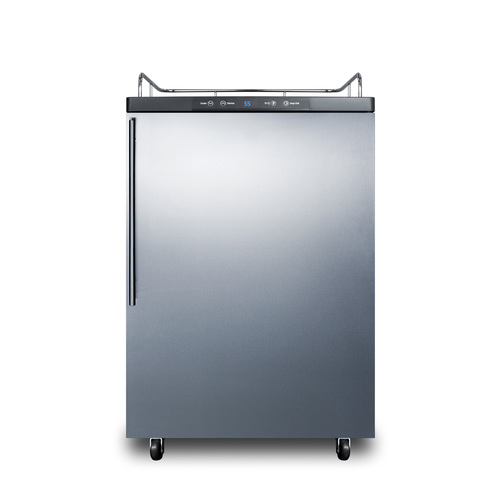

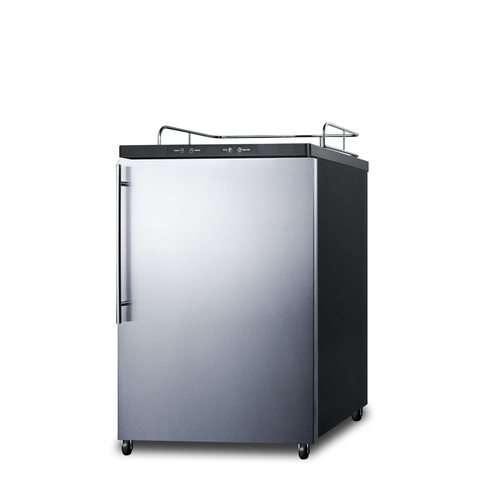

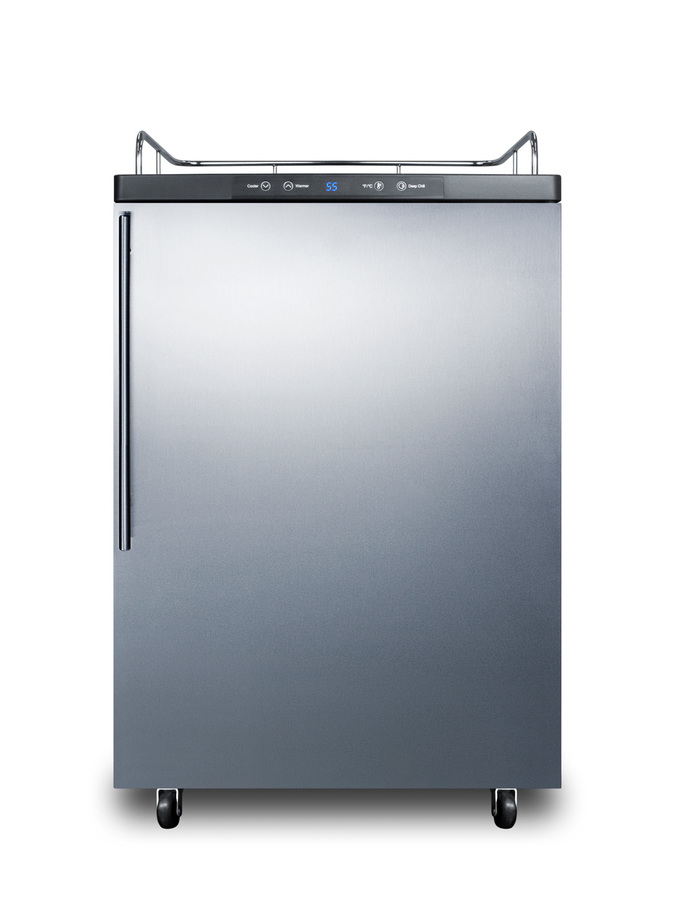

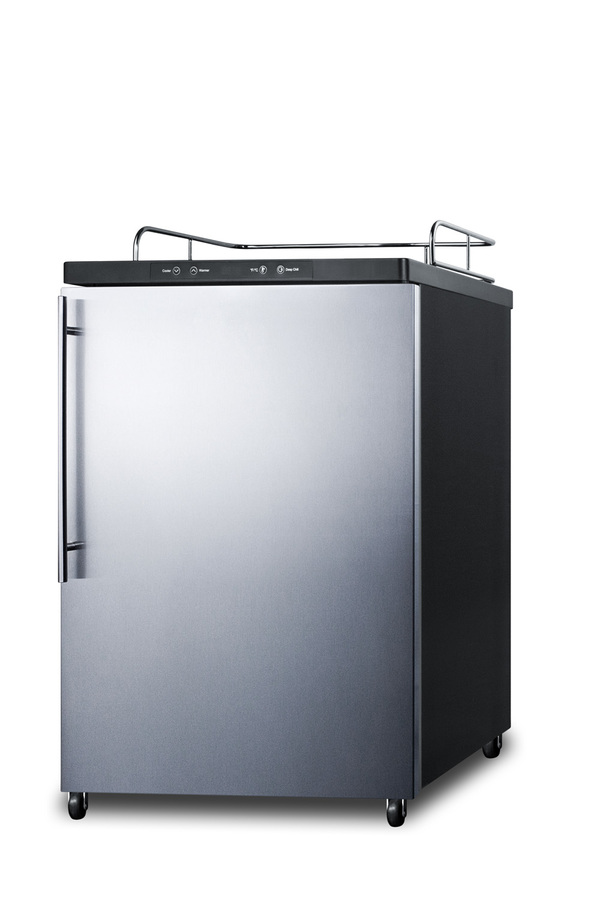

24" Wide Built-In Kegerator

SKU: SBC635MBINKSSHV
Digital thermostat lets you set the ideal temperature for keg service
Estimated Time to Ship:

3 to 5 days

Add a naturally antimicrobial copper handle for added protection against germs and bacteria.
33.5" H x 24.0" W x 25.88" D
(85cm H x 61cm W x 66cm D)

Overview
Height of Cabinet 33.5" (85 cm)
Width 24.0" (61 cm)
Width with Door Open 25.25" (64 cm)
Depth 25.88" (66 cm)
Depth with door at 90° 47.5" (121 cm)
Capacity 5.6 cu.ft. (159 L)
Defrost Type Automatic
Door Stainless Steel
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 310.0kWh/year
Amps 0.86
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Shipping Weight 126.0 lbs. (57 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101046181
Kegerator
Door Swing RHD
Reversible Factory Reversible
Thermostat Type Digital
Fan Type Exterior
Refrigerant R600a
Refrigerant Amount 1.13 oz.
High Side PSI 250.0
Low Side PSI 110.0
Inter Height 28.0" (71 cm)
Interior Width 20.5" (52 cm)
Interior Depth 19.0" (48 cm)
Compressor Step Height 8.25" (21 cm)
Level Legs Qty 4
Wheel Qty 4
Temperature Range 33º to 50º F

Exterior
LHD - Left hand door swing
Door reversal to left hand swing
Handle
TBC Copper Towel Bar Handle Upgrade
Change this handle to a 12" vertically mounted towel bar style handle made from pure copper for antimicrobial protection

Full-sized beer dispenser

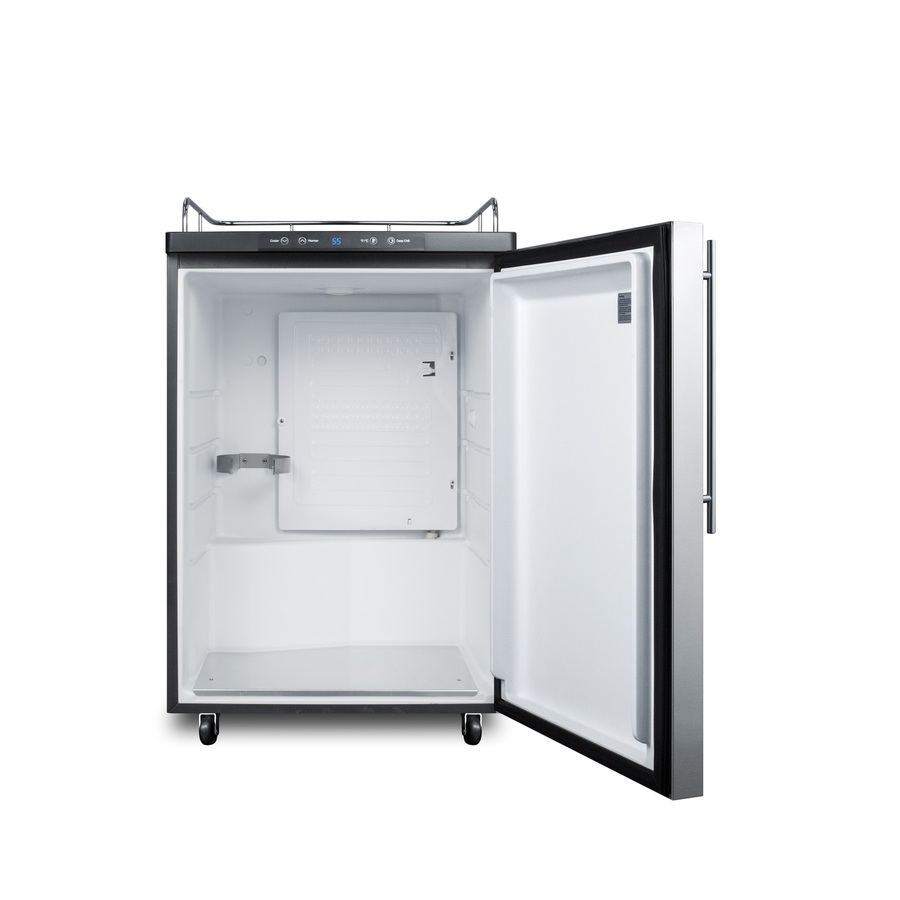

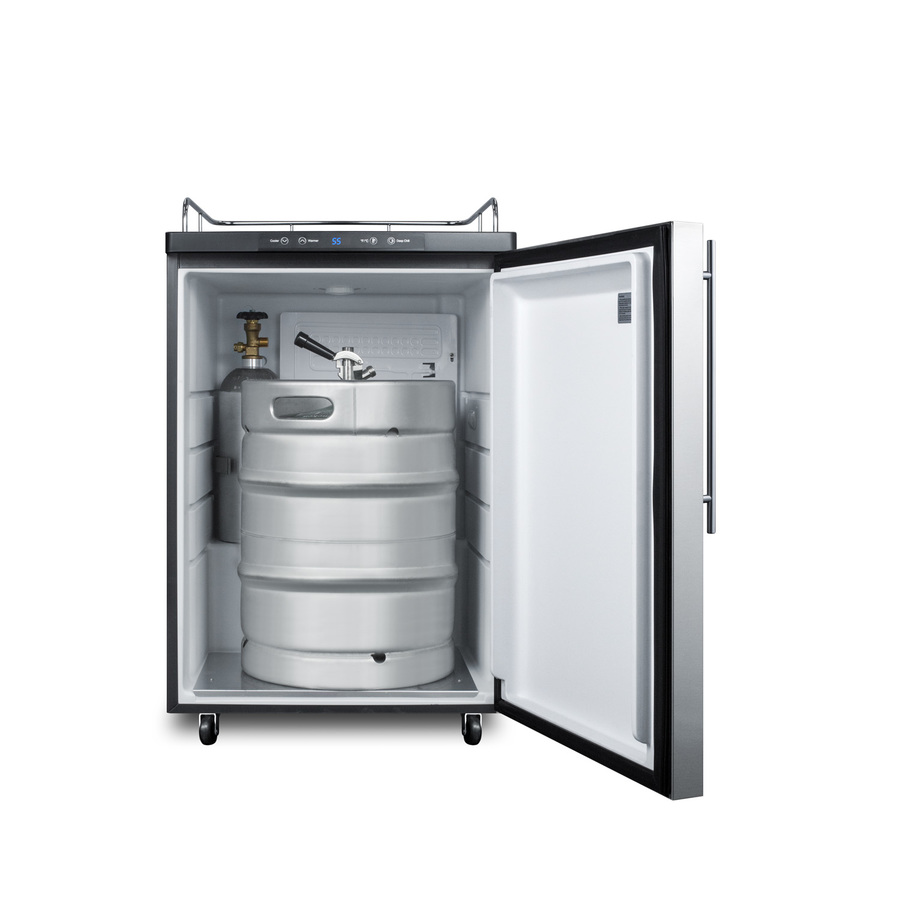

Large 5.6 cu.ft. interior can accept a full half barrel keg, two 1/6 barrel kegs, or a pony keg

NO TAP KIT

Install your own tapping equipment for a customized beer cooler

Built-in capable

Make the best use of space by installing your appliance under the counter; NOTE: if installing flush with wall or cabinets, unit will require extra space due to the door design. Width should be 25" to 25 1/4". For more information, see the user manual

Stainless steel wrapped door

Durable 304 grade wrapping for a professional look with lasting durability

Professional handle

Thin (14mm diameter) stainless steel handle mounted vertically for a sleek look that matches many popular styles of cabinetry

Digital thermostat

Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

Ideal beer temperature

Operates between 33º and 50ºF to keep a variety of beers stored at just the right serving temperature

Automatic defrost

Reduced user maintenance with automatic defrost operation

Fully finished black cabinet

Allows the unit to be used freestanding

Casters included (ship unassembled)

To make the beer dispenser portable, install this set of 2 1/2" high locking casters

Top guard rail (ships unassembled)

Attractive chrome guard rail helps to reduce spills and neaten service

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

Drip tray

Removable drip tray catches spills to help contain the mess

Deep Chill function

Great for getting faster cooling results when loading your first keg

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

Summit Appliance offers a versatile line of full-sized built-in beer dispensers designed for low maintenance storage in the style of your choice.

The SBC635MBINKSSHV features a large interior that can hold a full half, quarter, 1/6 or mini keg. No tapping equipment is included, allowing 'do-it-yourselfers' to customize the unit with their own system. It features a front-breathing design for built-in installation under counters. The stainless steel wrapped door comes with a sleek vertically mounted handle that matches many popular styles of cabinetry. The surface includes a removable drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. The user-reversible door swing makes it easy to accommodate any location’s setup. This unit is height adjustable from 33 1/2" to 34" to best fit your undercounter space. Please note that the door does not open in its own radius. When planning your cutout, if the unit is mounted against a wall or flush under cabinetry, you will need between 25 and 25 1/4" width for proper ventilation.

Automatic defrost operation ensures minimum user maintenance inside the 5.6 cu.ft. interior. A digital thermostat makes it easy to manage the temperature at the touch of a button. The external digital display shows the temperature in Celsius or Fahrenheit to ensure your beer is stored exactly how you like it. The floor is reinforced with a steel cover for added durability when loading kegs.

For more style options, browse the full SBC635MBI Series.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
