24" Wide Built-In Kegerator

SKU: SBC635MBIDPL

Digital thermostat lets you set the ideal temperature for keg service

Out of Stock; ETA: 12/1/2020

33.5" H x 24.0" W x 25.88" D

(85cm H x 61cm W x 66cm D)

SPECIFICATIONS

Overview
Height of Cabinet 33.5" (85 cm)
Width 24.0" (61 cm)
Width with Door Open 25.25" (64 cm)
Depth 25.88" (66 cm)
Depth with Handle 27.88" (71 cm)
Depth with door at 90° 47.5" (121 cm)
Capacity 5.6 cu.ft. (159 L)
Defrost Type Automatic
Door Diamond Plate
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 310.0kWh/year
Amps 0.86
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Shipping Weight 115.0 lbs. (52 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Kegerator
Door Swing RHD
Reversible Factory Reversible
Tap Kit Yes
Number of Taps 1
Thermostat Type Digital
Fan Type Exterior
Refrigerant R600a
Refrigerant Amount 1.13 oz.
High Side PSI 250.0
Low Side PSI 110.0
Inter Height 28.0" (71 cm)
Interior Width 20.5" (52 cm)
Interior Depth 19.0" (48 cm)
Compressor Step Height 8.25" (21 cm)
Level Legs Qty 4
Wheel Qty 4
Temperature Range 33º to 50º F

AVAILABLE UPGRADES

Exterior
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

FEATURES

Full-sized beer dispenser

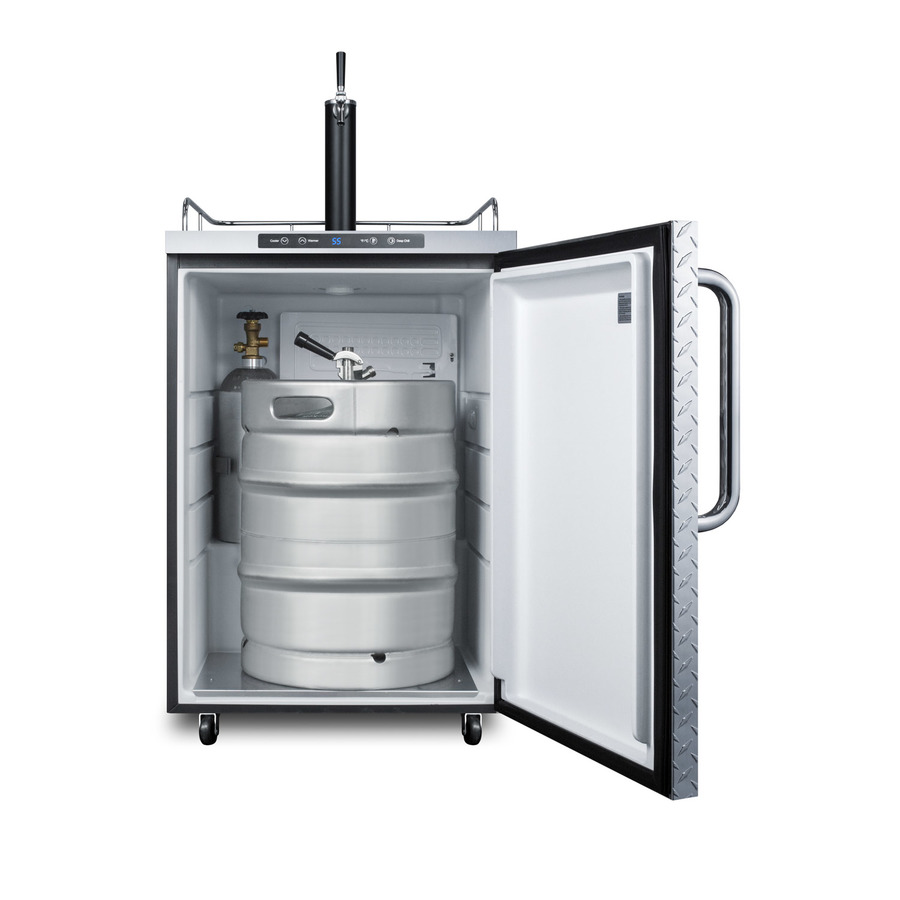

Large 5.6 cu.ft. interior can accept a full half barrel keg, two 1/6 barrel kegs, or a pony keg
Built-in capable
Make the best use of space by installing your appliance under the counter; NOTE: if installing flush with wall or cabinets, unit will require extra space due to the door design. Width should be 25" to 25 1/4". For more information, see the user manual
Tap Kit
Includes a 5 lb. CO2 tank and regulator, draft arm, Sankey American tap, and connection hardware
Fully finished black cabinet
Allows the unit to be used freestanding

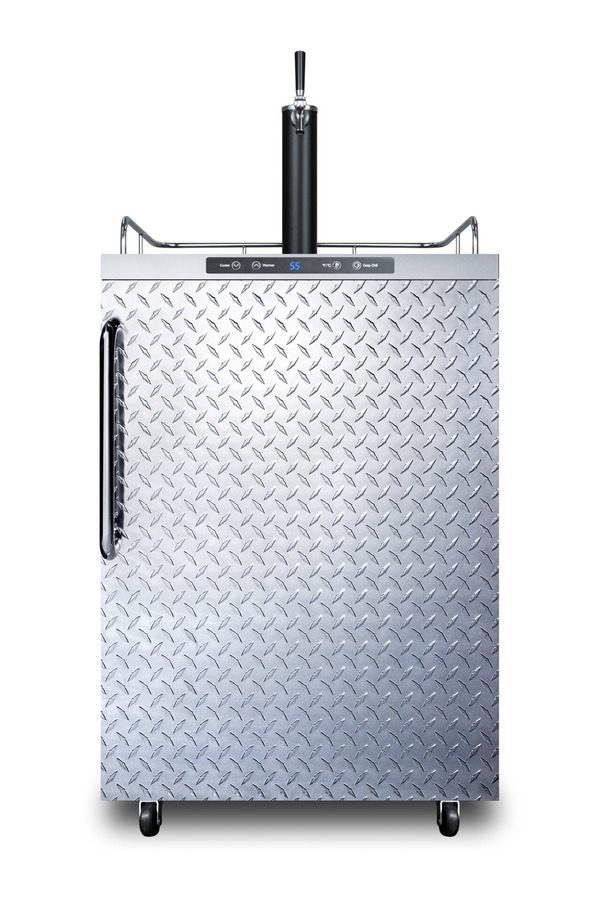

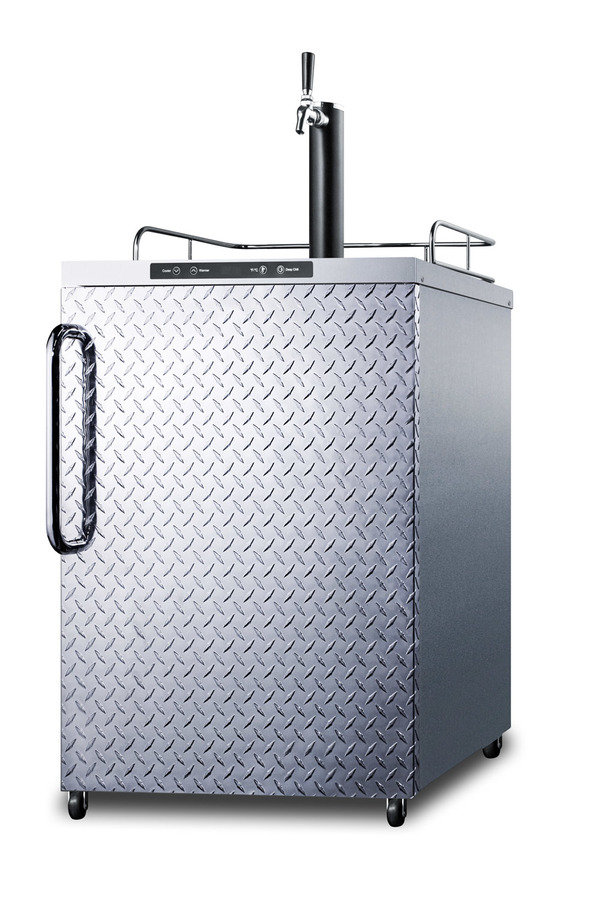

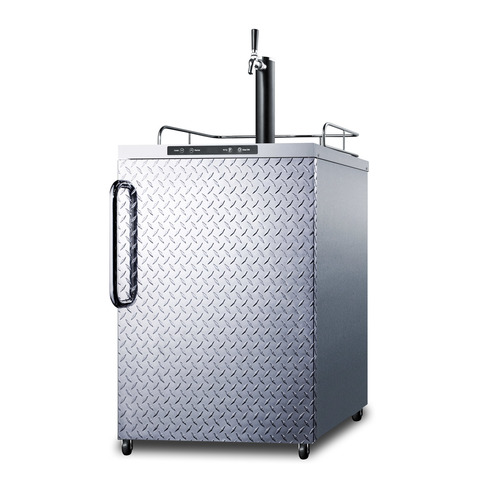

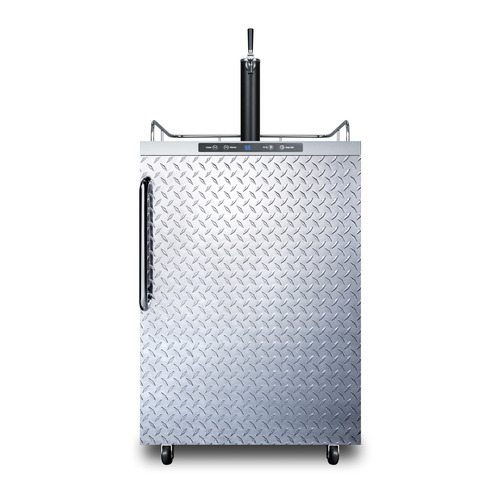

Diamond plate finish on door
Textured diamond plate finish in wrapped aluminum creates a unique industrial look
Professional towel bar handle
Curved handle in polished stainless steel completes the look
Automatic defrost
Reduced user maintenance with auto defrost operation
Digital thermostat
Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit
Ideal beer temperature
Operates between 33º and 50ºF to keep a variety of beers stored at just the right serving temperature
Casters included (ship unassembled)
To make the beer dispenser portable, install this set of 2 1/2" high locking casters
Top guard rail (ships unassembled)
Attractive chrome guard rail helps to reduce spills and neaten service
Stainless steel floor cover

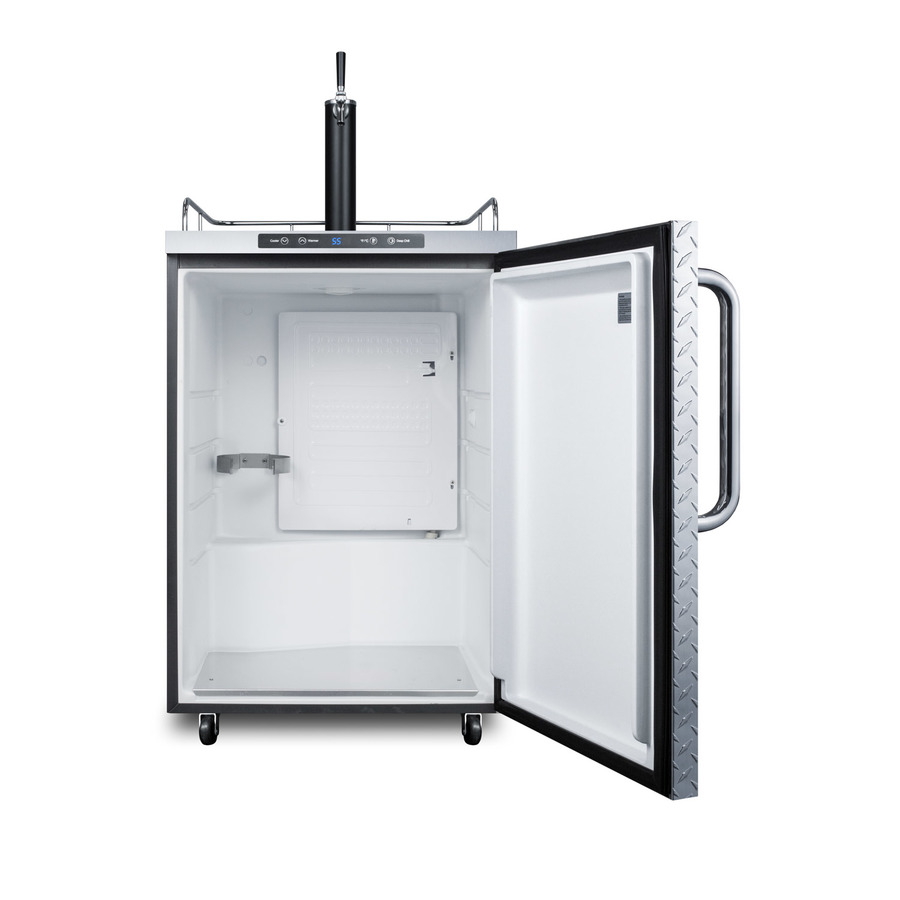

Interior includes steel cover to protect the floor when loading kegs
Drip tray
Removable drip tray catches spills to help contain the mess
Deep Chill function
Great for getting faster cooling results when loading your first keg
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DESCRIPTION

Summit Appliance offers a versatile line of full-sized built-in beer dispensers designed for low maintenance storage in the style of your choice.

The SBC635MBIDPL features a large interior that can hold a full half, quarter, 1/6 or mini keg. It features a front-breathing design for built-in installation under counters, with a textured diamond plate wrapped door and curved towel bar handle for a unique industrial look. The surface includes a removable drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. This unit is height adjustable from 33 1/2" to 34" to best fit your undercounter space. Please note that the door does not open in its own radius. When planning your cutout, if the unit is mounted against a wall or flush under cabinetry, you will need between 25 and 25 1/4" width for proper ventilation.

Automatic defrost operation ensures minimum user maintenance inside the 5.6 cu.ft. interior. A digital thermostat makes it easy to manage the temperature at the touch of a button. The external digital display shows the temperature in Celsius or Fahrenheit to ensure your beer is stored exactly how you like it. Our American Sankey tap kit includes all the accessories you need for draft service, including a 5 lb. CO2 tank and regulator. The floor is reinforced with a steel cover for added durability when loading kegs.

For more style options, browse the full SBC635MBI Series.

SPECIFICATIONS

Overview
Height of Cabinet 33.5" (85 cm)
Width 24.0" (61 cm)
Width with Door Open 25.25" (64 cm)
Depth 25.88" (66 cm)
Depth with Handle 27.88" (71 cm)
Depth with door at 90° 47.5" (121 cm)
Capacity 5.6 cu.ft. (159 L)
Defrost Type Automatic
Door Diamond Plate
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 310.0kWh/year
Amps 0.86
Voltage/Frequency 115 V AC/60 Hz
Weight 110.0 lbs. (50 kg)
Shipping Weight 115.0 lbs. (52 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Kegerator
Door Swing RHD
Reversible Factory Reversible
Tap Kit Yes
Number of Taps 1
Thermostat Type Digital
Fan Type Exterior
Refrigerant R600a
Refrigerant Amount 1.13 oz.
High Side PSI 250.0
Low Side PSI 110.0
Inter Height 28.0" (71 cm)
Interior Width 20.5" (52 cm)
Interior Depth 19.0" (48 cm)
Compressor Step Height 8.25" (21 cm)
Level Legs Qty 4
Wheel Qty 4
Temperature Range 33º to 50º F

AVAILABLE UPGRADES

Exterior
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing

DOWNLOADS

Download
BROCHURE w/ DRAWINGS
SBC635MBIDPL.pdf
Download
TECHNICAL DRAWING (.dwg)
SBC635MBISSTB_EFFR_DISP.__A-C_2000_.dwg
Energy Guide
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
