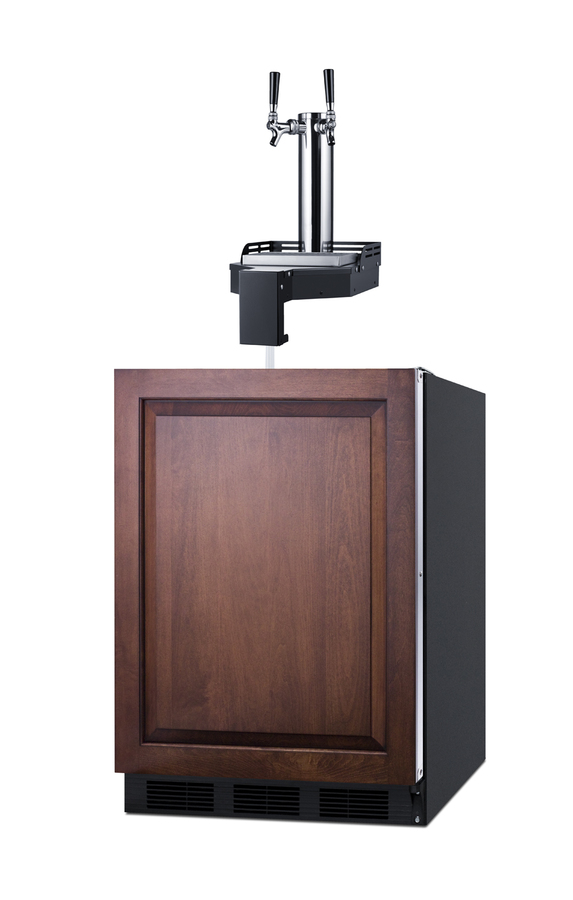

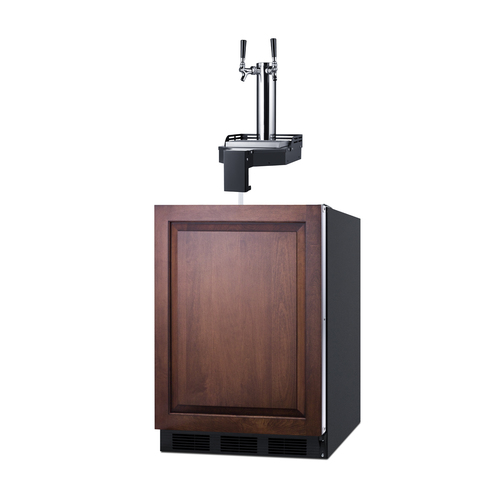

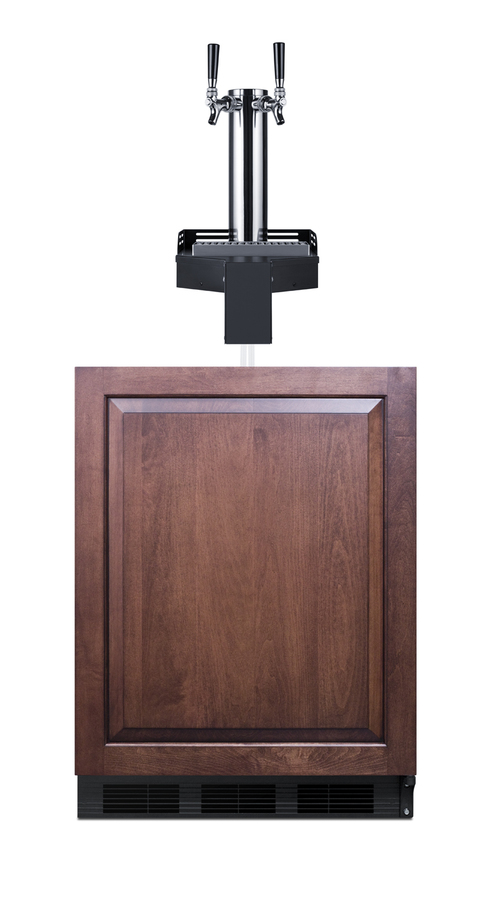

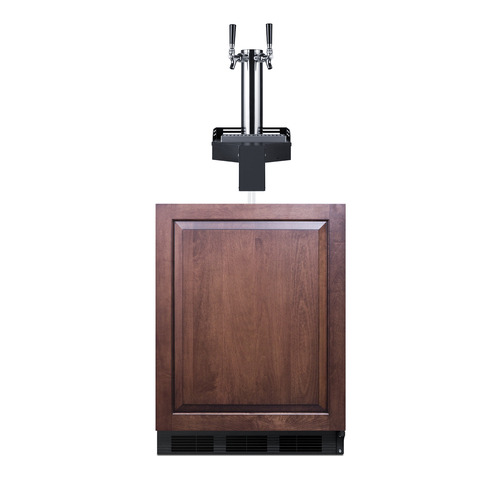

24" Wide Built-In Floating Tap Cold Brew Kegerator, ADA-Compliant

SKU: SBC58BLIFFLTWCFADALHD
Non-permanent floating tap system allows you to enjoy draft cold brew without drilling a hole in your ADA-height countertop
Estimated Time to Ship:

2 to 3 days

Door Swing:
RHD LHD
Color: Panel-Ready

*Additional features may vary

This unit can be used for commercial or residential applications. It meets applicable U.S. Department of Energy (DOE) standards for both household and commercial energy usage. For information on its commercial sanitation listing, see Specifications.
32.0" H x 23.63" W x 22.38" D
(81cm H x 60cm W x 57cm D)

Overview
Nominal Height 32.0" (81 cm)
Height of Cabinet 31.88" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Nominal Width 24.0" (61 cm)
Width 23.63" (60 cm)
Depth 22.38" (57 cm)
Depth with Handle 24.3" (62 cm)
Depth with door at 90° 44.5" (113 cm)
Capacity 5.8 cu.ft. (164 L)
Defrost Type Automatic
Door Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Energy Usage/Year 239.0kWh/year
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 180.0 lbs. (82 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101146027
Kegerator
Door Swing LHD
Height Adjustable No
Tap Kit Yes
Number of Taps 2
Adjustable Shelves Yes
Shelf Type Glass and Scalloped
Shelf Qty 4
Thermostat Type Dial
Interior Light Yes
Refrigerant R600a
Refrigerant Amount 0.64 oz.
Inter Height 27.0" (69 cm)
Interior Width 21.0" (53 cm)
Interior Depth 17.75" (45 cm)
Compressor Step Height 6.5" (17 cm)
Compressor Step Width 21.0" (53 cm)
Compressor Step Depth 5.5" (14 cm)
Level Legs Qty 4
Temperature Range 36 to 46°F

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles (NOTE: latch adds 1 1/2" of width to unit)
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Lock
L-SideLock
Add a single keyed lock located on the door's side (NOTE: side lock adds 1" to overall unit width and comes in white)
L-TopLock
Add a single keyed lock located on top of the unit

24" Wide Built-In Floating Tap Beer Dispenser

Dual tap kegerator with a remote tapping system that includes everything you need to pour draft beer without modifying your countertop

Patent pending commitment-free design

Non-permanent draft tower is separated from the actual kegerator and designed for temporary installation on counter surfaces, allowing you to remove as needed

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Built-in capable

Designed for installation under the counter

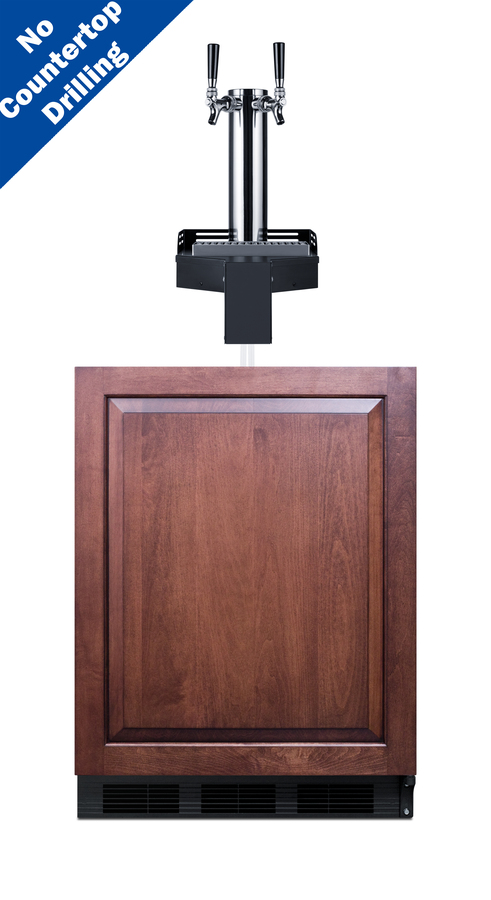

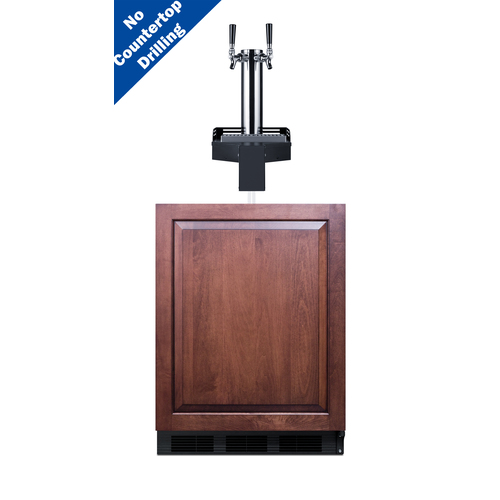

No drilling needed

Tower is connected to the removable tap kit that does not need to be permanently attached to your countertop

Panel-ready door

Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)

Dual tap system

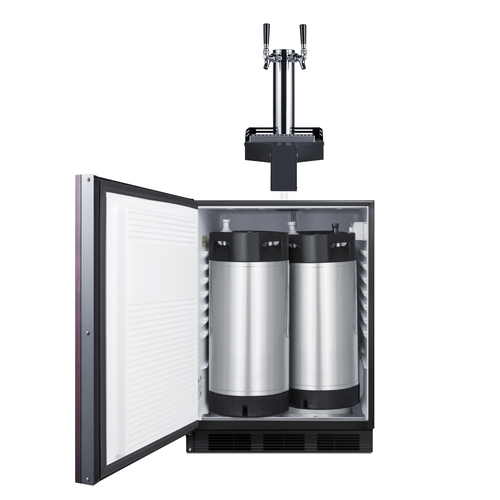

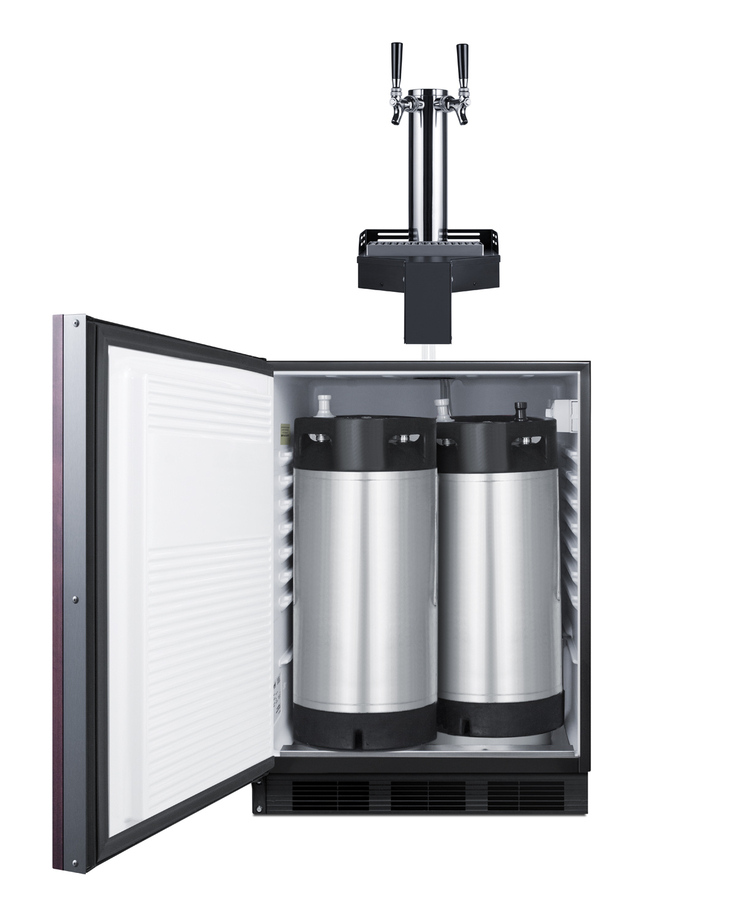

Twin draft tower allows you to serve from two 1/6 (sixtel) sized kegs

Easy installation

No tools or equipment needed for fast setup and easy removal

Convertible to a refrigerator

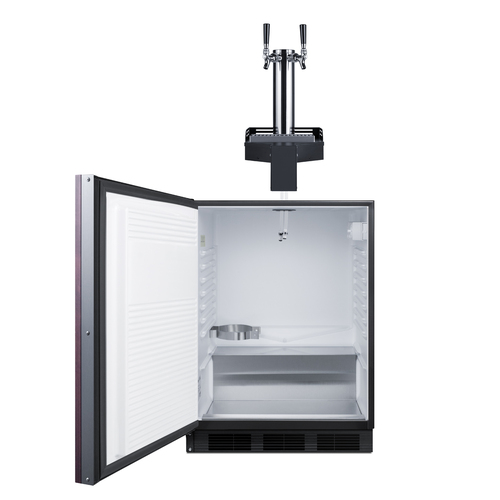

Includes a tap hole cover, glass shelves, and a scalloped steel bottle rack to all you to convert the kegerator into a traditional all-refrigerator

Versatile use

Approved for both residential and commercial settings

Complete beer tap kit included

Includes a 5 lb. nitrogen tank and regulator, dual tap draft arm, Sankey American tap, and the needed connection hardware

Nitrogen tank included

Full-sized cannister ships with tapping equipment (ships empty)

Interior tank holder

Bracket is installed inside, allowing you to save on depth by keeping the tank behind your kegs

Automatic defrost

No-frost operation for minimum user maintenance

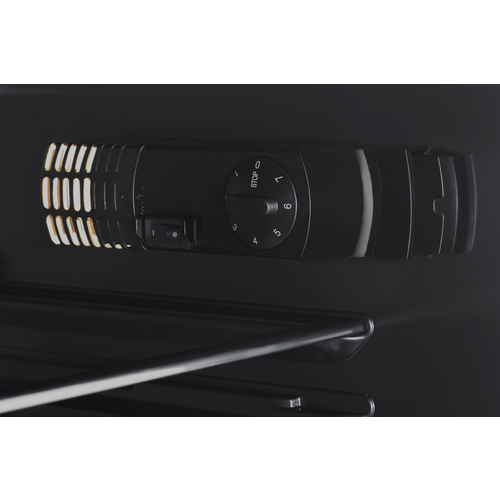

Adjustable mechanical thermostat

Simple and intuitive analog controls located inside for easy temperature management

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

Hidden evaporator

Cold wall design with hidden evaporator creates a seamless, easy to clean interior

Professional handle

Vertically-mounted handle bar in stainless steel

Stainless steel drip tray

2-piece drip tray for easier cleanup

Fully finished cabinet

Allows the dispenser to be used freestanding

Made in Europe & USA

Refrigeration unit constructed in Europe then designed and modified in the USA

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's innovative series of commitment-free built-in kegerators offers maximum convenience and flexibility, eliminating the need to make alterations to countertops while still keeping easy access to beverages on tap. These units ship with everything you need to pour draft coffee in an incredibly easy-to-install package for your home bar.

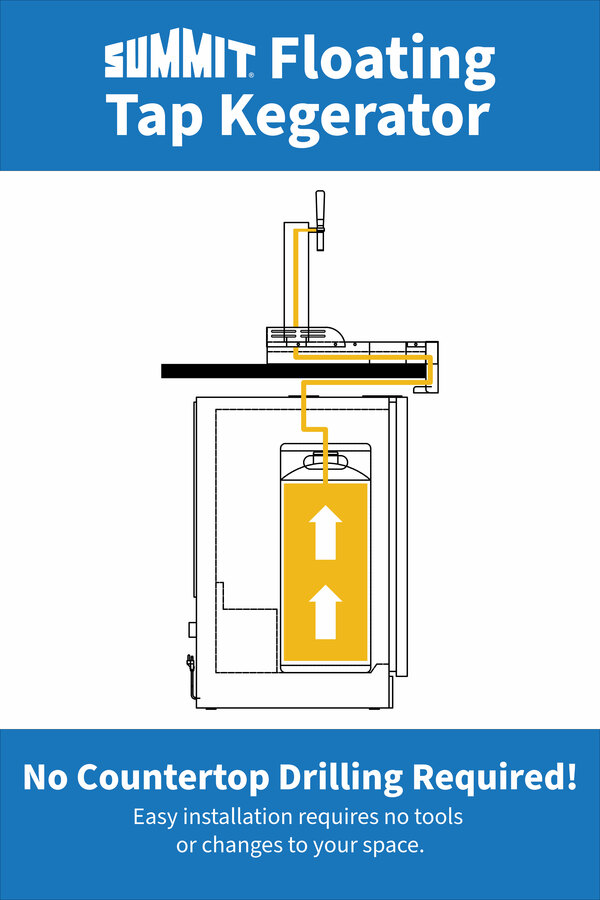

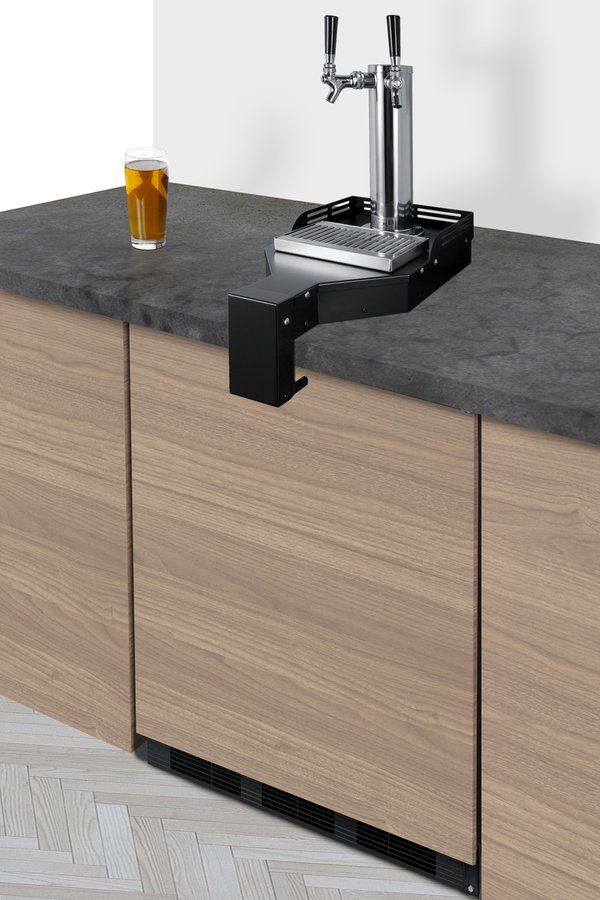

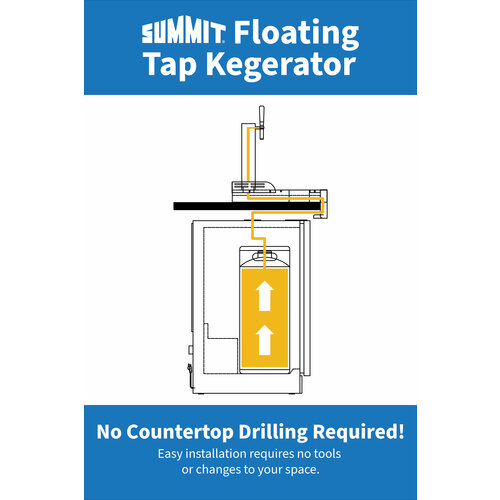

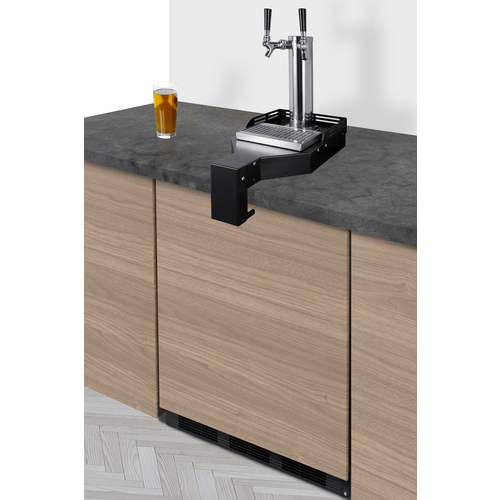

Model SBC58BLIFFLTWCFADALHD is part of our one-a-kind Floating Tap collection of cold brew coffee dispensers that separates the draft tower from the kegerator's top. Instead of drilling a hole in your counter surface to feed the kegerator's coffee line from the refrigerator to draft tower, Summit has created a standalone tap kit that sits on your counter and can be easily disconnected, removed, and relocated as needed. The tubing comes out at the top of the kegerator and loops into the remote tap kit, which you attach to your counter with the included non-permanent adhesive strips. You can easily remove the tap kit without damaging your countertop and convert the undercounter kegerator into an all-refrigerator when you don't want to keep a draft tower in view. We include a plug to cover the tower hole, as well as adjustable glass shelves and a scalloped bottle rack for storage convenience.

This unit ships with everything needed for draft cold brew service in the home. The tap kit included is a twin tower system approved to commercial standards, with a nitrogen tank, regulator, and all the tapping equipment to serve coffee out of two 1/6 (sixtel) taps. We include a stainless steel drip tray for cleaner service. The kegerator interior includes a nitrogen holder, ensuring added space savings by keeping the tank inside.

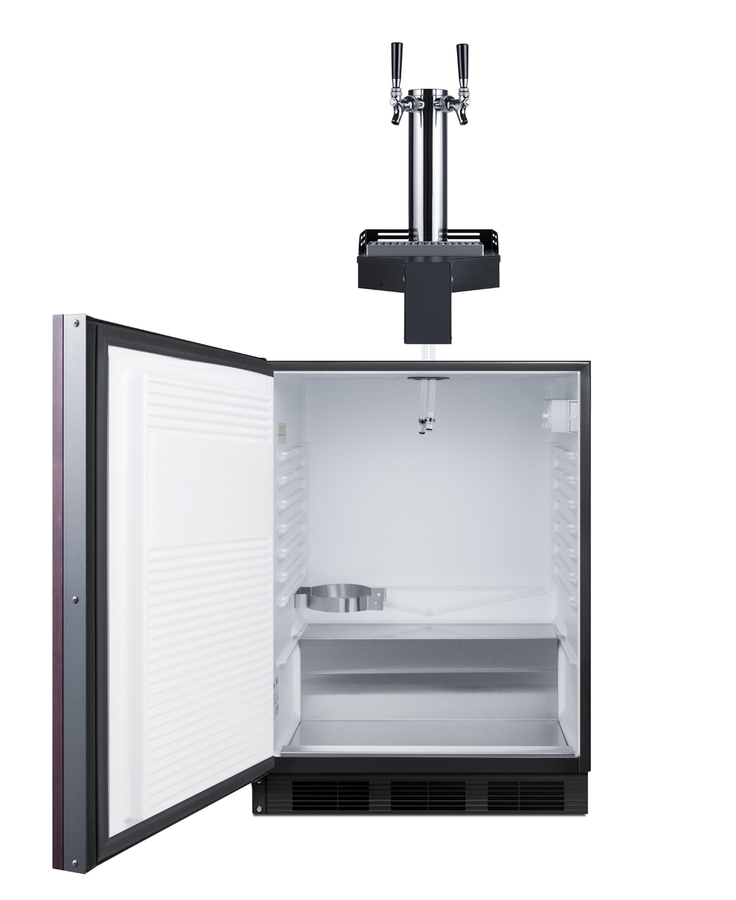

Sized at just 32" high, model SBC58BLIFFLTWCFADALHD is designed to fit under ADA-compliant counters. The door features an integrated stainless steel exterior frame designed to accept overlay panels, allowing you to create a custom look that can seamlessly blend into your kitchen (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick). Users provide their own handle to complete the look. Inside, the stainless steel floor ensures safer loading of heavy kegs. The interior light has an on/off rocker switch located behind the dial thermostat. Classic mechanical controls ensure intuitive, trouble-free performance without any internal boards or chips. Automatic defrost reduces user maintenance, and our signature cold wall design creates an efficient, reliable cooling system.

Summit's SBC58 series is manufactured in Europe, with our Floating Tap kit designed and constructed in the USA. In addition to this convertible Floating Tap coffee kegerator, our commitment-free line also includes choices that dispense wine and beer, as well as beer and coffee dispensers with taps located on the door. Traditional kegerators are also available in a range of sizes and styles. Browse the full Summit product line or contact our product specialists to find the fit for your needs.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
