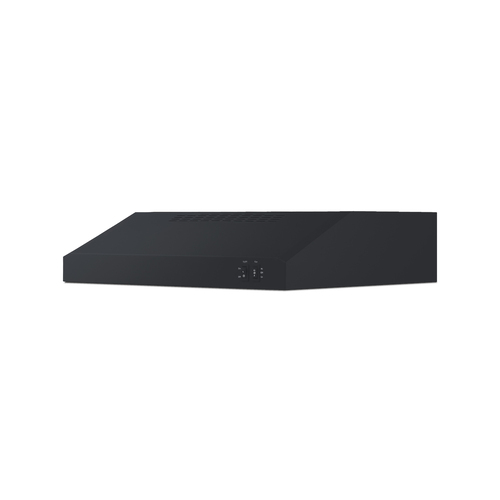

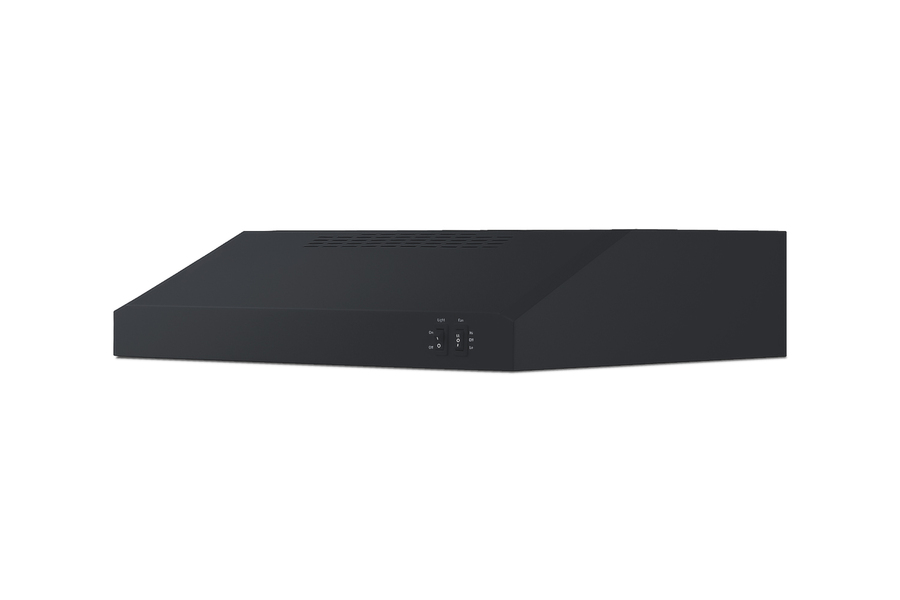

20" Under Cabinet Convertible Range Hood

SKU: HC20BB
Convertible design allows ducted or ductless installation to best meet your home's needs
Estimated Time to Ship:

Next day shipping

Color: Black

*Additional features may vary

This product qualifies for next day delivery to select areas within our trucking radius and may be shipped next day after order for nationwide customers.
5.5" H x 20.0" W x 20.0" D
(14cm H x 51cm W x 51cm D)

Overview
Height of Cabinet 5.5" (14 cm)
Width 20.0" (51 cm)
Depth 20.0" (51 cm)
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Amps 1.7
Voltage/Frequency 115 V AC/60 Hz
Weight 11.0 lbs. (5 kg)
Parts & Labor Warranty 1 Year
UPC 761101087047
Range Hood
Installation Under Cabinet
Venting Convertible
Controls Dial
Number of Fan Speeds 2
Maximum Air Movement 270.0 CFM
Sone Rating 6
Duct Shape 3"1/4" x 10" rectangular or 7" round

Under cabinet range hood

Low profile design offers classic style to finish your kitchen

20 inch width

Sized for use over 20 inch cooking surfaces (additional sizes available)

Convertible design

Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible

Black finish

Matte finish in jet black suits any kitchen space

Easy conversion

Ships pre-set for recirculating mode but can be converted in a few simple steps

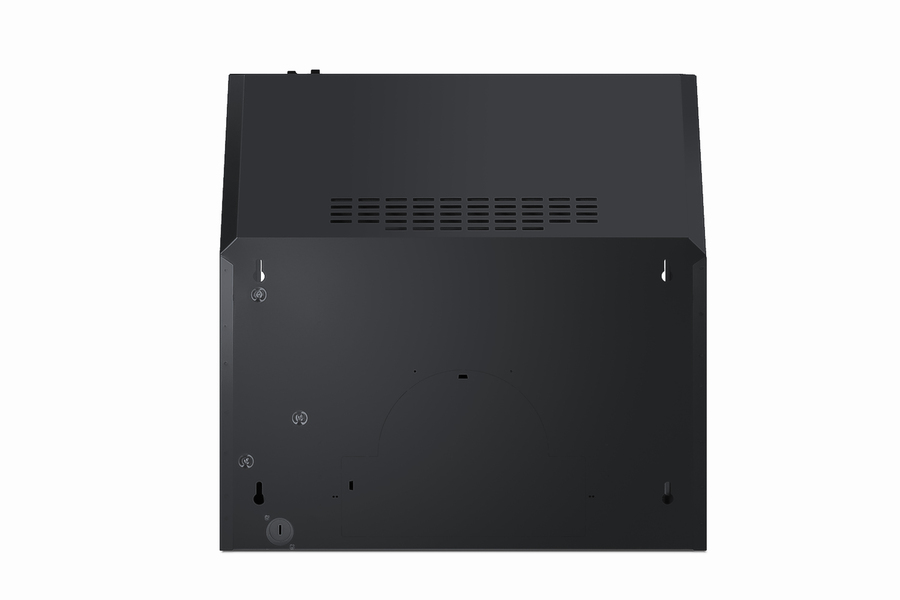

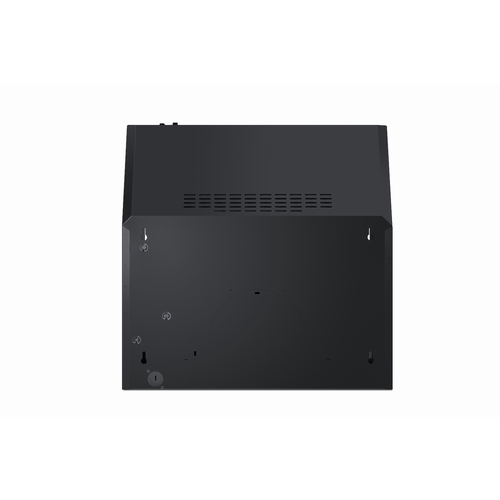

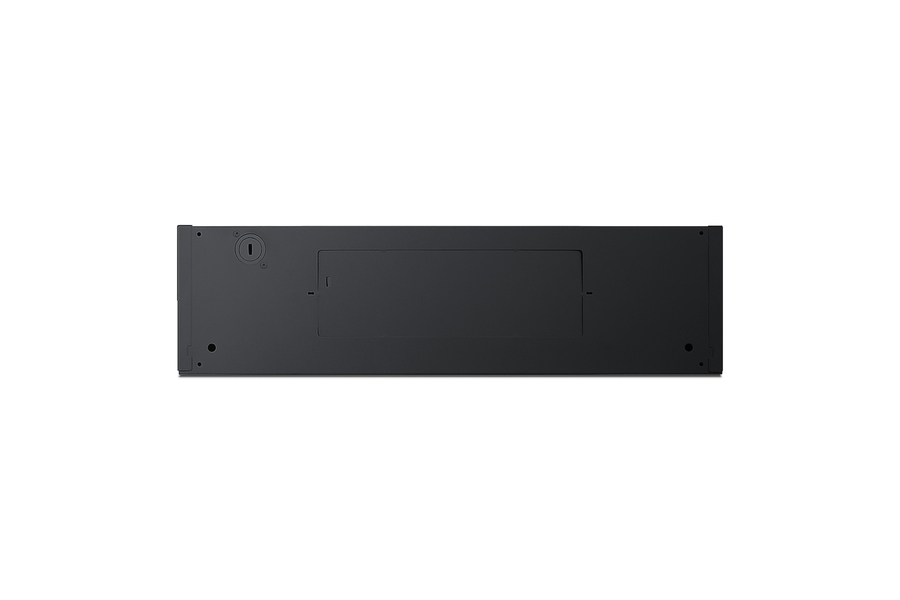

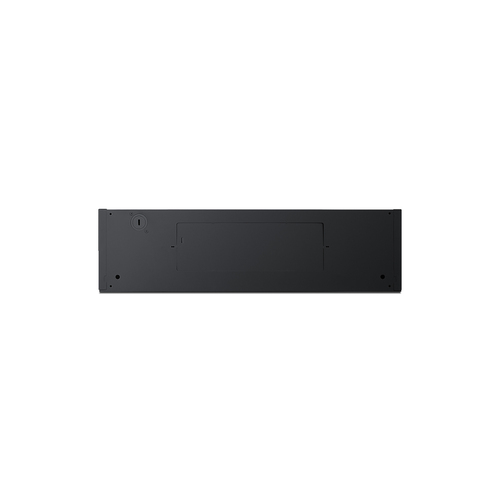

Versatile top or rear exhaust

Can be connected to 3 1/4" x 10" vertical or horizontal exterior venting or 7" round vertical (transition required for both)

Powerful ventilation

Can operate at 270 CFM to ensure thorough ventilation of your cooking surface

Angled airflow

Vents are set at a slight upwards angle, ensuring smoke and odors won't be directed towards the user

Durable 21 gauge steel construction

Powder-coated finish over steel that's 53% heavier gauge than most of the industry's under cabinet hoods

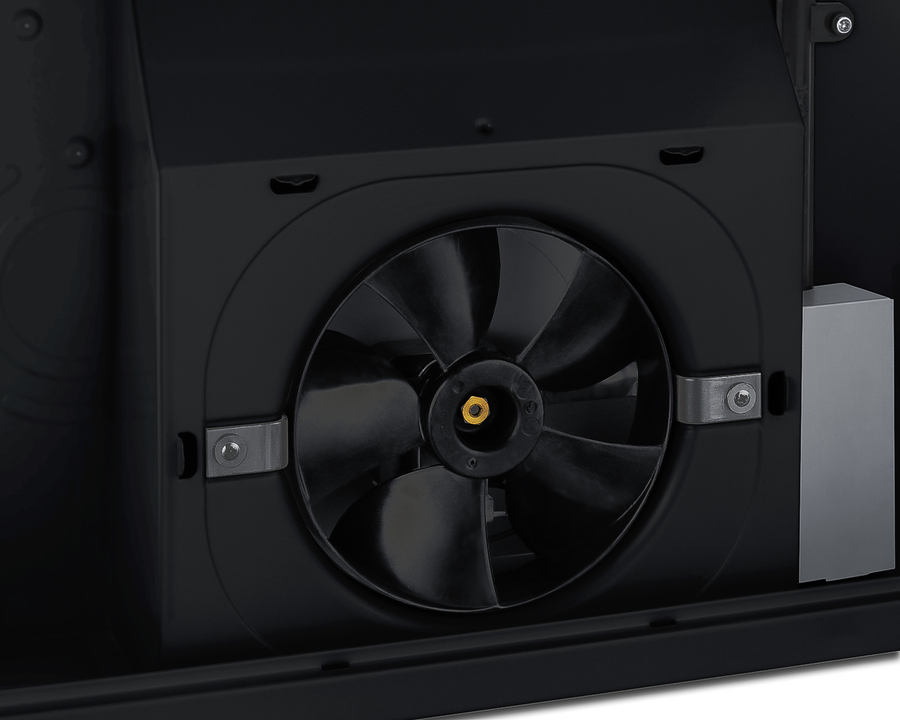

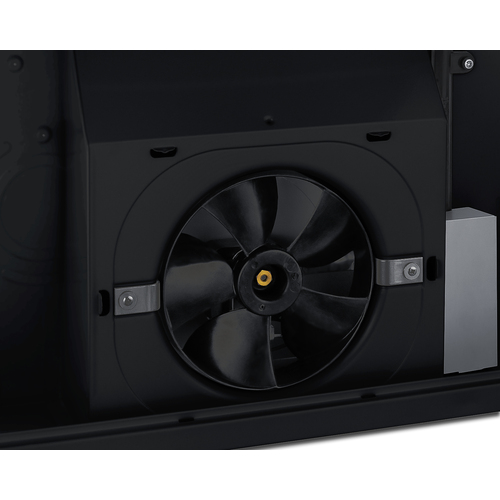

Two-speed fan

High and low setting to allow proper ventilation of your kitchen as needed

Accepts a standard bulb

Designed to hold a standard incandescent light bulb with easy installation and no tools required

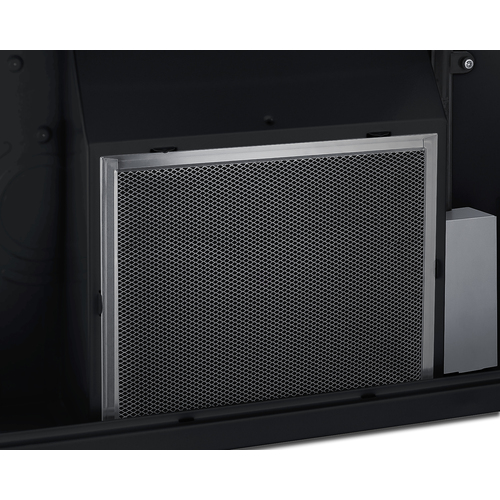

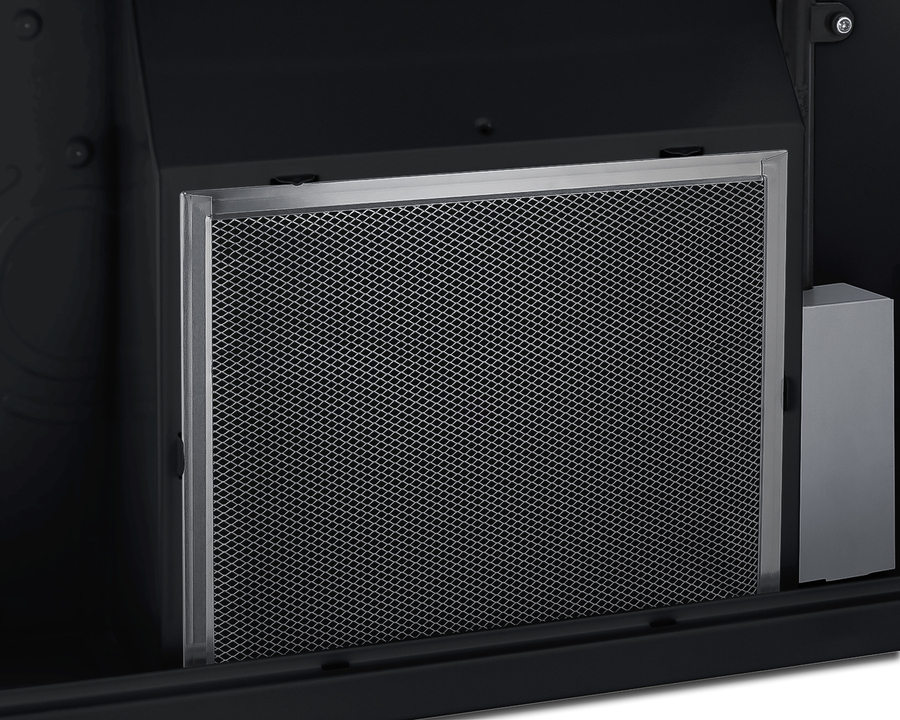

Combination charcoal/aluminum mesh filter

Aluminum filter includes charcoal filler to absorb smoke, grease, and odors for a cleaner kitchen experience

Removable filter

Snap-in design allows you to easily remove the filter for fast replacing as needed

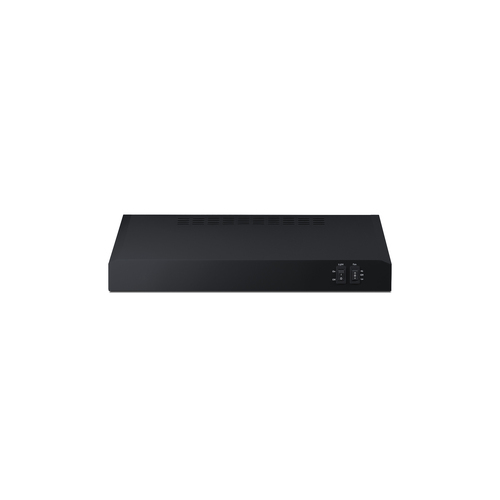

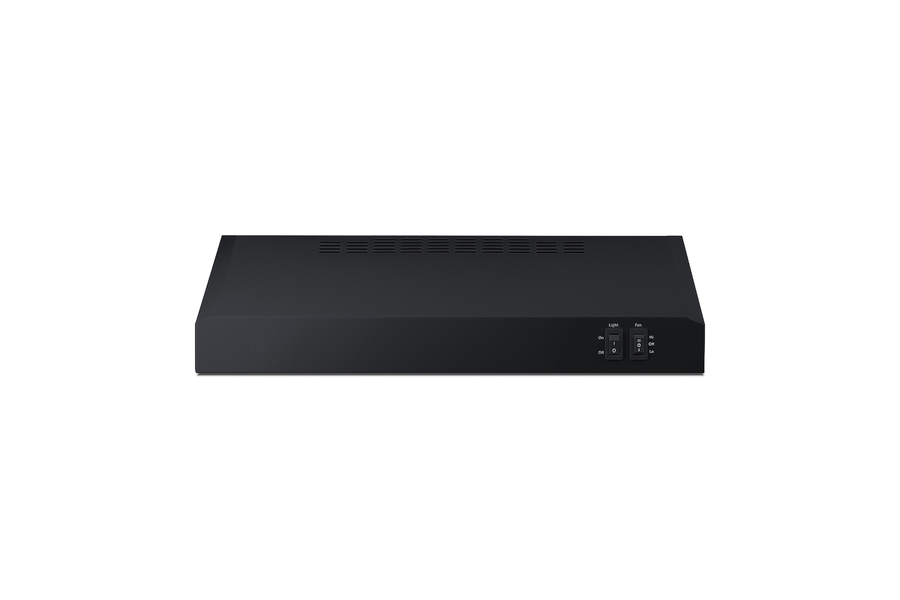

Rocker switch controls

Front-located on/off and high/low switches make it easy to manage the light and fan

Professional installation

Designed to be hard-wired by a licensed professional

Made in North America

TAA compliant

Made in North America, Summit's HC series under cabinet convertible range hoods offer versatile ventilation solutions for every kitchen space.

Model HC20BB is a 20" wide range hood ideal for apartments and other smaller kitchens. It comes in a jet black finish constructed from 21 gauge galvanized steel for a clean look and durable design. The powerful 2-speed fan is easily managed by a rocker switch with a high and low setting. This unit can operate at 270 CFM for thorough ventilation. Airflow is directed upwards at a slight angle, ensuring smoke and odors won't blow towards the home chef.

This hood ships for ductless/recirculating ventilation (where no exhaust connection to the outside is available) but is convertible for horizontal or vertical ducted ventilation (3 1/4" x 10" rectangular ducting or 7" round, transition required). We include a combination aluminum mesh/charcoal filter to absorb grease, smoke, and odors. This unit accepts a standard light bulb (not included). Both the filter and lens cover snap in place, with no tools required to change out as needed. Note: this hood does not include a power cord and is designed to be hard-wired by a licensed professional.

In addition to this range hood, Summit manufactures this series in additional colors, as well as shell hoods, wall-mounted European hoods, and island hoods in a range of styles. Browse the full Summit product line to explore your options.



Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
