12" Wide 2-Burner Gas Cooktop

SKU: GC2BGL

Made in Italy with heavy duty cast iron grates and a stunning glass surface for a modern look in small kitchens

DISCONTINUED

Width:
12 Inch 24 Inch 44 Inch

Color: Black Glass

*Additional features may vary

2.0" H x 12.25" W x 20.38" D
(5cm H x 31cm W x 52cm D)

Overview
Nominal Height	2.0" (5 cm)
Height of Cabinet	2.0" (5 cm)
Nominal Width	13.0" (33 cm)
Width	12.25" (31 cm)
Nominal Depth	21.0" (53 cm)
Depth	20.38" (52 cm)
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Voltage/Frequency	115 V AC/60 Hz
Weight	15.0 lbs. (7 kg)
Parts & Labor Warranty	1 Year
UPC	761101023991
Gas Cooktop
Ignition	Spark
LP Convertible	Yes
Number of Burners	2
Controls	Dial
Surface	Glass
Grate Material	Cast Iron
Cutout Height	2.5" (6 cm)
Cutout Width	11.0" (28 cm)
Cutout Depth	18.88" (48 cm)
Burner #1 BTU	3400.0
Burner #2 BTU	8350.0
Power Cord Included	Yes

Sealed Sabaf® burners

Quality burners with cast iron tops ensure lasting durability and easier cleanup

Range of power output

Includes one 8,350 BTU and one 3,400 BTU burner to meet all cooking needs

Smooth EuroKera® black ceramic surface

Elite construction with modern elegance

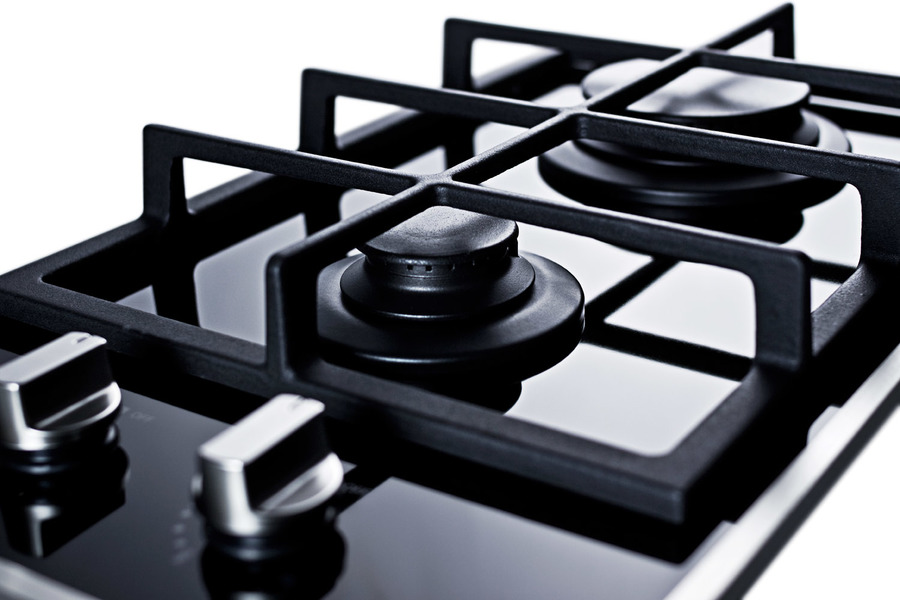

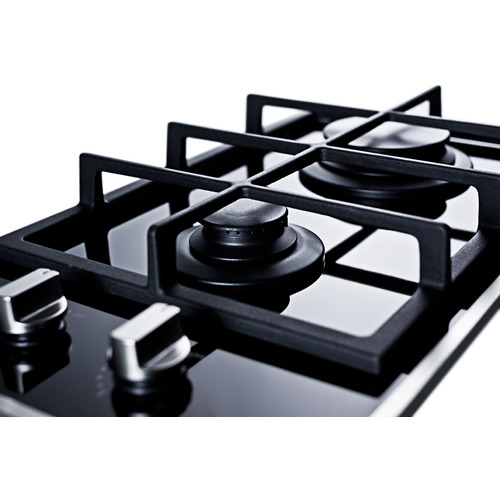

Continuous cast iron grates

Solid grates make it easy to slide cookware to different burners

Thermocouple flame failure protection

Automatically turns gas off after 12 seconds if flame is extinguished

Conversion kit included

Unit is preset for natural gas but can be converted to LP with included kit

Designed for built-in installation

Cutout dimensions: 2 1/2" H x 11" W x 18 7/8" D

Made in Italy for SUMMIT, our deluxe gas-on-glass cooktops offer the ideal cooking experience for modern kitchens.

The GC2BGL is a two-burner gas cooktop with a black ceramic glass surface for a sleek look that's easy to clean, with stainless steel trim around the edge. Continuous cast iron grates let you slide cookware back and forth for added convenience. The combination of one 8,350 BTU and a 3,400 BTU  burner allows you to accommodate all sorts of cooking, from a sauté to gentle simmer. The sealed Sabaf® burners feature cast iron tops for lasting durability and easy cleanup.

The GC2BGL uses electronic spark ignition and comes preset for natural gas operation. We include a conversion kit that lets you adjust for LP gas. Safety features include push-to-turn knobs, sealed burners, and a thermocouple flame failure protection to ensure gas will turn off if the flame is extinguished.

BROCHURE w/ DRAWINGS
GC2BGL.pdf

ASSEMBLY DRAWING
GC2BGLASSY2.pdf

ASSEMBLY DRAWING
GC2BGLASSY.pdf

REVIT MODEL
QF_Summit_GC2BGL_Cooktop_With_Sealed_Burners.rfa

USE & CARE
GC2BGL-User-Manual.pdf

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.
