22" Wide All-Freezer

SKU: FS603L

Copper handle
Add a naturally antimicrobial copper handle for added protection against germs and bacteria.

Made in North America with 20 years of proven reliability

33.63" H x 21.38" W x 25.75" D

(85cm H x 54cm W x 65cm D)

OVERVIEW

  • Side-mounted lock for security with convenience
  • Made in North America
  • Door racks and open shelves for convenient storage
  • Large 5 c.f. storage capacity in slim 22 inch width

SPECIFICATIONS

Overview
Height of Cabinet 33.13" (84 cm)
Height to Hinge Cap 33.63" (85 cm)
Width 21.38" (54 cm)
Depth 25.75" (65 cm)
Depth with door at 90° 44.5" (113 cm)
Capacity 5.0 cu.ft. (142 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 301.0kWh/year
Amps 1.1
Weight 90.0 lbs. (41 kg)
Shipping Weight 93.0 lbs. (42 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible No
Interior Height 29.5" (75 cm)
Interior Width 18.63" (47 cm)
Interior Depth 19.0" (48 cm)
Shelf Type Wire
Shelf Qty 2
Full Door Shelves 3
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 2.5 oz.
High Side PSI 235.0
Low Side PSI 130.0
Compressor Step Height 7.5" (19 cm)
Compressor Step Width 18.63" (47 cm)
Compressor Step Depth 4.0" (10 cm)

AVAILABLE UPGRADES

Handle
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
Exterior
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Extra key
Extra keys available for purchase
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
CAS6 6" casters
6" high NSF listed casters
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
AC Keypad
Keypad door lock powered by appliance power cord for keyless security
KEYPAD
Battery-powered keypad door lock installed for keyless security
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

Accucold by Summit Appliance offers a quality line of counter height refrigerators and freezers designed for reliable cooling in general purpose applications.

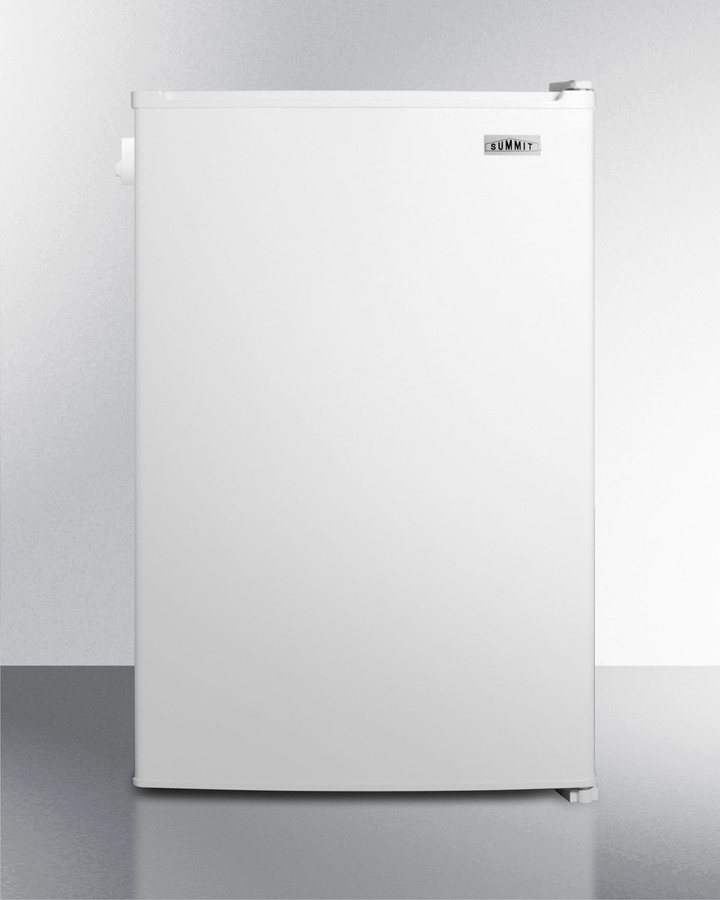

The FS603L is a freestanding all-freezer with a full 5 cu.ft. capacity inside a slim 22" width. This unit utilizes static manual defrost operation for optimum cooling. Fixed shelves include cooling coils, with three door racks for added storage convenience.

This unit comes in a textured white finish with a right hand door swing. A side-mounted keyed lock offers added security.

FEATURES

Slim counter height dimensions
Just 22 inches wide for easy placement in any small location
Fully finished white cabinet
Allows the unit to be used freestanding
Side-mounted lock
Keep contents secure with a key lock
Manual defrost
No temperature fluctuations with an energy efficient manual defrost system
Open shelves
Fixed shelves accommodate large items
Door shelves
Three racks for added storage options
Adjustable thermostat
Manage the interior temperature with ease and accuracy
100% CFC free
Environmentally friendly design without ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 33.13" (84 cm)
Height to Hinge Cap 33.63" (85 cm)
Width 21.38" (54 cm)
Depth 25.75" (65 cm)
Depth with door at 90° 44.5" (113 cm)
Capacity 5.0 cu.ft. (142 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 301.0kWh/year
Amps 1.1
Weight 90.0 lbs. (41 kg)
Shipping Weight 93.0 lbs. (42 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible No
Interior Height 29.5" (75 cm)
Interior Width 18.63" (47 cm)
Interior Depth 19.0" (48 cm)
Shelf Type Wire
Shelf Qty 2
Full Door Shelves 3
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 2.5 oz.
High Side PSI 235.0
Low Side PSI 130.0
Compressor Step Height 7.5" (19 cm)
Compressor Step Width 18.63" (47 cm)
Compressor Step Depth 4.0" (10 cm)

AVAILABLE UPGRADES

Handle
CP Full-Length Copper Pipe Handle
Factory-installed full-length handle made from pure copper for antimicrobial protection
TBC Copper Towel Bar Handle
Factory-installed handle made from pure copper for antimicrobial protection
Exterior
DL1 - Factory installed data logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
HG - Hospital grade cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
Latch for door
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
Extra key
Extra keys available for purchase
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
CAS6 6" casters
6" high NSF listed casters
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
TT - Installed thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
AC Keypad
Keypad door lock powered by appliance power cord for keyless security
KEYPAD
Battery-powered keypad door lock installed for keyless security

DOWNLOADS

Download
BROCHURE
FS603L.pdf
Download
USE & CARE
FS603Manual.pdf
Download
MSDS INFORMATION
MSDS_R134a_PS.pdf
Energy Guide
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
