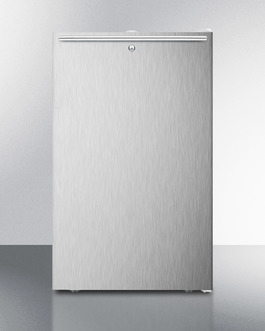

20" Wide All-Freezer, ADA Compliant

SKU: FS407LSSHHADA
Slim 20" fit with interior basket drawers for optimum cold storage
DISCONTINUED- REPLACED BY ALFZ36SSHV
32.5" H x 19.25" W x 21.38" D
(83cm H x 49cm W x 54cm D)

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.5" (83 cm)
Width 19.25" (49 cm)
Depth 21.38" (54 cm)
Depth with door at 90° 39.5" (100 cm)
Capacity 2.8 cu.ft. (79 L)
Defrost Type Manual
Door Stainless Steel
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.6
Voltage/Frequency 115 V AC/60 Hz
Weight 64.0 lbs. (29 kg)
Shipping Weight 67.0 lbs. (30 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101041568
Freezer
Door Swing RHD
Reversible Yes
Interior Height 26.38" (67 cm)
Interior Width 14.0" (36 cm)
Interior Depth 16.75" (43 cm)
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 3.0 oz.
High Side PSI 210.0
Low Side PSI 105.0
Level Legs 2
Interior Drawers Yes
Drawers Qty 4

Exterior
Latch - Factory-installed door latch requires manual release to open unit
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
LHD - Left hand door swing
Door reversal to left hand swing
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
Alarm/Thermometer - Factory-installed alarm with external temperature readout
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
DT - Digital thermostat
Install a digital thermostat with external readout for precise temperature management
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
Lock
AC Keypad - AC powered keypad lock
Keypad door lock powered by appliance power cord for keyless security
KEYPAD - Battery-powered keypad door lock
Battery-powered keypad door lock installed for keyless security

ADA compliant

32" high meets ADA guidelines

Slim 20" width

2.8 cu.ft. capacity inside a slim footprint

Fully finished white cabinet

Allows the unit to be used freestanding

Factory installed lock

Top-mounted for convenient security

Stainless steel wrapped door

Durable 304 grade wrapping

Professional horizontal handle

Thin 14mm diameter on stainless steel handle, mounted horizontally on the door

Manual defrost

Efficient performance with reliable temperature stability

-20º capable

Low temperature capability ideal for certain sensitive items

Pull-out drawers

Four clear baskets for convenient and separated storage

Adjustable thermostat

Rear mounted to prevent accidental adjustments

Flat door liner

Easy to clean, with more depth for storage

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

Matching refrigerator available

Pair with FF511LSSHHADA for a complete ADA compliant set

SUMMIT offers a quality selection of ADA compliant 20" wide low temperature all-freezers with the 32" high FS407LADA series.

The FS407LSSHHADA is an all-freezer, with manual defrost operation and 2.8 cu.ft. capacity.  Designed to operate colder than normal household freezers (-20ºC), the FS407LSSHHADA is ideal for storing select pharmaceuticals, physical therapy samples, frozen food, and other temperature sensitive materials. Four pull-out drawers with clear fronts offer convenient storage solutions. The adjustable thermostat is located in the rear of the model.

Designed for freestanding use, the FS407LSSHHADA has a white cabinet with a professional style stainless steel wrapped door and sleek horizontal handle. A top-mounted lock adds convenient security.

Sized just under 20" wide, the freestanding FS407LSSHHADA has a 32" height to meet ADA guidelines for lower counters. This model can be paired with the FF511LSSHHADA auto defrost all-refrigerator to create a matching set. For a built-in version of this model, see the FS407LBISSHHADA.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
