Height of Cabinet 33.5" (85 cm)
Height to Hinge Cap 34.0" (86 cm)
Width 19.25" (49 cm)
Depth 21.38" (54 cm)
Depth with door at 90° 39.5" (100 cm)
Capacity 2.8 cu.ft. (79 L)
Defrost Type Manual
Door Stainless Steel
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 1.6
Voltage/Frequency 115 V AC/60 Hz
Weight 64.0 lbs. (29 kg)
Shipping Weight 85.0 lbs. (39 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Door Swing RHD
Reversible Yes
Interior Height 26.38" (67 cm)
Interior Width 14.0" (36 cm)
Interior Depth 16.75" (43 cm)
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 3.0 oz.
High Side PSI 210.0
Low Side PSI 105.0
Level Legs 2
Interior Drawers Yes
Drawers Qty 4


DL2 Temperature Logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
TT Thermometer
ISO-17025 calibrated thermometer with glycol bottle provides temperature readout on the door; specify Farenheit or Celsius display upon order
PH - Probe Hole
Factory installed probe hole for customer supplied monitoring devices
DT Digital Thermostat
Install a digital thermostat with external readout for precise temperature management
CAS6 6" casters
6" high NSF listed casters
CAS3 3" casters
3" high NSF listed casters designed for institutional use, made from non-marring hard rubber in gray finish
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
Door reversal to left hand swing
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM Humidity Sensor
Humidity sensor with min/max readout
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Agion Door
Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Extra keys available for purchase

California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

FS407LSSHH Matching refrigerator 1fb6556d9b0cb2e64cec9dc4031ce73c627b001b680e10e944813b0725db703e

Slim 20" fit with interior basket drawers for optimum cold storage

34.0" H x 19.25" W x 21.38" D



Invalid Format
SUMMIT offers a quality selection of 20" wide low temperature all-freezers with the counter height FS407L series.

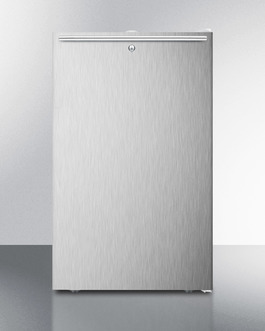

The FS407LSSHH is a counter height all-freezer, with manual defrost operation and 2.8 cu.ft. capacity. Designed to operate colder than normal household freezers (-20ºC), the FS407LSSHH is ideal for storing select pharmaceuticals, physical therapy samples, frozen food, and other temperature sensitive materials. Four pull-out drawers with clear fronts offer convenient storage solutions. The adjustable thermostat is located in the rear of the model.

Designed for freestanding use, the FS407LSSHH has a white cabinet with a professional style stainless steel wrapped door and sleek horizontal handle. A top-mounted lock adds convenient security.

Sized just under 20" wide, the freestanding FS407LSSHH can be paired with our FF511LSSHH auto defrost all-refrigerator to create a matching set. For a built-in version of this model, see the FS407LBISSHH.


Slim 20" width
2.8 capacity inside a slim footprint
Fully finished white cabinet
Allows the unit to be used freestanding
Factory installed lock
Top-mounted for convenient security
Stainless steel wrapped door
Durable 304 grade wrapping
Professional horizontal handle
Thin 14mm diameter on stainless steel handle, mounted horizontally on the door
Manual defrost
Efficient performance with reliable temperature stability
-20º capable
Low temperature capability ideal for certain sensitive items
Pull-out drawers
Four clear baskets for convenient and separated storage
Adjustable thermostat
Rear mounted to prevent accidental adjustments
Flat door liner
Easy to clean, with more depth for storage
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
Matching refrigerator available
Pair with FF511LSSHH all-refrigerator for a complete set
