20" Wide Built-In All-Freezer, ADA Compliant

SKU: FS407LBI7SSTBADA

Commercial meets nsf
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

Slim 20" fit with interior basket drawers for optimum cold storage

32.5" H x 19.25" W x 21.38" D

(83cm H x 49cm W x 54cm D)

OVERVIEW

  • ETL-S listed for commercial use
  • 32" height fits under lower ADA compliant counters
  • Flexible design allows built-in or freestanding use in 20" wide spaces
  • Factory installed lock provides security you can count on
  • -20º C capable with interior slide-out drawers for easy storage
  • Professional style with 304 grade stainless steel wrapped door and curved towel bar handle
  • Includes a hospital grade cord with a 'green dot' plug

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.5" (83 cm)
Width 19.25" (49 cm)
Depth 21.38" (54 cm)
Depth with door at 90° 39.5" (100 cm)
Capacity 2.8 cu.ft. (79 L)
Defrost Type Manual
Door Stainless Steel
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.6
Voltage/Frequency 115 V AC/60 Hz
Weight 64.0 lbs. (29 kg)
Shipping Weight 67.0 lbs. (30 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 26.38" (67 cm)
Interior Width 14.0" (36 cm)
Interior Depth 16.75" (43 cm)
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 3.0 oz.
High Side PSI 210.0
Low Side PSI 105.0
Level Legs 2
Interior Drawers Yes
Drawers Qty 4

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.

WHERE TO BUY

Invalid Format

DESCRIPTION

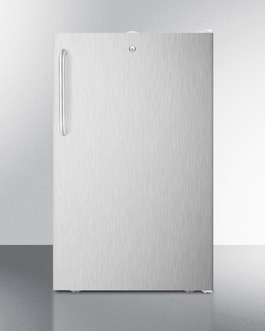

Accucold by Summit Appliance FS407LBI7ADA Series offers a quality selection of 20" wide all-freezers for built-in use under ADA compliant counters.

The ETL-S listed FS407LBI7SSTBADA is a manual defrost all-freezer with 2.8 cu.ft. capacity. Four pull-out drawers with clear fronts offer convenient storage solutions. The adjustable thermostat is located in the rear of the model and a hospital grade (green dot) cord offers additional safety in high traffic areas. This model has a white cabinet with a 304 grade stainless steel wrapped door and curved towel bar handle. A top-mounted lock adds convenient security.

Sized at 32" high and just under 20" wide, the FS407LBI7SSTBADA is designed to fit under lower ADA compliant counters. This unit can be used built-in or freestanding and can be paired with our auto defrost FF511LBI7SSTBADA all-refrigerator.

FEATURES

ADA compliant
32" high to fit under lower ADA compliant counters
Commercially listed
ETL-S listed to NSF standards for commercial use
Slim 20" width
2.8 capacity inside a slim footprint
Built-in capable
Make the best use of space by installing your appliance under the counter
Fully finished white cabinet
Allows the unit to be used freestanding
Stainless steel wrapped door
Durable 304 grade wrapping
Professional towel bar handle
A curved stainless steel handle provides generous room for a comfortable grip
Factory installed lock
Top-mounted for convenient security
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
Manual defrost
Efficient performance with reliable temperature stability
-20º capable
Low temperature capability ideal for certain sensitive items
Pull-out drawers
Four clear baskets for convenient and separated storage
Flat door liner
Easy to clean, with more depth for storage
Adjustable thermostat
Rear mounted to prevent accidental adjustments
Matching refrigerator available
Pair with FF511LBI7SSTBADA for a complete ADA compliant set
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.5" (83 cm)
Width 19.25" (49 cm)
Depth 21.38" (54 cm)
Depth with door at 90° 39.5" (100 cm)
Capacity 2.8 cu.ft. (79 L)
Defrost Type Manual
Door Stainless Steel
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.6
Voltage/Frequency 115 V AC/60 Hz
Weight 64.0 lbs. (29 kg)
Shipping Weight 67.0 lbs. (30 kg)
Estimated Time to Ship 2 to 4 days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 26.38" (67 cm)
Interior Width 14.0" (36 cm)
Interior Depth 16.75" (43 cm)
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 3.0 oz.
High Side PSI 210.0
Low Side PSI 105.0
Level Legs 2
Interior Drawers Yes
Drawers Qty 4

AVAILABLE UPGRADES

Exterior
DL2B - Factory installed NIST calibrated digital data logger (DDL)
USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
DL2 - Factory installed NIST calibrated data logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
SCD - Self-closing door
Protect interior contents and reduce energy waste with the Self Closing Door Option

DOWNLOADS

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
California residents:
Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
