SPECIFICATIONS

Overview
Height of Cabinet 32.0" (81 cm)
Height to Hinge Cap 32.5" (83 cm)
Width 19.25" (49 cm)
Depth 21.38" (54 cm)
Depth with door at 90° 39.5" (100 cm)
Capacity 2.8 cu.ft. (79 L)
Defrost Type Manual
Door Stainless Steel
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Sanitation ETL-S
Amps 1.6
Voltage/Frequency 115 V AC/60 Hz
Weight 64.0 lbs. (29 kg)
Shipping Weight 85.0 lbs. (39 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Yes
Interior Height 26.38" (67 cm)
Interior Width 14.0" (36 cm)
Interior Depth 16.75" (43 cm)
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 3.0 oz.
High Side PSI 210.0
Low Side PSI 105.0
Level Legs 2
Interior Drawers Yes
Drawers Qty 4

AVAILABLE UPGRADES

Exterior
DL2 Temperature Logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

FS407LBI7SSHHADA Matching refrigerator 1fb6556d9b0cb2e64cec9dc4031ce73c627b001b680e10e944813b0725db703e

Commercial meets nsf 57f181a562ef64be646d83b66028b1c5c2f384b45328a17b7b74a5f0cdc84c8e
This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.

Slim 20" fit with interior basket drawers for optimum cold storage

32.5" H x 19.25" W x 21.38" D

OVERVIEW

WHERE TO BUY

Invalid Format

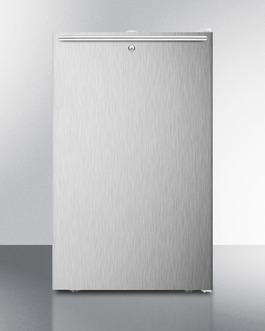

Accucold by Summit Appliance FS407LBI7ADA Series offers a quality selection of 20" wide commercial all-freezers for built-in use under ADA compliant counters.

The ETL-S listed FS407LBI7SSHHADA is a manual defrost all-freezer with 2.8 cu.ft. capacity. Four pull-out drawers with clear fronts offer convenient storage solutions. The adjustable thermostat is located in the rear of the model and a hospital grade (green dot) cord offers additional safety in high traffic areas. This model has a white cabinet with a 304 grade stainless steel wrapped door and sleek horizontal handle. A top-mounted lock adds convenient security.

Sized at 32" high and just under 20" wide, the FS407LBI7SSHHADA is designed to fit under lower ADA compliant counters. This unit can be used built-in or freestanding and can be paired with our auto defrost FF511LBI7SSHHADA all-refrigerator.

FEATURES

ADA compliant
32" high to fit under lower ADA compliant counters
Commercially listed
ETL-S listed to NSF standards for commercial use
Slim 20" width
2.8 cu.ft. capacity inside a slim footprint
Built-in capable
Make the best use of space by installing your appliance under the counter
Fully finished white cabinet
Allows the unit to be used freestanding
Stainless steel wrapped door
Durable 304 grade wrapping
Professional horizontal handle
Thin 14mm diameter on stainless steel handle, mounted horizontally on the door
Factory installed lock
Top-mounted for convenient security
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
Manual defrost
Efficient performance with reliable temperature stability
-20º capable
Low temperature capability ideal for certain sensitive items
Pull-out drawers
Four clear baskets for convenient and separated storage
Adjustable thermostat
Rear mounted to prevent accidental adjustments
Flat door liner
Easy to clean, with more depth for storage
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals
Matching refrigerator available
Pair with FF511LBI7SSHHADA for a complete ADA compliant set

DOWNLOADS

Download MSDS INFORMATION
R134a_MSDS_T.pdf
