SPECIFICATIONS
Overview | |
---|---|
Height of Cabinet | 32.0" (81 cm) |
Height to Hinge Cap | 32.5" (83 cm) |
Width | 19.25" (49 cm) |
Depth | 21.38" (54 cm) |
Depth with door at 90° | 39.5" (100 cm) |
Capacity | 2.8 cu.ft. (79 L) |
Defrost Type | Manual |
Door | Stainless Steel |
Cabinet | White |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 1.6 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 64.0 lbs. (29 kg) |
Shipping Weight | 85.0 lbs. (39 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Freezer | |
Door Swing | RHD |
Reversible | Yes |
Interior Height | 26.38" (67 cm) |
Interior Width | 14.0" (36 cm) |
Interior Depth | 16.75" (43 cm) |
Thermostat Type | Dial |
Refrigerant Type | R134a |
Refrigerant Amount | 3.0 oz. |
High Side PSI | 210.0 |
Low Side PSI | 105.0 |
Level Legs | 2 |
Interior Drawers | Yes |
Drawers Qty | 4 |
AVAILABLE UPGRADES
Exterior | ||
---|---|---|
|
California residents:
click here for information on Proposition 65
Due to our commitment to continuous product improvement, all specifications are subject to change without notice
FS407L7SSHHADA

This unit meets NSF sanitation standards for commercial use. For information on its commercial sanitation listing, see Specifications.
Slim 20" fit with interior basket drawers for optimum cold storage
32.5" H x 19.25" W x 21.38" D
OVERVIEW
- 32" height for use in ADA compliant settings
- ETL-S listed for commercial use
- Slim 20" width is ideal for any setting
- -20º C capable with interior slide-out drawers for easy storage
- Professional look with a durable stainless steel wrapped door and sleek horizontal handle
- Factory installed lock provides security you can count on
- Includes a hospital grade cord with a 'green dot' plug
WHERE TO BUY

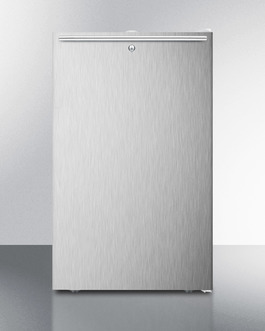

Accucold by Summit Appliance offers a quality selection of ADA compliant 20" wide commercial all-freezers with the 32" high FS407L7ADA series. The ETL-S listed FS407L7SSHHADA is an all-freezer, with manual defrost operation and 2.8 cu.ft. capacity. Four pull-out drawers with clear fronts offer convenient storage solutions. The adjustable thermostat is located in the rear of the model and a hospital grade (green dot) cord offers additional safety in high traffic areas. Designed for freestanding use, the FS407L7SSHHADA has a white cabinet with a professional style stainless steel wrapped door and sleek horizontal handle. A top-mounted lock adds convenient security. Sized just under 20" wide, the freestanding FS407L7SSHHADA has a 32" height to meet ADA guidelines for lower counters. This model can be paired with the FF511L7SSHHADA auto defrost all-refrigerator to create a matching set. For a built-in version of this model, see the FS407LBI7SSHHADA.
FEATURES
ADA compliant 32" high meets ADA guidelines |
Commercially listed ETL-S listed to NSF standards for commercial use |
Slim 20" width 2.8 cu.ft. capacity inside a slim footprint |
Fully finished white cabinet Allows the unit to be used freestanding |
Factory installed lock Top-mounted for convenient security |
Stainless steel wrapped door Durable 304 grade wrapping |
Professional horizontal handle Thin 14mm diameter on stainless steel handle, mounted horizontally on the door |
Hospital grade cord with 'green dot' plug Secure three-pronged cord for added unit safety |
Manual defrost Efficient performance with reliable temperature stability |
-20º capable Low temperature capability ideal for certain sensitive items |
Pull-out drawers Four clear baskets for convenient and separated storage |
Adjustable thermostat Rear mounted to prevent accidental adjustments |
Flat door liner Easy to clean, with more depth for storage |
100% CFC Free Environmentally friendly design with no ozone-damaging chemicals |
Matching refrigerator available Pair with FF511L7SSHHADA for a complete ADA compliant set |
