FS24LPLUS
FS24LPLUS
angle
open
full
SHARE THIS PRODUCT
E-mail a Friend Print

SPECIFICATIONS

Overview
Height of Cabinet 19.63" (50 cm)
Height to Hinge Cap 20.0" (51 cm)
Width 18.5" (47 cm)
Depth 17.63" (45 cm)
Depth with door at 90° 34.5" (88 cm)
Capacity 1.4 cu.ft. (40 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Amps 0.8
Voltage/Frequency 115 V AC/60 Hz
Weight 35.0 lbs. (16 kg)
Shipping Weight 55.0 lbs. (25 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 14.38" (37 cm)
Interior Width 13.5" (34 cm)
Interior Depth 13.25" (34 cm)
Shelf Type Wire
Shelf Qty 1
Thermostat Type Dial
Refrigerant Type R134a
Refrigerant Amount 1.5 oz.
Level Legs 2
Compressor Step Height 8.5" (22 cm)
Compressor Step Width 13.5" (34 cm)
Compressor Step Depth 6.0" (15 cm)

AVAILABLE UPGRADES

Exterior
DL2 Temperature Logger
USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout
DT Digital Thermostat
Install a digital thermostat with external readout for precise temperature management
Alarm
Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Top-mounted door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM Humidity Sensor
Humidity sensor with min/max readout
HG Cord
Add a hospital grade cord equipped with green dot plug with the HG suffix
FA Rear
Fan assisted cooling for enclosed use in cubbies or cabinets, rear breathing
FA Front
Fan assisted cooling for enclosed use in cubbies or cabinets, front breathing
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Lock
AC Keypad
Keypad lock powered by appliance power cord for keyless security
KEYPAD
Battery-powered keypad lock installed for keyless security
KEY
Extra keys available for purchase


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

FS24LPLUS

Includes NIST calibrated thermometer

20.0" H x 18.5" W x 17.63" D

OVERVIEW

WHERE TO BUY

Invalid Format
Accucold's PLUS Series freezers come specially featured for use doctors’ offices, medical clinics, nursing stations, and other general purpose facilities that require more temperature assurance than a standard freezer unit provides.

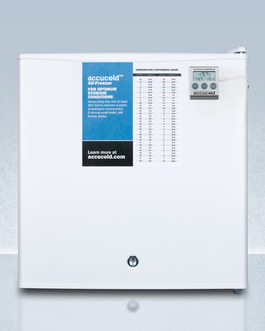

The FS24LPLUS is a compact all-freezer designed to fit easily on top of counters. It comes in a white exterior finish, with a factory installed lock and traceable thermometer that provides an external readout of the current and high/low temperatures. This unit comes with a preinstalled probe hole for users connecting their own monitoring equipment.

Inside, the FS24LPLUS offers a 1.4 cu.ft. capacity. Manual defrost utilizes static cooling to help improve temperature stability. A removable wire shelf offers storage convenience and the flat door liner conforms with the CDC's guidelines for vaccine storage. The seamless interior liner helps to simplify cleanup.


FEATURES

Compact dimensions
Ideal size for use on top of counters
Factory installed lock
Keyed security for a secure interior
NIST calibrated thermometer
Thermometer provides external readout of current and high/low temperatures
Manual defrost
Static cooling system for reduced temperature fluctuations
-20° capable
Low temperature capability ideal for certain sensitive items
Removable shelf
Includes one wire shelf for easier storage
One-piece interior liner
Seamless interior for easier cleanup
Adjustable thermostat
Dial thermostat located inside for easy temperature management
Flat door liner
Designed to comply with CDC guidelines
Access port
Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

DOWNLOADS

Download BROCHURE
FS24LPLUS.pdf
Download MSDS INFORMATION
Propylene_Glycol_SDS.pdf
Download MSDS INFORMATION
R134a_AO.pdf
