FS22L7MEDDT

DISCONTINUED- REPLACED BY FS24L7MED2

20.5" H x 17.38" W x 19.0" D

(52cm H x 44cm W x 48cm D)

OVERVIEW

  • Commercially listed to NSF-7 standards
  • Compact size is ideal for countertop use
  • -20°C capable with manual defrost operation
  • Digital thermostat allows more precision in temperature control
  • Factory installed lock provides security you can count on
  • Includes a hospital grade cord with a 'green dot' plug
  • High temperature alarm includes external temperature readout

SPECIFICATIONS

Overview
Height of Cabinet 20.13" (51 cm)
Height to Hinge Cap 20.5" (52 cm)
Width 17.38" (44 cm)
Depth 19.0" (48 cm)
Capacity 1.42 cu.ft. (40 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety CSA
Sanitation CSA-S
Amps 1.2
Voltage/Frequency 115 V AC/60 Hz
Weight 40.0 lbs. (18 kg)
Shipping Weight 55.0 lbs. (25 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 14.5" (37 cm)
Interior Width 12.38" (31 cm)
Interior Depth 14.5" (37 cm)
Shelf Type Wire
Shelf Qty 1
Thermostat Type Digital
Refrigerant Type R134a
Refrigerant Amount 1.67 oz.
High Side PSI 270.0
Low Side PSI 103.0
Level Legs 2
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 12.38" (31 cm)
Compressor Step Depth 6.0" (15 cm)

AVAILABLE UPGRADES

Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Exterior
KEY
Extra keys available for purchase
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM Humidity Sensor
Humidity sensor with min/max readout
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Agion Door
Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice

DESCRIPTION

Accucold by Summit Appliance offers MEDDT series all-freezers for stabilized temperature performance to be used in medical, scientific, pharmaceutical, and laboratory institutions.

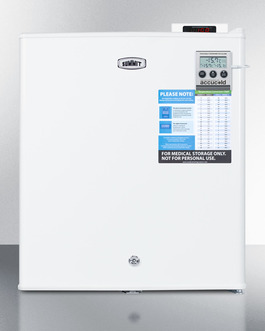

The FS22L7MEDDT is a commercially listed compact all-freezer for countertop use. The door includes a front lock and high temperature warning alarm that also displays the current and high/low temperatures. A digital thermostat offers more control in temperature management. This manual defrost freezer can reach temperatures as low as -20ºC, ideal for sensitive laboratory material or certain vaccines. Additional features include a removable shelf and a hospital grade cord with 'green dot' plug.

FEATURES

Commercially listed
CSA-S listed to NSF-7 standards
Compact dimensions
Ideal size for use on top of counters
-20° capable
Low temperature capability ideal for certain sensitive items
Manual defrost
Efficient performance with reliable temperature stability
Digital thermostat
Electronic controls for more precise temperature management
Factory installed lock
Keyed lock for secure interior
High temperature alarm
Warns of temperature fluctuations and includes an external temperature readout on the door
Hospital grade cord with 'green dot' plug
Secure three-pronged cord for added unit safety
Removable shelf
Wired shelf provided
100% CFC Free
Environmentally friendly design with no ozone-damaging chemicals

SPECIFICATIONS

Overview
Height of Cabinet 20.13" (51 cm)
Height to Hinge Cap 20.5" (52 cm)
Width 17.38" (44 cm)
Depth 19.0" (48 cm)
Capacity 1.42 cu.ft. (40 L)
Defrost Type Manual
Door White
Cabinet White
US Electrical Safety CSA
Sanitation CSA-S
Amps 1.2
Voltage/Frequency 115 V AC/60 Hz
Weight 40.0 lbs. (18 kg)
Shipping Weight 55.0 lbs. (25 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Freezer
Door Swing RHD
Reversible Factory Reversible
Interior Height 14.5" (37 cm)
Interior Width 12.38" (31 cm)
Interior Depth 14.5" (37 cm)
Shelf Type Wire
Shelf Qty 1
Thermostat Type Digital
Refrigerant Type R134a
Refrigerant Amount 1.67 oz.
High Side PSI 270.0
Low Side PSI 103.0
Level Legs 2
Compressor Step Height 7.0" (18 cm)
Compressor Step Width 12.38" (31 cm)
Compressor Step Depth 6.0" (15 cm)

AVAILABLE UPGRADES

Lock
KEYPAD
Battery-powered keypad lock installed for keyless security
AC Keypad
Keypad lock powered by appliance power cord for keyless security
Exterior
KEY
Extra keys available for purchase
SCD Self-Closing Door
Protect interior contents and reduce energy waste with the Self Closing Door Option
ODA Open Door Alarm
Add an open door alarm to audibly buzz when the door is left ajar.
LHD
Door reversal to left hand swing
Latch
Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles.
HUM Humidity Sensor
Humidity sensor with min/max readout
DL1 Temperature Logger
USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac
Agion Door
Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface


California residents:
click here for information on Proposition 65

Due to our commitment to continuous product improvement, all specifications are subject to change without notice
