24" Wide Refrigerator-Freezer with Factory-Installed Icemaker (Panel Not Included)

SKU: FFRF5IMPNRLHD
Factory-installed icemaker inside the lower freezer compartment
Estimated Time to Ship:

1 to 2 days

Door Swing:
RHD LHD
Icemaker:
With Icemaker
Color: Stainless Steel/Black

*Additional features may vary

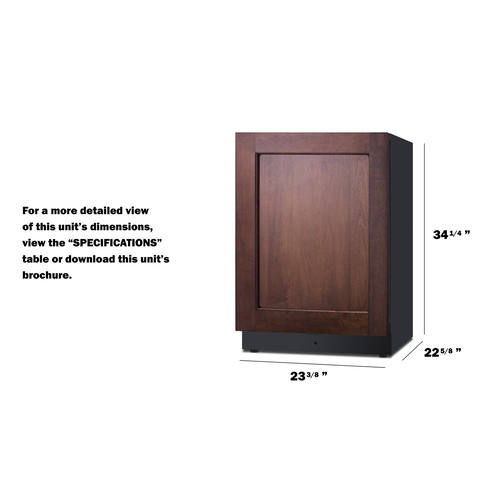

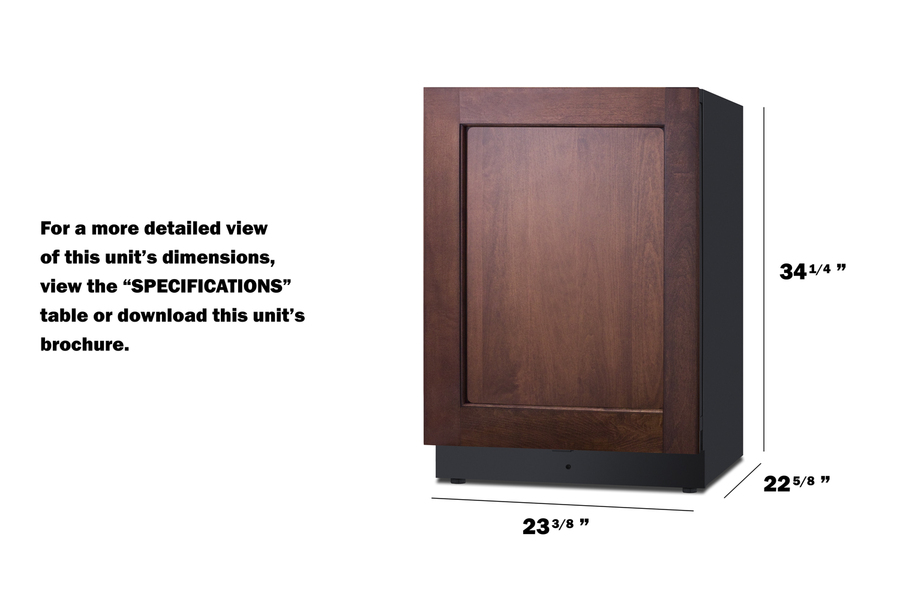

34.25" H x 23.38" W x 22.63" D
(87cm H x 59cm W x 57cm D)

Overview
Height of Cabinet 34.25" (87 cm)
Width 23.38" (59 cm)
Width with Door Open 24.13" (61 cm)
Depth 22.63" (57 cm)
Depth with Panel 22.63" (57 cm)
Depth with door at 90° 48.75" (124 cm)
Capacity 3.2 cu.ft. (91 L)
Defrost Type Automatic
Door Stainless Steel/Panel-Ready
Cabinet Black
US Electrical Safety ETL
Canadian Electrical Safety ETL-C
Energy Usage/Year 414.0kWh/year
Amps 3.0
Plug Type NEMA 5-15P (Right Angle)
Voltage/Frequency 115 V AC/60 Hz
Weight 130.0 lbs. (59 kg)
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
UPC 761101160535
Refrigerator-Freezer
Door Swing LHD
Adjustable Shelves Yes
Interior Light Yes
Refrigerator - Interior Height 10.75" (27 cm)
Refrigerator - Interior Width 18.63" (47 cm)
Refrigerator - Interior Depth 15.5" (39 cm)
Refrigerator - Capacity 1.95 cu.ft
Refrigerator - Shelf Type Glass
Refrigerator - Shelf Qty 1
Refrigerator - Full Door Shelves 1
Refrigerator - Temperature Range 36°F to 43°F
Freezer - Interior Height 10.75" (27 cm)
Freezer - Interior Width 18.63" (47 cm)
Freezer - Interior Depth 15.5" (39 cm)
Freezer - Capacity 1.25 cu.ft
Freezer - Shelf Type Glass
Freezer - Shelf Qty 1
Thermostat Type Digital
Fan Type Interior
Refrigerant Type R600a
Refrigerant Amount 1.34 oz.
Freezer - Temperature Range -11°F to 11°F
Compressor Step Height 2.5" (6 cm)
Compressor Step Width 18.63" (47 cm)
Compressor Step Depth 5.0" (13 cm)
Sabbath Mode Yes

24" Wide Built-In Refrigerator-Freezer

Undercounter 3.2 cu.ft. refrigerator-freezer with a factory-installed icemaker and lock

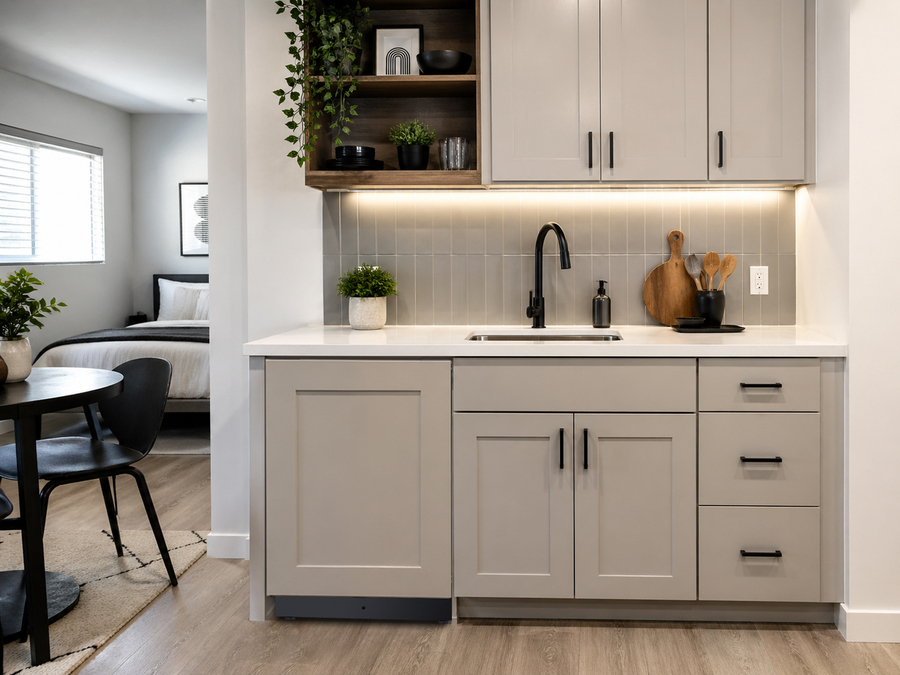

Built-in undercounter design

Front-breathing design lets you make the best use of space by installing your appliance under the counter

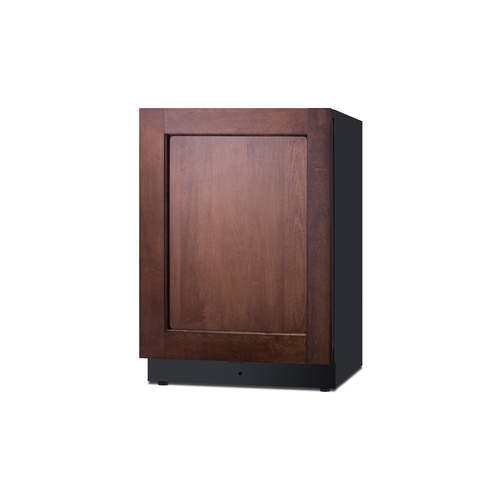

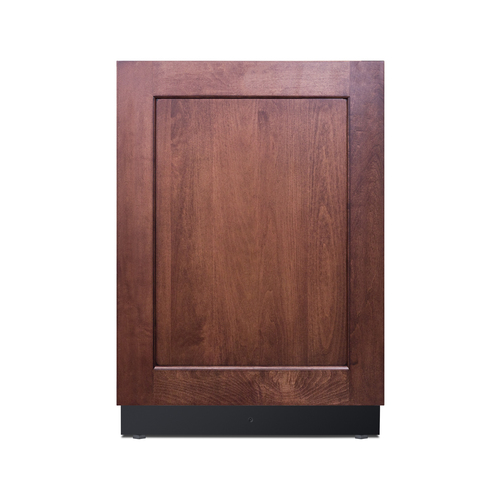

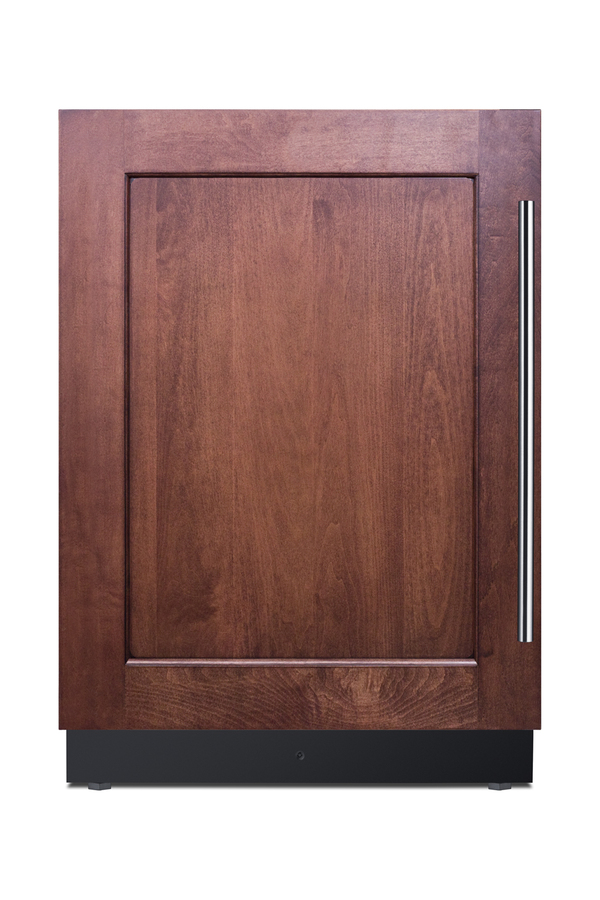

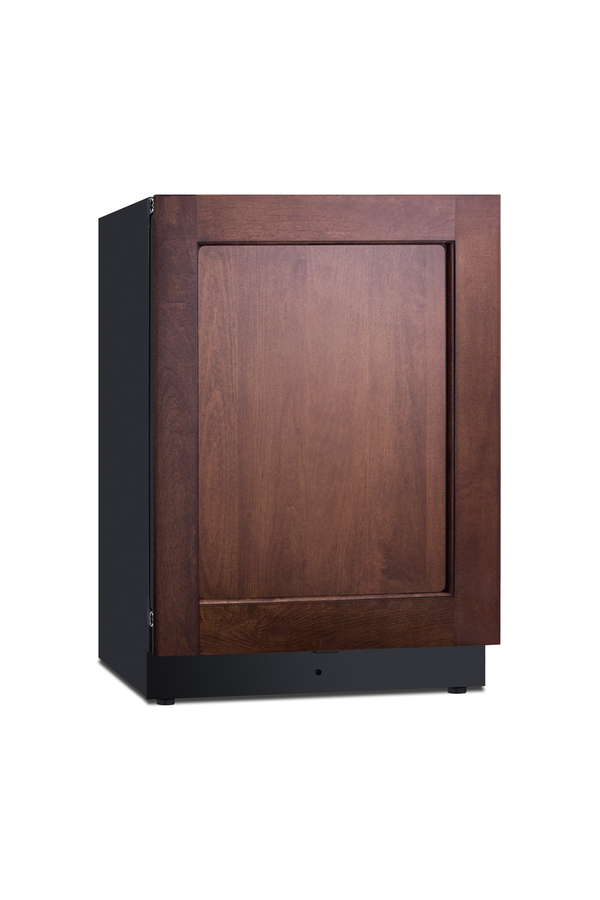

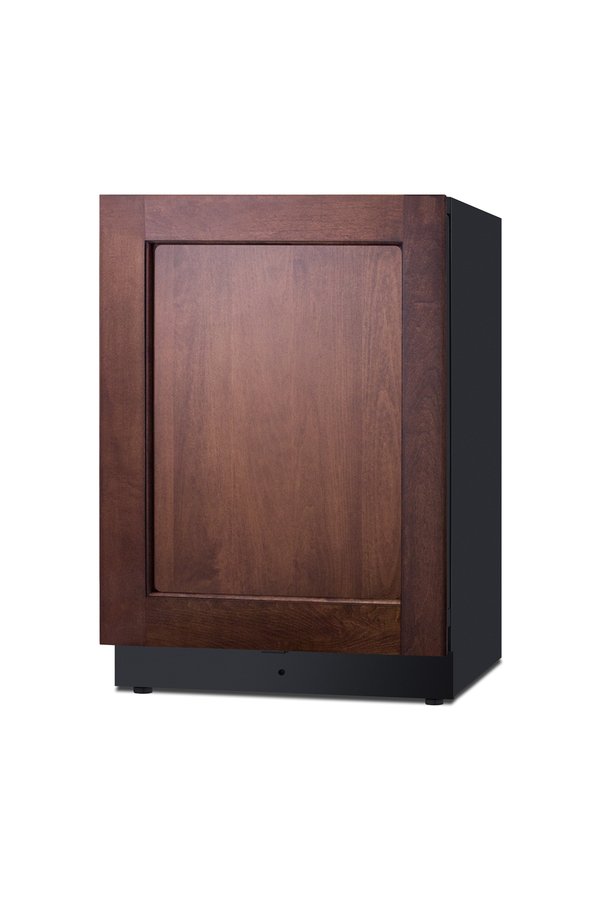

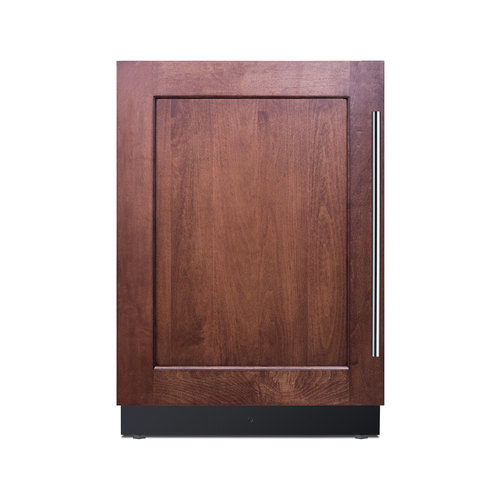

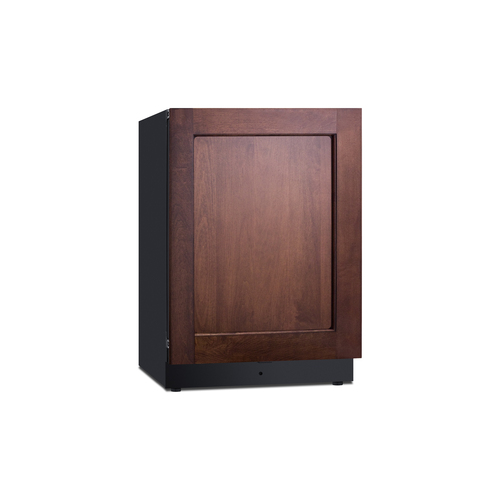

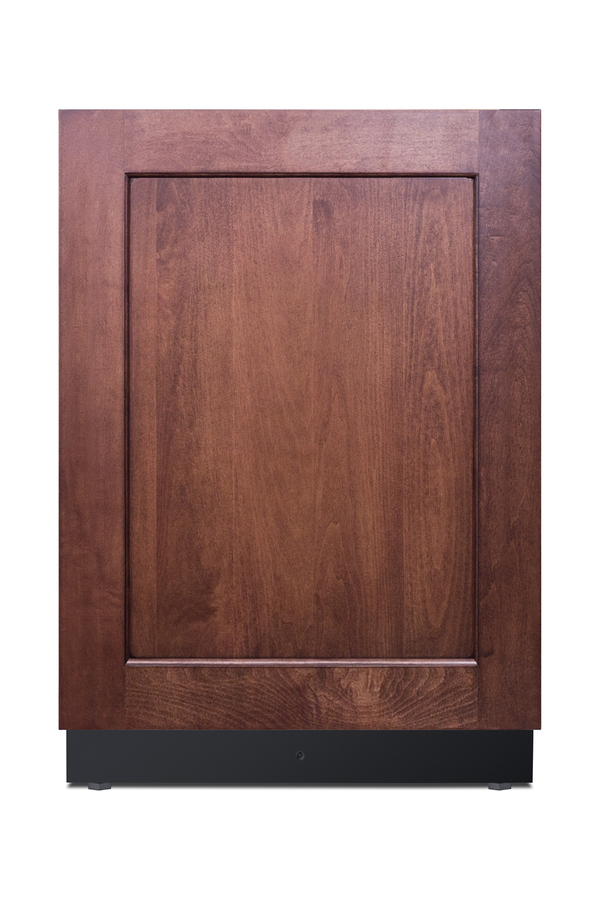

Panel-ready door

European style articulating door hinge and bracket kit allow easy installation of custom overlay panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 30" H x 23 3/8" W

Stainless steel door option

Unit ships with a stainless steel door front that you can remove to add a panel and reapply if your style changes

Frost-free operation

No-frost convenience for reduced user maintenance

Dual zone storage

Refrigerator section functions at 36 to 43ºF for fresh food and beverage storage, while the lower freezer operates between -11 and 11ºF to store ice cream, frozen meals, and more

Bottom-mount freezer

Separate freezer space provides ample storage for frozen foods

Factory-installed icemaker

Produces up to 5 lbs of crescent cubes in a day

Stainless steel finish

Door features a sleek stainless steel finish for a professional look

Digital temperature control

Intuitive digital control panel makes it easy to manage the refrigerator and freezer temperature at the touch of a button

Convertible temperature display

Temperature readout can be displayed in Fahrenheit or Celsius

High temperature alarm

Audible alarm sounds if the interior temperature rises out of range

Open door alarm

Audible alarm sounds if the door is left open for over 1 minute

Door storage

Removable refrigerator rack ideal for keeping bottles and condiments in easy reach

Adjustable glass shelves

Both refrigerator and freezer sections come with a half-sized glass shelf

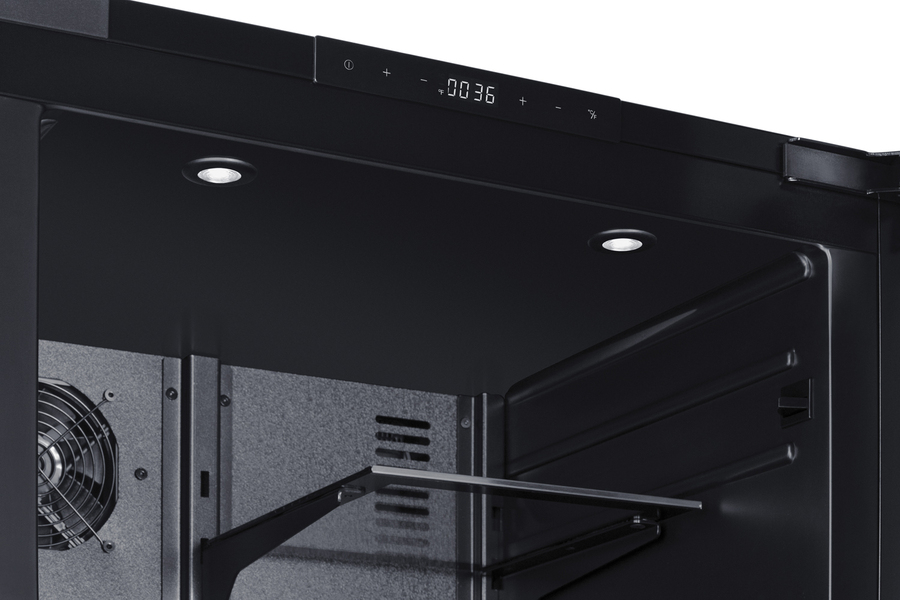

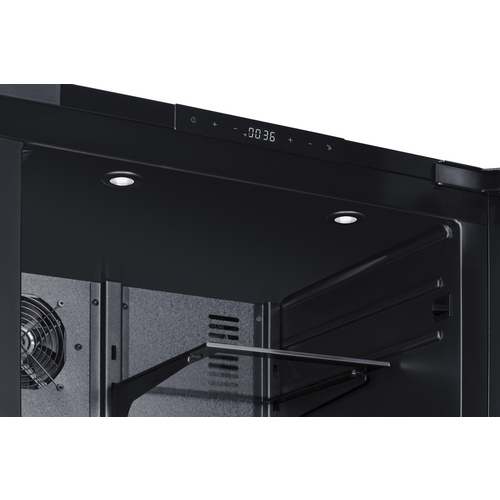

Interior LED lighting

Automatically illuminates both compartments when you open the door

Sabbath mode

Optional feature disables alarms, interior light, and displays for up to 96 hours

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Fully finished black cabinet

Allows the unit to be used freestanding

Black interior

Attractive jet black finish inside to match the cabinet and kickplate

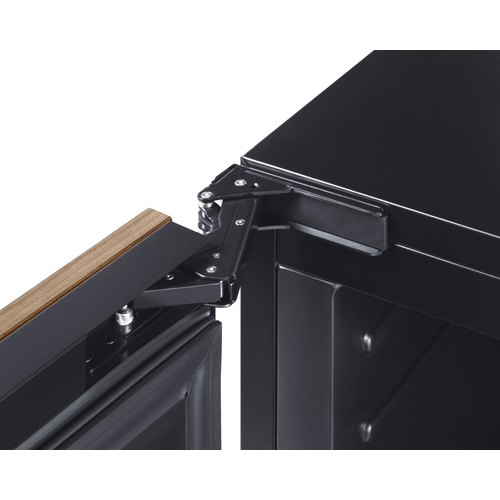

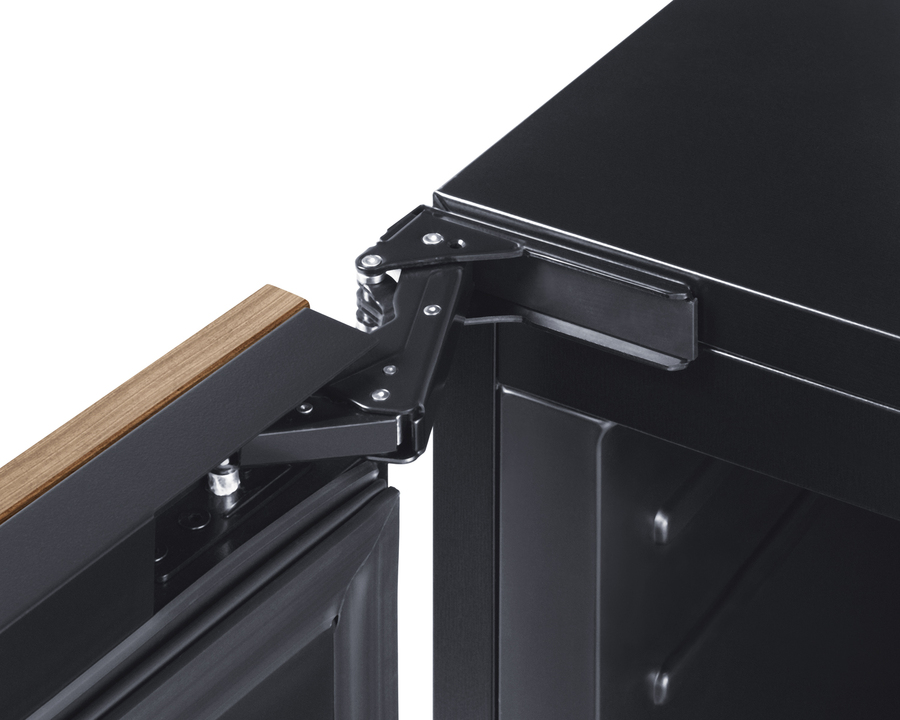

Fully articulating style hinge

European style door hinge design ensures a flush fit and allows for a smoother opening

Factory installed lock

Keyed lock for a secure interior (2 keys included)

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Anti-tip bracket

Included bracket recommended for installation to help prevent tipping for added safety

Sealed back

No exposed coils for easier cleaning and a better fit

No drain required

Convenient design allows more flexibility in positioning the unit

Left hand door swing

For this unit with a standard right hand door swing, see model FFRF5IMPNR

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Lead-free certified

Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

Summit brings quality and value under the counter with the industry’s largest collection of built-in refrigerator-freezers.

Sized at 24" wide, the FFRF5IMPNRLHD is an bottom-mount refrigerator-freezer featuring a front-breathing design that allows built-in installation under counters.  The unit has a user-reversible stainless steel door with a fully articulating European-style hinge design to ensure a smoother opening. We include a 2-piece bracket kit that allows easy installation of overlay panels to create a custom look that can blend into your existing cabinetry design. The user-reversible door swing allows easy adjustment as needed.  To complete the look, the model also includes a pro-style handle and a fully finished black cabinet, enabling freestanding use. A factory-installed lock adds enhanced security, while the sealed rear and right-angle plug offer a better fit. This unit comes with a left-hand door swing. For a right-hand version, see the FFRF5IMPNR.

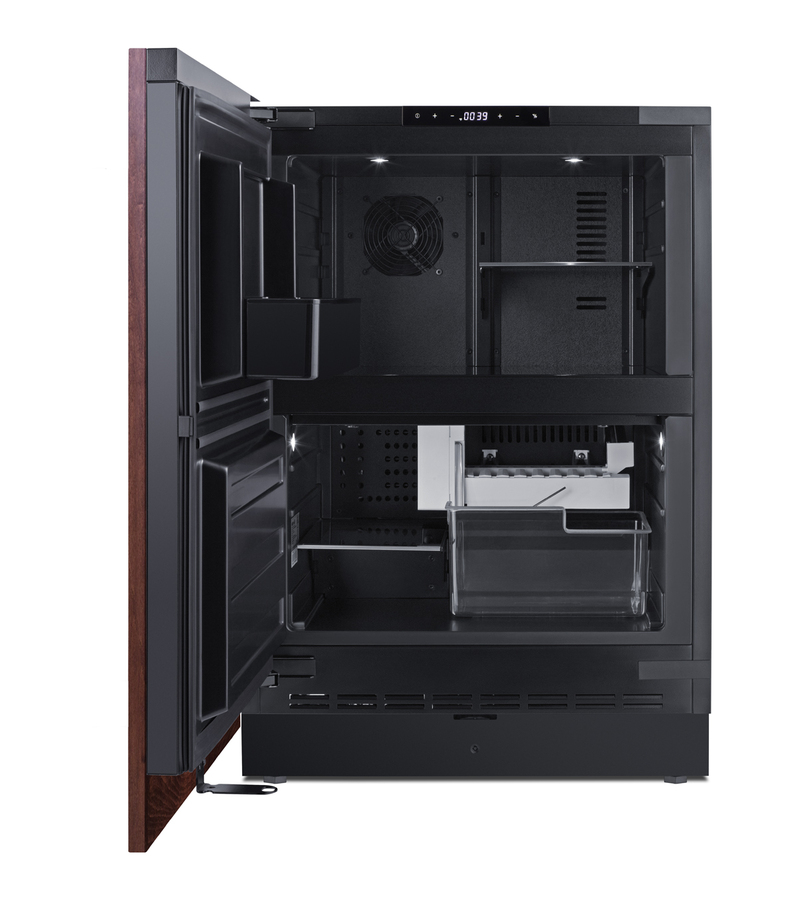

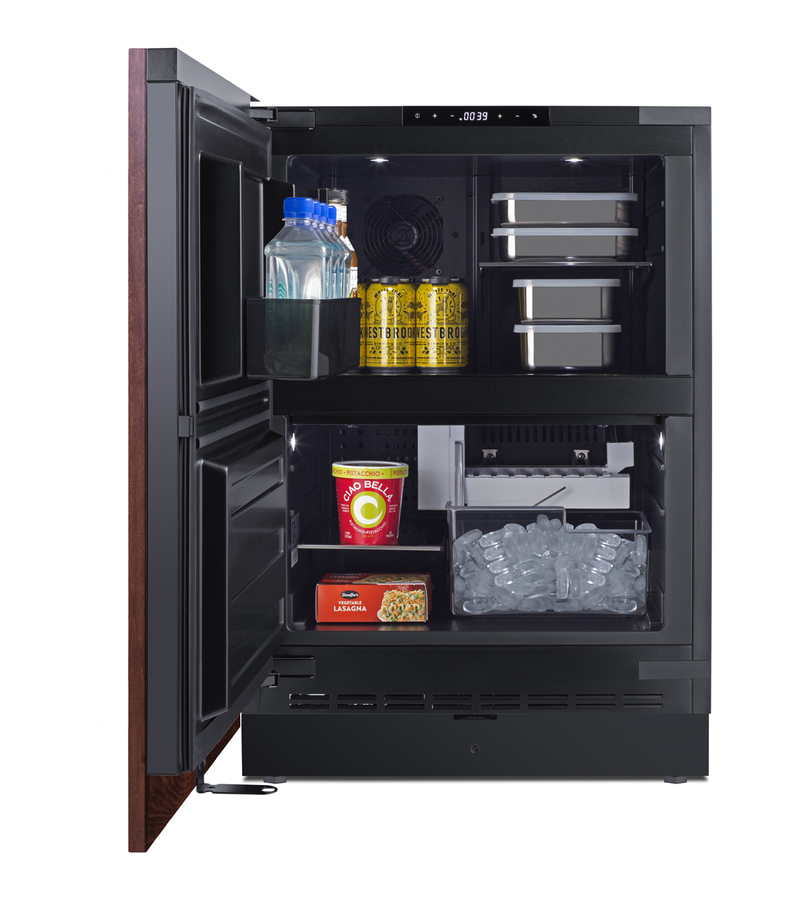

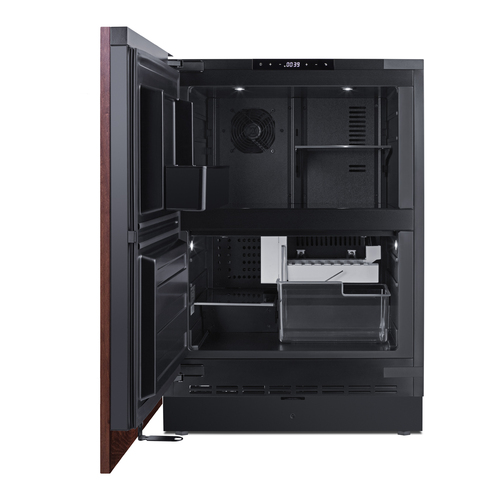

Inside, this model features a frost-free freezer compartment, and above is a fresh food refrigerator compartment. Both sections include LED lighting. An innovative touch control system lets you manage both the refrigerator and freezer temperature with an intuitive digital thermostat. The readout can be viewed in Fahrenheit or Celsius. This unit includes an optional Sabbath mode setting to allow users to disable certain functions during periods of religious observance. Audible alarms sound if the door is left open for over a minute or if the temperature is not cold enough.

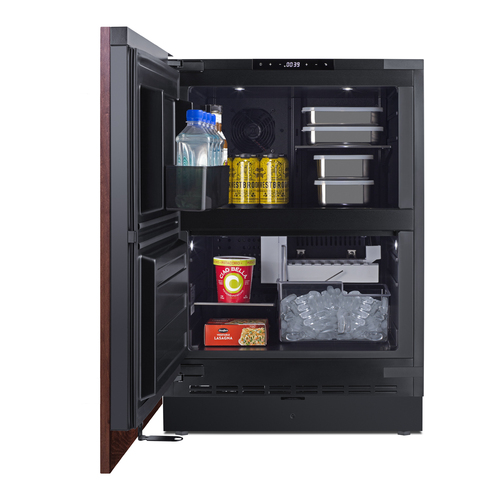

The upper refrigerator compartment includes one adjustable glass shelf for cleaner, spill-proof storage of small fresh food items. A large removable door rack offers additional storage ideal for condiments and beverages. An internal fan assures the compartment is cooled evenly from top to bottom.  This section is designed to function at 36 to 43°F to store food and beverages.

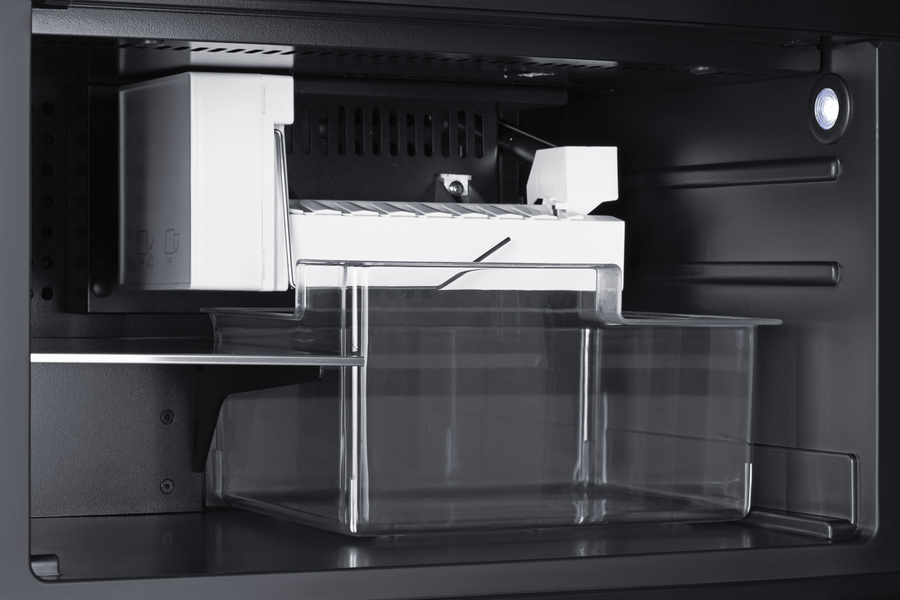

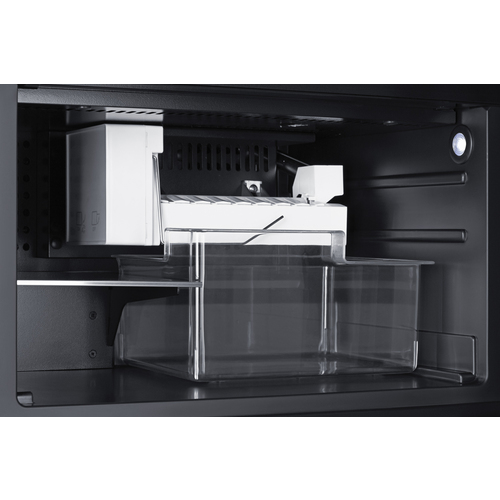

The lower freezer compartment is equipped with a factory-installed icemaker that produces up to 5 lbs. of crescent ice cubes per day. No drain is required . The freezer operates between -11 and +11ºF. A half-sized glass shelf is included to help store small frozen meals or ice cream on the other side of the icemaker.

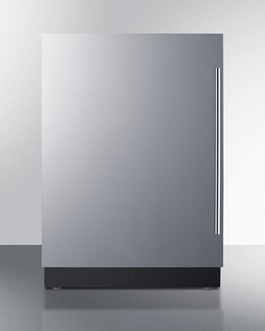

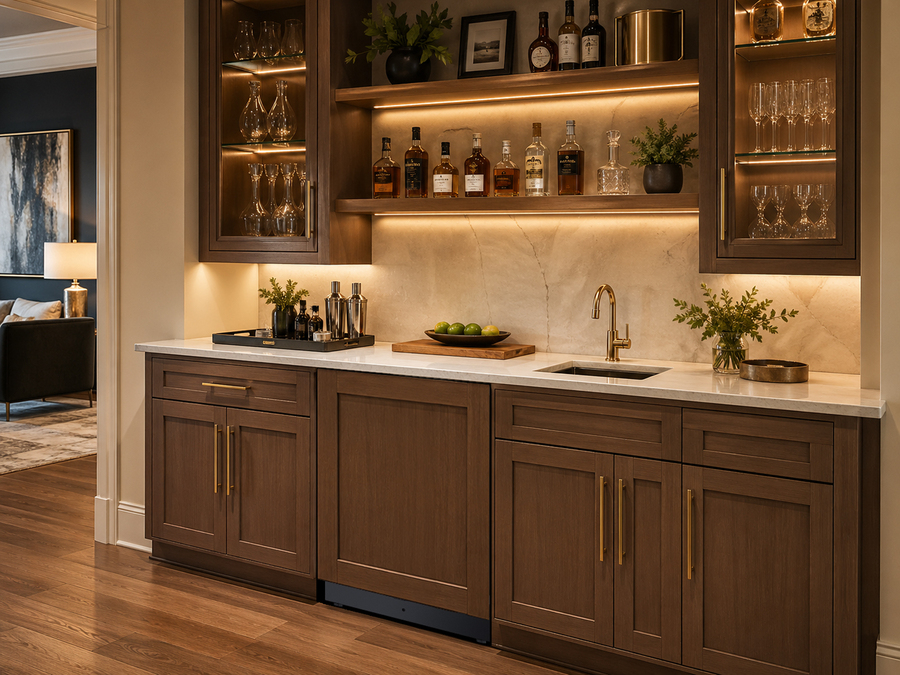

The FFRF5IMPNRLHD is ETL listed to UL standards for residential use. With its versatile performance, professional finish, and pre-installed icemaker, this refrigerator-freezer is a convenient option for small apartments, second kitchens, tiny homes, home bars, offices, and other settings in need of all-in-one storage under the counter. For a stainless steel version, see model, FFRF5IMLHD.

Additional choices for under the counter are available, including ADA compliant models, French door refrigerator-freezers, and more. Browse the full Summit catalog to discover the perfect appliance for your refrigeration needs.

Due to our commitment to continuous product improvement, all specifications are subject to change without notice.

California residents:

Warning WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
Note: Nickel is a component of stainless steel.
